  • 11KW 250ZJY 380v Xinyuhai AC Asynchronous Spindle Servo Motor for CNC Machinery
11KW 250ZJY 380v Xinyuhai AC Asynchronous Spindle Servo Motor for CNC Machinery
11KW 250ZJY 380v Xinyuhai AC Asynchronous Spindle Servo Motor for CNC Machinery

11KW 250ZJY 380v Xinyuhai AC Asynchronous Spindle Servo Motor for CNC Machinery

Share on (1600672851636):


Price:

Quantity:


Product Overview

Description



Specification


item
value
Warranty
3months-1year
Place of Origin
China
Zhejiang
Brand Name
Xinyuhai
Model Number
250ZJY-4-11-15
Type
Spindle Servo Motor
Voltage
380V
Torque
70.0 N.m
Rated Power
11KW
Rated Current
22.0A
Stator Inertia
0.014 G.D2


Utilization Environment
0-55℃
Pole Pairs
4
Incremental Encoder Wire
1024/2500PPR
Humidity
<90%
Insulation Class
F
Protection Class
P54
Insulation Dielectric
AC1500V, 1min
Insulation Resistance
DC500V, >10Ω
Vibration
<2.5G
Altitude
<1000m
Working Type
Continuous
Installment
Flange


Product Description

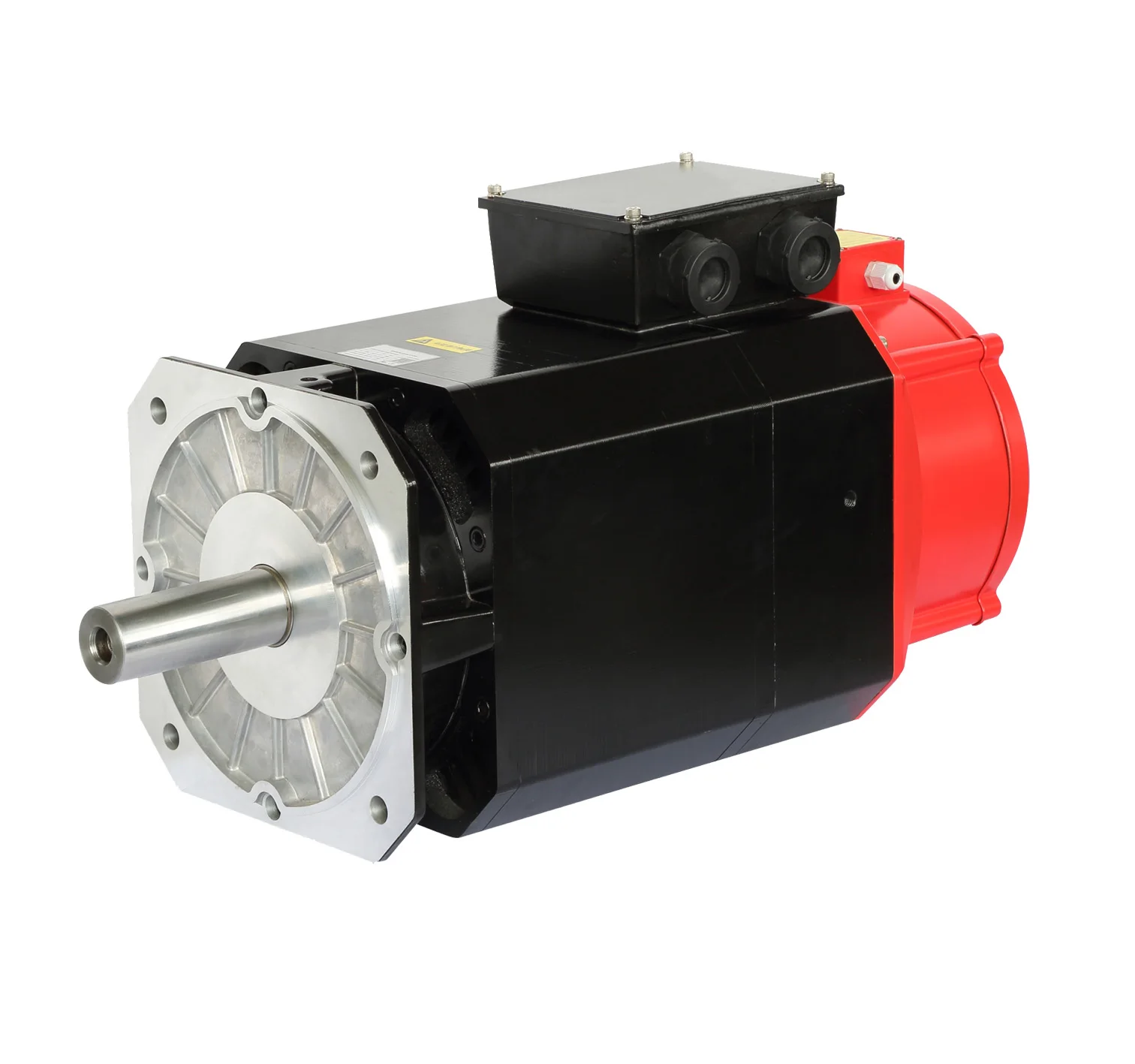

250mm ZYJ Series Spindle Servo mortor
250ZYJ  series is a kind of asynchronous spindle servo motor in our catlog. As the name shows, spindle motors are suitable for some high speed needs according to different industries. Xinyuhai stepper motor support a level up type that we can add incremental encoder and other into whole motor design according to various models. We ensure relative long function longevity under normal conditions. Pls tell us your industry and situations you are using so that we can provide a best choise for you.
For clients consideration, pls check the parameters carefully. We offer customization options, some critical configuration parameters are changeable. If you need any special requirements, pls contact us FREELY. We strongly recommend that clients use our coordinated driver to achieve best functions of the motor.




















Company Profile




Taizhou Xinyuhai Intelligent Technology Co.,LTD was founded in year 1995,mainly focusing on developing and selling servo motor,servo drives,stepper motor,stepper drives,CNC controller. Power of our main products is from 200w to 7.5kw 220V/380V AC, and flange size is from 40mm to 180mm. All of our product are widely used in CNC Machines,Robot arms,Grinding machines,Semi-conductor machines and other applications.


Packing & Delivery




Wooden box or carton for servo motor


FAQ


1. who are we?
We are a Zhejiang based enterprise in China, and founded since 2019, specializing in servo motor, driver and other products manufacture, and aiming to share our products to domestic and outbound markets. Current markets are Domestic Market(50.00%),Southeast Asia(15.00%),Mid East(15.00%),Eastern Europe(8.00%),North America(3.00%),South America(3.00%),South Asia(3.00%),Africa(2.00%), and Western Europe(1.00%). There are about 100-200 personnels or staffs in our company.
2. how can we guarantee quality?
Always offer a pre-production sample before mass production;
Always do final inspection before shipment;

3.what can you buy from us?
Servo motor,Servo driver,CNC Controller,Stepper motor,Stepper driver
4. why should you buy from us not from other suppliers?
1)20 Years R&D Experience
2)Unique product design
3)Well performance and function
4)Short Manufacture time with Fast Delivery time
5)Good After-Sale Service,if non-artificial quality problem,we can replace for you free
6)One Year Warranty.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DAF；
Accepted Payment Currency:USD,EUR,CAD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Russian

6.How long about the delivery?
It depends on the order, and usually, we could support delivery within 15 workdays.
