Clip-on genset for used reefer container for sale in dubai
US $5.00-$15.00
150kw Diesel Generator By Volvo Engine 150 KW ISO/CE Approved Leroy Somer Alternator Silent Generators For Sale
- Category: Generators >>>
- Supplier: Zhengzhou,Leiming,Power,Equipment,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

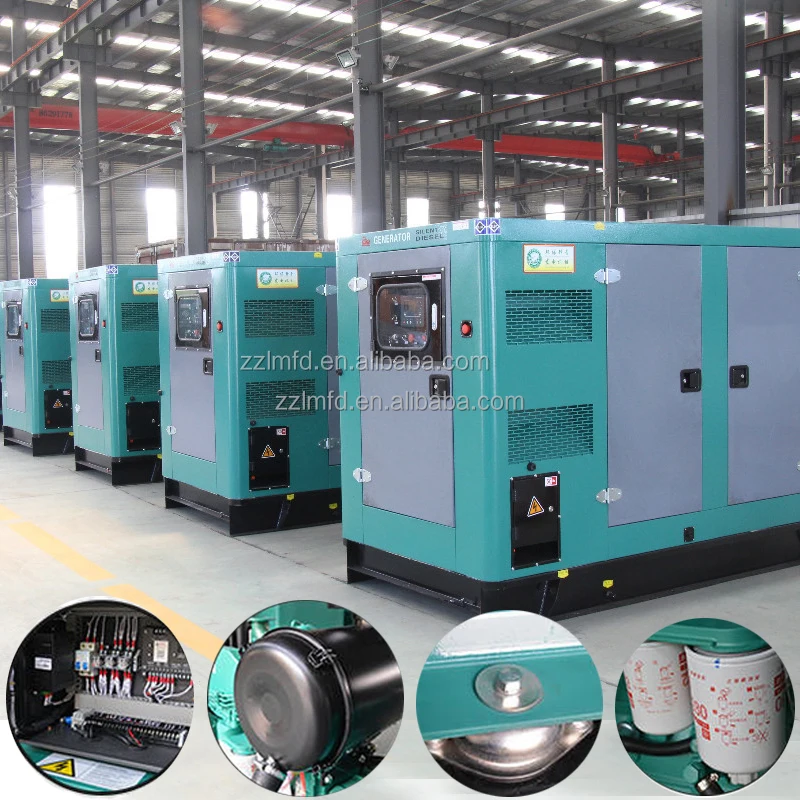

150KW/187KVA Volvo Engine Diesel Generator
Our factory has CCEC, DCEC, , VOLVO, Deutz, Daewoo, Shangchai, Weichai Deutz,Jichai etc World and Chinese famous engine for genenrators set. We have specialized in synchronous 100% copper wire alterantor for more than 20 years. LM brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.
Standard configuration
Overall description:
● Engine
● Meet the environmental temperature 40 ℃
water tank radiator,Driving belt cooling
fans, with fan safety shield
● 24 V charging generators
● Generator:Single bearing generator,IP23
Grading Protection, H Insulation degree
● Shock absorber
● Dry air filter,Fuel filter,Oil filter
● Power output circuit breaker
● Standard control panel
● 12 V battery and battery connection cables
● Exhaust pipe,Bellows,Flange,Muffler set
● Documents and Manuals
Optional Accessories | ||||||
♦Auto startup control panel | ||||||
♦Automatic control panel(ATS) | ||||||
♦Split type daily fuel tank;Integrated base fuel tank | ||||||
♦Rainproof enclosure;Soundproof enclosure | ||||||
♦Mobile power station | ||||||
♦Mute power station | ||||||
Unit parameters | ||||||
Power: | 150KW/187KVA | |||||
Rated voltage: | 400V/230V | |||||
Rated current: | 262.8A | |||||
Rated frequency: | 50Hz | |||||
The factor of rated power: | 0.8 | |||||
The regulating rate of instantaneous voltage: | ≤±15% | |||||
The regulating rate of steady voltage: | ≤±0.5% | |||||
The waving rate of voltage: | ≤0.5% | |||||
Voltage waveform distortion degree: | ≤5% | |||||
The time of steady voltage: | ≤1.5sec | |||||
The regulating rate of steady frequency: | ≤±2% | |||||
The regulating rate of instantaneous frequency: | ≤±5% | |||||
The time of steady frequency: | ≤3sec | |||||
The waving rate of frequency: | ≤±0.5% | |||||
The waste of fuel with full load: | ≤210g/kw.h | |||||
Size(mm): | 2500*1000*1600mm | |||||
Weight(kg): | 1550KG | |||||
The main parameters of the engine | ||||||
Brand: | Volvo | |||||
Model: | TAD752GE | |||||
Standby power: | 179KW | |||||
Type: | four strokes, waste gas turbine boost,direct spurting type | |||||
Cooling way: | water cooling | |||||
With type: | Inline type | |||||
Bore*Trip: | 108*130mm | |||||
Cylinder: | 6 | |||||
Displacement: | 7.15L | |||||
Lubricating Capacity： | 29L | |||||
Speed adjustment way: | Electronic speed governor | |||||
Rotating speed: | 1500r/min | |||||
Starting way: | starting with electricity | |||||
The main parameters of the generator | ||||||
Brand: | Leroy Somer | |||||
Model: | UCI274G | |||||
Type: | brushless (AVR automatic voltage regulating) | |||||
The connecting way of the phase: | three phases four lines | |||||
Insulation degree: | H degree | |||||
TIF: | <50 | |||||
THF: | <2% | |||||
The factor of rated power: | ≤±1% | |||||
Grading Protection: | IP23 | |||||
Performance Feature of the with brand engine Diesel Generator Set:
1.Engine and alternator shall be mounted on the same steel frame.
2.Built-in damper for anti-vibration.
3.Small size, light weight, easy to operate, install and maintain.
4.World famous brand diesel engine: with cummins engine.
5.World famous brand AC alternator: Stamford, Marathon, Engga.
6.Advanced and reliable control module: Key start, Auto start, Remote control by PC.
7.Full range protection function and alarm shutdown feature.
Alternator Feature：
1.Brush-less, 4 poles, rotation magnet.
2.IP21-23(NEMA1) enclosure is standard for all industrial alternators.
3.The insulation system is Class H.
4.Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
5.Wide range of flange adaptors and single bearing disc coupling.
6.Standard 2/3 pitch windings avoid excessive neutral currents.
7.AVR auto voltage regulator, auto exciter, auto adjustment.
