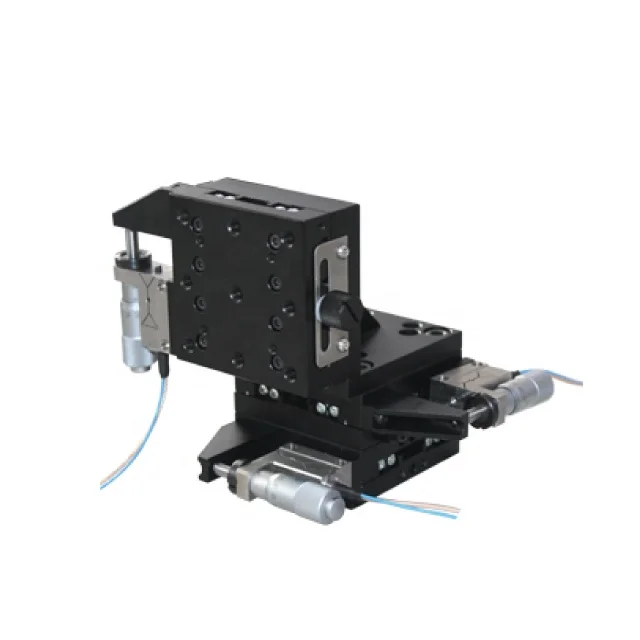

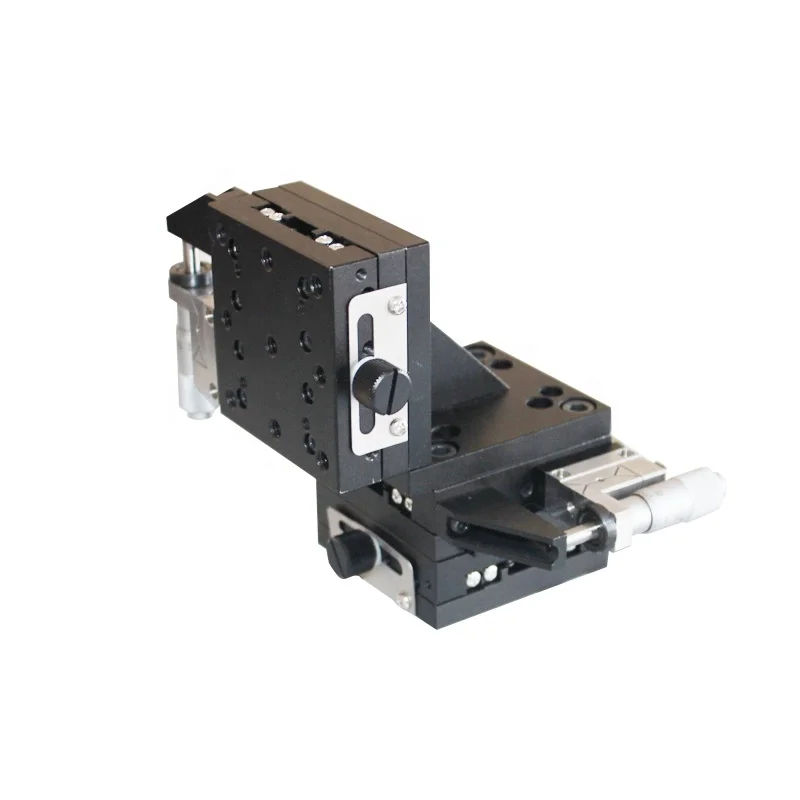

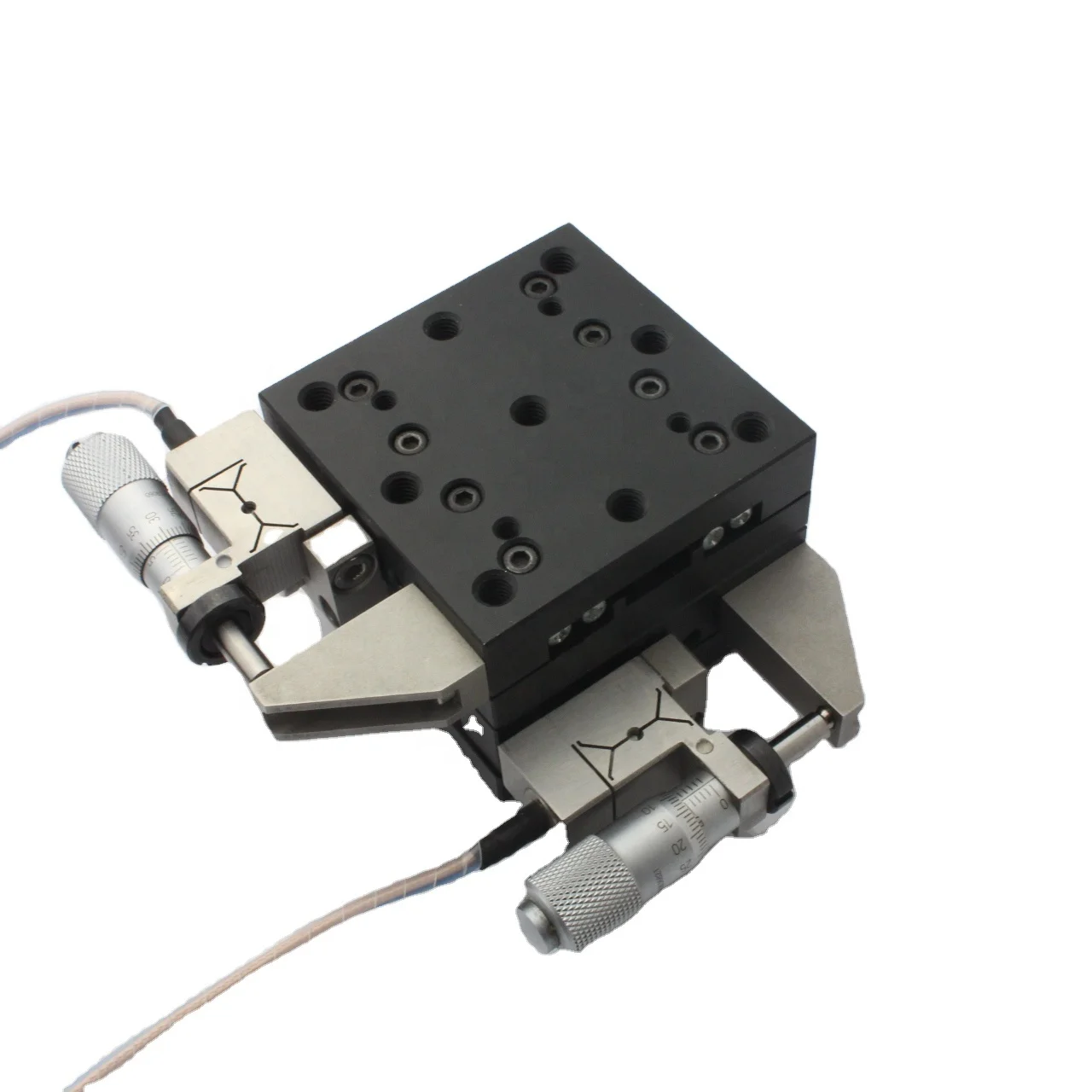

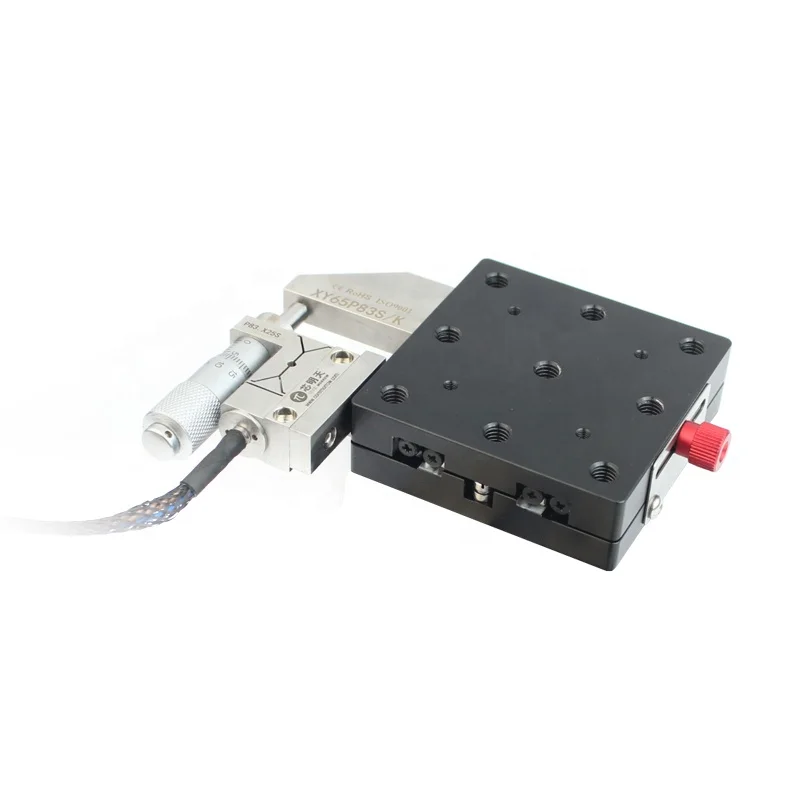

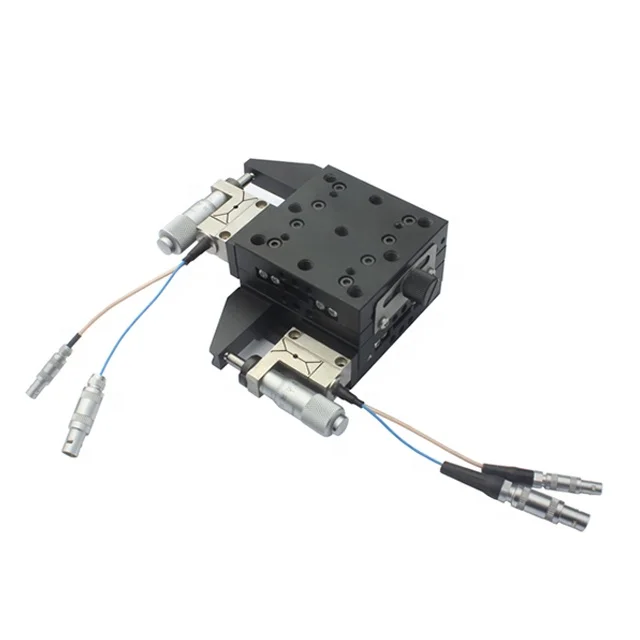

Piezo multi axis motorized moving stage linear micrometer positioner used with linear precision motorized stages xy
- Category: >>>
- Supplier: Harbin Core Tomorrow Science And Technology Co. Ltd.
Share on (1600672979439):
Product Overview
Description
Product Description
Product Name | Piezo Micrometers |
Material | Steel |
Function | Piezo Micrometer combines piezo micromotion stage with a micrometer, which could be coarsely adjusted by micrometer,and finely adjusted by piezo stage, a loading platform is available. |
Package | Box |
Product performance description

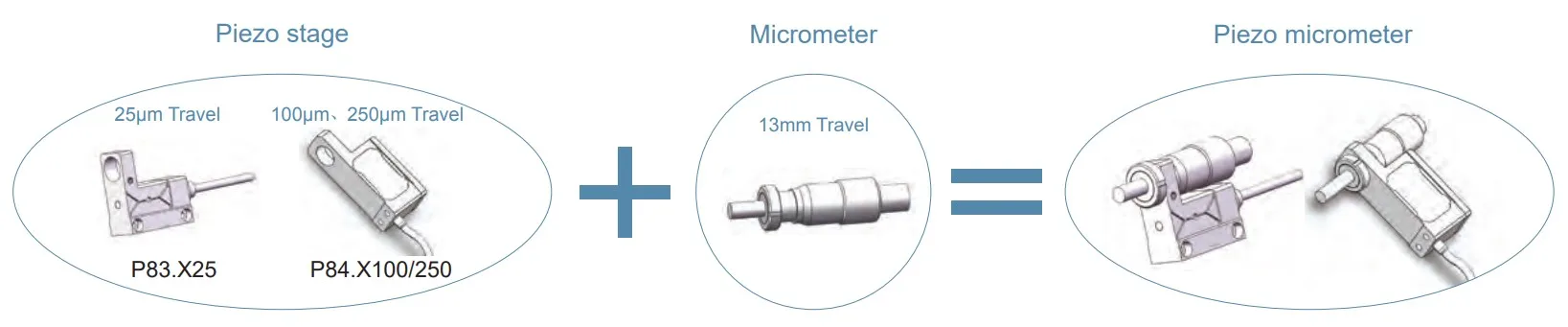

Piezo micrometer refers to integrating piezo stage on manual micrometer. The manual micrometer has 13mm displacement. The piezo stage features 25μm or 100μm displacement. The accuracy of micrometer is within the adjustment range of piezo stage, thus ensuring the accuracy and convenience of the adjustment
Characteristics
• X axis, 1~3 axes are available • Manual micrometer displacement to 13mm, resolution to 10µm
• Selectable sensor • Piezo displacement up to 25µm, 100µm or 250µm, reslution to 0.5nm
Two Types

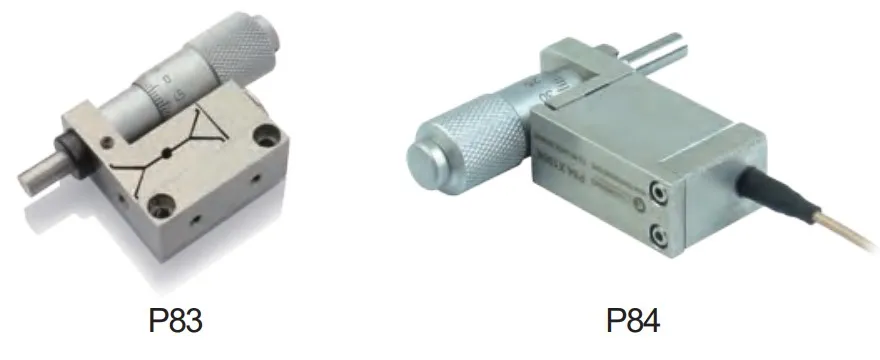

There are 2 types of piezo micrometers, P83's displacement is 25µm and P84's is 100µm or 250µm.

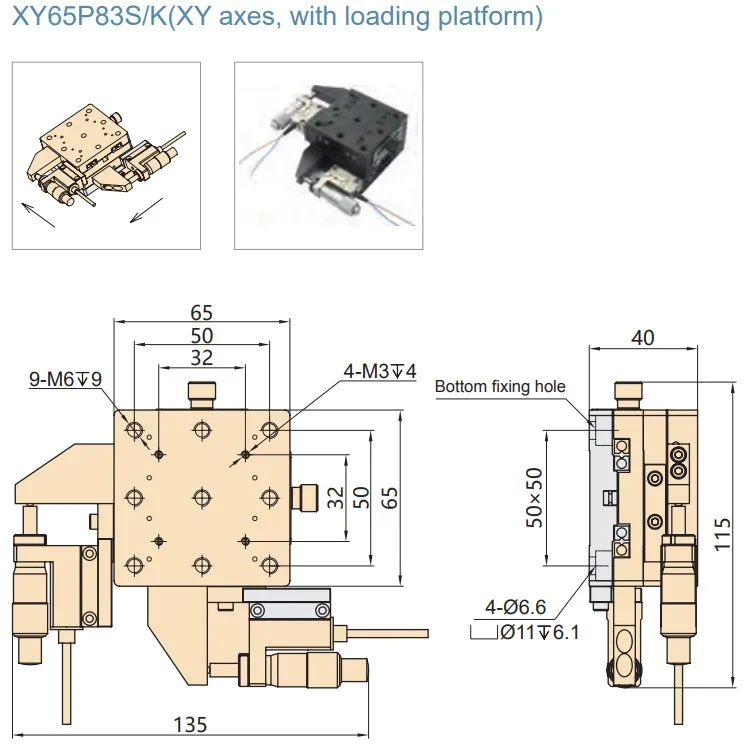

Composition and Drawing

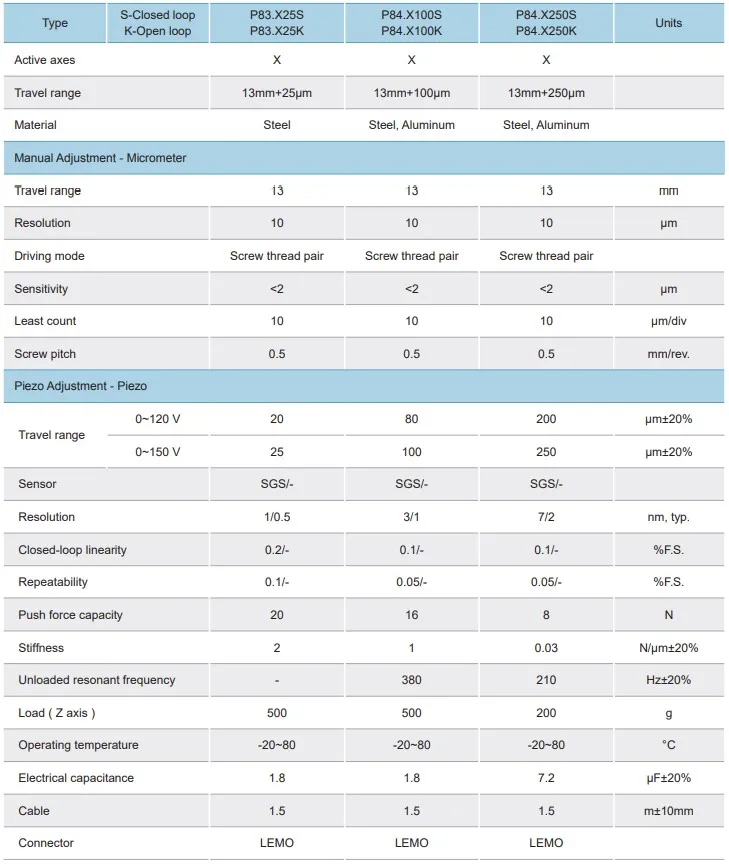

Product Paramenters
Optional Loading Platform, vacuum version
Standard technical data:
Flatness:＜3μm/13mm
Dimensions: 65mm×65mm
Slide way: Cross roller
Applications
Oil Film Thickness Measurement
Optical Alignment
Packing&Shipping
We use express delivery as DHL,UPS,FedEx for transportation and cartons for packaging, or as required by customers.
