Wholesale price stable portable load cell 50kg STM S Type Load Cell for robotics automation medical devices
- Category: >>>
- Supplier: Lascaux Microelectronic Device (tianjin) Co. Ltd.
Share on (1600673034841):
Product Overview
Description

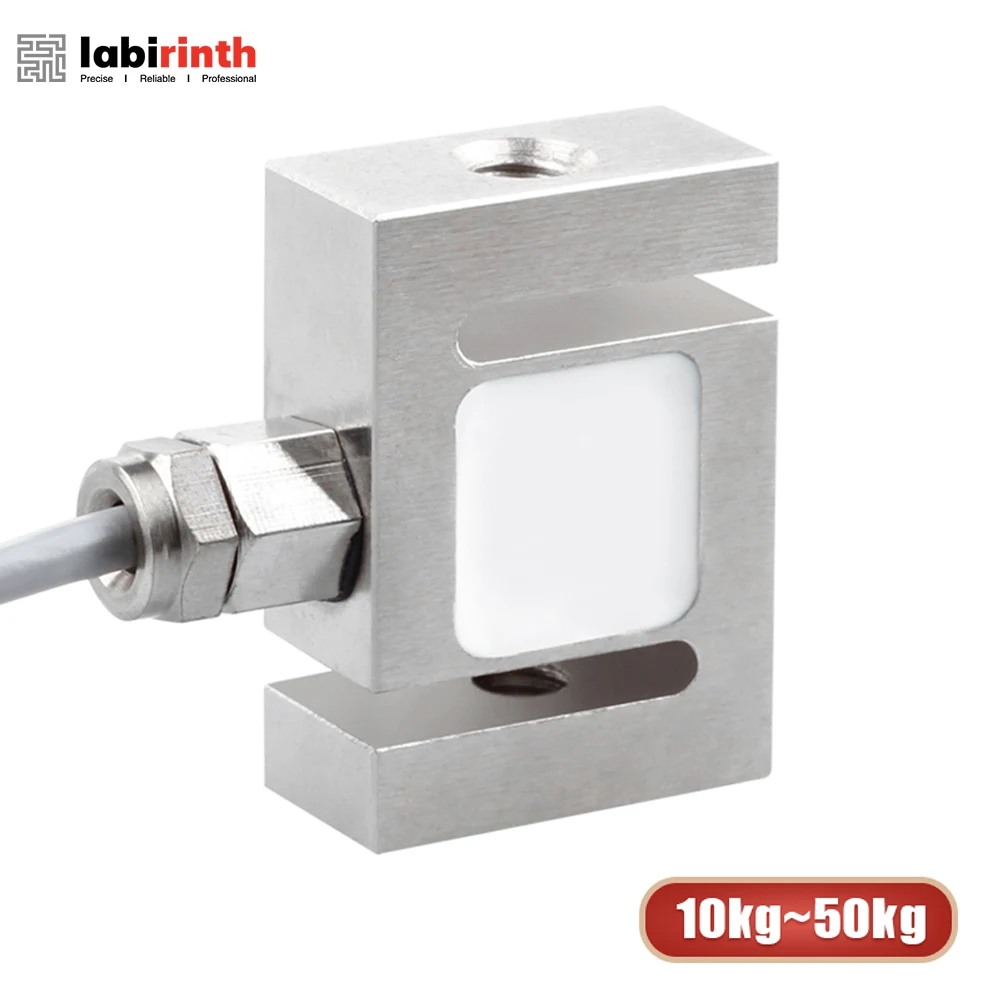

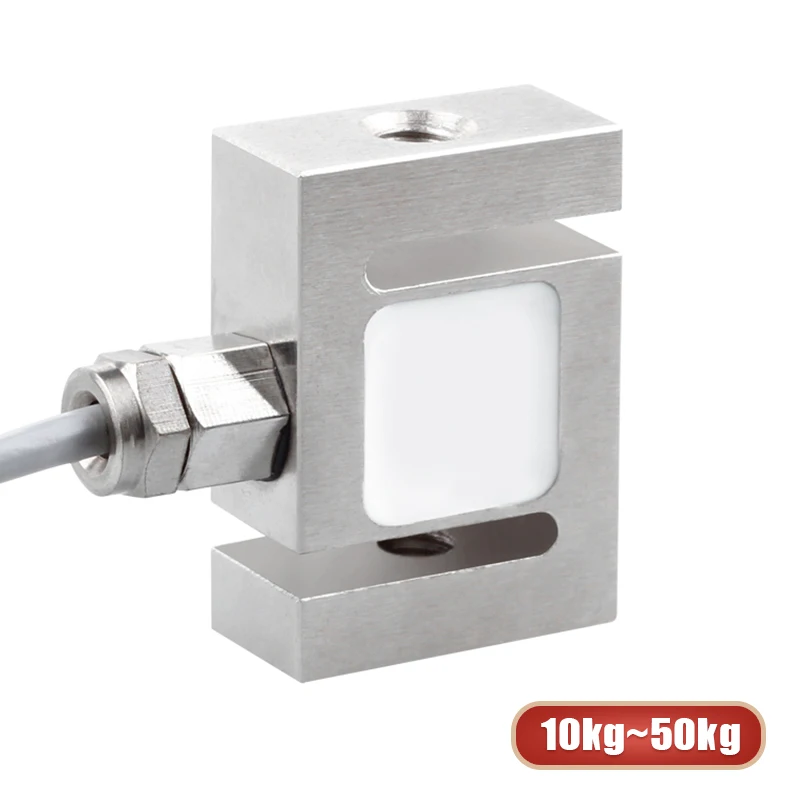

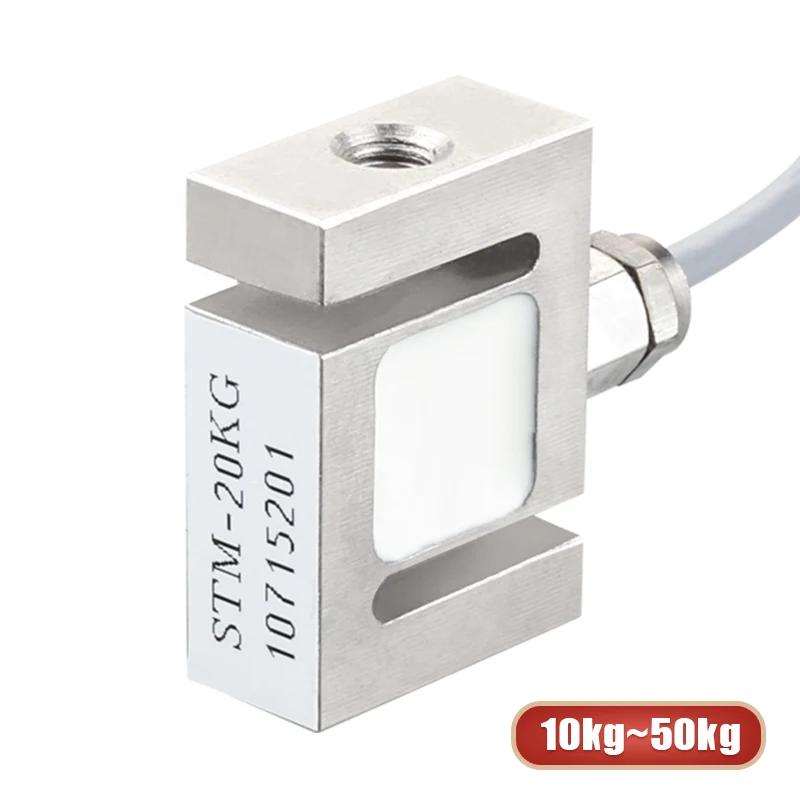

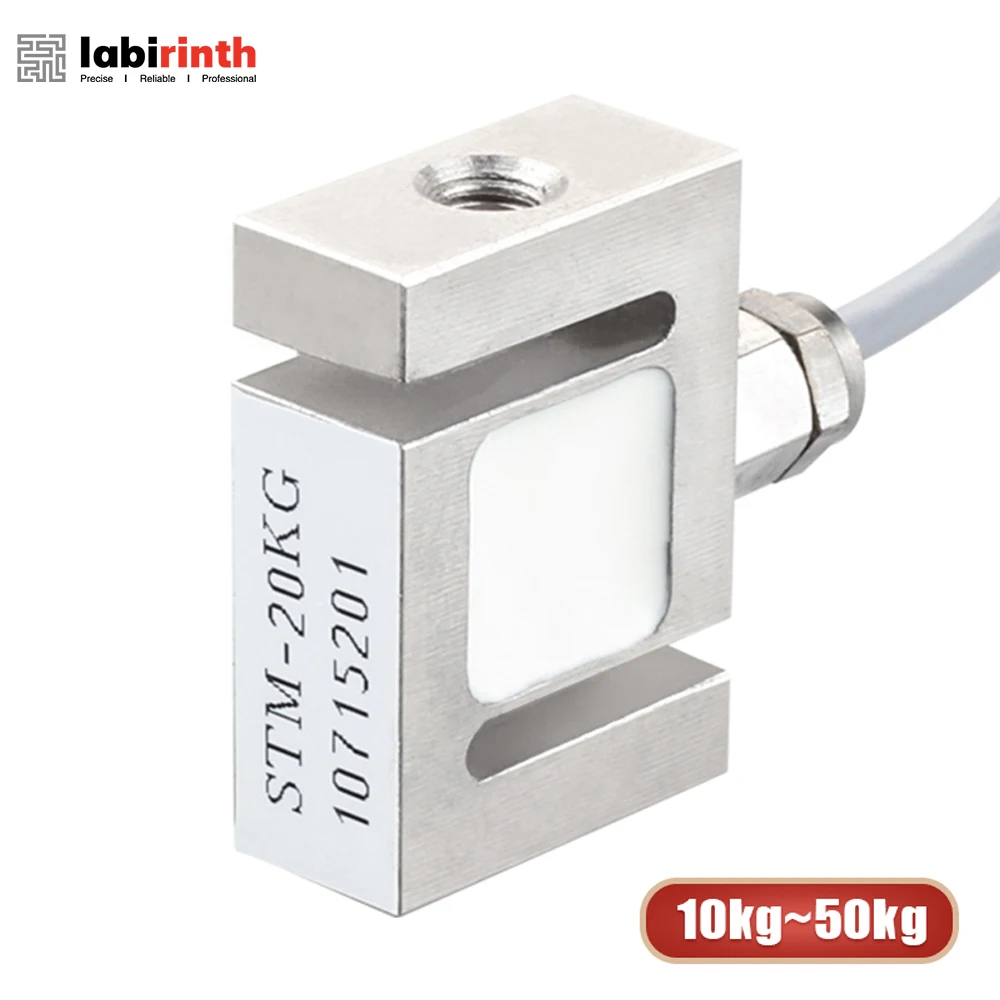

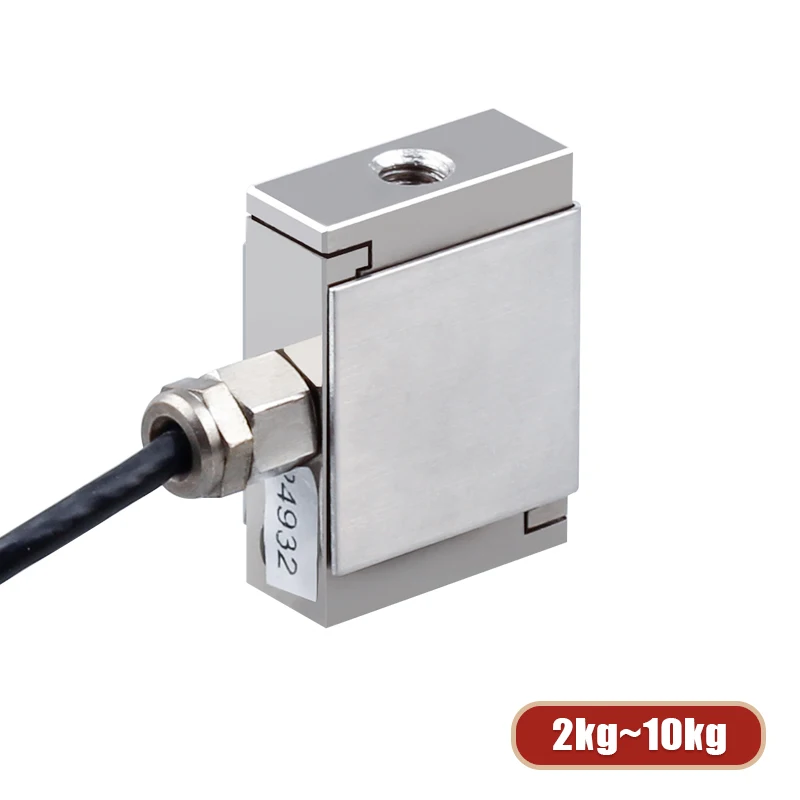

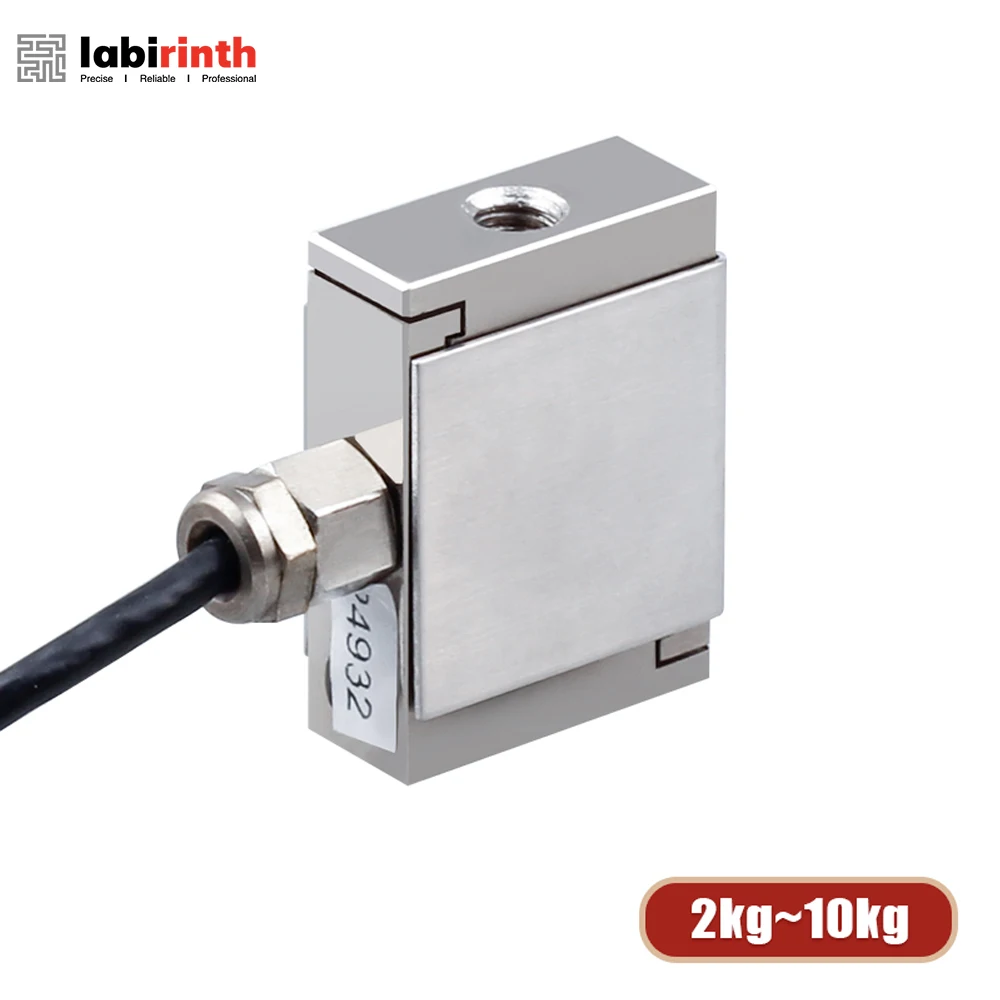

STM Load Cell
● Stainless Steel Material Structure
● Tension and Compression Dual-purpose, Two-way Force Measurement
● High Precision Weighing for a Wide Range of Applications
● Tension and Compression Dual-purpose, Two-way Force Measurement
● High Precision Weighing for a Wide Range of Applications
STM Load Cell
Description:
1.Capacities (kg):2kg~50kg
2.High-quality alloy steel, nickel-plated surface
3.Stainless steel material optional
4.Protection class: IP65
5.Two-way force measurement, both tension and compression
6.Compact structure, easy installation
7.High comprehensive precision and good long-term stability

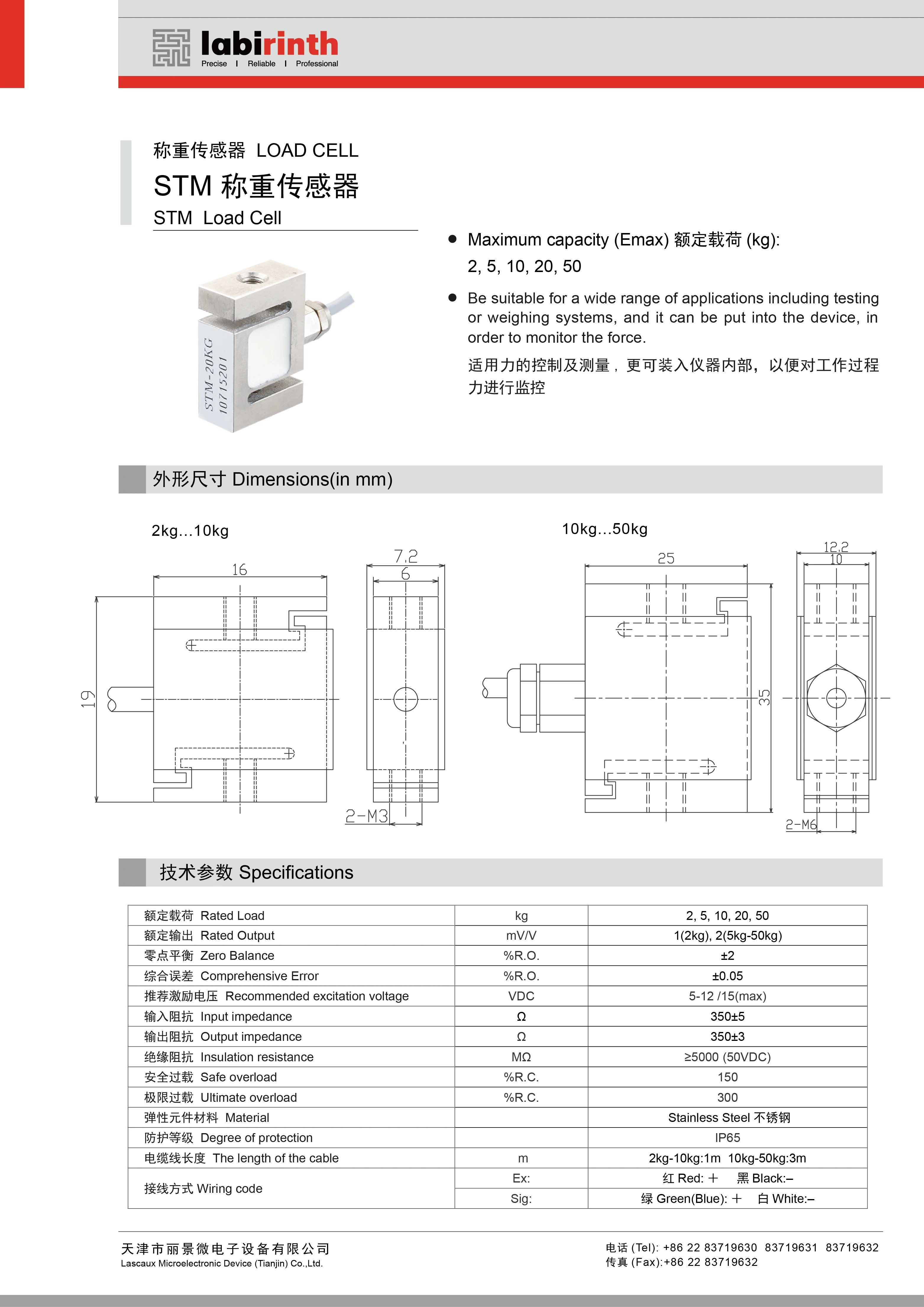

Specifications: | ||||
Rated Load | kg | 2,5,10,20,50 | ||
Rated Output | mV/V | 1(2kg),2(5kg-50kg) | ||
Zero Balance | %R.O. | ±1 | ||
Creep after 30 minutes | %R.O. | ±0.05 | ||
Comprehensive Error | %R.O. | ±0.05 | ||
Compensated Temp. Range | ℃ | -10~+40 | ||
Operating Temp. Range | ℃ | -20~+70 | ||
Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.05 | ||
Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.05 | ||
Recommended Excitation Voltage | VDC | 5-12 | ||
Input impedance | Ω | 350±5 | ||
Output impedance | Ω | 350±3 | ||
Insulation resistance | MΩ | ≥5000（50VDC） | ||
Safe Overload | %R.C. | 150 | ||
Ultimate Overload | %R.C. | 200 | ||
Material | Stainless Steel | |||
Degree of protection | IP65 | |||
The length of the cable | m | 1m(2kg-10kg),3m(10kg-50kg) | ||

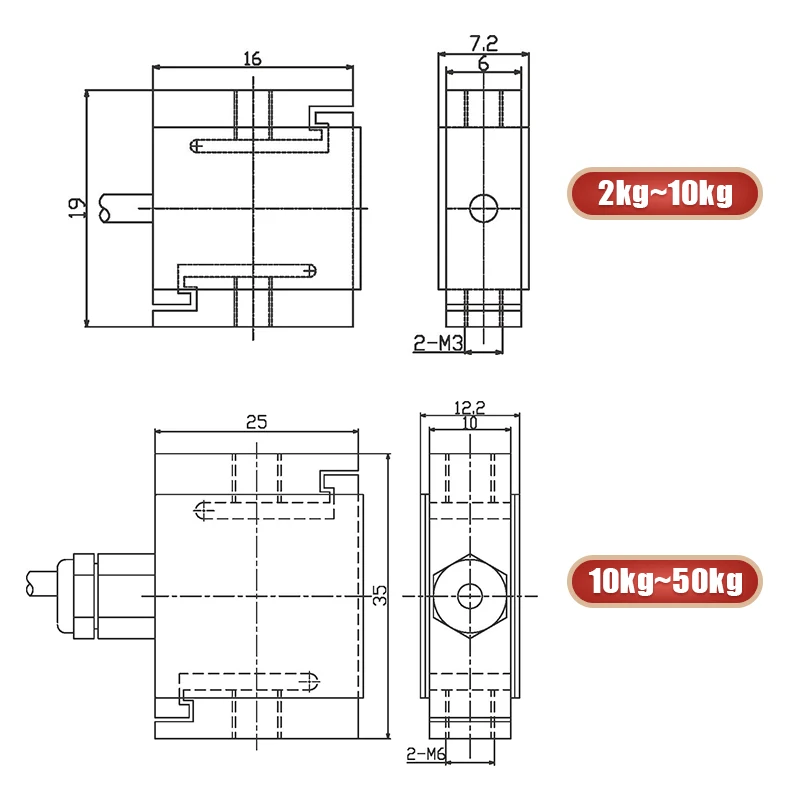

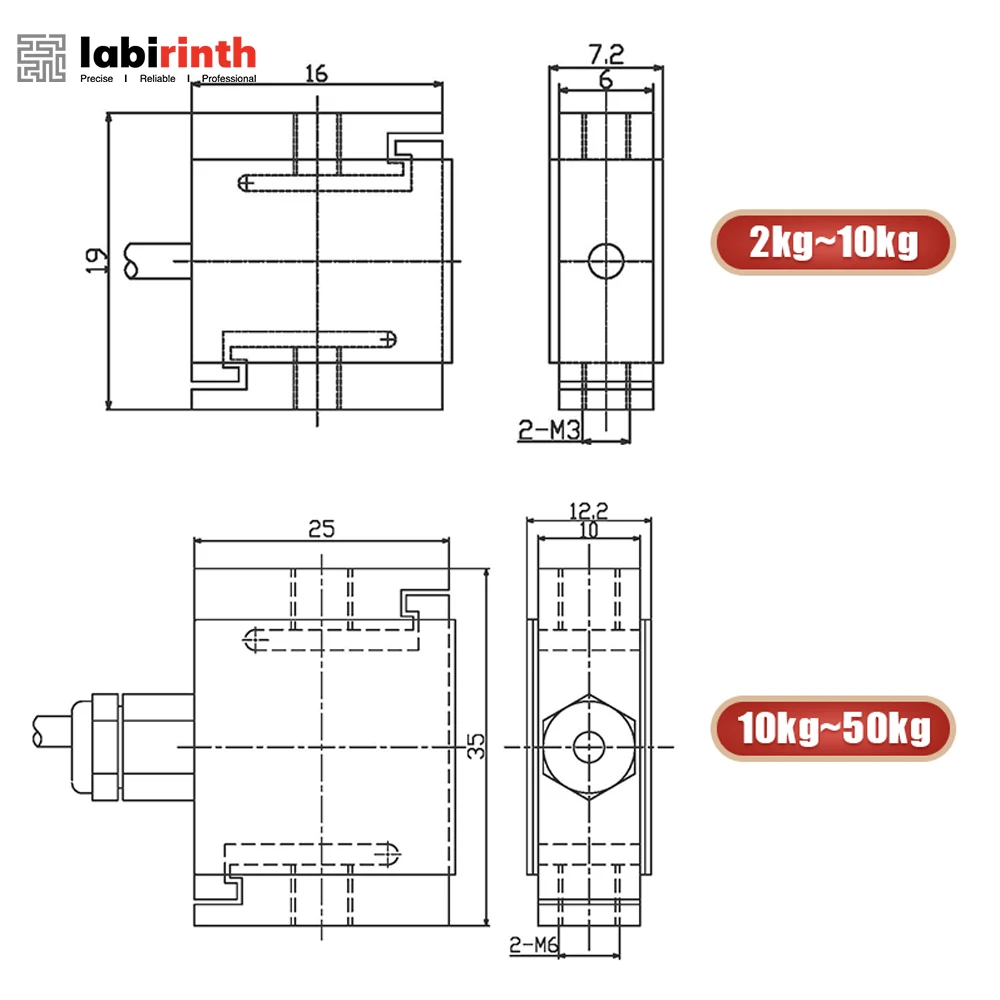

Dimension（in mm）& Capacity & Wiring Code： | ||||
Company Profile
Applications:
Be suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force.
