Product Overview
Description

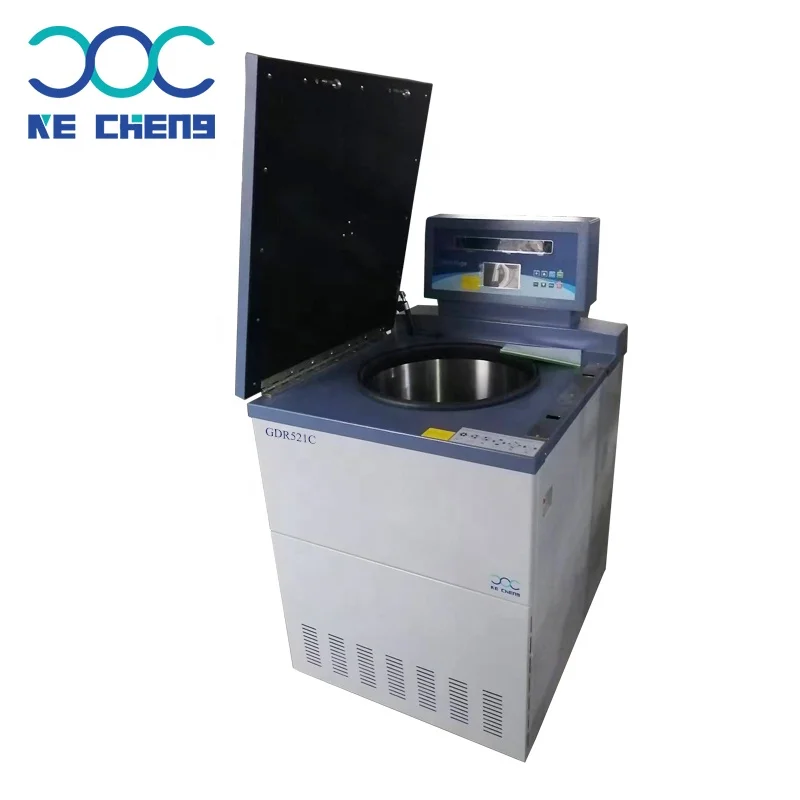

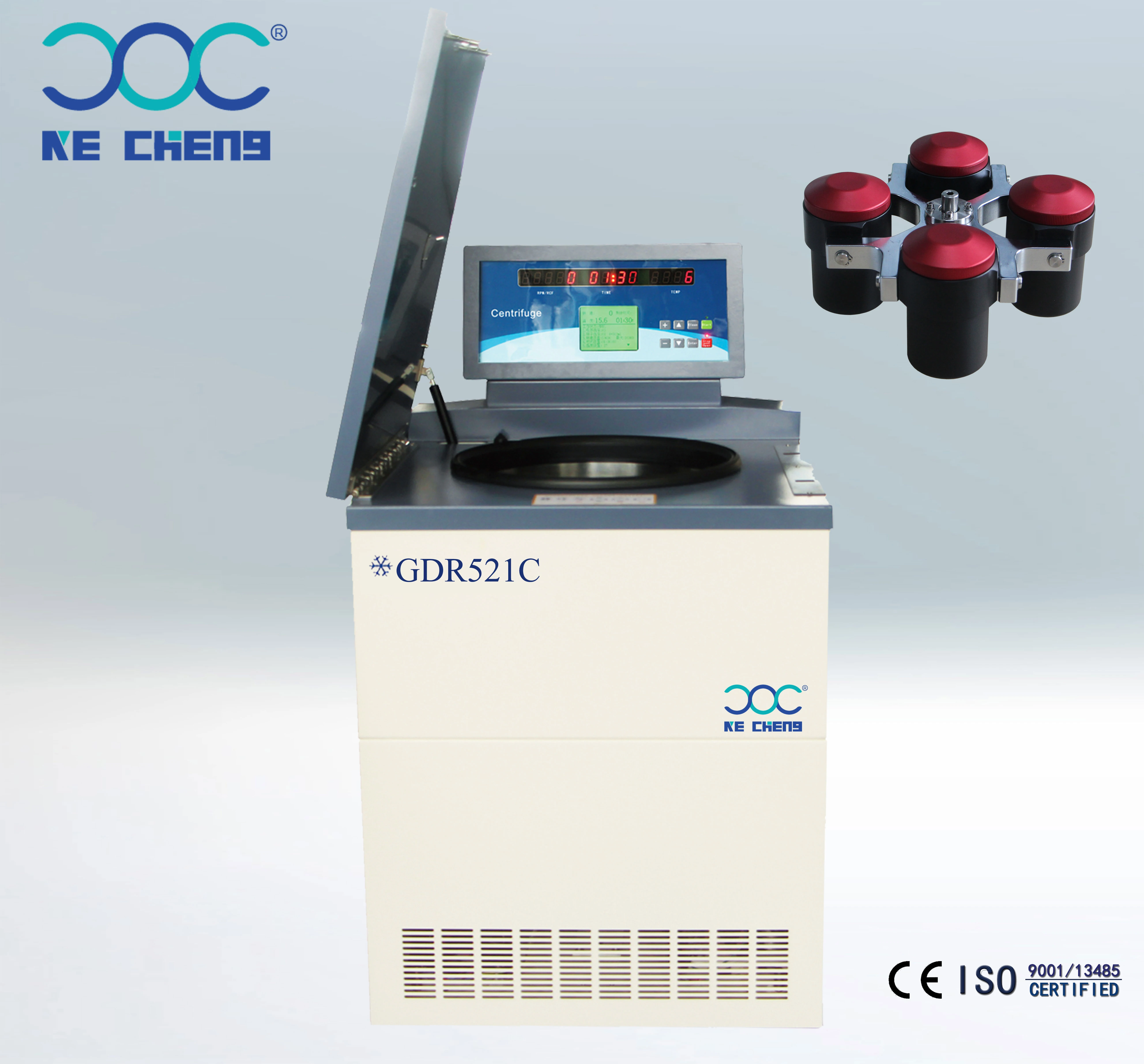

GDR521C Floor Medical Clinic 21000 rpm High Speed Refrigerated Lab Centrifuge Factory
Product Description
Key Features:
1:The series is stable but not heavy, excellent compatibility, large capacity with light rotor.
2: Controlled by microcomputer, AC frequency variable motor drive, without toner power pollution,and longer lifetime. Lower noise and less vibration, equipped with multiple types of rotors for users to choose.
3: Auto recognition of rotor and speed limit control, to make centrifuge safer.
4:Imported compressor set, refrigeration andheating double temperature control, unique heat radiation system, to ensure that the cooling effect of the instrument to achieve the best.
5: Able to configure acceleration/deceleration mode, provide configuration of RPM and RCF, and convert RPM/RCF using one key.
6:Equipped with over speed, overheat, imbalance and door lid auto lock protection systems to ensure safety of machine and users
7:compact size, equipped with large torque variable-frequency motor to facilitate acceleration and deceleration and enhance efficiency. Higher performance to cost ratio.
Technical Parameter:
Model | GDR521C | |||
Max RPM (rpm) | 21000rpm | power supply | AC220±22V 50Hz 35A | |
Max RCF | 47580×g | total power | 3500W | |
Max Capacity | 4×750ml | Noise level | ≤65dB(A) | |
timing range | 1min~23h59min | centrifuge chamber diameter | Φ500mm | |
Temp Range(freezing) | -20℃~40℃ | dimensions (length x width x height) | 825×625×910(mm) | |
Temp Accuracy(freezing) | ±2.0℃ | packaging dimensions (length x width x height) | 930×730×1010(mm) | |
RPM accuracy | ±20% | Net Weight | 310Kg | |
/ | / | Gross Weight | 345Kg | |
Rotor | No. | Capacity | RPM/RCF | |
Angle Rotor
| 1 | 16×10ml | 21000rpm/47580×g | |
2 | 6×50ml | 20000rpm/43000×g | ||
3 | 8×50ml | 15000rpm/27720×g | ||
4 | 4×250ml | 14000rpm/29440×g | ||
5 | 8×100ml | 13000rpm/19830×g | ||
6 | 6×250ml | 12000rpm/22470×g | ||
7 | 6×300ml | 10000rpm/18500×g | ||
8 | 6×500ml | 9000rpm/14400×g | ||

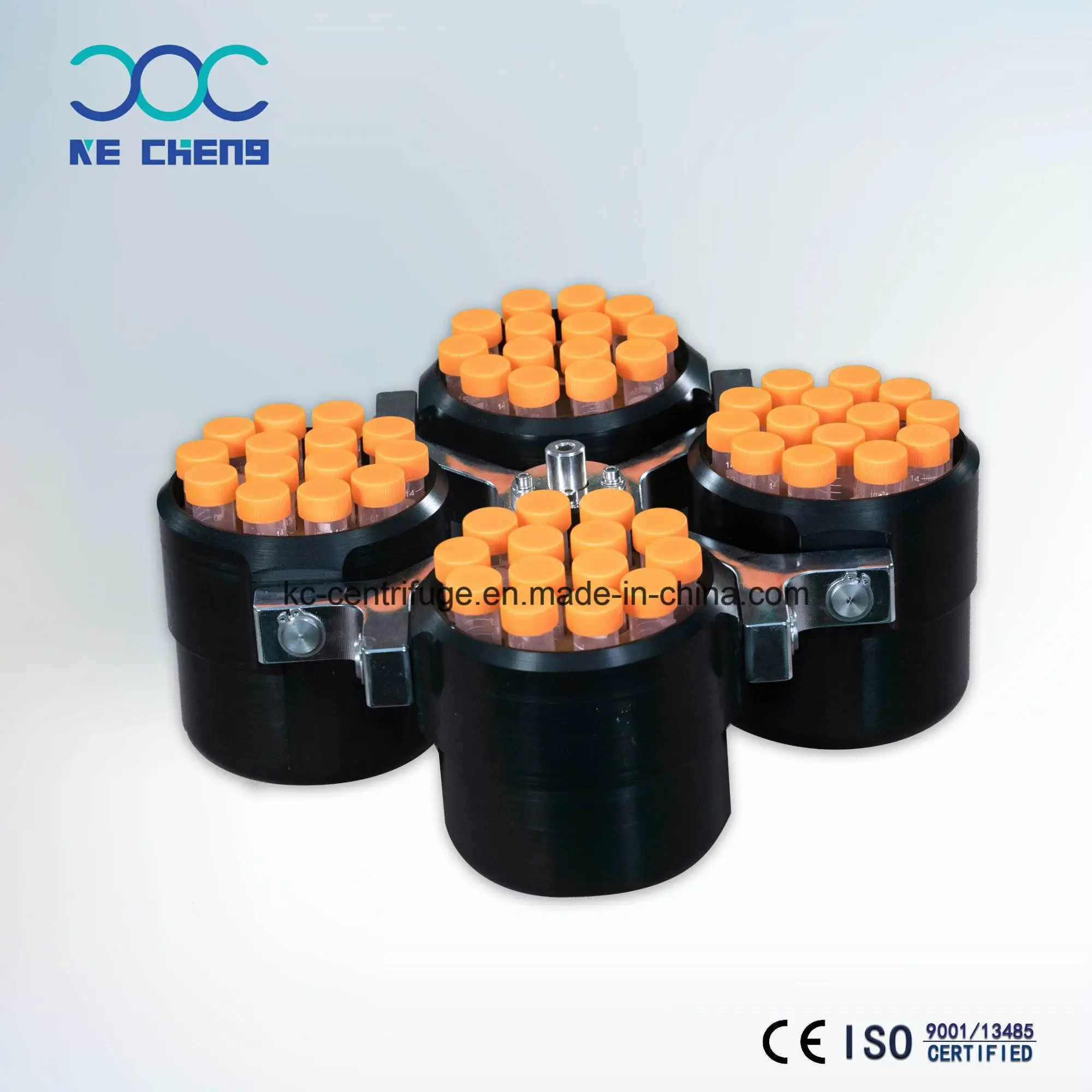

Swing-out Rotor | 9 | 4×750ml | 4000rpm/3580×g | |

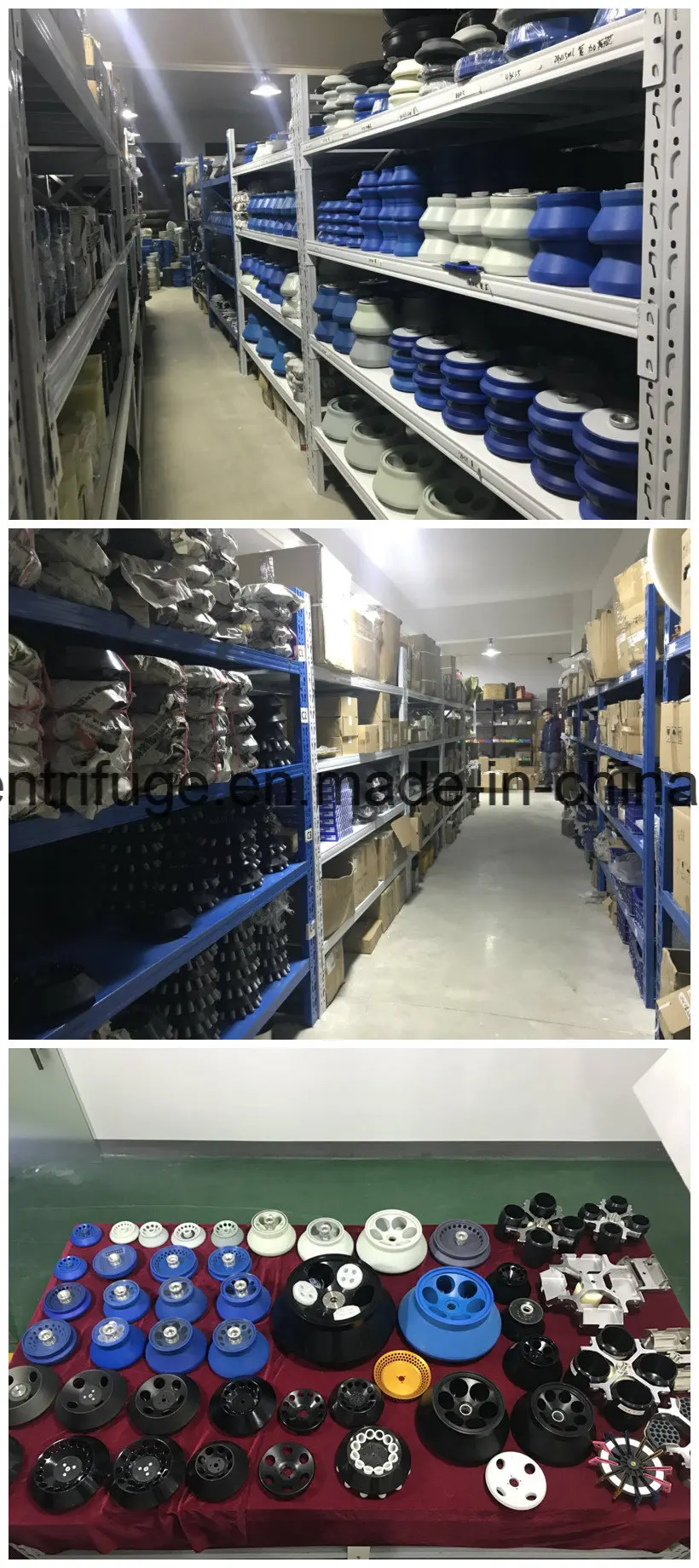

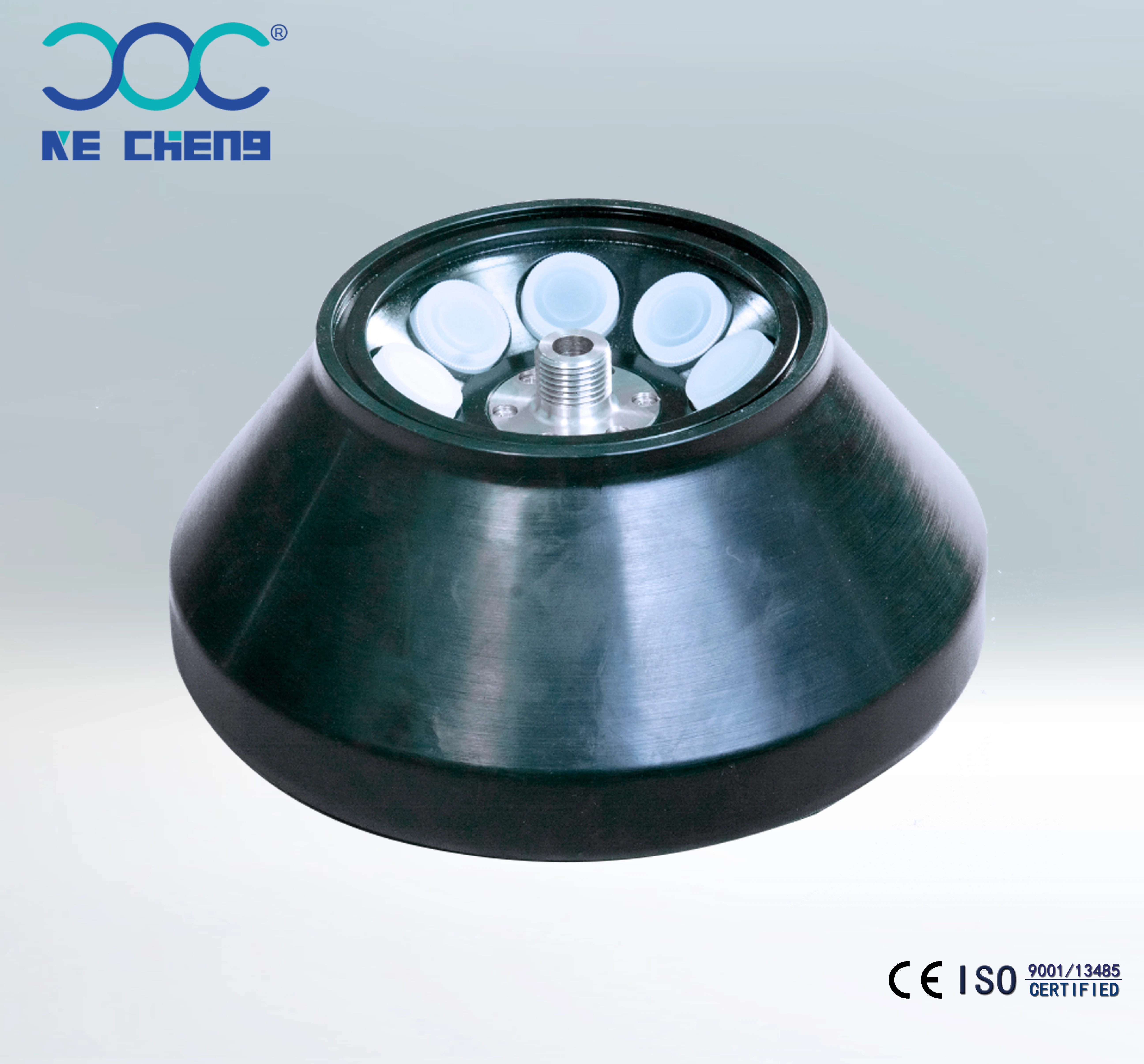

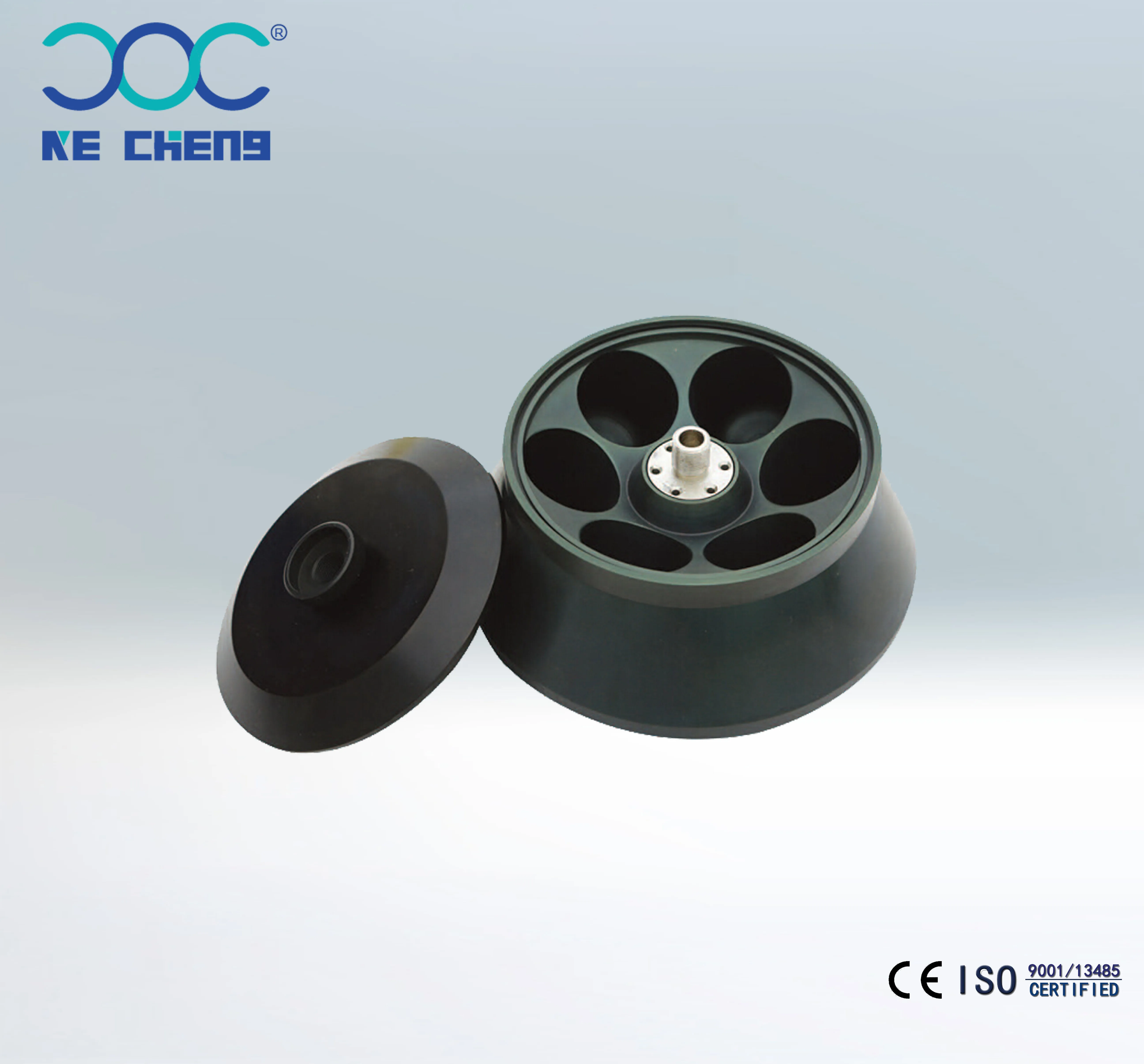

Rotor Picture:
Company Information
Packaging & Shipping
Certificates:
Contact Information:
Our Services
Warranty: 2 years
- Technical guide provided for the whole life.
- Also there will be instruction and operation manual, service manual for you to guide you the instruction, including the using condition, installation, operation, clear and maintenance etc.
