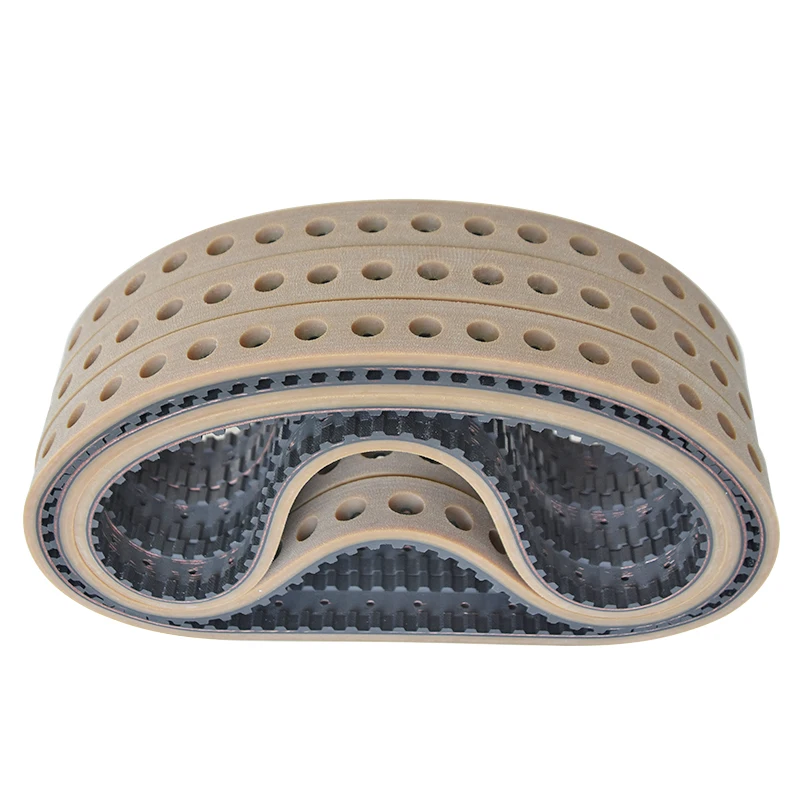

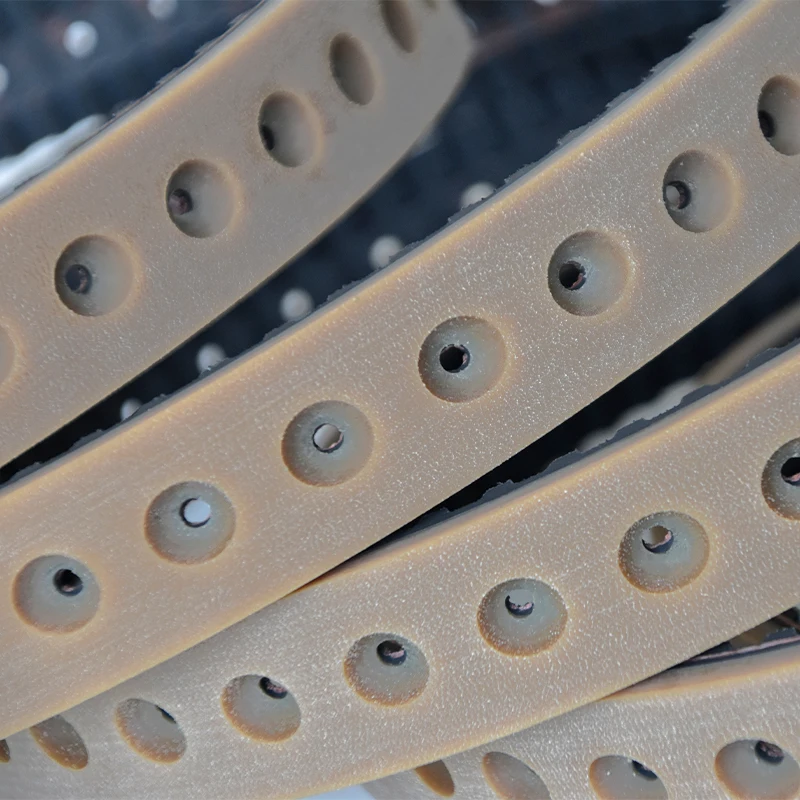

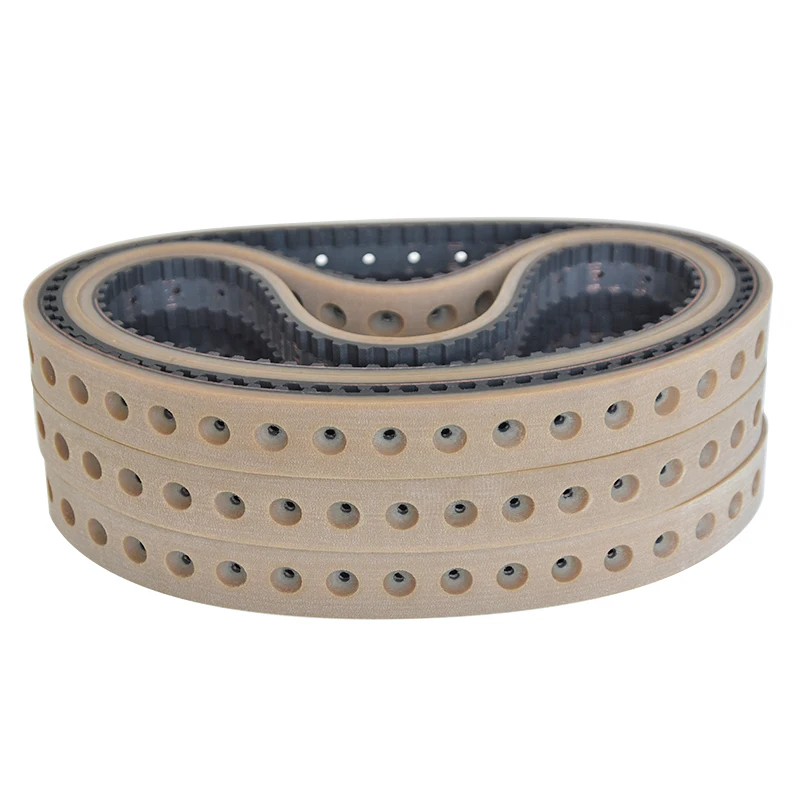

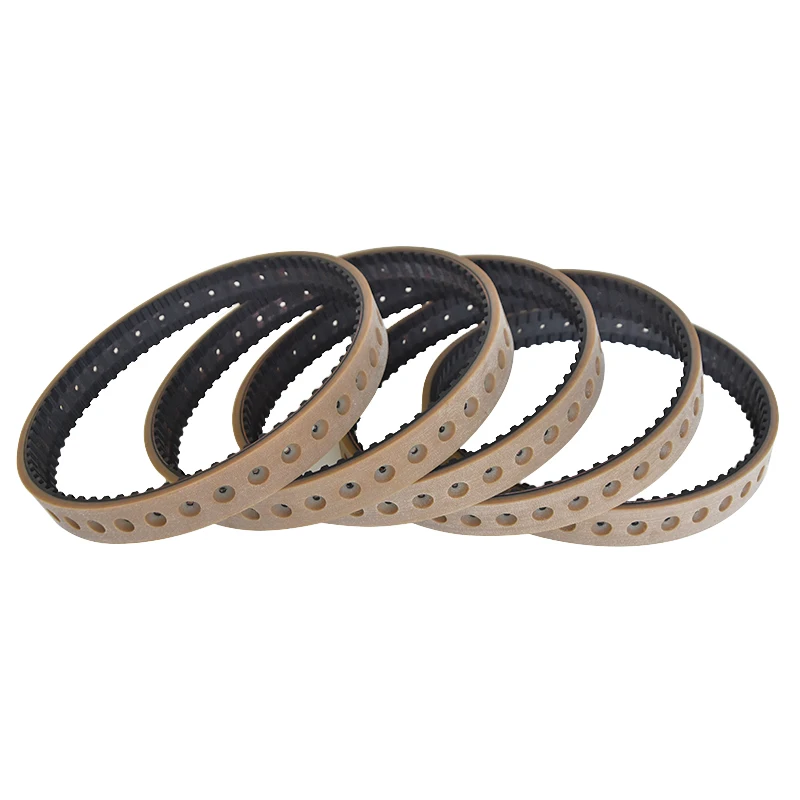

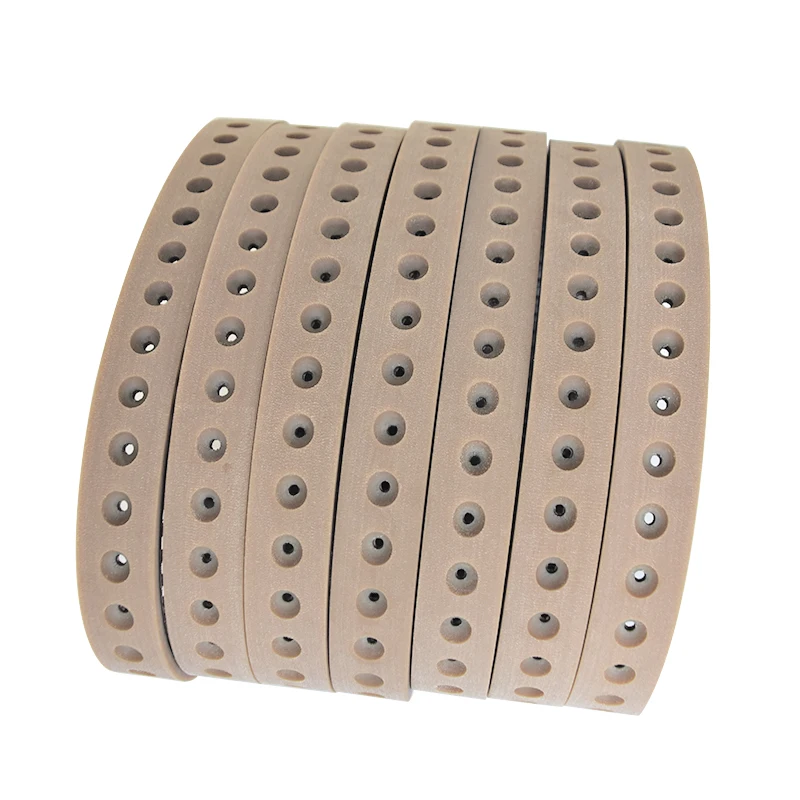

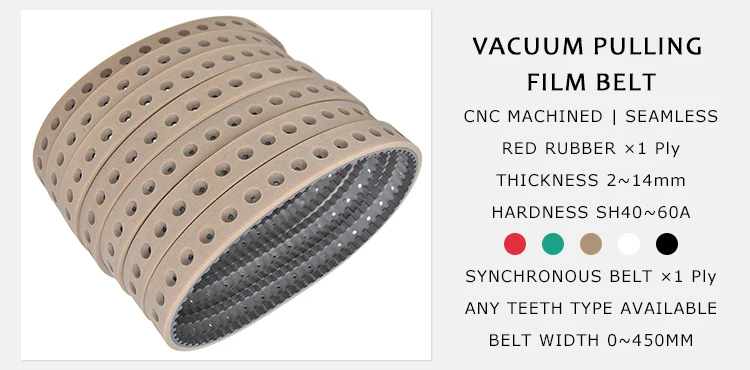

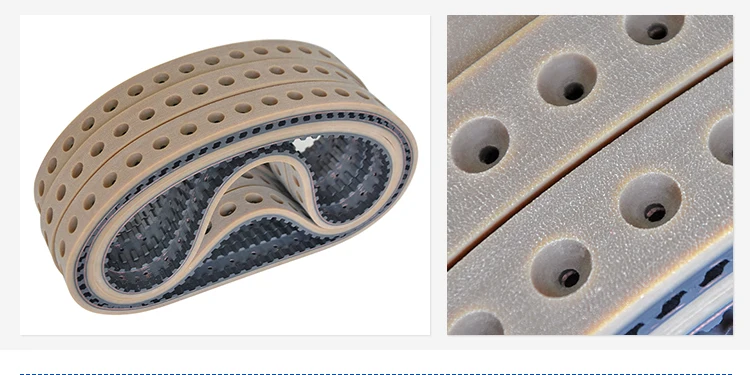

Seamless vulcanized rubber coating vacuum pulling film down belt for vffs packaging machine
- Category: Transmission Belts >>>
- Supplier: Guangzhou Goodly Industry Belt Co. Ltd.
Share on (1600673180283):
Product Overview
Description

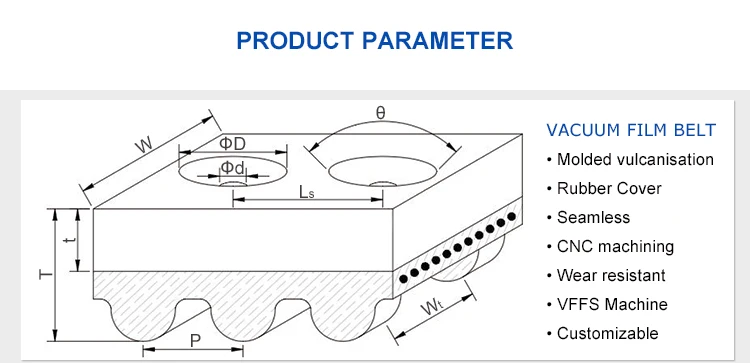

Layer | Color | Mark Code | Description | Available Range | |
Rubber cover | RD/GN/WH/BN/BK... | W | Width of rubber | 0~1.2mtrs/Roll | |
t | Thickness of rubber | 1~14mm | |||
HS | Hardness (Shore A) | Sh 40~60A | |||
BK | P | Pitch | |||
N | Number of teeth | N=L/P | |||
W | Width of bottom belt | 0~450mtrs(STD.) | |||
Integral seamless belt | RD/GN/WH/BN/BK... | L | Length of pitch line | 300~5600mm(L=N*P) | |
T | Total thickness | 2~20mm | |||
Machined parameter 1. 30/60/90 degree conical counterbore 2. Hemispherical counterbore | Ls | Space of bores | Ls=L/n | ||
n | Quantity of bores | n=L/Ls | |||
Wt | Width of grind teeth | Wt<W(Bottom belt) | |||
θ | Slotted cone angle | 30/60/90°/hemisphere | |||
ΦD | Diameter of top circle | ΦD<Ls | |||
Φd | Drilling diameter | Ød≤ΦD | |||
