2Km 15dBi antenna gain PTP/PTMP 5.8GHZ MIMO CPE Outdoor Wireless Access Point Bridge
- Category: >>>
- Supplier: Q-Tech Telecommunications Limited
Share on (1600673293268):
Product Overview
Description
Product Description
Product Name | CP1500 |
Material | PC |
Function | Wireless bridge |
Package | Carton |
Product performance description
产品性能介绍说明
300 Mbps throughput - a result of powerful hardware platform with 802.11n technology based radio and a proprietary data
transmission protocol. CP 1500 series devices are an ideal solution for capacity demanding applications. State of the art RF design
with great output power and sensitivity parameters improve range and capacity over the highest modulation - 256 QAM. The 24V
Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-point or
point-to-multipoint network design. the ac series devices are backwards compatible with our devices using iPoll mode, which
helps to expand or upgrade existing networks using the latest technologies over time.
The shape of the enclosure is now smaller, lighter but retains the IP-65 weather protection rating. Smaller packaging reduces
freight costs and makes them less obvious. The new design has no metal parts, which makes them lighter and corrosion resistant.
CP500 equipped with 8dBi directional antenna, it is an ideal choice for short-distance transmission scenarios. Recommended for use
in scenes such as the last 500 meters, elevator shaft video surveillance, tower crane video surveillance, etc.
transmission protocol. CP 1500 series devices are an ideal solution for capacity demanding applications. State of the art RF design
with great output power and sensitivity parameters improve range and capacity over the highest modulation - 256 QAM. The 24V
Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-point or
point-to-multipoint network design. the ac series devices are backwards compatible with our devices using iPoll mode, which
helps to expand or upgrade existing networks using the latest technologies over time.
The shape of the enclosure is now smaller, lighter but retains the IP-65 weather protection rating. Smaller packaging reduces
freight costs and makes them less obvious. The new design has no metal parts, which makes them lighter and corrosion resistant.
CP500 equipped with 8dBi directional antenna, it is an ideal choice for short-distance transmission scenarios. Recommended for use
in scenes such as the last 500 meters, elevator shaft video surveillance, tower crane video surveillance, etc.
Radio specifications
Wireless technology:
Wireless technology:
IEEE 802.11 ac, 2x2 MIMO
Radio frequency band:
5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Channel size:
Configurable 20, 40 MHz
Max transmit power:
23 dBm (country dependent )
Antenna
Type :
Integrated Vertical panel antenna
Polarization :Vertical
Gain:15 dBi
Elevation beamwidth
V pol: 45deg, Elevation: 45deg
Data Interface
Physical interface :
10/100 BaseT with POE
Connector type
RJ45
Link performance
Real data throughput :
300 Mbps aggregate (170 Mbps full-duplex)
Recommended link distance: 500m
Power supply
24 VDC passive PoE (AC to 24 VDC adapter is included in the package)
Power source
100 – 240 VAC
Power consumption
5W
Environmental
Operating temperature
-40°C (-40 F) ~ +65°C (+149 F)
Humidity
0 ~ 90 % (non-condensing)
Management
System configuration
Web UI, HTTP, Telnet
Regulatory
Certification
FCC/IC/CE/NCC
Ingress protection :IP-65
Safety :RoHS compliant
Radio frequency band:
5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Channel size:
Configurable 20, 40 MHz
Max transmit power:
23 dBm (country dependent )
Antenna
Type :
Integrated Vertical panel antenna
Polarization :Vertical
Gain:15 dBi
Elevation beamwidth
V pol: 45deg, Elevation: 45deg
Data Interface
Physical interface :
10/100 BaseT with POE
Connector type
RJ45
Link performance
Real data throughput :
300 Mbps aggregate (170 Mbps full-duplex)
Recommended link distance: 500m
Power supply
24 VDC passive PoE (AC to 24 VDC adapter is included in the package)
Power source
100 – 240 VAC
Power consumption
5W
Environmental
Operating temperature
-40°C (-40 F) ~ +65°C (+149 F)
Humidity
0 ~ 90 % (non-condensing)
Management
System configuration
Web UI, HTTP, Telnet
Regulatory
Certification
FCC/IC/CE/NCC
Ingress protection :IP-65
Safety :RoHS compliant
Product Usage
Description of product use effect
The device operating system is positioned as a very simple wireless bridge, only retaining the necessary functions
With the option, users or engineers can complete the configuration of a pair of wireless bridges fastest and improve engineering
efficiency.
* Responsive HTML 5 operation interface
* Access points and stations synchronize connection information with each other
* 180+ Mbps two-way superimposed throughput
* Supports scheduled restart function
With the option, users or engineers can complete the configuration of a pair of wireless bridges fastest and improve engineering
efficiency.
* Responsive HTML 5 operation interface
* Access points and stations synchronize connection information with each other
* 180+ Mbps two-way superimposed throughput
* Supports scheduled restart function
Packing&Shipping
Dimension: 141mmx 78mmx53mmWeight: 200g.
Packed with carton
Company Introduction

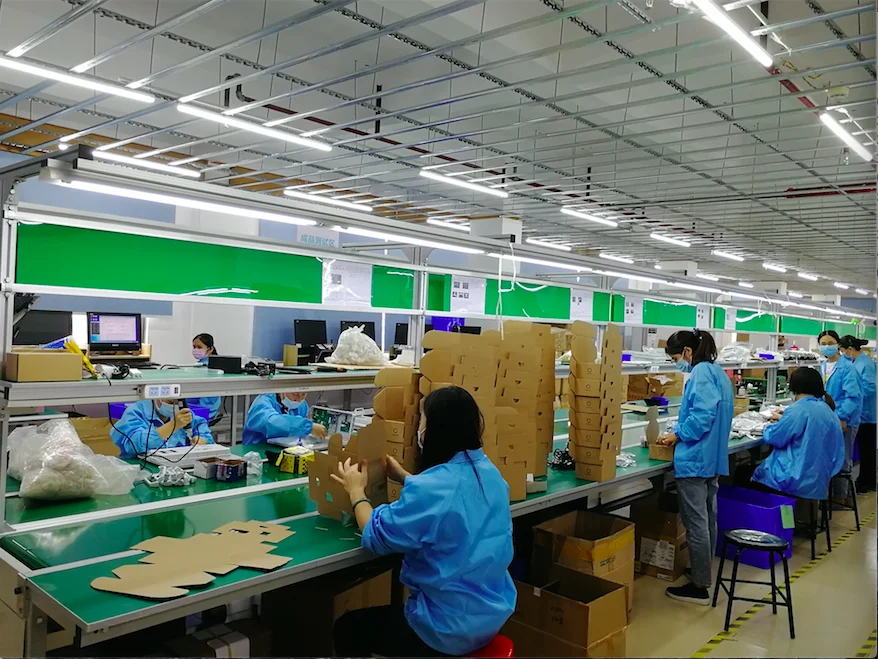

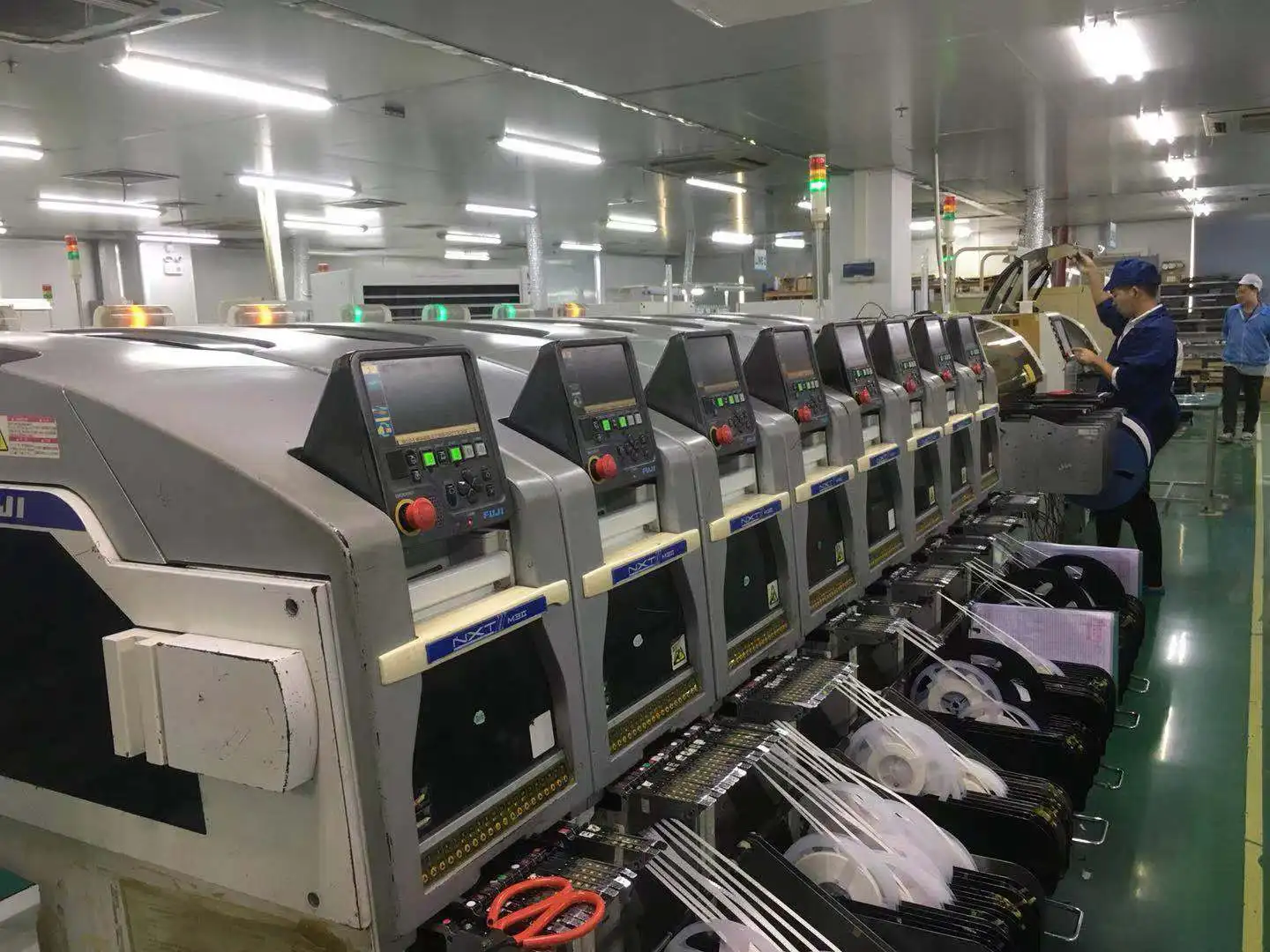

Q-Tech Telecommunications Ltd. has 3 production lines, manufacturing high performance wireless products for several famous international brand, most of the customers are overseas customers. We have succeeded in distributing our products over 120 countries.
Our product lines have expanded to meet all markets, including Point-to-Multi Point data distribution, Point-to-Point bridges for backhaul applications, Wireless Access points and CPE for outdoor/ indoor applications.
We can also OEM for the customers with their own Logo, brands, and customize for the customers.
Our product lines have expanded to meet all markets, including Point-to-Multi Point data distribution, Point-to-Point bridges for backhaul applications, Wireless Access points and CPE for outdoor/ indoor applications.
We can also OEM for the customers with their own Logo, brands, and customize for the customers.
Our Services & Strength
1. High quality: Using high quality material and establishing a strict quality control system,assigning specific persons in charge of each part of production,from raw material purchase to assembly.
2. Professional R&D team: Employed designers with more than 15 years working experience in telecommunications industry.
3. 10 years of manufacturing experience, OEM and ODM are warmly welcomed.We have succeeded in distributing our products over 120 countries
4. Fast dispatch: The major models are in stock. Quality below 100pcs can be delivered within 30 days.
5. Small order accepted: Low MOQ accepted. 5pcs are available.
2. Professional R&D team: Employed designers with more than 15 years working experience in telecommunications industry.
3. 10 years of manufacturing experience, OEM and ODM are warmly welcomed.We have succeeded in distributing our products over 120 countries
4. Fast dispatch: The major models are in stock. Quality below 100pcs can be delivered within 30 days.
5. Small order accepted: Low MOQ accepted. 5pcs are available.
FAQ
Q1. Is free sample available?
A: Yes, we are happy to send the samples of some items for quality evaluation， but we would like to ask a deposit as a debit note, it will be rebated after the order confirmed. Please contact us to get the sample application process.
Q2. What is your lead time?
A: Stock: 5-15 days in general. No stock: 30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities.
Q3. Do you accept OEM or ODM order?
A: Yes, we accept both OEM and ODM for customers.
Q4. What is the payment way?
A: TT, West Union,Online Bank Payment.
Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
A: Yes, we are happy to send the samples of some items for quality evaluation， but we would like to ask a deposit as a debit note, it will be rebated after the order confirmed. Please contact us to get the sample application process.
Q2. What is your lead time?
A: Stock: 5-15 days in general. No stock: 30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities.
Q3. Do you accept OEM or ODM order?
A: Yes, we accept both OEM and ODM for customers.
Q4. What is the payment way?
A: TT, West Union,Online Bank Payment.
Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
