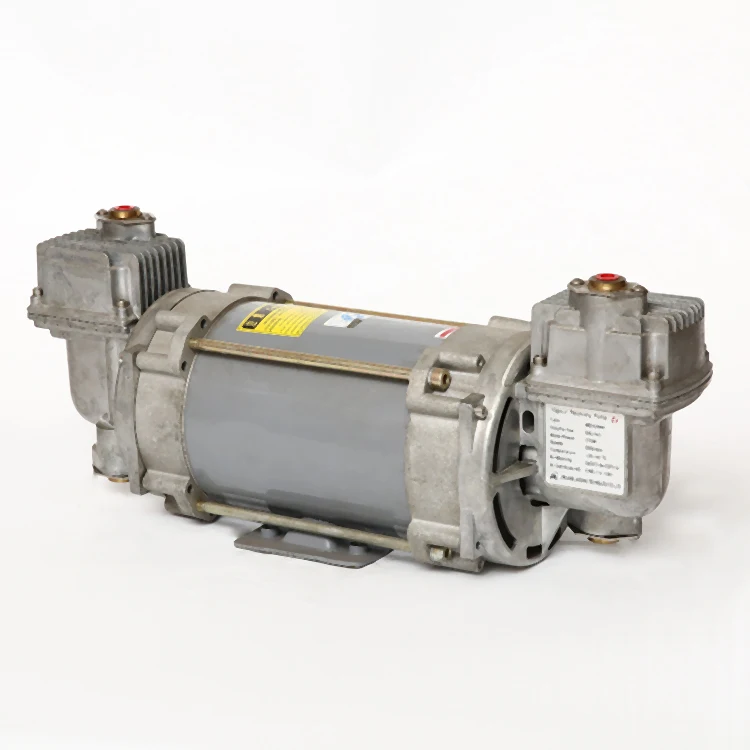

gas vapor recovery pump / electric vacuum pump
- Category: >>>
- Supplier: Shanghai Jiasong Machine Co. Ltd.
Share on (1600673454237):
Product Overview
Description
gas vapor recovery pump / electric vacuum pump
Product Description
Application
ZKB series oil-gas recovery vacuum pump is a relatively consummate pump for oil-gas recovery, working under the ambient temperature at -40~60°C. It can be used separately or as a part of oil-gas recovery system in gas stations, which is mainly used for oil-gas recovery, to reduce pollution and save energy.
With the growing requirement on taking advantage of environmental pollution and energy well, this oil-gas recovery vacuum pump will be applied to this field widely.
Structural Characteristic
Characteristic of ZKB series oil-gas recovery vacuum pump: a shaft drived by motor is fixed on the pump body, and its one end in the pump body is fixedly connected a crank which is jointed to a connection rod; a piston in liner with reciprocating motion is fixed on the top of the connection rod, and the liner is fixed in the pump body; a valve seat assy above the piston has inlet valve and outlet valve which are check valves. Besides, the inlet cavity and outlet cavity on the pump body are connected with the inlet valve and outlet valve respectively; through a pipeline, the inlet cavity is connected with the coupling of an air eliminator, and one end of the coupling is connected with the hose through the hose coupling; the hose with internal and external casing is connected with nozzle.
Technical Specification
| Model | ZKB-100 | ZKB-53 | |
| Power | 370 | 370 | W |
| Rating suction capacity | 100 | 53 | L/min |
| High-point vacuum | -0.09 | 0.09 | MPa |
| Noise | 62 | 62 | dB(A) |
| Speed | 2800 | 2800 | RPM |
| Voltage | 380±10% | 380±10% | V |
| Weight | 18 | 15 | KG |
| Dimension L×W×H | 450X163X205 | 310X163X205 | mm |
| Ex Marking | Exd II AT3 | Exd II AT3 | |
| Ex Certificate NO | GYB081008 | GYB081008 |

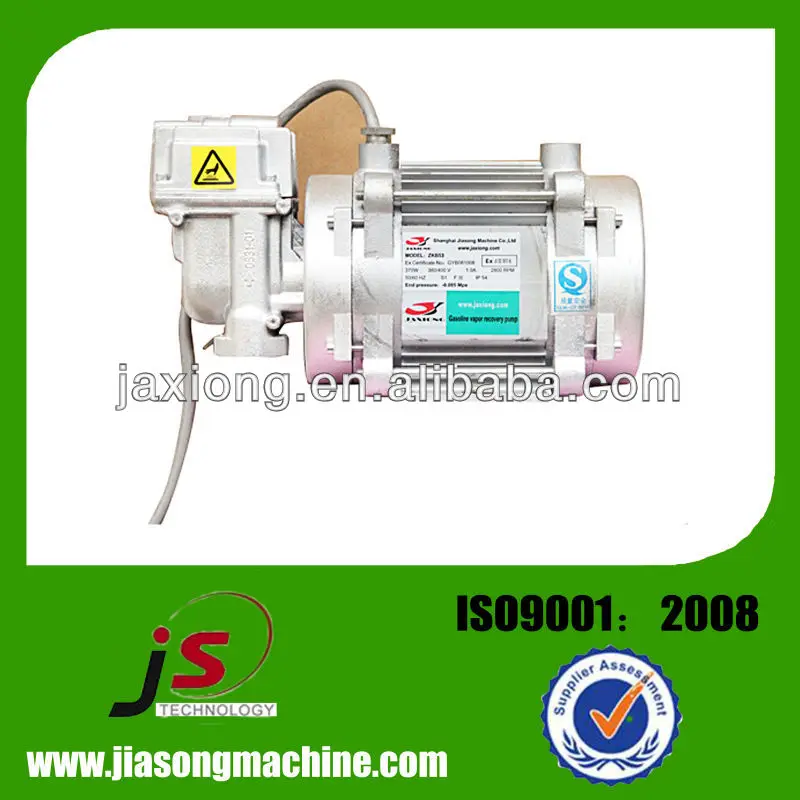

Product Images:
Packaging & Shipping
Packaging: wooden case
Shipping:
7-15 working days after recieving the payment
Products sent by sea, air or road( road only for the 5 centrial Asian countries)
Our Services
We employ more than 50 senior technicians in different majors, and about 300 experienced workers. Our company has already established a quality guarantee system, as well as a set of after sales service system, to make sure the production and distributing be managed systemically and scientifically.
Jiasong will always offer the high quality products as usual by our leading technology and management to repay our clients. With the principle of 'for all the customers', Jiasong will keep researching and developing new material and technique to offer more and more excellent products and service for you! We're striving for being a famous international high tech enterprise around the world!
Company Information
Shanghai Jiasong Machine Co., Ltd enjoys the honor to be a member of China electrical industrial association. As a high tech corporation, Jiasong has experienced over 30 years in designing, manufacturing and distributing various fuel dispensers, valves, drivers and cleaning equipments, which leads the company to be well-known around the whole country as high tech corporation.
As for our main products, Industrial flowmeter & pump, Fuel dispenser and parts, LPG series, Oil measuring tools etc, they have possessed a very high market share at home and abroad. Shanghai Jiasong Technology Co., Ltd owns two production bases, Shanghai and Wenzhou. Wenzhou base is named as Zhejiang Jiasong Technology Co.,Ltd. Two bases cover a total area of 20,000 sq.m.
Contact information
Our Location
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located?
A: Our factory is in No. 6415, North Jiasong Road, Jiading District, Shanghai, China (Mainland).
3.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
4.Q:How about quality control in your factory?
A:"Quality is first, Customers are friends". Every piece of goods is tested strictly one by one before packing and shipping.
We keep goods to meet the standard of CE,EPA, ISO9001:2008.
5.Q:How about guarantee?
A: It's within one year after goods is discharged in the destination. During that period,if some breakdown easily spare parts need to change,my factory can offer.
