High quality open linear bearing slider SBR30UU inner diameter 25mm aluminum linear guide rail SBR30
- Category: >>>
- Supplier: Shaanxi Fatego Network Technology Co. Ltd.
Share on (1600673560071):
Product Overview
Description
Product Description

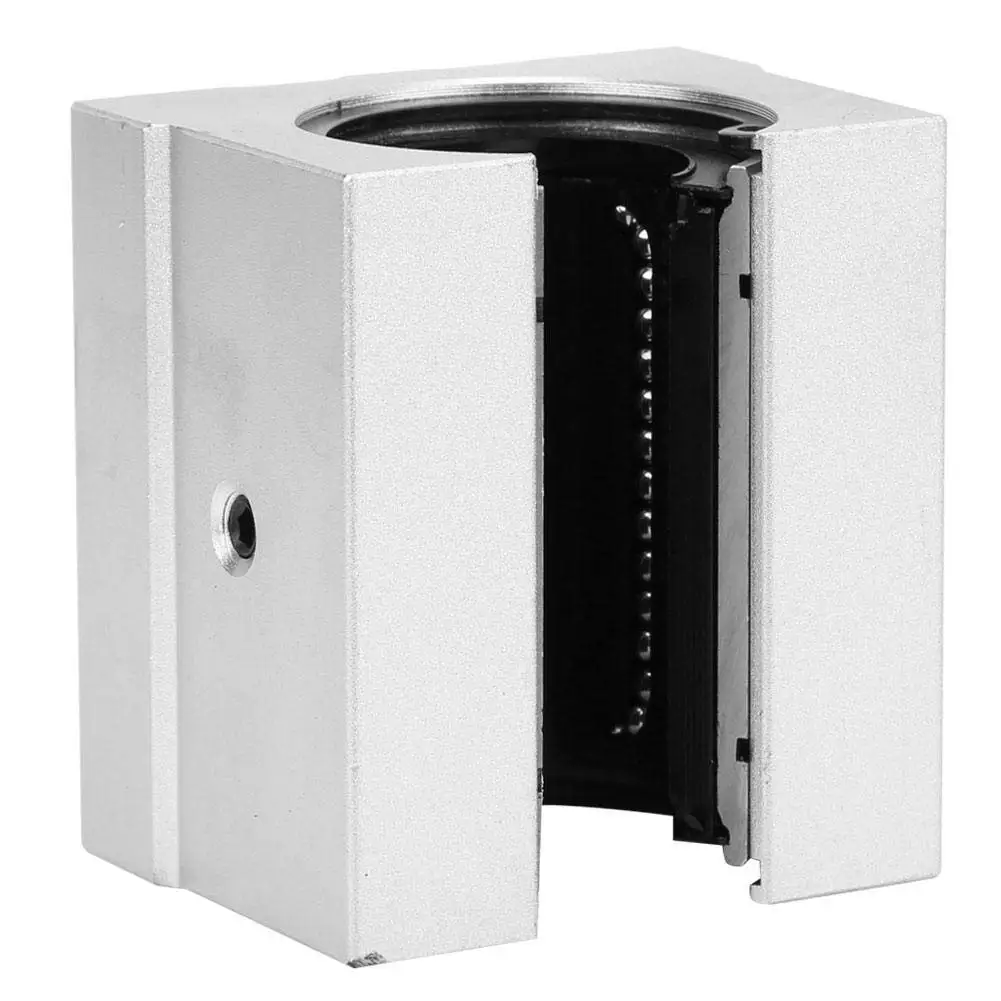

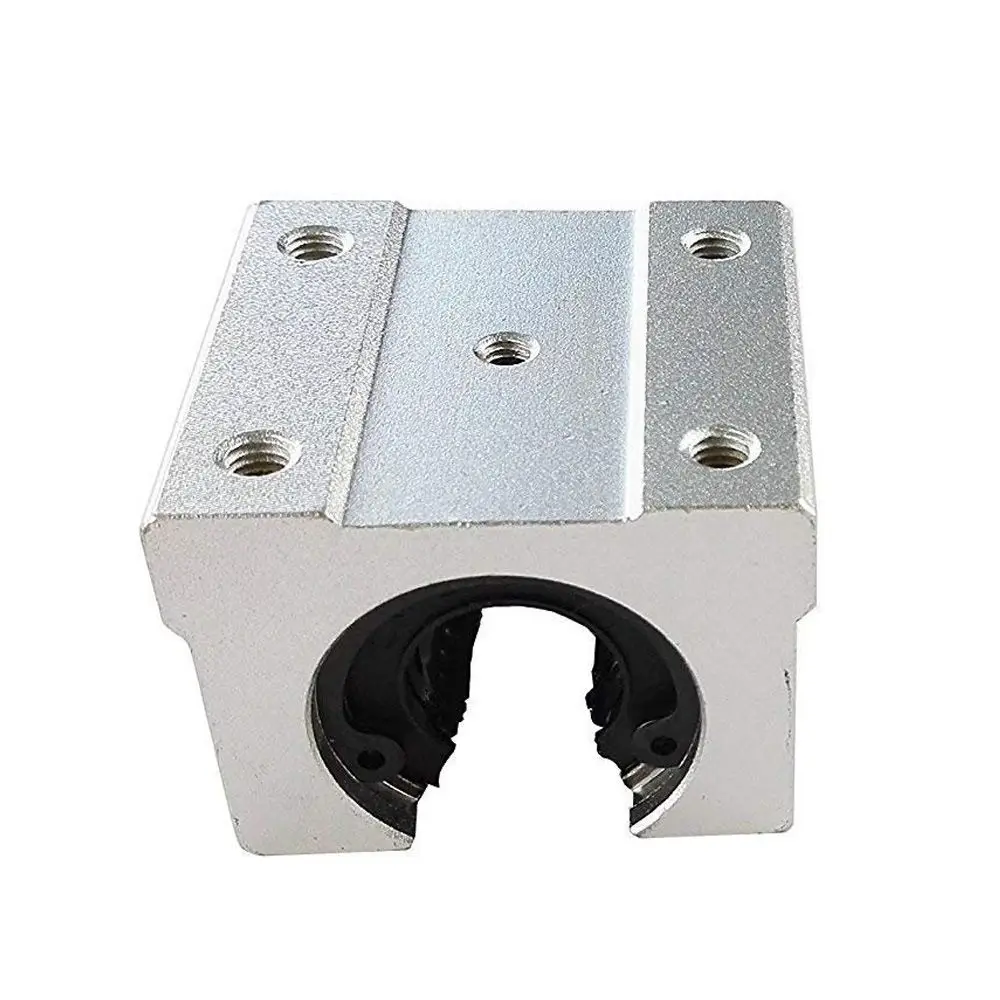

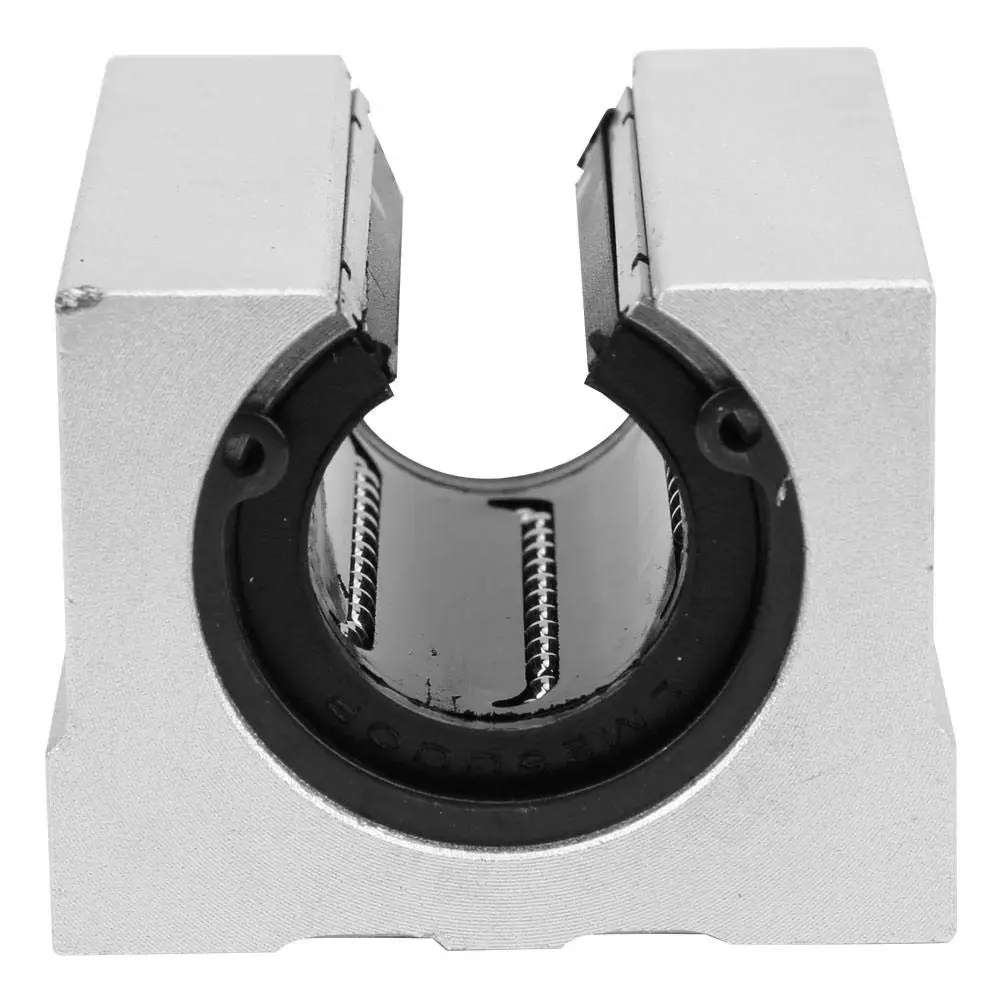

The SBR30UU bearing is a linear ball bearing with aluminium housing used on a 30mm supported linear shaft for accurate linear motion. The aluminium housing has 4 tapped holes at the bottom for easy mounting to plate or bracket.
It is generally used on 3D printers and CNC machines. The main advantage of the supported rails is that it is a lot stronger,
because it is supported all the way along the rod and not just at the ends. These bearings have proven to be long lasting and provide precise low friction linear movement. General maintenance required is to clean the shafts once in a while and keep the shafts lightly oiled or greased.
There are two grub screws on each bearing, one at the top and one on the side. These two grub screws are used to set the play of the bearing on the shaft. Both these grub screws are tightened in the factory to make sure they do not fall out during shipping. This means the grub screws must be adjusted to ensure smooth linear motion on the shaft it is fitted to.
Specifications:
* Model number SBR30UU
* Designed for supported linear shaft: 30mm
because it is supported all the way along the rod and not just at the ends. These bearings have proven to be long lasting and provide precise low friction linear movement. General maintenance required is to clean the shafts once in a while and keep the shafts lightly oiled or greased.
There are two grub screws on each bearing, one at the top and one on the side. These two grub screws are used to set the play of the bearing on the shaft. Both these grub screws are tightened in the factory to make sure they do not fall out during shipping. This means the grub screws must be adjusted to ensure smooth linear motion on the shaft it is fitted to.
Specifications:
* Model number SBR30UU
* Designed for supported linear shaft: 30mm

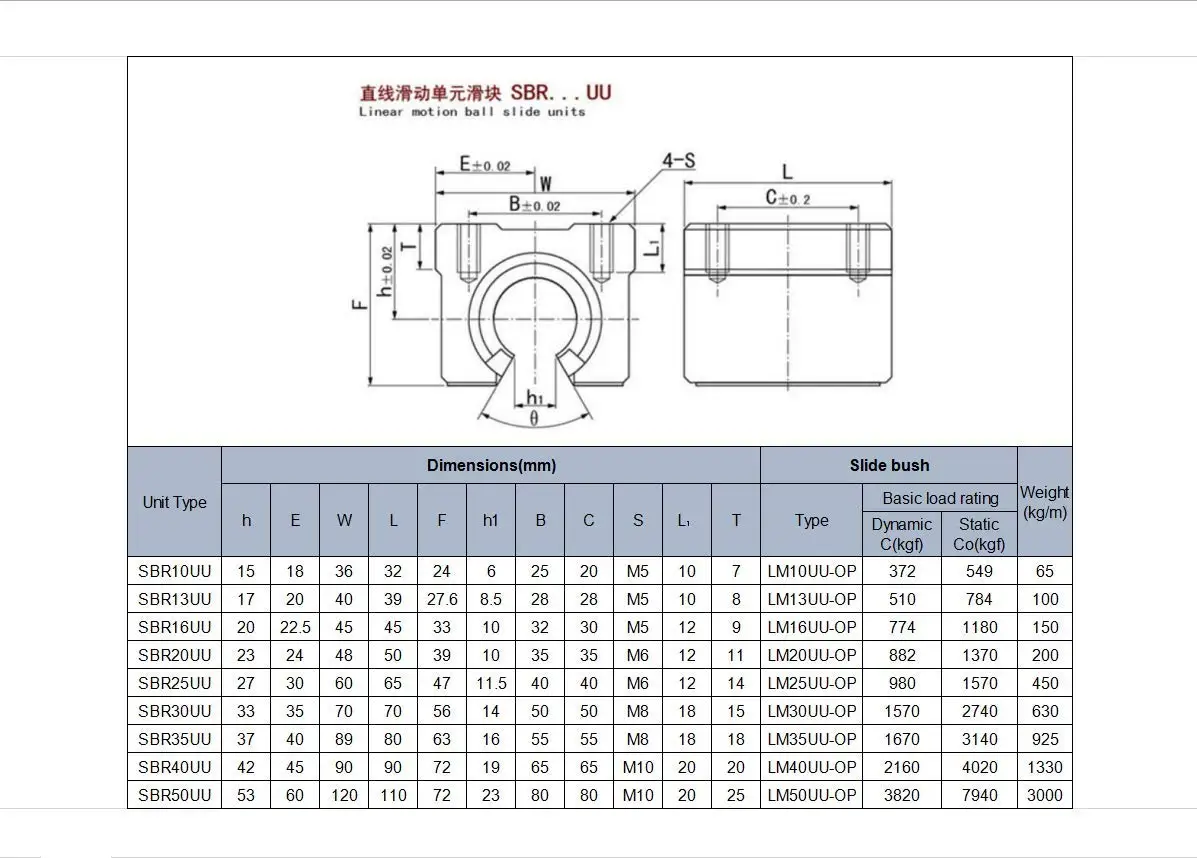

Product's name | Linear Guide |
Material | Chrome Steel/GCr15 Stainless Steel |
Shaft Diameter | Inner Diameter: 30mm/1.18in |
Size(L*W*H) | 70mm/2.76in, Width: 70mm/2.76in, Height: 55mm/2.17in |
Package | Original Packing |
Delivery Time | 5-15 Days |
Feature | Long Life |
Type | SBR30UU Linear Motion Ball Bearing Slide Block |
Sample | Avaliable |

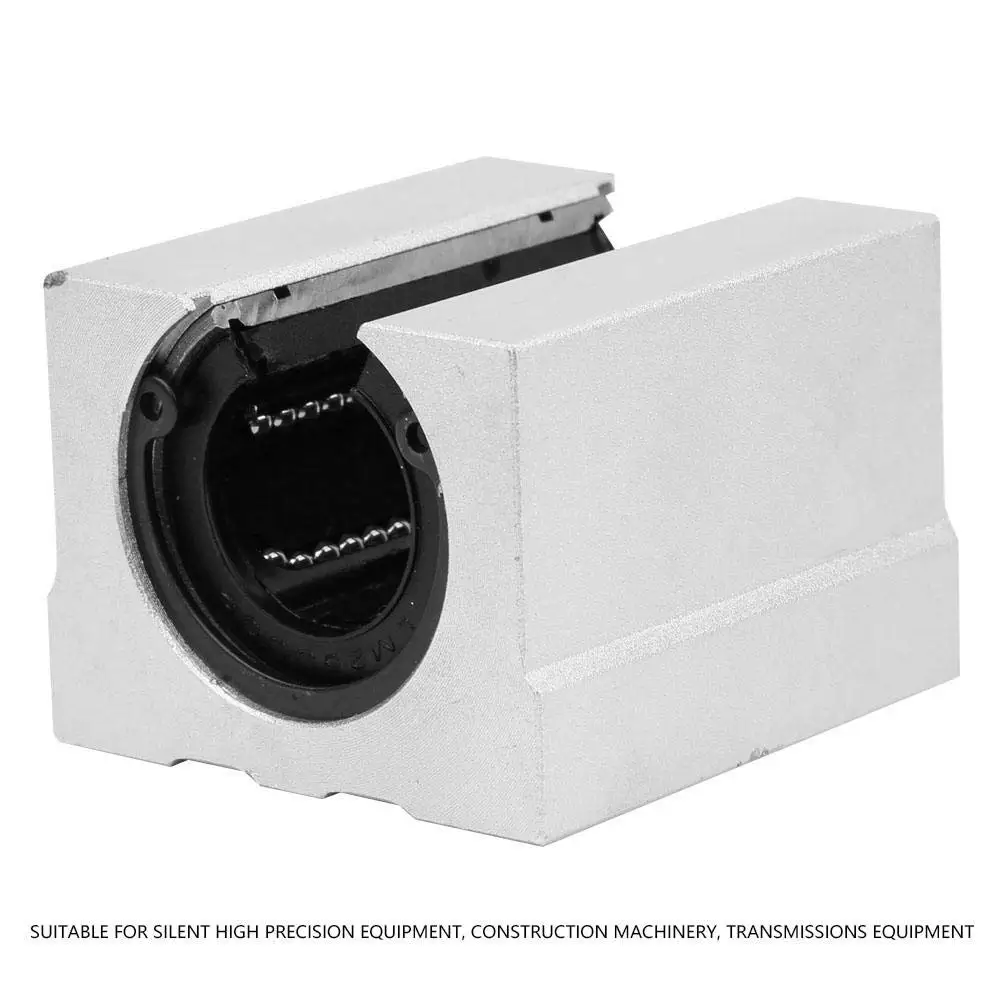

Feature | 1. Suitable for silent high precision equipment, construction machinery, transmissions. 2. Made of high-strength aluminum alloy material, strong carrying capacity and long service life. 3. Surface oxidation treatment, beautiful and corrosion resistant. 4. Smooth movement, low friction, high rigidity and long life. 5. Easy to install and convenient to use. |

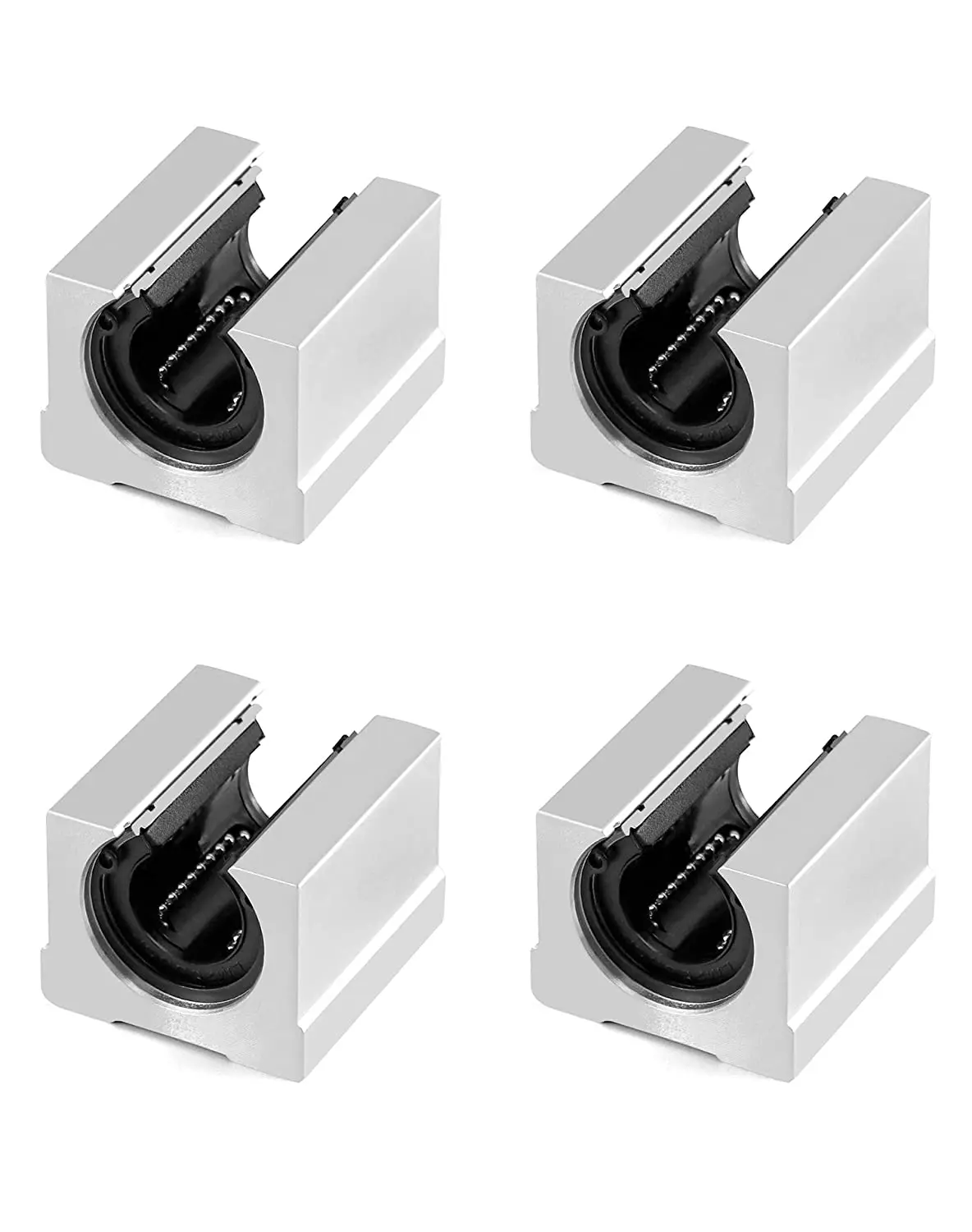

Product Show

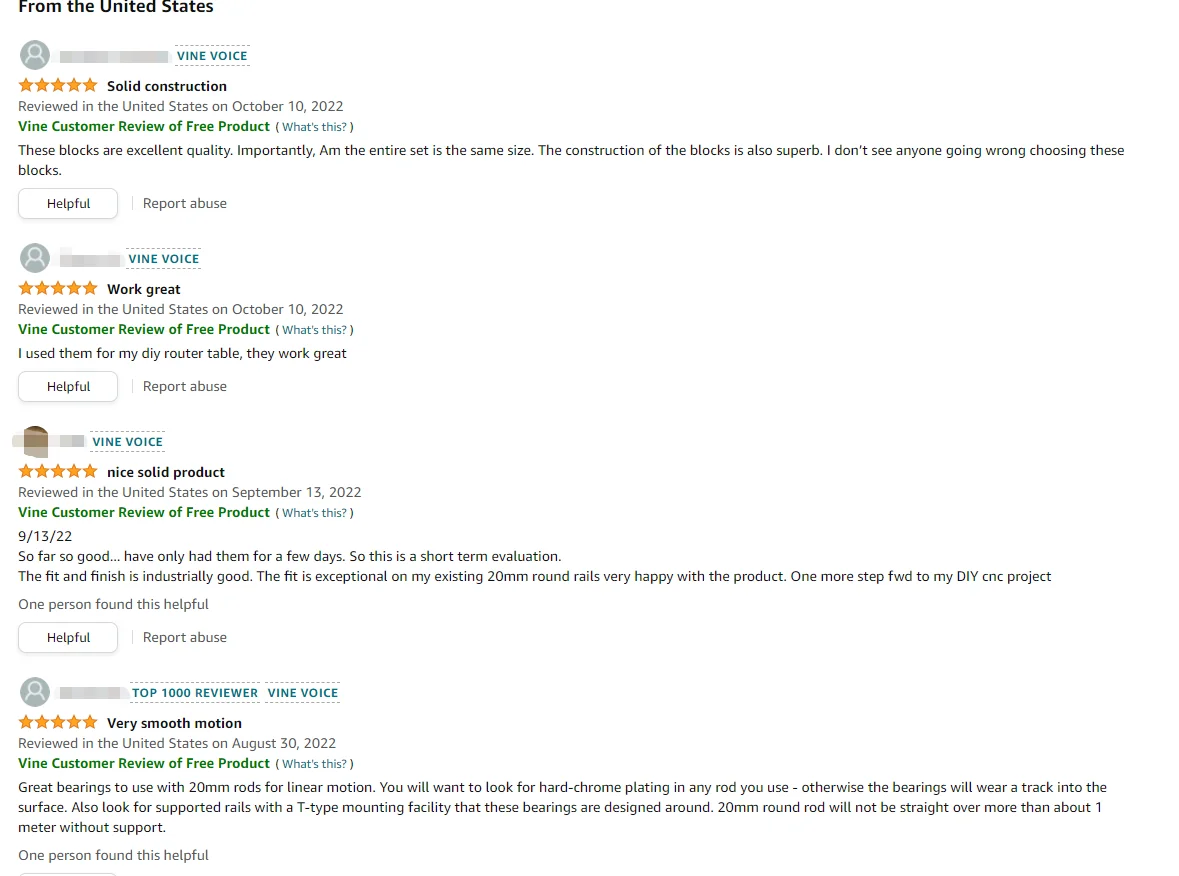

Customer Feedback
Packaging & Shipping
1.Single box: plastic bag+single box, OEM supply
2.Single wooden box: plastic bag+single wooden box
3.Carton: Standard export carton(30*108*38.1MM) or as your need.
4.Pallet: Wooden pallet with plastic film against moisture.
5.Pallet size: 1.2m*1m
6.Package as your requirement
6.Package as your requirement
