Product Overview

Description

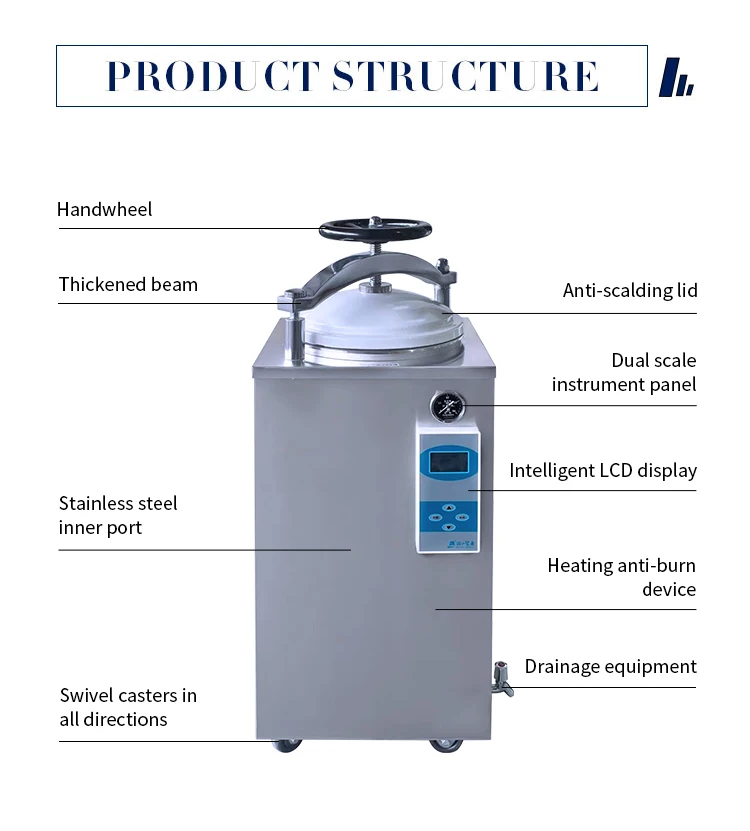

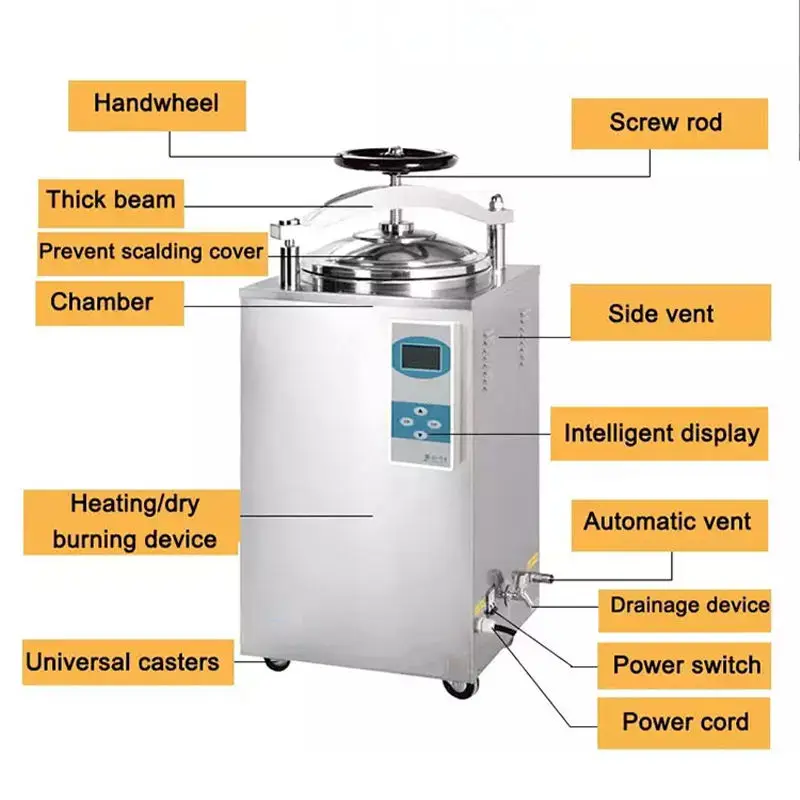

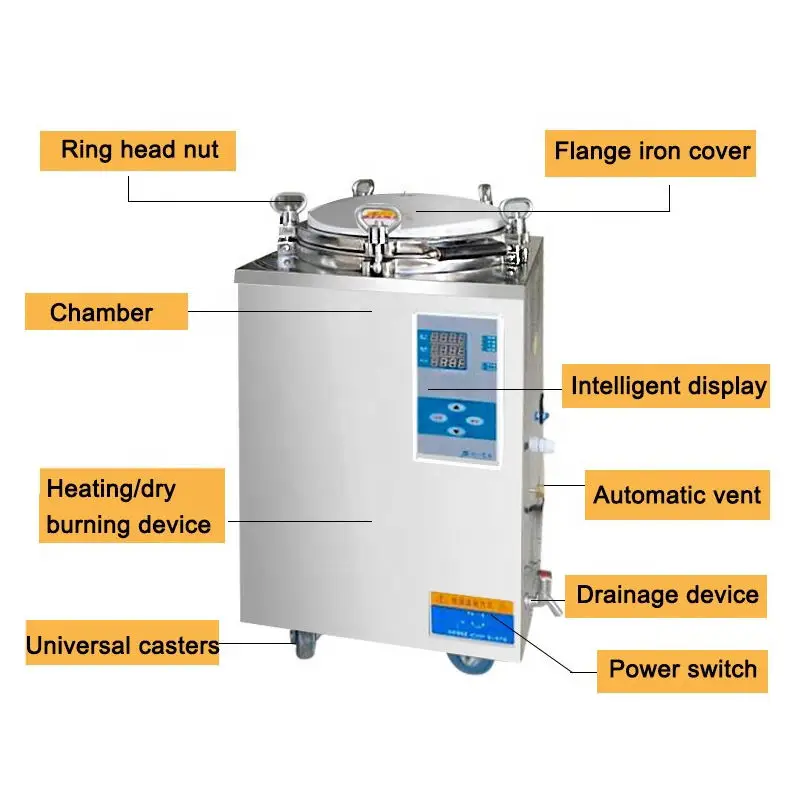

Product Structure




The vertical pressure steam sterilizer consists of a shell, a sterilization barrel, a steam generator, a microcomputer control system, and a power supply system.


Vertical pressure steam sterilizer (LS-35HD, LS-50HD, LS-75HD, LS-100HD, referred to as sterilizer) is a device that uses saturated steam to sterilize items. The sterilization chamber structure of this type of sterilizer is a single-layer structure, the steam supply is heated by an intrusive electric heating tube, the gas replacement method is a lower exhaust type, the sealing structure type is a beam structure, and the control method is microcomputer control.





Product Parameters










































































Model technical data



LS-35HD(automatic)



LS-50HD(automatic)



LS-75HD(automatic)



LS-100HD(automatic)



Chamber volume



35L(φ318×450)mm



50L(φ340×550) mm



75L(φ400×600) mm



100L(φ440×650) mm



 working pressure



0.22MPa



Working temperature



134℃



Max working pressure



0.23 Mpa



Heat average



≤1℃



Timer



0~99min  or 0~99hour59min



Adjustment of temperature



105~134℃



Power



2.5Kw/AC220V.50Hz



3Kw/AC220V.50Hz



4.5Kw/AC220V.50Hz



Overall dimension



470×450×1020(mm)



520×500×1150(mm)



550×530×1180 (mm)



580×560×1290 (mm)



Transport dimension



540×540×1140(mm)



580×580×1250(mm)



610×610×1280(mm)



640×640×1360(mm)



G.W/N.W



    81Kg/63Kg



      94Kg/ 74Kg



    113Kg/ 93Kg



   125Kg/ 105Kg

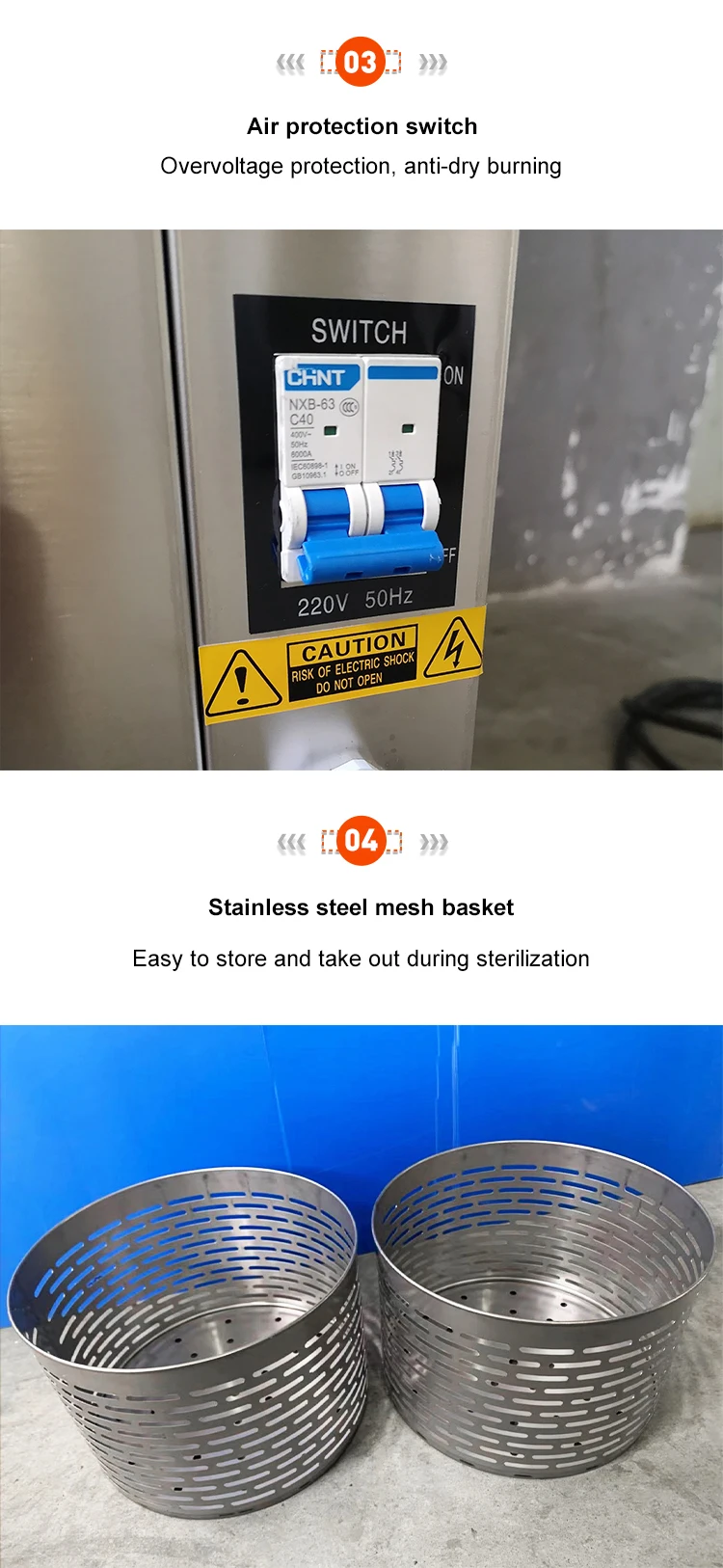

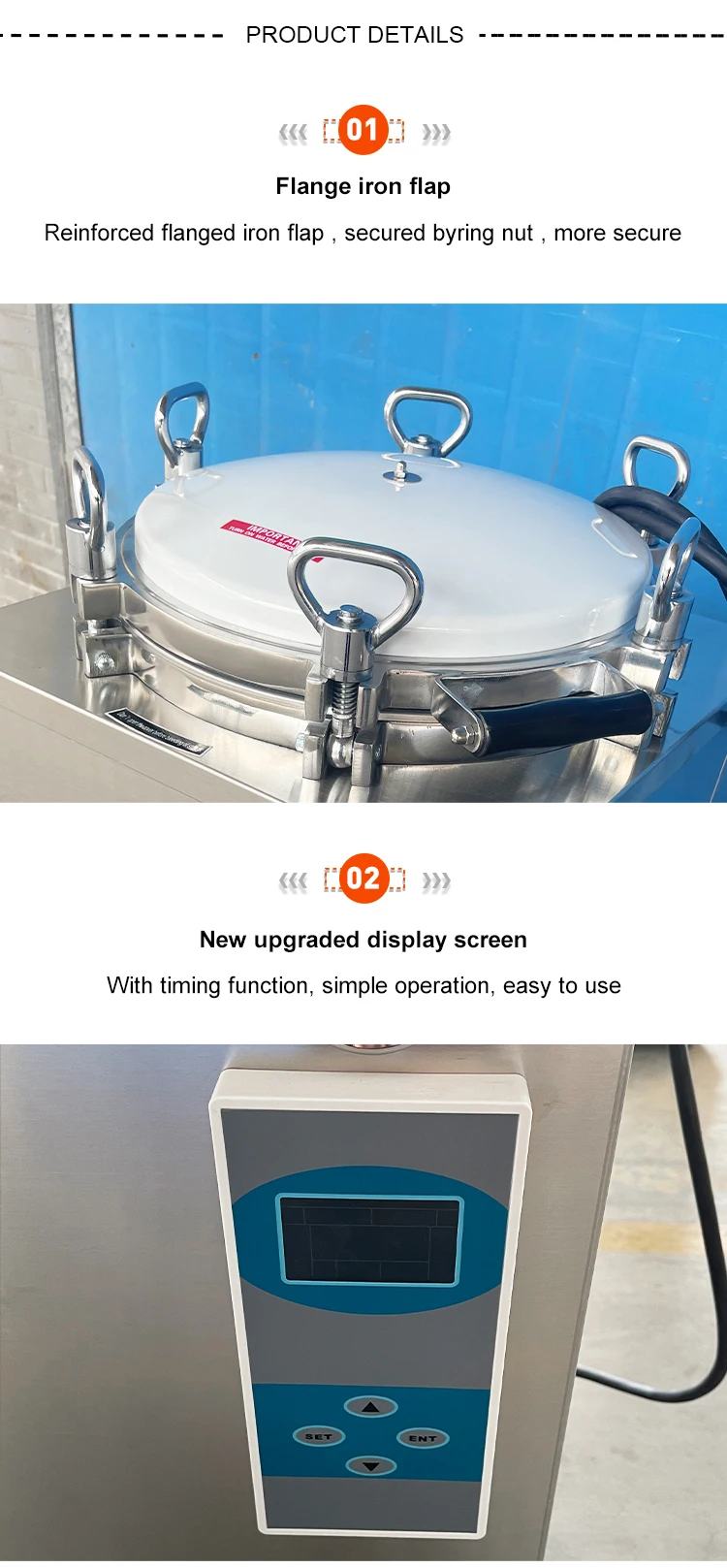

Product Details

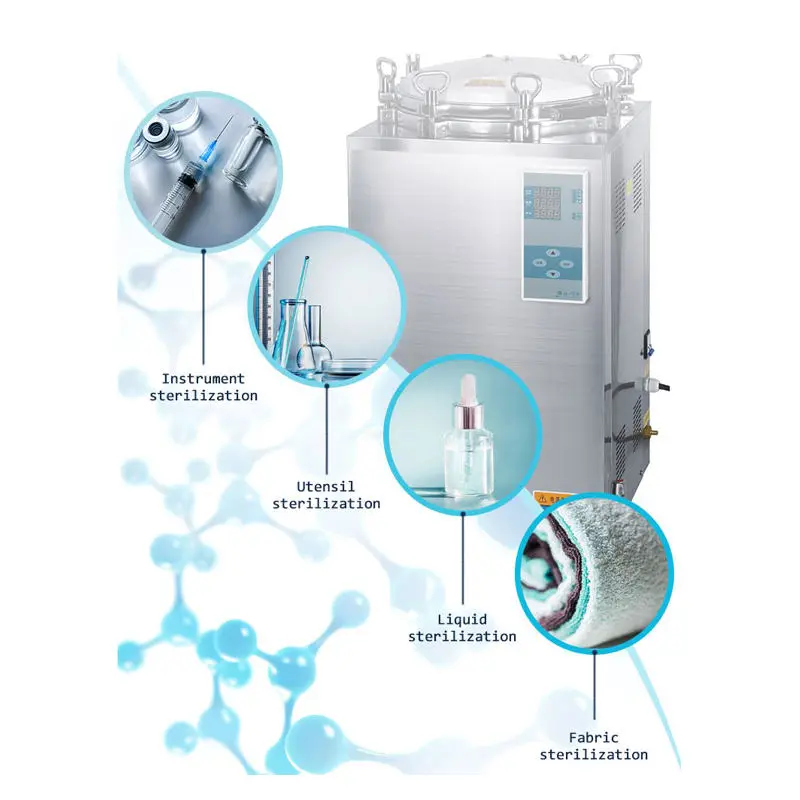

Application Field




It is widely used in clinics, scientific research institutes and other institutions to sterilize dressings, fabrics, glassware, solution culture medium, etc.





Product Advantages




Vertical sterilizer is a safe and reliable automatic sterilization equipment, which consists of heating system, microcomputer control system and overheating and overpressure protection system. The container has the advantages of reliable disinfection and sterilization effect, convenient operation, safe use, energy saving, durability and low cost. It is an ideal equipment for the disinfection and sterilization of surgical instruments, dressings, utensils and culture medium in scientific research units.

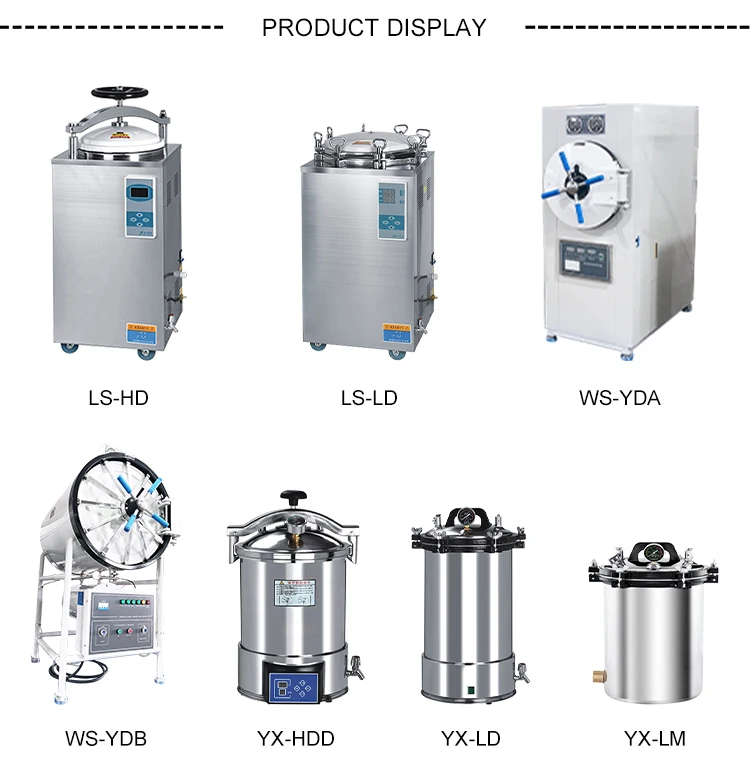

Product Display







Attend Exhibitions

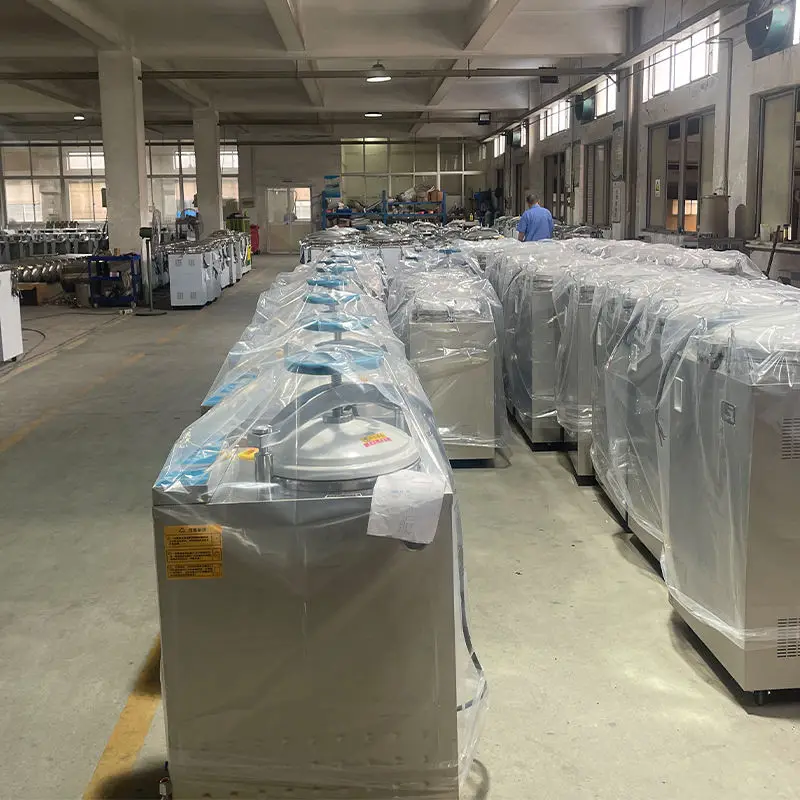

Packaging & Shipping
