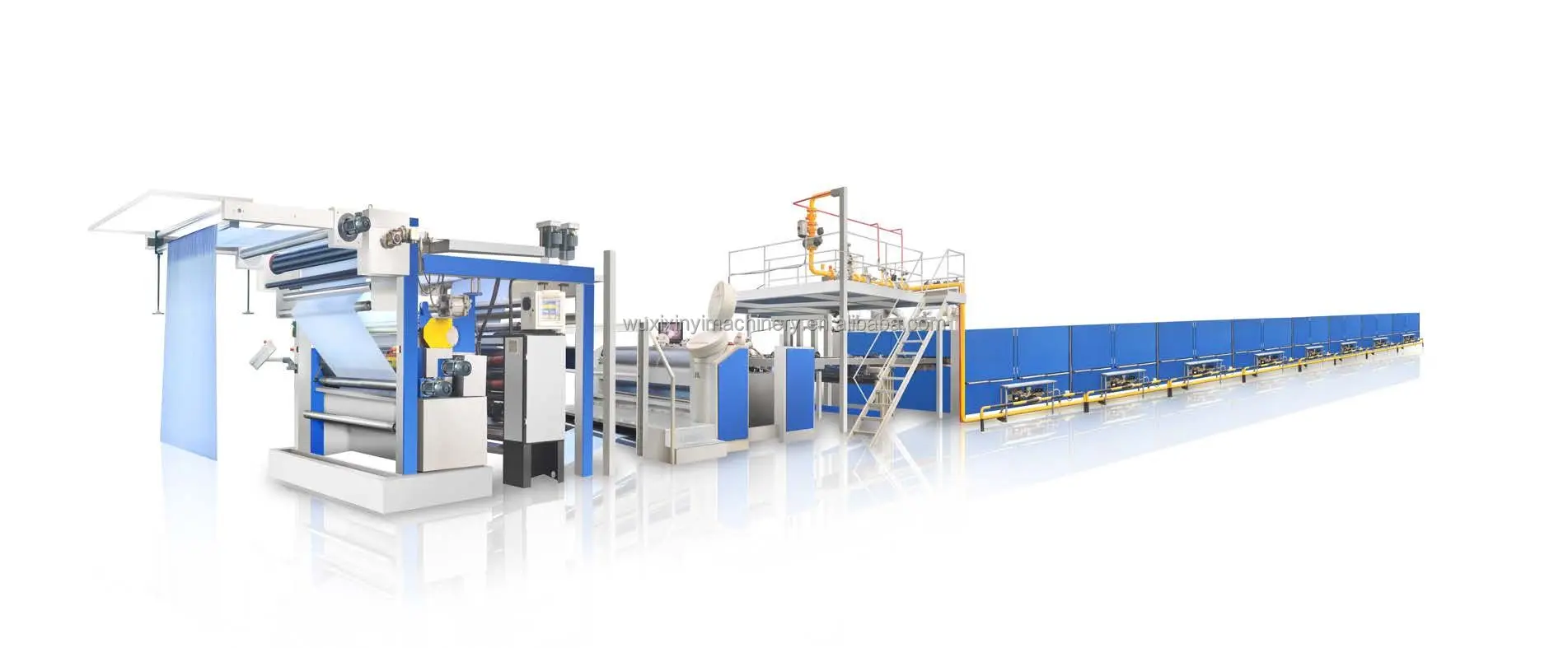

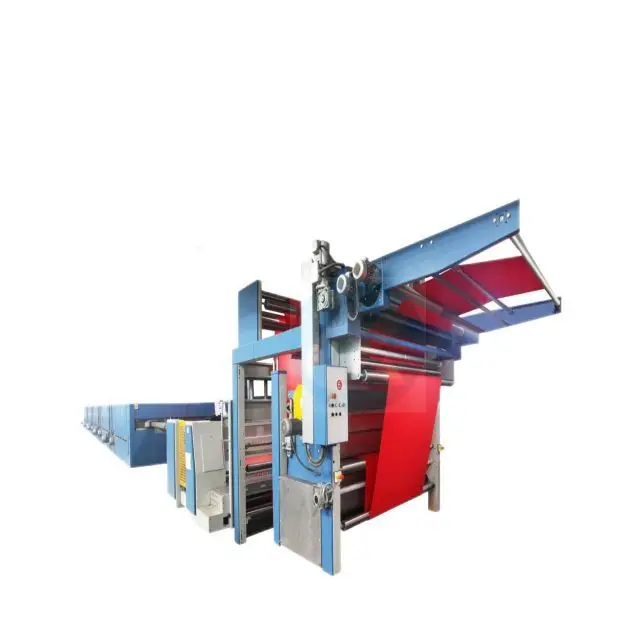

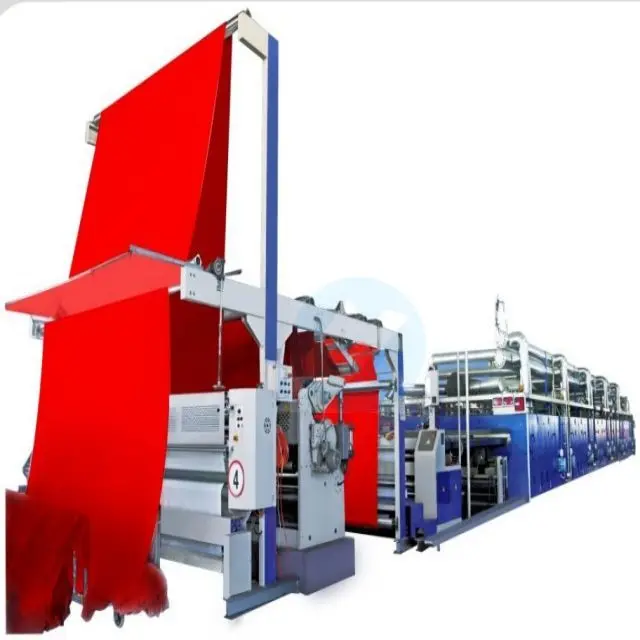

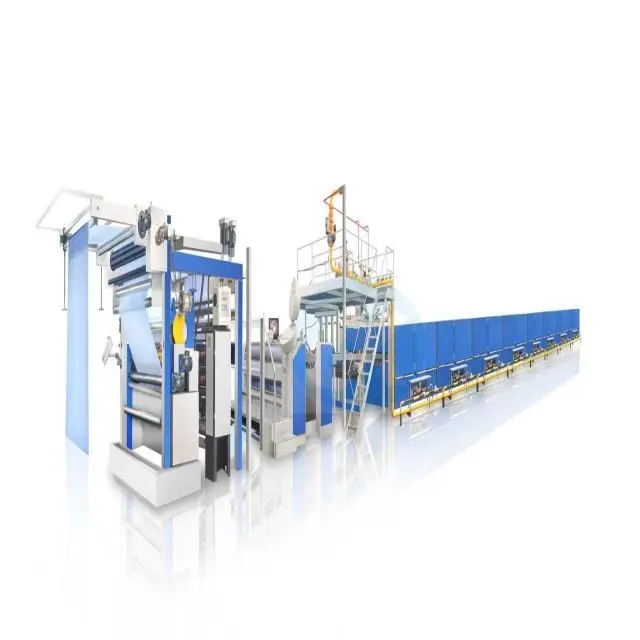

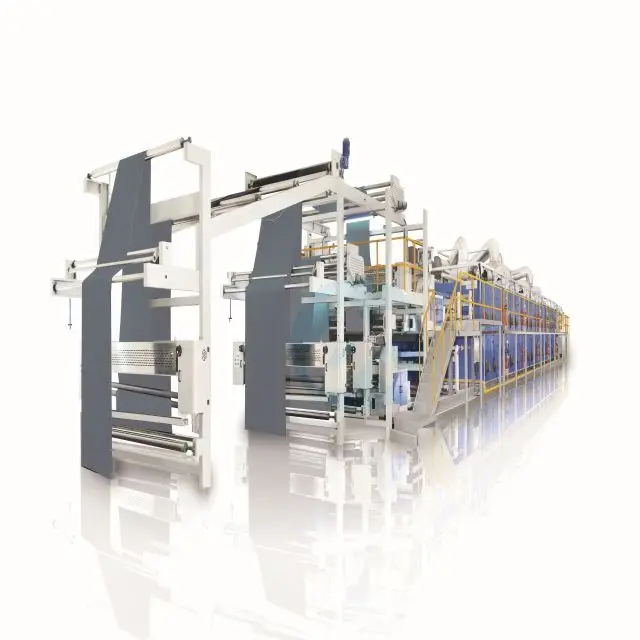

Textile setting stenter machine with Heat conduction oil steam gas electric heating
- Category: Apparel & Textile Machinery >>>
- Supplier: Wuxi Xinyi Machinery Co. Ltd.
Share on (1600675011364):
Product Overview
Description
Product Overview
XLC Series Tension setting machine
Elliptical circulation fan box, high efficiency and energy saving
Successful Project
Project in Thailand
Project in India
Project in Russia
PRODUCT SPECIFICATIONS
Application
This machine is mainly used for stentering, setting, finishing the cotton fabric, poly-cotton fabric, polyester fabric, elastic
fabric after desizing, mercerizing.
Technical Parameters 1. Machine nominal width: 1800~3600mm
2. Design mechanical speed: 10~180m/min
3. Heat source: natural gas / heat-transfer oil / electricity / steam
4. Temperature: 60~220℃
Process Flow
Open-width feeding fabric → fabric tensioning device → infrared centering device → photoelectric weft straightener → rectifying
deviation, expanding, spreading device → screw thread spreading roller → front overfeeding device → edge detector → pinning on /
clipping on → chambers setting → cold air cooling → pinning off / clipping off → back overfeeding → cold water roller for cooling
→ open-width swinging doffing / batching doffing.
The machine process can be customized according to the user’s technological requirements.
This machine is mainly used for stentering, setting, finishing the cotton fabric, poly-cotton fabric, polyester fabric, elastic
fabric after desizing, mercerizing.
Technical Parameters 1. Machine nominal width: 1800~3600mm
2. Design mechanical speed: 10~180m/min
3. Heat source: natural gas / heat-transfer oil / electricity / steam
4. Temperature: 60~220℃
Process Flow
Open-width feeding fabric → fabric tensioning device → infrared centering device → photoelectric weft straightener → rectifying
deviation, expanding, spreading device → screw thread spreading roller → front overfeeding device → edge detector → pinning on /
clipping on → chambers setting → cold air cooling → pinning off / clipping off → back overfeeding → cold water roller for cooling
→ open-width swinging doffing / batching doffing.
The machine process can be customized according to the user’s technological requirements.
No | Item | Data | ||
1 | Power | 500KW | ||
2 | Core Components | PLC, Gearbox, Motor | ||
3 | weight | 40Ton | ||
4 | Warranty | 1 YEAR | ||
5 | Mechanical speed | 10 ~90m/min | ||
6 | Padder | customized product | ||
7 | Winder | customized product |
FEATURES AT A GLANCE
The overfeed adjustment range (- 10% ~ + 100%) can be full
Meet the overfeed requirements of different fabrics
Meet the overfeed requirements of different fabrics
Right elevation
Left elevation
Front elevation
PRODUCT CONFIGURATION
Centring device
Intelligent electric control box
Manipulate the winding device
Manufacturing Technique
Exhibition
Company Profile
Wuxi Xinyi Machinery Co., Ltd.
Focus on the R & D, production and sales of textile machinery and equipment such as stenter and setting machine
Established in 2002, Wuxi Xinyi Machinery Co., Ltd. has been focusing on the R & D, production and sales of textile machinery and equipment such as stenter and setting machine for many years. At present, the company has 200 employees, 20% of whom are scientific and technological personnel. The company covers an area of 50000 square meters, with a construction area of 50000square meters
Established in 2002, Wuxi Xinyi Machinery Co., Ltd. has been focusing on the R & D, production and sales of textile machinery and equipment such as stenter and setting machine for many years. At present, the company has 200 employees, 20% of whom are scientific and technological personnel. The company covers an area of 50000 square meters, with a construction area of 50000square meters
