Anti splash Dust Removal Head Mounted Welding Helmet With Air Purifying Respirator (1600675011930)

Share on (1600675011930):

Price:$150.00 - $180.00
Price in USD:Details


Product Overview

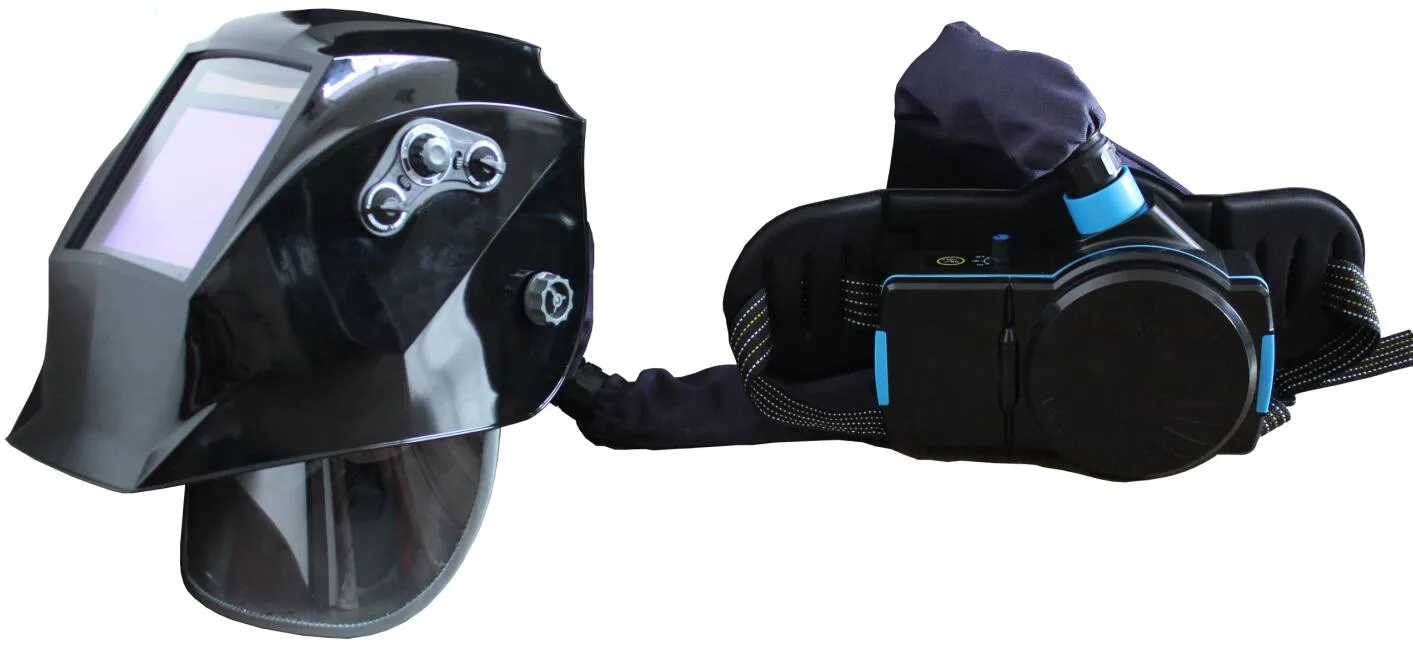

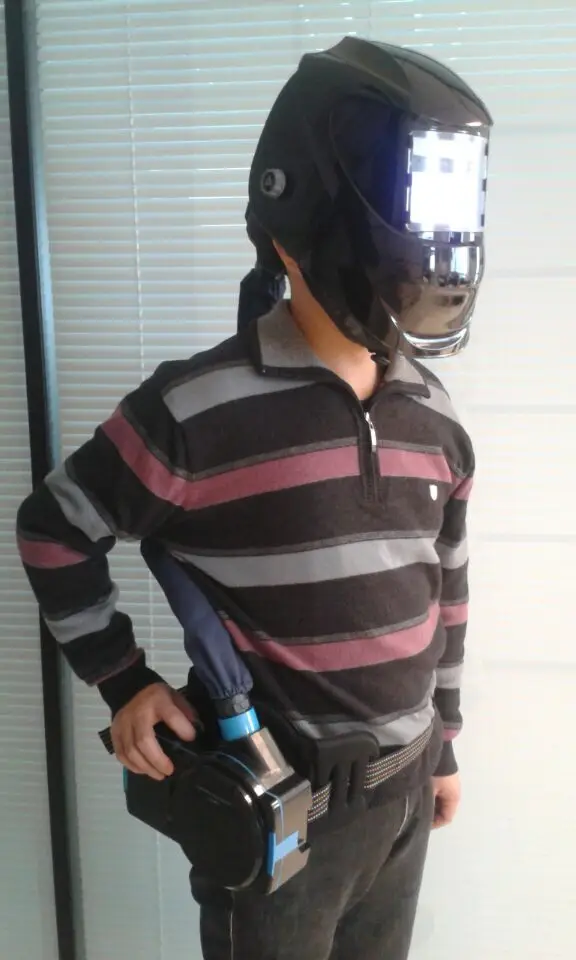

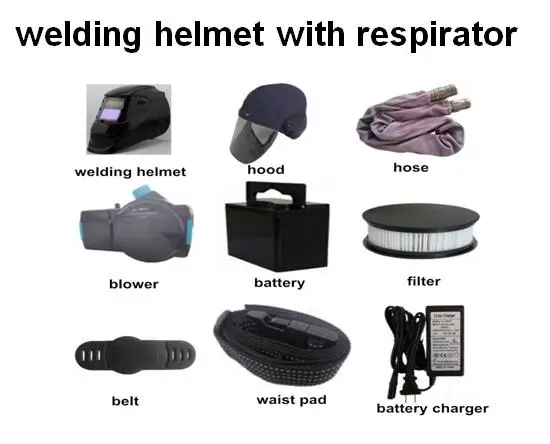

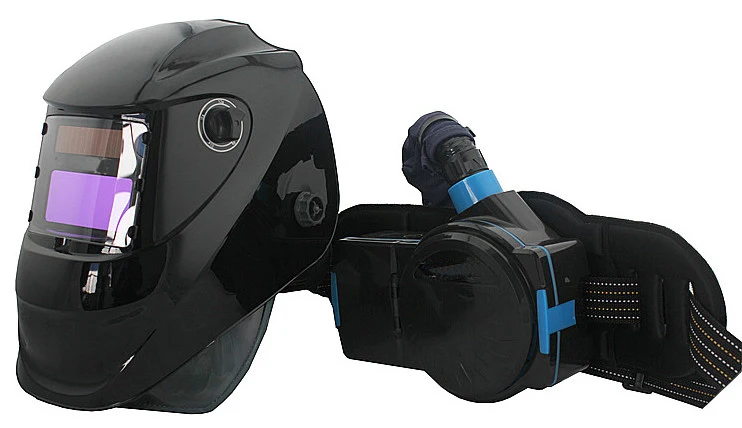

Anti-splash Dust Removal Head Mounted Welding Helmet With Air Purifying Respirator

Air Filter


Brand Name
Model Number
Place of Origin
1 Year
Nylon, PP Material
Grind Mode
Low Battery Indication
Battery Replacement
Welding Works
Customized support

Product Description

The powered respirator is used for dust removal and partial odor removal, not for gases or vapors and is used to reduce or remove resistance to inhalation during respiration - by producing a constant airflow. The unit is designed with manufacturer's minimum design flow rate 150 litres, 180 litres or 220 litres per minute ( the flow rate at which the equipment still will fulfill the requirements of the class in either EN12942 or EN12941).The actual working time will be about 8 hours. Except the welding industry, our respirator also can be used in other industries (such as spraying).

Airflow: 150 L/min, 180L/min, 220L/min
Charging time: 2.5h
Rechargeable time: > 500 times
Working humidity: <90%
Storage humidity: <85%
Air filter class: P3

Auto darkening welding helmet
ADF Model: 98*48mm
Filter Dimension (mm): 110*90*9mm
Light State Shade: DIN4
Dark State Shade: DIN9-13
Shade Control Ways: External
Switching Time: <1/25000s
Sensitivity Control: YES
Delay Time: 0.1-0.9s
UV/IR Protection Class: DIN16
Working Temperature: Between - 10 And 55 ℃
Power Supply: Solar Cell & Lithium Batteries

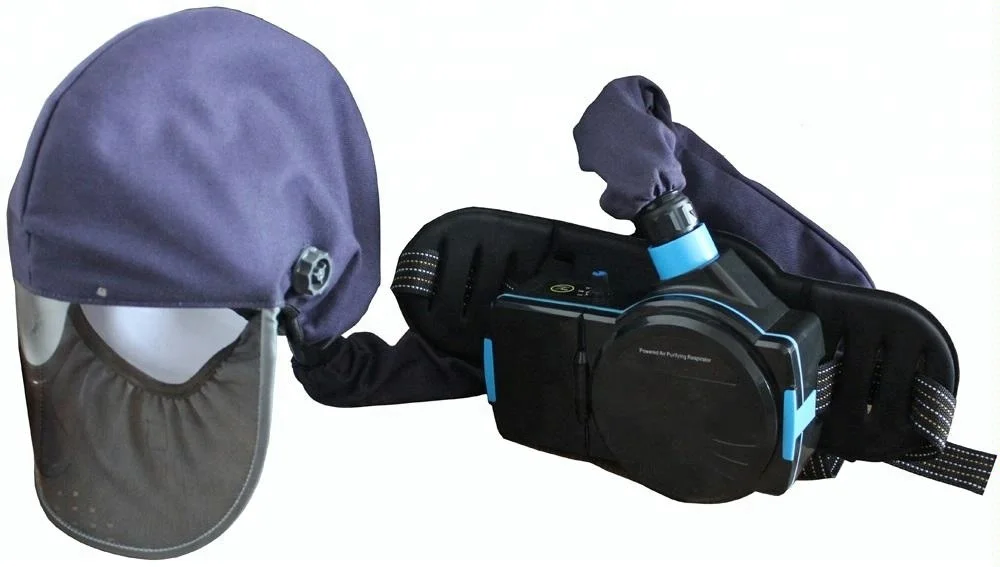

Powered respirator
Airflow: 150 L/min,180L/min,220L/min
Motor Speed: Electronically controlled
Alarms: Electronically controlled, for low flow and low battery
Material: Impact proof ABS
Color: Black/blue
Dimensions LxWxH: 235x145x85mm

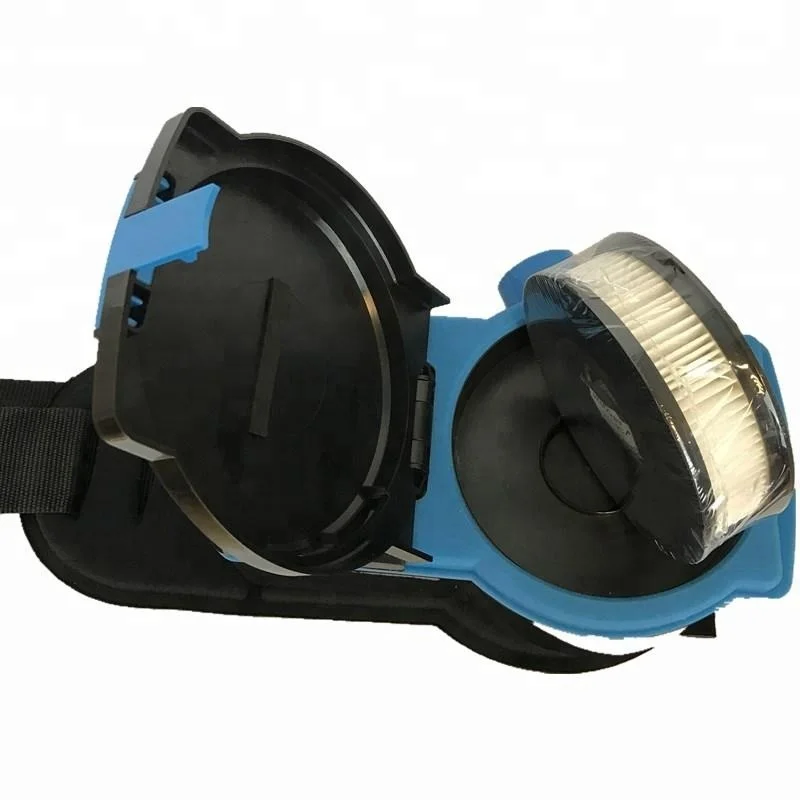

Air filter
Filter class: P3
Material filter medium: Eficient filtering low resistance papers
Material support disks: ABS Color: Black
Weight:135 grams
Dimension: DxH: 120x35mm

Type: Lithium, rechargeable
Voltage: 12 Volt
Capacity: 4300mAh
Operating time: > 8hrs
Charging time: 2.5 hrs
Charging cycles: >500
Material case: Impact proof ABS
Color: Black
Weight: 315 grams
Dimensions: 87x43x63mm

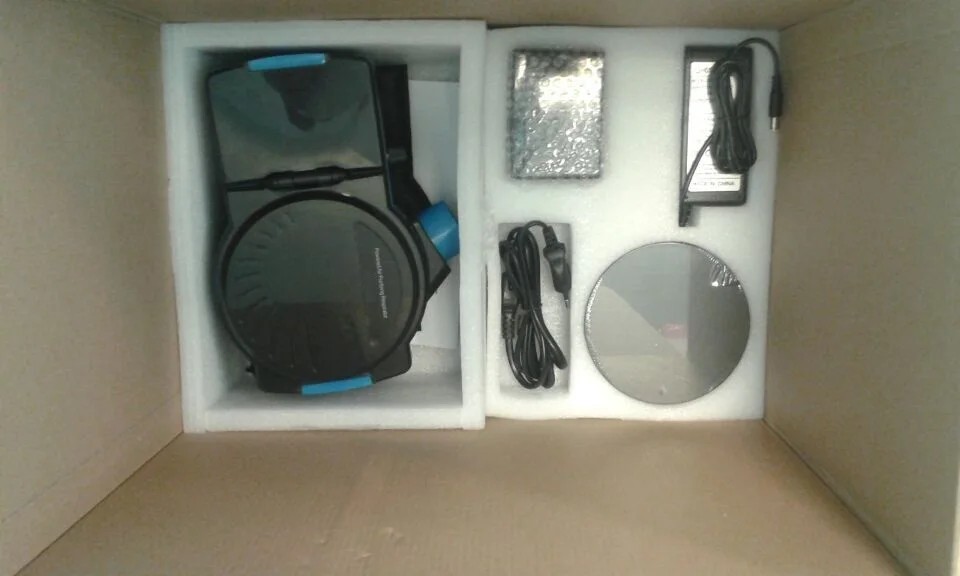

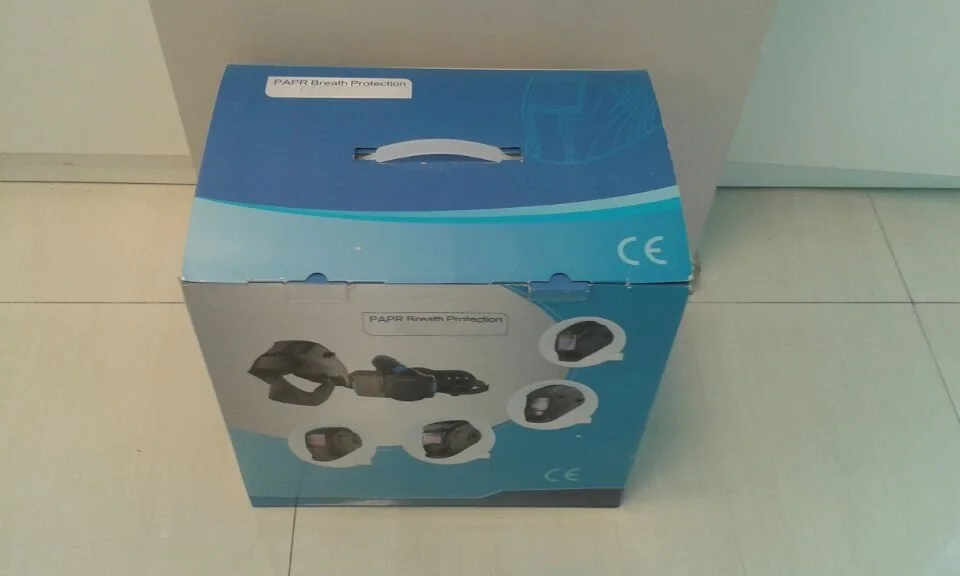

Packing & Delivery

Contact us:
1. QQ: 2760171450
2. Wechat: Unison_Evan
3. Facebook: Evan Wang
4. Phone: 008617568922092

Company Profile


Unison (Qingdao) Industrial Co., Ltd

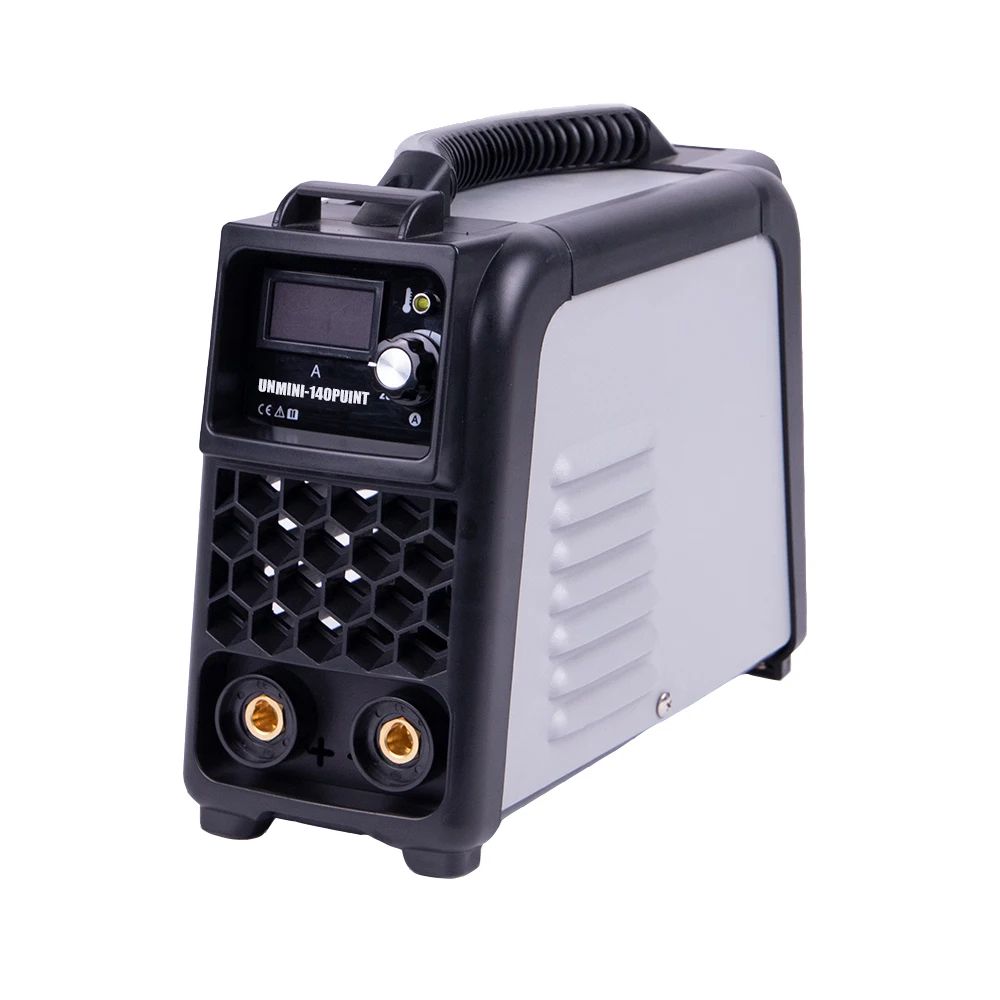

Main products: welding machine, auto darkening welding helmet and safety goggles.
