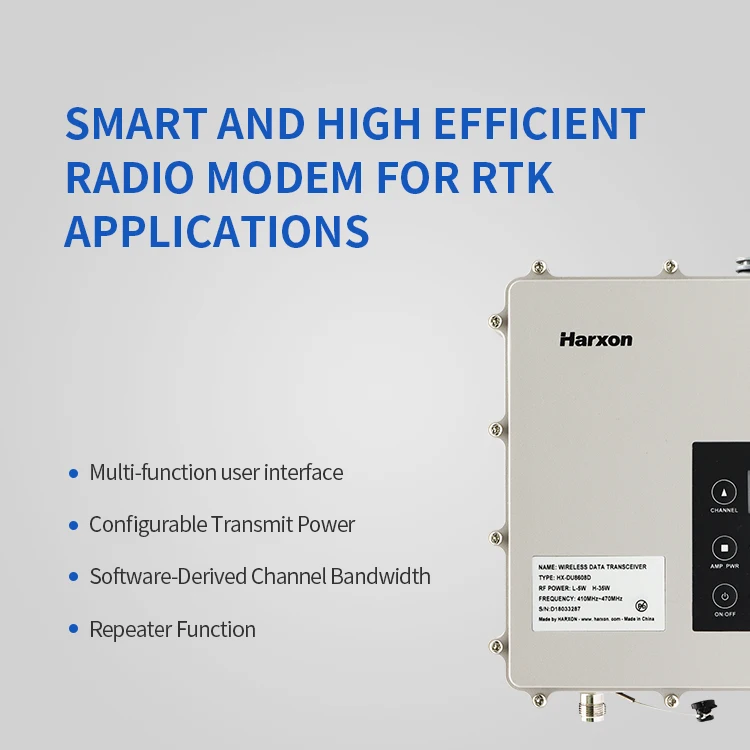

Hot Selling 35W High Power GPS RTK External UHF Radio for Surveying Applications
- Category: >>>
- Supplier: Harxon Corporation
Share on (1600675045161):
Product Overview
Description
Product Description
Specification
GENERAL | |
Frequency | 410MHz~470MHz |
Operating Mode | Half-duplex |
Channel Width | 25KHz, 12.5KHz |
Modulation Type | GMSK |
Operating Voltage | 12V |
Power Dissipation (Typical) | High power level (35W) ≤110W @ DC 12V High power level (30W) ≤100W @ DC 12V High power level (20W) ≤75W @ DC 12V Low power level (15W) ≤60W @ DC 12V Low power level (10W) ≤45W @ DC 12V Low power level (5W) ≤25W @ DC 12V Standby ≤1.5W @ DC 12V |
Frequency Stability | ＜±1ppm |

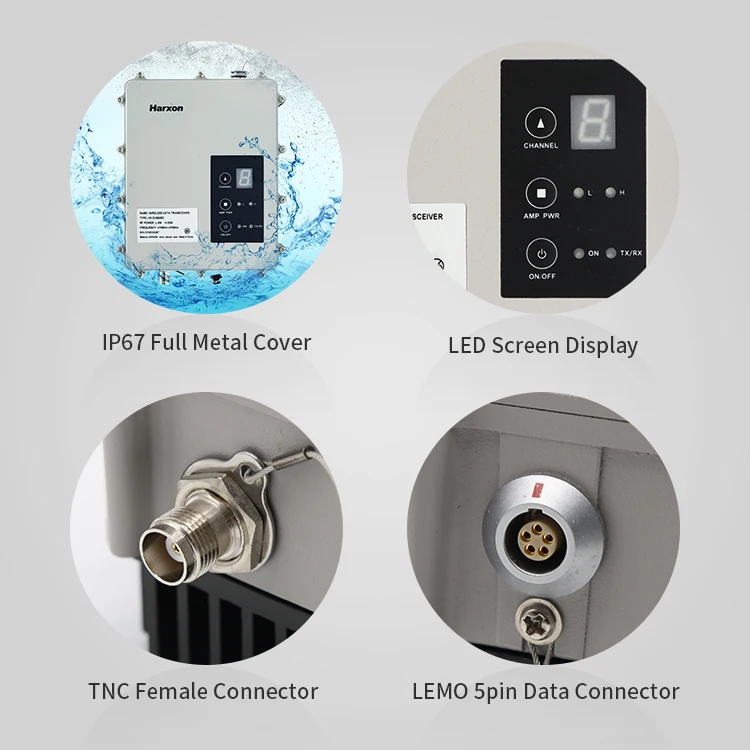

Ingress Protection Rating | IP67 |

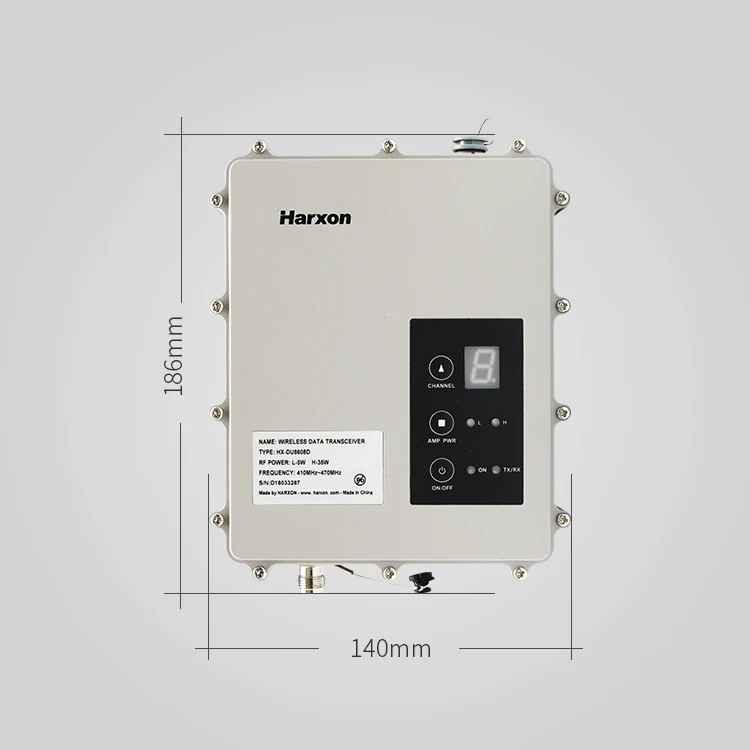

Size | 186×140×73mm |
Weight | 1.5kg |
Operating Temperature | -30℃ to +65℃ |
Storage Temperature | -40℃ to +85℃ |
Antenna Port | TNC female |
Antenna Impedance | 50ohm |
Data Interface | LEMO 5pin |
TRANSMITTER | |
RF Output Power | High level (35W) 45.5±0.5dBm@DC 12V High level (30W) 44.8±0.5dBm@DC 12V High level (20W) 43±1dBm@DC 12V Low level (15W) 41.8±1dBm@DC 12V Low level (10W) 40±1dBm@DC 12V Low level (5W) 37.5±1dBm@DC 12V |
Power Stability | ±1dB |
Harmonics | >50dB |
RECEIVER | |
Sensitivity | ＜-114dBm@BER 10-3, 9600bps |
Co-channel Rejection | >-12dB |
Adjacent Channel Selectivity | >50dB@25KHz |
MODEM | |
Air Baud Rate | 9600bps, 19200bps |
Modulation Type | GMSK |
Serial Port Baud Rate | 9600 bps, 19200 bps, 38400bps, 57600 bps, 115200 bps |
