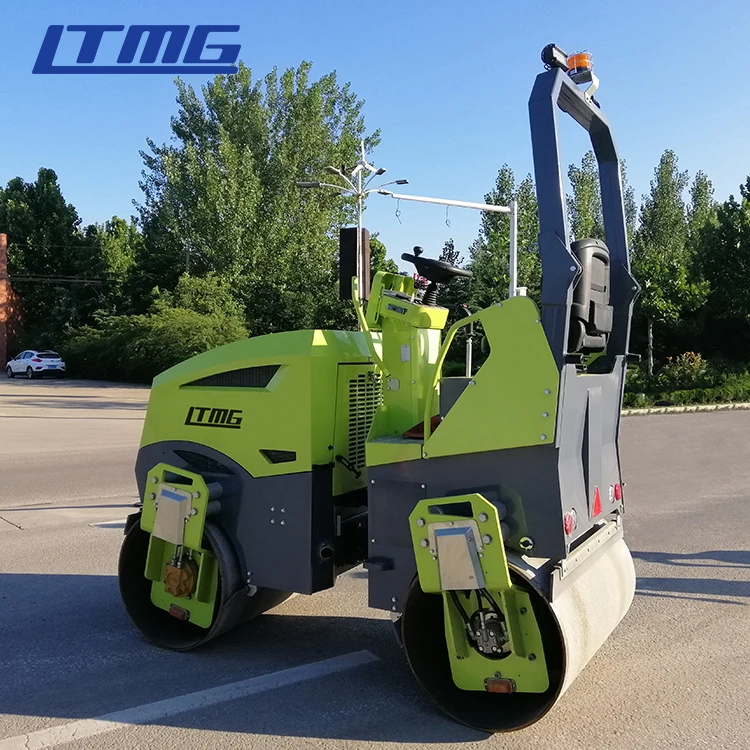

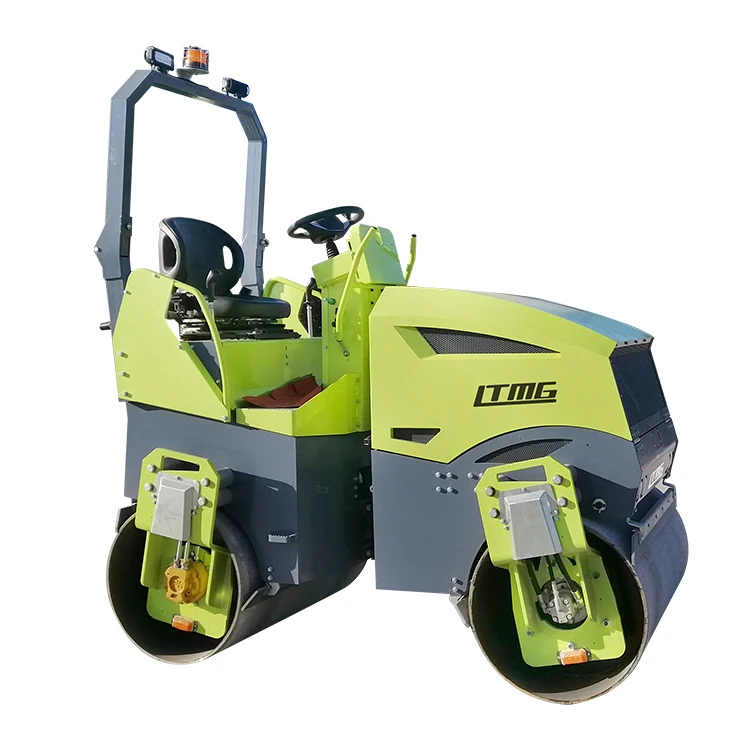

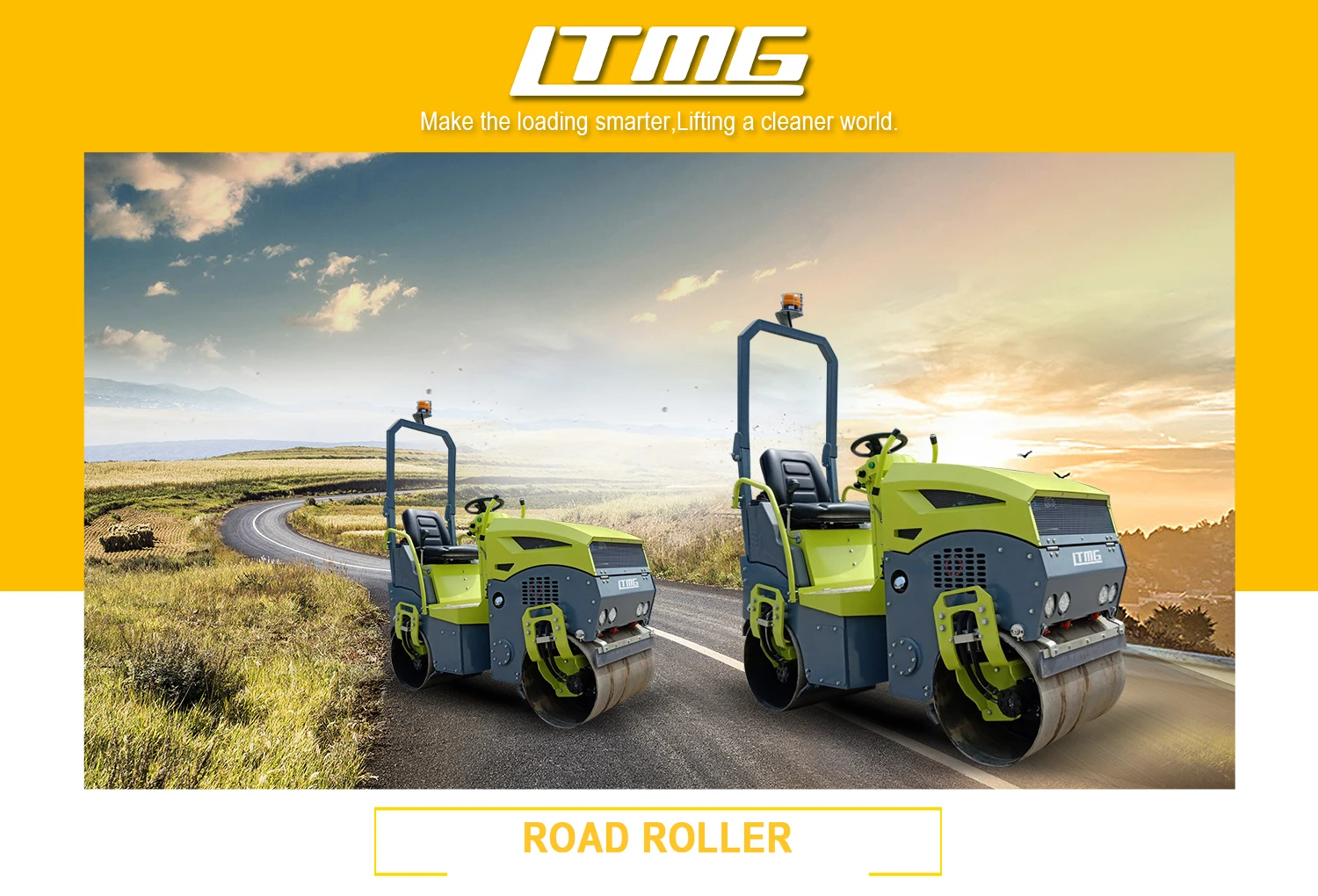

Ltmg vibration double drum roller paver tamper diesel mini 0.5 ton 1 ton 2 ton 3.5 ton compactor ride on duel drum road roller
- Category: Road Roller >>>
- Supplier: Xiamen,LTMG,co.,ltd
Share on:
Product Overview
Description
Model | LTC05 | LTC1 | ||||
Weights | ||||||
Operating weight | kg | 540 | 1000 | |||
Static linear load | N/cm | 45 | 56/77 | |||
Dimensions | ||||||
Working width | mm | 788 | 825 | |||
Total length | mm | 2480 | 1780 | |||
Total height with ROPS | mm | 1300 | 1985 | |||
Turning radius(outer) | mm | 1350*900*1200 | 2600 | |||
Drum width | mm | 600 | 700 | |||
Drum diameter | mm | 426 | 500 | |||
Wheel base | mm | Recoil, electric start | 1230 | |||
Drive | ||||||
Engine manufacturer | HONDA | HONDA | ||||
Type | GX270 | GX390 | ||||
Engine type | Gasoline four-stroke | Gasoline, vertical, | ||||
Number of cylinders | 1 | 1 | ||||
Power ISO 14396 | kW | 6.7 | 9.7 | |||
Rating speed | rpm | 3600 | 3600 | |||
Overall Size | ||||||
Total length (L) | mm | 2480 | 1780 | |||
Working width (W) | mm | 788 | 825 | |||
Total height (H) | mm | 1300 | 1985 | |||
Height loading, min. (H1) | mm | 426 | 1450 | |||
Drum width (W1) | mm | 600 | 700 | |||
Driving characteristics | ||||||
Speed | km/h | 0-3.8 | 0-5 | |||
Climbing ability, vibration on/off | % | 30 | 30 | |||
Frequency | Hz | 70 | 70 | |||
Amplitude | mm | 0.6 | 0.5 | |||
Centrifugal force | kN | 20 | 20 | |||
Sprinkler system | ||||||
Type of sprinkling | Gravity spray | Pressure | ||||
Hydraulic oil | l | 18 | 15 | |||
Fuel | l | 5.9 | 6.5 | |||
Water | l | 20 | 67 | |||
