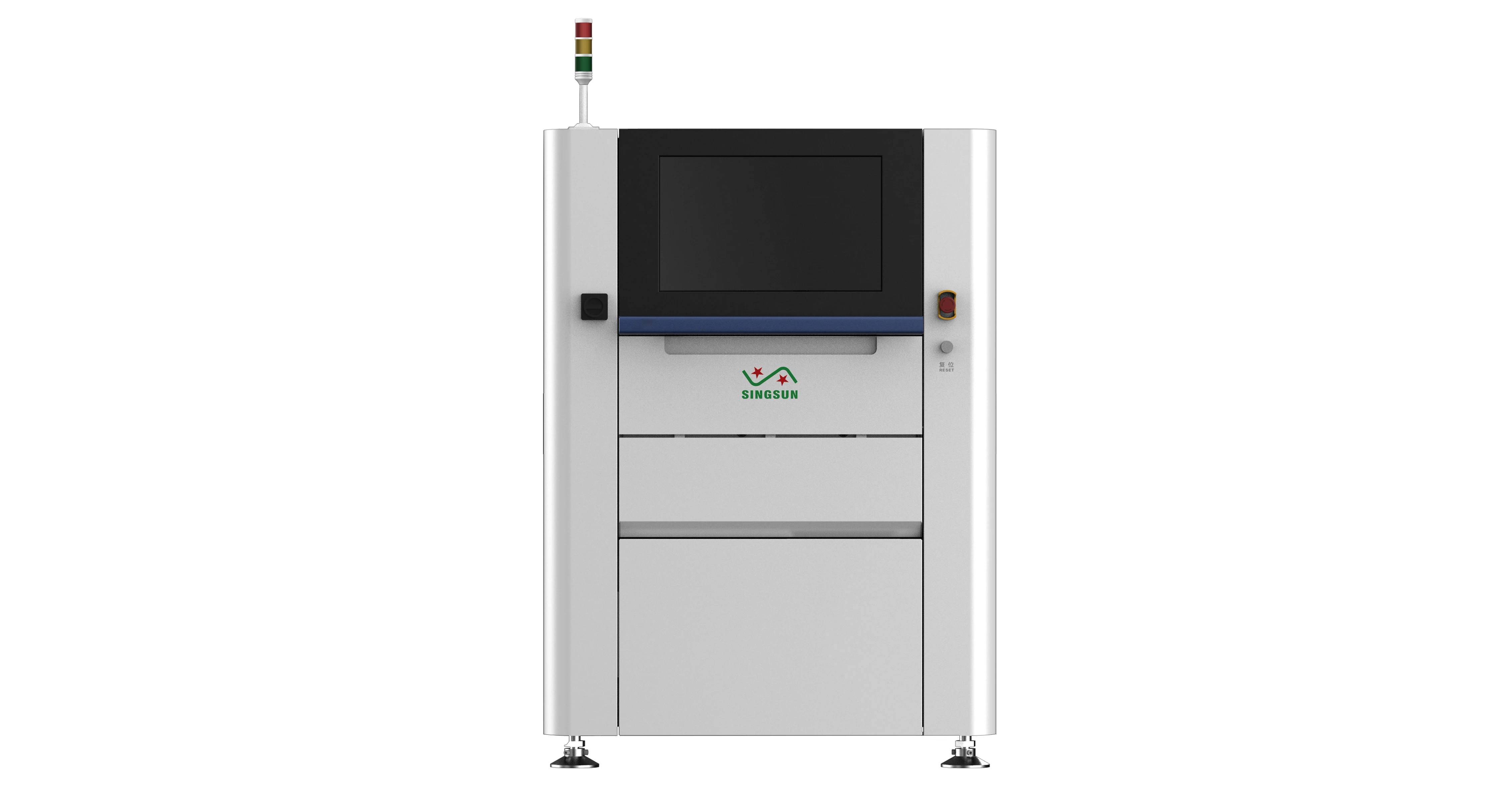

AOI machine automatic optical inspection aoi smt machine for pcb testing
- Category: >>>
- Supplier: Singsun Electronic Science & Tech Co. Ltd.
Share on (1600675115556):
Product Overview
Description
Product Feature
√High-precision 3D imaging
√Simple and efficient programming
√Data visual manage
√Simple and efficient programming
√Data visual manage
Product Core Technology
√Multi-directional structured light imaging technology
Minimize shadow problems, truly restore defects, improve inspection accuracy, reduce false positive rate
√Minimalist programming
Intelligent identify of solder area, support method, no GERBER programming
√High-precision phase height mapping calibration algorithm
Sine grating projection, multiple sampling at different phases, enhance data reliability and ensure measurement accuracy
√Dynamic adaptive datum algorithm
Little imaging distortion with telecentric lens, dynamic adaptive reference plane, static compensation to solve bending of FPC
√High-speed camera,high-resolution projection
Adopt 180FPS high-speed camera, 1080P high-resolution projection, improve inspection speed and accuracy
√RGBR four-channel light source
Help to enhance the positioning accuracy of MARK point and restore image. Combined with DL algorithm, inspection accuracy is
improved by avoiding the interference of silk screen
Minimize shadow problems, truly restore defects, improve inspection accuracy, reduce false positive rate
√Minimalist programming
Intelligent identify of solder area, support method, no GERBER programming
√High-precision phase height mapping calibration algorithm
Sine grating projection, multiple sampling at different phases, enhance data reliability and ensure measurement accuracy
√Dynamic adaptive datum algorithm
Little imaging distortion with telecentric lens, dynamic adaptive reference plane, static compensation to solve bending of FPC
√High-speed camera,high-resolution projection
Adopt 180FPS high-speed camera, 1080P high-resolution projection, improve inspection speed and accuracy
√RGBR four-channel light source
Help to enhance the positioning accuracy of MARK point and restore image. Combined with DL algorithm, inspection accuracy is
improved by avoiding the interference of silk screen
Product Software
* Operating system: Ubuntu 18.04 LTS 64bit
* Function: Remote control, Remote assistance, Gerber file import and user-defined model training
* Communication method: Standard SMEMA interface
* Data output: Auto generated statistic analysis SPC
* Special function: Automatic search of elements and quick programming
* Function: Remote control, Remote assistance, Gerber file import and user-defined model training
* Communication method: Standard SMEMA interface
* Data output: Auto generated statistic analysis SPC
* Special function: Automatic search of elements and quick programming
Product Hardware
* CPU：intel i7
* Display card：RTX1660 6G display memory card
* Memory：32G DDR4，240G SSD+2T Mechanical Hard Disk
* Network：1000M Wired Network Card
* Display： 23.8 inch FHD display
* Movement mechanism: High precision lead screw + servo motor
* Rail width control: Manual/Auto
* Display card：RTX1660 6G display memory card
* Memory：32G DDR4，240G SSD+2T Mechanical Hard Disk
* Network：1000M Wired Network Card
* Display： 23.8 inch FHD display
* Movement mechanism: High precision lead screw + servo motor
* Rail width control: Manual/Auto

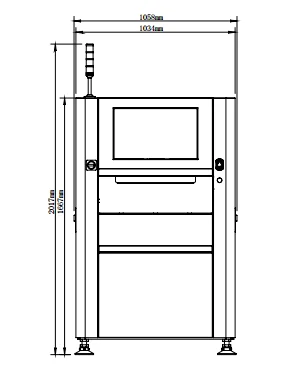

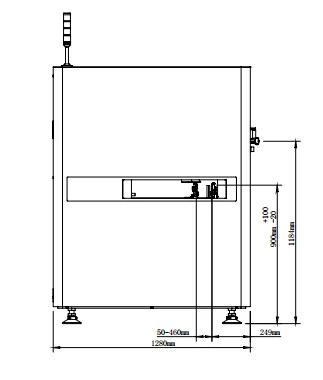

Product Structure Diagram
Product Advantage
* Inspection-related
Other function: Bar code Recognition/QR code Recognition

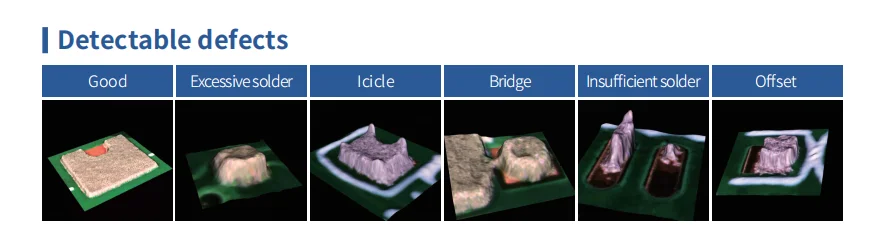

Solder: insufficient, Excessive, Bridge, Height, Icicle, Shape, Solder viod, etc.
Mixing boards inspection: Support mixed board production and calling program automatically
Algorithm: CNN, Color contrast, Outline recognition, Off set inspection, Template matching, Character comparison, OCR, etc.
Speed: 0.28sec/FOV
Other function: Bar code Recognition/QR code Recognition
Solder: insufficient, Excessive, Bridge, Height, Icicle, Shape, Solder viod, etc.
Mixing boards inspection: Support mixed board production and calling program automatically
Algorithm: CNN, Color contrast, Outline recognition, Off set inspection, Template matching, Character comparison, OCR, etc.
Speed: 0.28sec/FOV
