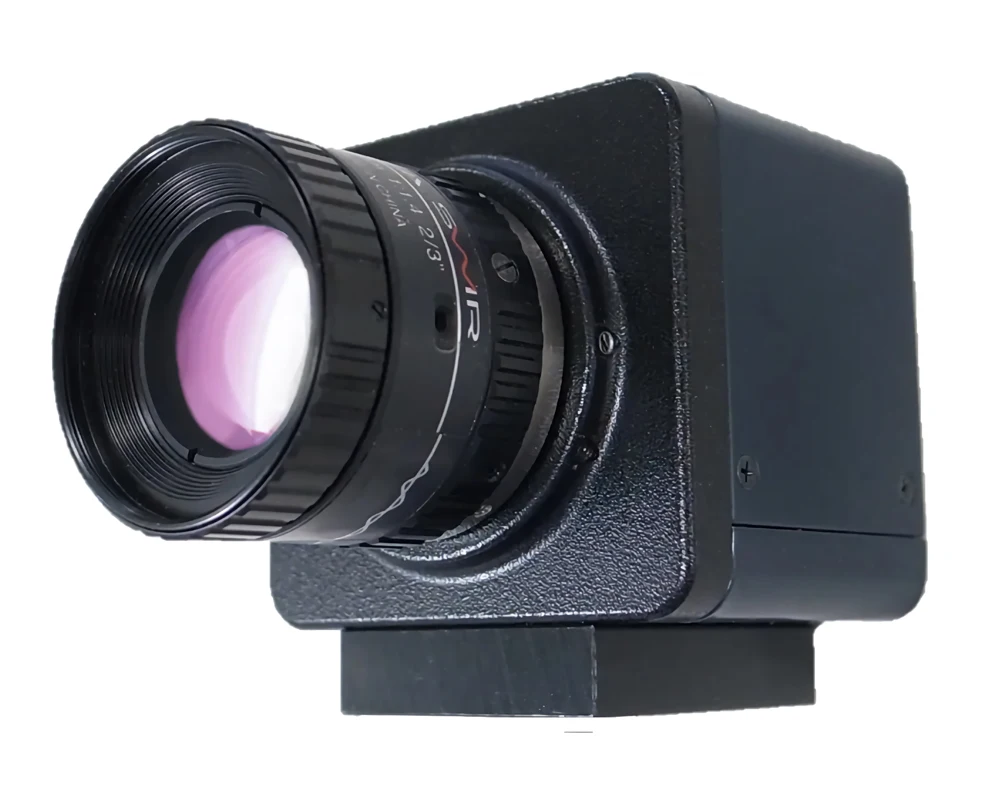

Hot Sales USB3.0 Bulk Transfer 137fps VGA InGaAs Sensor Near Infrared Machine Vision Cameras
- Category: >>>
- Supplier: Shenzhen Zhixiang Shijue Technology Co. Ltd.
Share on (1600675135495):
Product Overview
Description
Product Features
1、NIR Detection with High Sensitivity：The InGaAs sensor can detect radiation invisible to human eyes and CCD/CMOS cameras in the wavelength range between 400 nm to 1700 nm bond.
2、High Resolution, High Frame Rate：ARTCAM-990SWIR uses a higher resolution sensor of 1280 x 1024 pixel and delivers image at 70 fps.
3、USB3.0 Interface：This camera adopts USB3.0 interface, so the data can be delivered to PC directly. No capture card is needed.
2、High Resolution, High Frame Rate：ARTCAM-990SWIR uses a higher resolution sensor of 1280 x 1024 pixel and delivers image at 70 fps.
3、USB3.0 Interface：This camera adopts USB3.0 interface, so the data can be delivered to PC directly. No capture card is needed.
Products Description
Specifications
MODEL | ZX-ARTCAM-991SWIR |
Sensor Type | 0.3MP VGA InGaAs Image Sensor |
Active pixels (H)×(V) | 640×512 |
Pixel Size (μm) (H)×(V) | 5μm×5μm |
Shutter Speed (Sec) | 20.3μ~2 |
Interface | USB3.0 Bulk Transfer |
Output Bit Depth | 12bit |
Frame Rate | 137fps (12bit) |
Shutter Speed | 20.3µsec. ~ 2sec. |
Spectral Sensitivity (nm) | 400~1700 |
Synchronization System | Internal Synchronization |
Lens Mount | C Mount |
External trigger input (option) | SMA female connector (when option selected) BNC conversion adapter included |
Power | DC5V USB BUS Power |
Power Consumption | Under Approx.3.2W |
Ambient Conditions | Operating Temperature/Humidity: 10~35°C/10~80%（Non-condensing） Storage Temperature/Humidity: 0~60°C /10~95%（Non-condensing） |

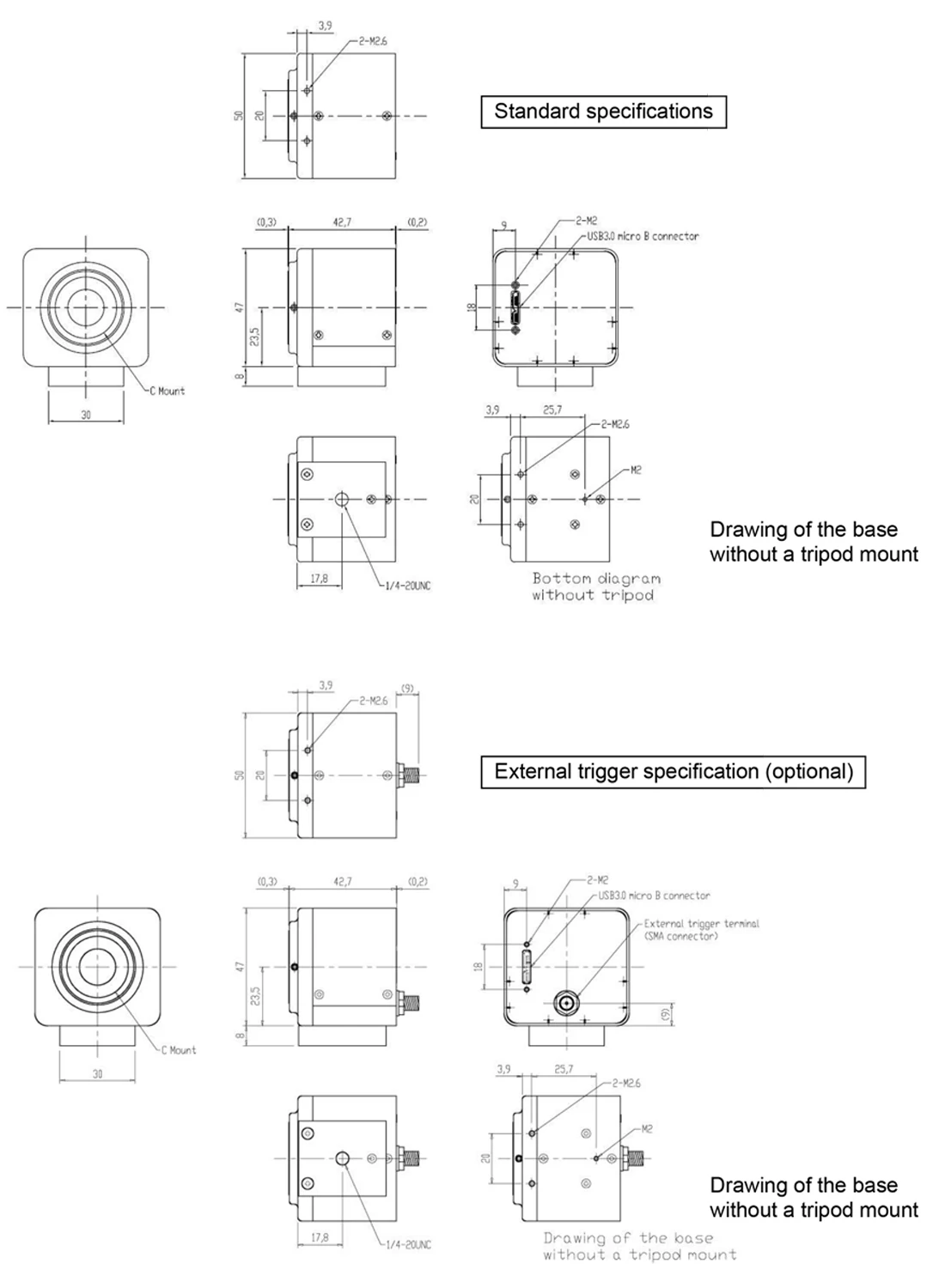

External Dimensions | 50.0(W) x 47.0(H) x 42.7(D)mm ※Lens, Tripod mount and cables not included |
Active Imager Size (mm) (H)×(V) | 3.2×2.56 |
Weight | About 110g |

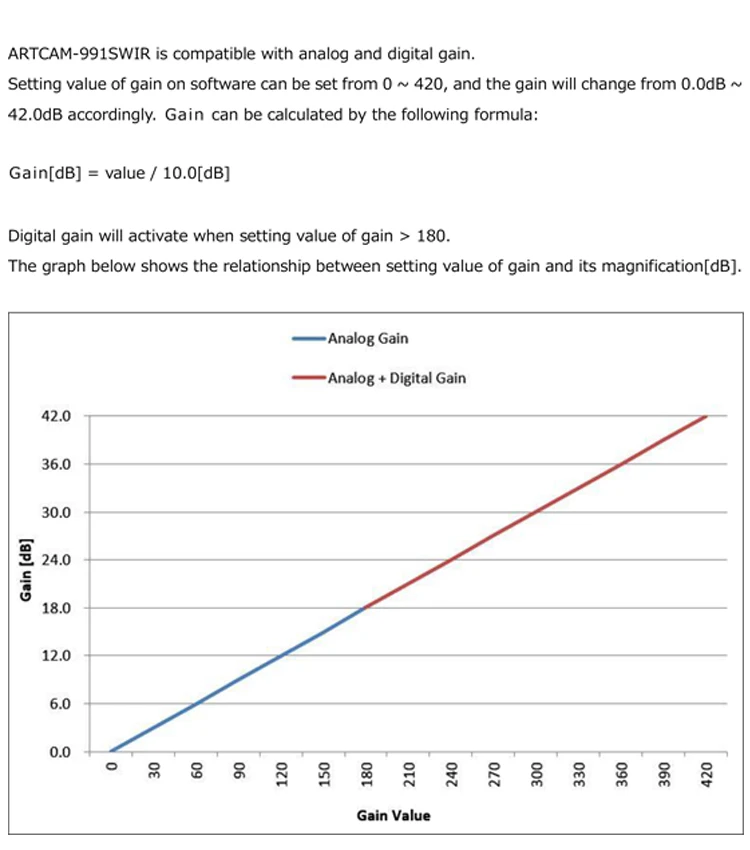

Analog / Digital Gain Settings
