Aluminum tin can automatic filling machine soft drink production line

Share on (1600675137749):


Price:$20,000.00

Quantity:


Product Overview

Description



Products Description

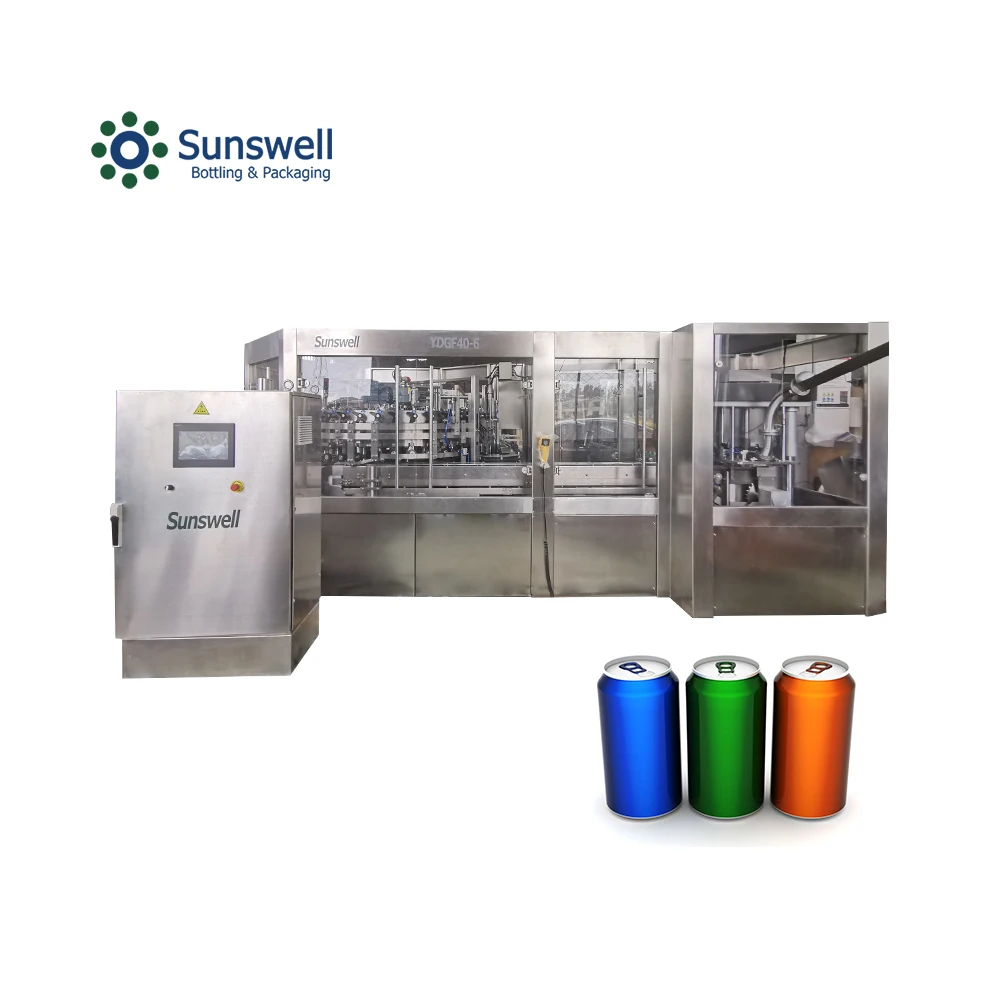

Aluminum can filling capping 2-in-1 filling monoblock, combined with filling and capping
It is suitable for filling and sealing aluminum canned beer and carbonated soft drinks. It is equipped the advanced device, electrical equipment, and pneumatic control technology.

It has the characteristics of filling reposefully, high speed, liquid level control,capping reliably, frequency conversion timing, less material loss.

It can be equipped long-distance control system, preferred equipment for the medium beer and beverage plant.


Details Images

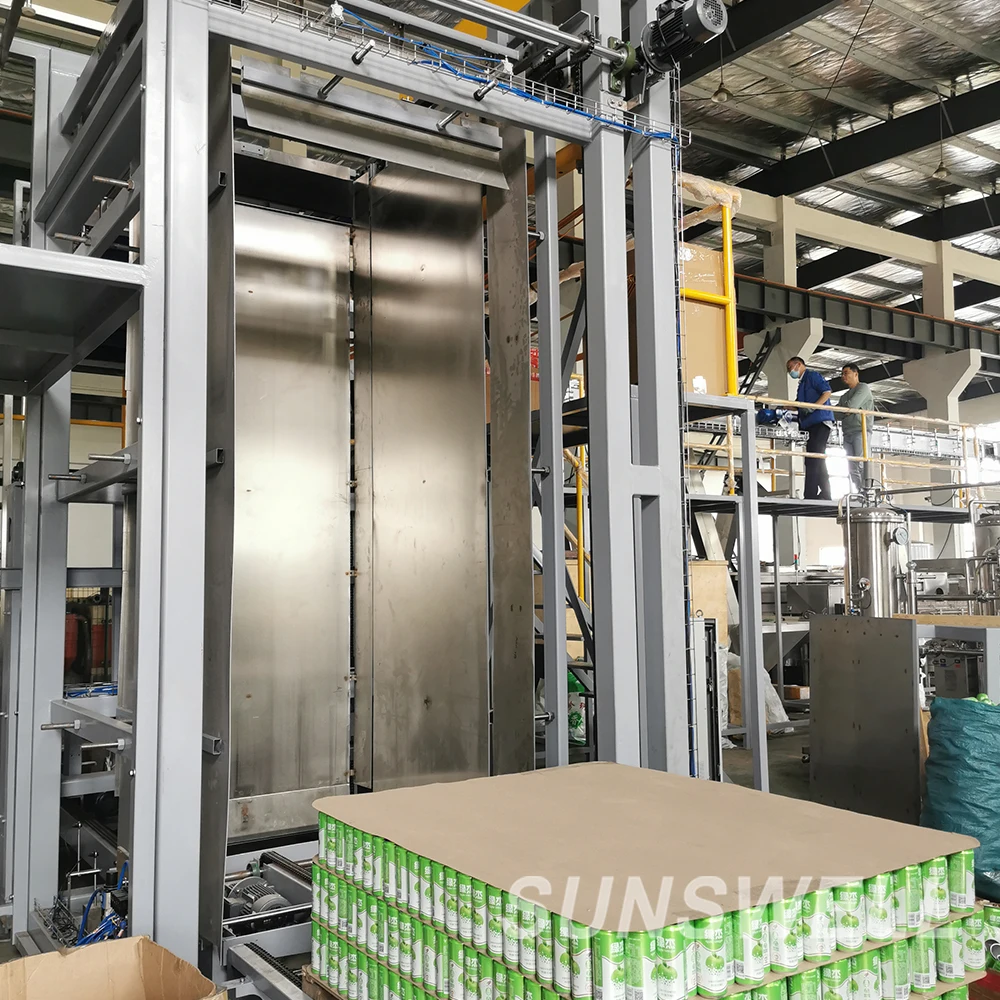

High Level Depalletizer
The lifter position control by photoelectric sensor, locate automatically. Cans are output from the machine automatically.
High Level Depalletizer
The interlayer cardboard is inserted by manual or by automatic.

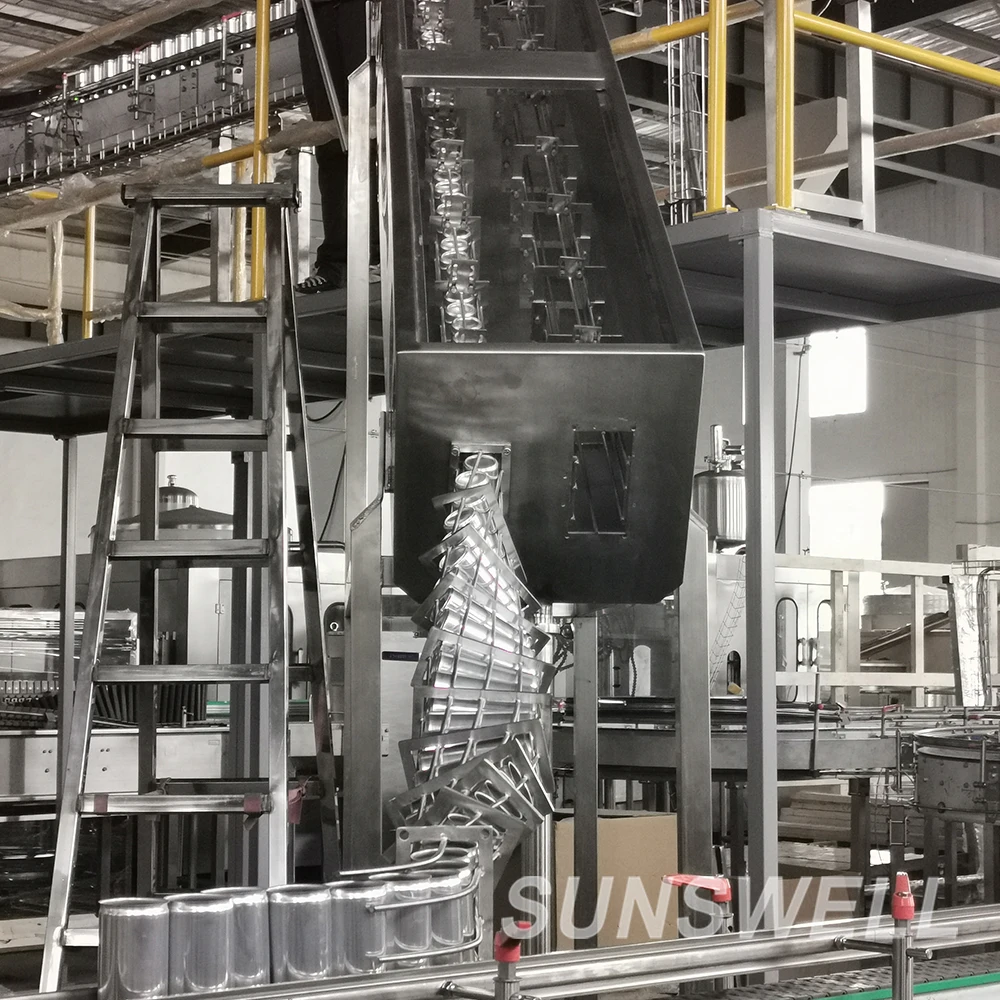

Can infeed
* Can infeed by combination of air conveyor and infeed starwheel.
* Equipped with can jam protection device.

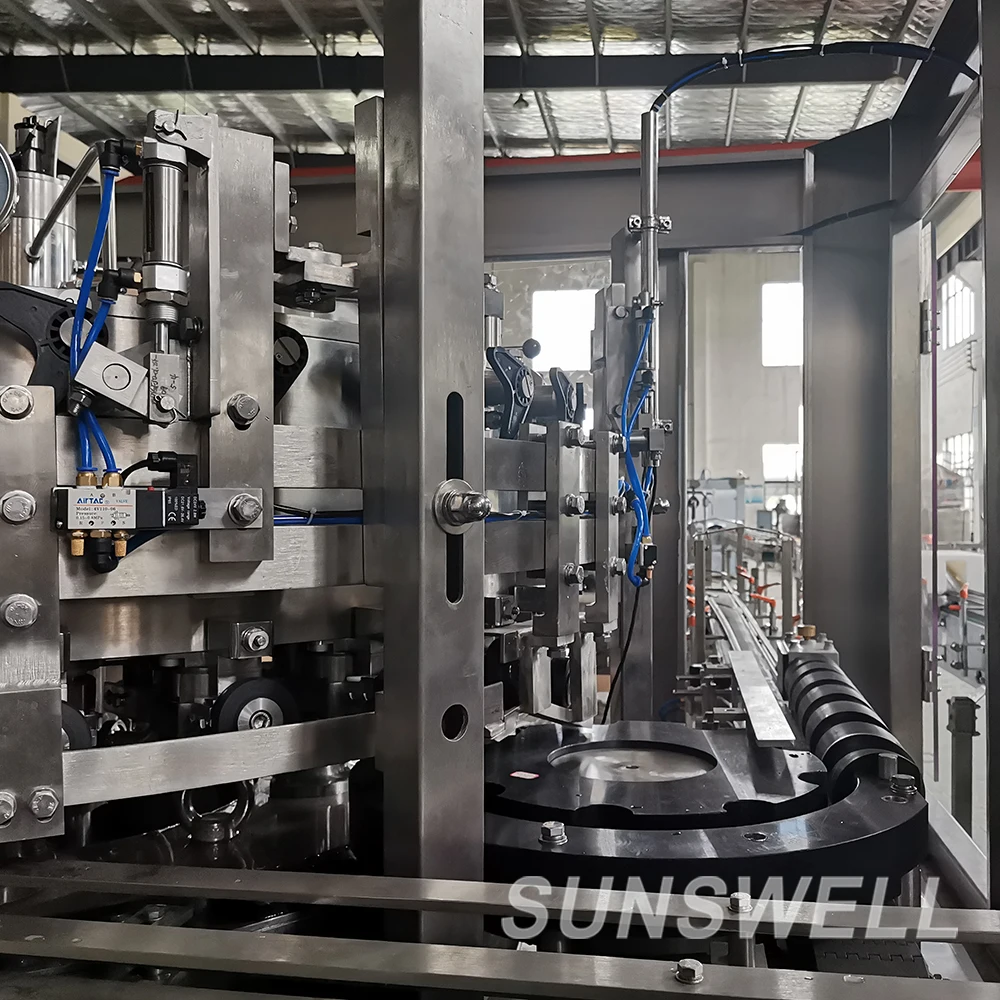

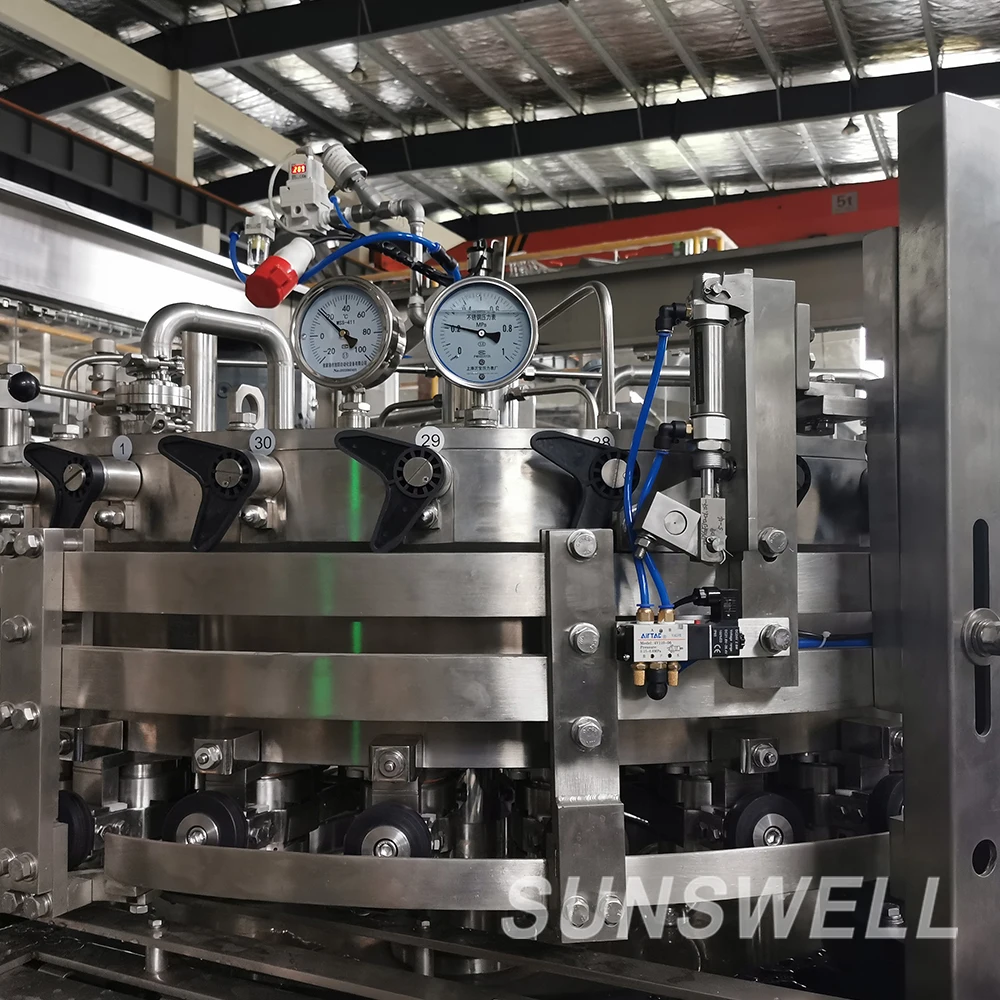

Filling
* The filling valve is adopts high precision mechanism valve, fast speed filling, high precision liquid level.
* The filling vat adopts 304material designed sealing vat, to achieve constant pressure filling.
* The flow rate of the filling valve>125ml/s.
* Main transmission adopts toothed belt and gearbox open-type transmission assemblies, high efficiency, low noise.
* The main drive adopts step-less speed change for frequency conversion, the whole machine adopts PLC control.


Capping
* Capping trolley adopts high hardness alloy steel quench(HRC>62), capping curve adopts projection grinder precision machining,to
ensure the quality of capping.
* With capping with can, no capping without can control system, to ensure the normal running of the machine.
* With CIP automatic rinsing function.
* With centralized lubrication system.
Can Warmer Tunnel
This is sterilizing tunnel, mainly consist of 3 area, We absorb the abroad equipment technology, newly-designed this machine


Main Configuration


* Touch screen Siemens
* Inverter Siemens
* PLC Siemens
* Main motor Shanghai
* Pneumatic component Airtac
* Breaker Siemens or Schneider
* Contactor Siemens or Schneider
* Proximity switch Leuze
* Photoelectric switch Leuze
* Filling level balancing valve Shanghai


Product list


Model
Filling Heads
Capacity 500ml
Bottle Size
Power
Dimension(mm)
Weight(KG)
GF 12-4
12
4000BPH
330ml
1.8kw
2200×1800 × 2000
2500
GF 18-4
18
9000BPH
330ml
2.6kw
2500 × 1800 × 2300
3000
GF 20-4
20
12000BPH
330ml
3.8kw
2800 × 2100 × 2300
5000
GF 32-6
32
18000BPH
330ml
4.2kw
3500 × 2200 × 2300
6000
GF 40-8
40
24000BPH
330ml
7kw
4760 × 2080 × 2300
7000


About Sunswell


1.About us

Set up in 2008, Sunswell leads the market in the field of liquid bottling, blow molding, labeling, packaging machinery and process technology for water, tea, juice, carbonated drinks, energy drinks, liquid, beer, edible oil, dairy and daily care products, etc.

We can customize liquid food production lines according to customers' demand. Every customer is the result of our proven experience and innovation. We continually focus on providing customers with advanced technology, engineering and facility that are designed with one motto in mind: ensure you to reach business goals with most optimized planning.


Why choose us?

(1)A to Z turnkey plant provider
(2)Fully automatic or economic solution optional
(3)10+ years of global market experience
(4)Serve customers over 50 countries and regions worldwide


Office & Factory & Workshop









Any more questions, pls feel free to contact me !



2.Exhibitions

Sunswell,as an professional liquid filling and packing machine manufacturer,we often have chance to go out for exhibition to show our beverage filling machines and communicate processing technology with other industrial colleagues.





Any more questions, pls feel free to contact me !



3.Certifications





Any more questions, pls feel free to contact me !



4.Service





Spare Parts / Maintenance, Installation & Commissioning / Training

No matter whether you're a newcomer or a sectoral expert – we have the specialists who can provide the comprehensively can-do support you need for planning a new facility in terms of not only actual beverage production, but also filling, packaging, utilities and logistics. In closely responsive consultation with you, from a multiplicity of possible options, we select the technologically and commercially most effective variant, handle the design and planning work, and bring the project to a successful conclusion at your chosen location. Sunswell is not only the consultant here, but also takes responsibility for executing the entire project.



Any more questions, pls feel free to contact me !



FAQ


Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.

Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.

Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed. Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.

Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.

Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to save international courier such as DHL, it is really costly.

Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.

Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.



Any more questions, pls feel free to contact me !
