MYAMI MY K6010B PC 60V 10A Laboratory programmable Switch mode Variable Adjustable DC Power Supply
- Category: >>>
- Supplier: Guangzhou Myami Trading Co. Ltd.
Share on (1600675150651):
Product Overview
Description
MYAMI MY-K6010B-PC 60V 10A Laboratory programmable Switch mode Variable Adjustable DC Power Supply
Features :
(1) 1MV1MA high resolution: high accuracy;
(2) It can store/call 100 groups of data such as voltage and current, and it can be automatically tested with the program of LIST;
(3) Perfect combination of switching circuit and linear circuit:ultra-low ripple;
(4) Load constant voltage constant current automatic switch: adapt to different tests;
(5) overload, polarity reverse protection, overvoltage protection, overcurrent protection, overtemperature protection and other multiple protection functions: convenient and practical;
(6) a variety of trigger sources (instruction, level, pulse, external), trigger mode selection: suitable for a variety of different environments;
(7) VSelf voltage self-calibration function: reduce the deviation from the set voltage value;
(8) number key, direction key, knob key, cancel key and other data input methods: convenient and practical;
(9) Blue screen 5 digit display, voltage, current, power, overvoltage, overcurrent and other comprehensive display of power supply state;
(10) One-key Lock Lock function: effectively prevent misoperation;
(11) Front SENSE interface: effective remote compensation of voltage drop of load line;
(12) Standard RS232 interface at the rear, optional 485 interface: instruction conforms to SCPI;
(1) 1MV1MA high resolution: high accuracy;
(2) It can store/call 100 groups of data such as voltage and current, and it can be automatically tested with the program of LIST;
(3) Perfect combination of switching circuit and linear circuit:ultra-low ripple;
(4) Load constant voltage constant current automatic switch: adapt to different tests;
(5) overload, polarity reverse protection, overvoltage protection, overcurrent protection, overtemperature protection and other multiple protection functions: convenient and practical;
(6) a variety of trigger sources (instruction, level, pulse, external), trigger mode selection: suitable for a variety of different environments;
(7) VSelf voltage self-calibration function: reduce the deviation from the set voltage value;
(8) number key, direction key, knob key, cancel key and other data input methods: convenient and practical;
(9) Blue screen 5 digit display, voltage, current, power, overvoltage, overcurrent and other comprehensive display of power supply state;
(10) One-key Lock Lock function: effectively prevent misoperation;
(11) Front SENSE interface: effective remote compensation of voltage drop of load line;
(12) Standard RS232 interface at the rear, optional 485 interface: instruction conforms to SCPI;
Specification
Rated DC output (0℃~ 40℃) | ||
Overvoltage protection | Vmax+1V | |
Overcurrent protection | Imax+1A | |
Voltage output | ||
Line Regulation | ≤0.01%+4mV | |
Load Regulation | ≤0.01%+5mV | |
Recovery time | ≤1.5ms(50%load change) | |
Ripple & Noise | 5mVrms,30mVpp | |
Temperature coefficient | ≤300ppm/℃ | |
Setting precision | ±(0.03% of reading+10mV)(25±5℃) | |
Set resolution | 1mV | |
Current output | ||
Line Regulation | ≤0.2%+3mA | |
Load Regulation | ≤0.2%+5mA | |
Ripple & Noise | ≤10mArms | |
Setting precision | ±(0.03% of reading+10mA)(25±5℃) | |
Set resolution | 1mA | |
Display | ||
Voltage | 5 digits display | |
Current | 5 digits display | |
Voltage resolution | 1mV | |
Current resolution | 1mA | |
Display resolution | 122*32 | |
Other | ||
Reading accuracy | ±(0.02% of reading+5mV)(25±5℃)；±(0.05% of reading+10mA)(25±5℃) | |
Protect | Overload protection, polarity reverse protection, over voltage protection, over current protection, over temperature protection | |
Lock the keyboard | Have | |
programmatic interface | Standard RS232 interface, support SCPI instruction set | |
Store out | 100 groups | |
Insulativity | Between the output terminal and the housing or other terminals; 60 VDC or less | |
operating environment | Indoor use altitude: ≤2000m ambient temperature: 0℃ ~ 40℃ relative temperature: ≤80% Installation grade: II Pollution level: 2 | |
Storage environment | Ambient temperature: -10 ~ 70℃ Relative temperature: ≤70% | |
Power input | AC220V±10%,50/60Hz | |
Attachment | 1 user manual, 1 power cord, 1 PC software CD, 1 RS232 interface cable | |

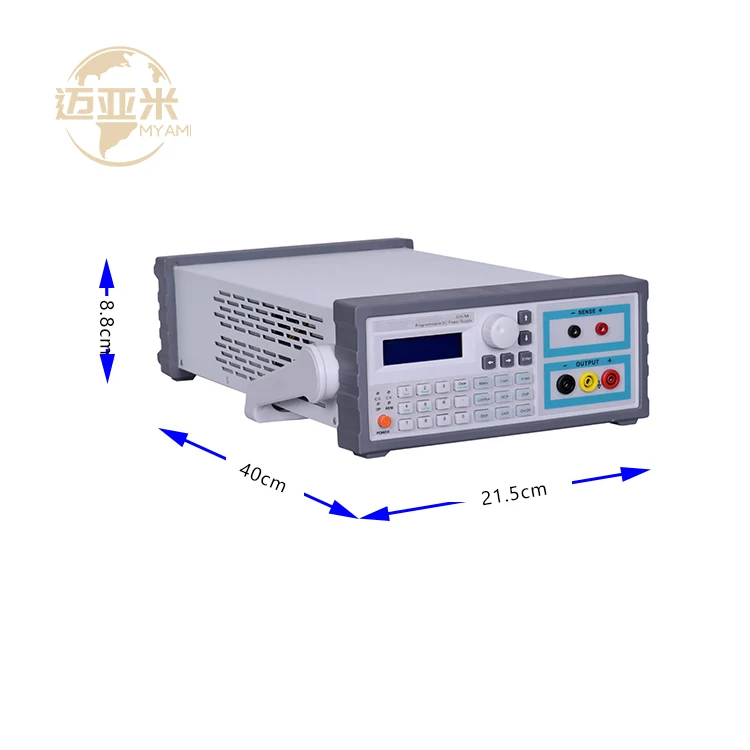

Size | 352(D)×215(W)×89(H)mm | |
Weight | 6kg | |
Model | Voltage | Current | Display | Accuracy |
MY-L3003C-PC | 0~30V | 0~3A | 5 digits display | 1mV 0.1mA |
0~30V | 0~5A | 5 digits display | 1mV 0.1mA | |
0~30V | 0~10A | 5 digits display | 1mV 1mA | |
0~60V | 0~3A | 5 digits display | 1mV 0.1mA | |
0~150V | 0~1A | 5 digits display | 1mV 0.1mA | |
0~150V | 0~3A | 5 digits display | 1mV 0.1mA | |
0~60V | 0~5A | 5 digits display | 1mV 0.1mA | |
0~200V | 0~2A | 5 digits display | 10mV 0.1mA | |
0~250V | 0~1A | 5 digits display | 10mV 0.1mA | |
0~300V | 0~1A | 5 digits display | 10mV 0.1mA |
