differential digital Pressure Gauge

 Description
The model CWY122 digital pressure gauge is energy-saving, adopts international advanced measuring circuit, precise and reliable temperature compensation.  It is also upgrading product of traditional pointer type pressure gauges.

Applications
l     Calibrate general pressure gauges, precision pressure gauges, other pressure gauges;
II   Precisely measure pressure value, analyze pressure changes, control pressure.

III   Use in laboratory and directly use on site.

Features

1. Resolution: pressure: Min 0.01Pa; current: 0.1μA; voltage:0.1mV

2. Current Measurement Range: ±25.0000 mA

3. Voltage Measurement Range: ±50.0000 V

4 DC Power Output:24VDC±10% , maximum load current :50mA

5 Accuracy: Pressure: 0.05%F•S or 0.02%F•S

Voltage and Current: ±(0.01%R.D+0.005%F•S)

6 Temperature Range:0-50°C

7DC Working Time: ≥80 hours(depending on the working condition)

8 Display: 5-dig or 6-dig is optional

9 Relative Humidity: ≤80%RH

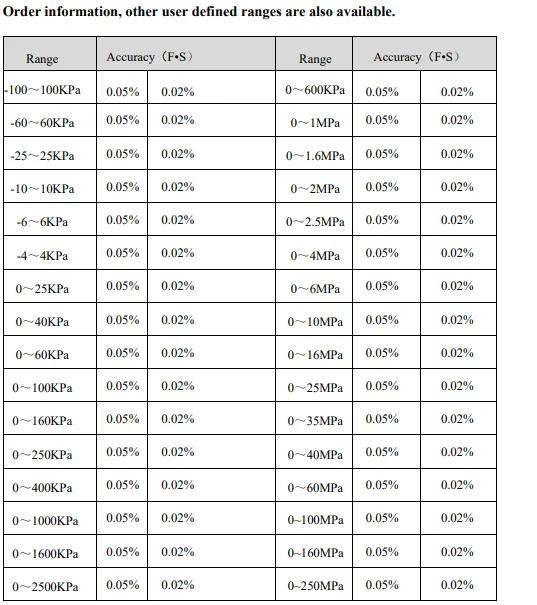

Specification

Packing  info

  Quality   Assurance

    Warranty:  1 years

 Pressure  measuring&calibrating products manufacture and OEM service;

 Pressure solutions consulting

1. Are you a manufacturer of calibration instrument or trading company?

We are high-tech enterprise in Shaanxi province, founded in July, 2006.
It is mainly engaged in developing, manufacturing and selling the measuring and calibration equipment, such as dead weight tester, pressure gauges, calibrators sensors and transmitters.

2. What is the payment term?

We accept payment of 100%TT in advance or LC.

3. Will you be providing any calibration certificates along with the equipment?

We provide company calibration certificate
If you need calibration certificates from the 3rd party such as NIM, please inform.

 Shaanxi Creat Wit Technology Co., Ltd. (CW) is high-tech enterprise in Shaanxi province, China, founded in July, 2006.

It is mainly engaged in developing, manufacturing and selling the thermal industries calibration equipment, such as dead weight tester, temperature measurement and other calibration instruments.
