48V POE Switch 8 Port Active 100M POE IEEE 802.3af/at 1200W Built in Power for ip camera, wireless AP OEM/ODM
48V POE Switch 8 Port Active 100M POE IEEE 802.3af/at 1200W Built-in Power for ip camera, wireless AP OEM/ODM
48V POE Switch 8 Port Active 100M POE IEEE 802.3af/at 1200W Built-in Power for ip camera, wireless AP OEM/ODM
48V POE Switch 8 Port Active 100M POE IEEE 802.3af/at 1200W Built-in Power for ip camera, wireless AP OEM/ODM
48V POE Switch 8 Port Active 100M POE IEEE 802.3af/at 1200W Built-in Power for ip camera, wireless AP OEM/ODM
48V POE Switch 8 Port Active 100M POE IEEE 802.3af/at 1200W Built-in Power for ip camera, wireless AP OEM/ODM
48V POE Switch 8 Port Active 100M POE IEEE 802.3af/at 1200W Built-in Power for ip camera, wireless AP OEM/ODM

48V POE Switch 8 Port Active 100M POE IEEE 802.3af/at 1200W Built in Power for ip camera, wireless AP OEM/ODM

Share on (1600675208085):


Price:$16.00 - $20.00

Quantity:


Product Overview

Description



Product Description


Modle
POE208D
Ports Composition
8*100Mbps PoE ports, 2*100Mbps Uplink ports
Bandwidth
2.0 Gbps
MAC Address
2K
POE Protocols
IEEE 802.3 AF/AT
Power Line Sequence
12+ 36-
Power Input
100-240V 50/60Hz, 120W
Power Output
52V/30W(Max)
Switch Capability
up to 20Gbps
Data transfer rate
Ethernet 10Mbps half duplex, 20Mbps full duplex
Fast Ethernet 100Mbps half duplex, 200Mbps full duplex
Network media
1000Base-T: 4 to Cat5e or over UTP/STP(≤100m)
100Base-TX: 2 to Cat5 or over UTP/STP(≤100m)

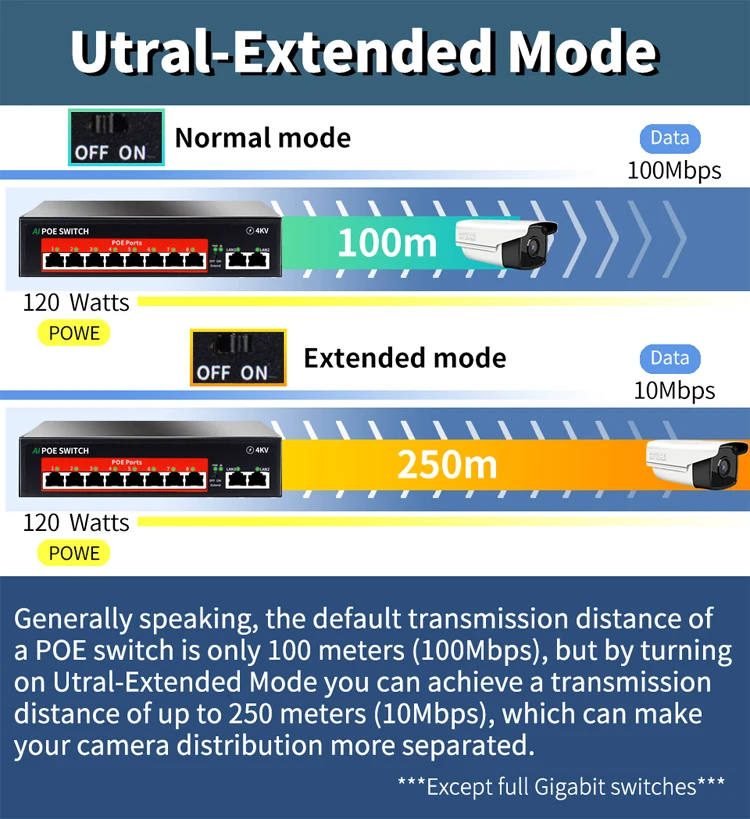

10Base-TX: 2 to Cat6 or over UTP/STP(≤250m)
Basic function
Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet protocol
Support IEEE802.3af/at standard
Store and forward
Support self-learning and aging of MAC address
Support full-duplex flow control and half-duplex flow control
Temperature
Working temperature：0℃～40℃
Storage temperature：-40℃～70℃
Humidity
Working humidity：10%～90% RH Non-condensing
Storage humidity：5%～90% RH Non-condensing
Weight
0.98KG
Dimensions
190mm*140mm*43mm














Company Introduction


HUOYI Technology (Shenzhen) Co., Ltd.was a professional Poe switch ,ethernet switch,IP camera and NVR manufacturer with more than 10 years experience in CCTV and network communication fields ,have a professional team of about 200 workers and The production of dust-free workshop can reach 3500 units per day. For years,Our research and development achievements have SPOE,PSE,CCTV managed system,CCTV smart router,IPC tester and cable tester products.






Our Services & Strength
We are a team with 10 years of experience in R&D and production,Focus on the R&D, production and sales of network equipment, POE equipment, 4G/5G and wireless routers etc..Efficient R&D, low failure rate (0.04%) , and low prices are our biggest advantages.
