High Power External Rotor Motor EC IP55 190mm Centrifugal Backward Fan with Support Bracket
- Category: >>>
- Supplier: Pbm Motor And Fan (suzhou) Co. Ltd.
Share on (1600675243136):
Product Overview
Description
Products Description
One-plug Easy-mounting with Higher Efficiency

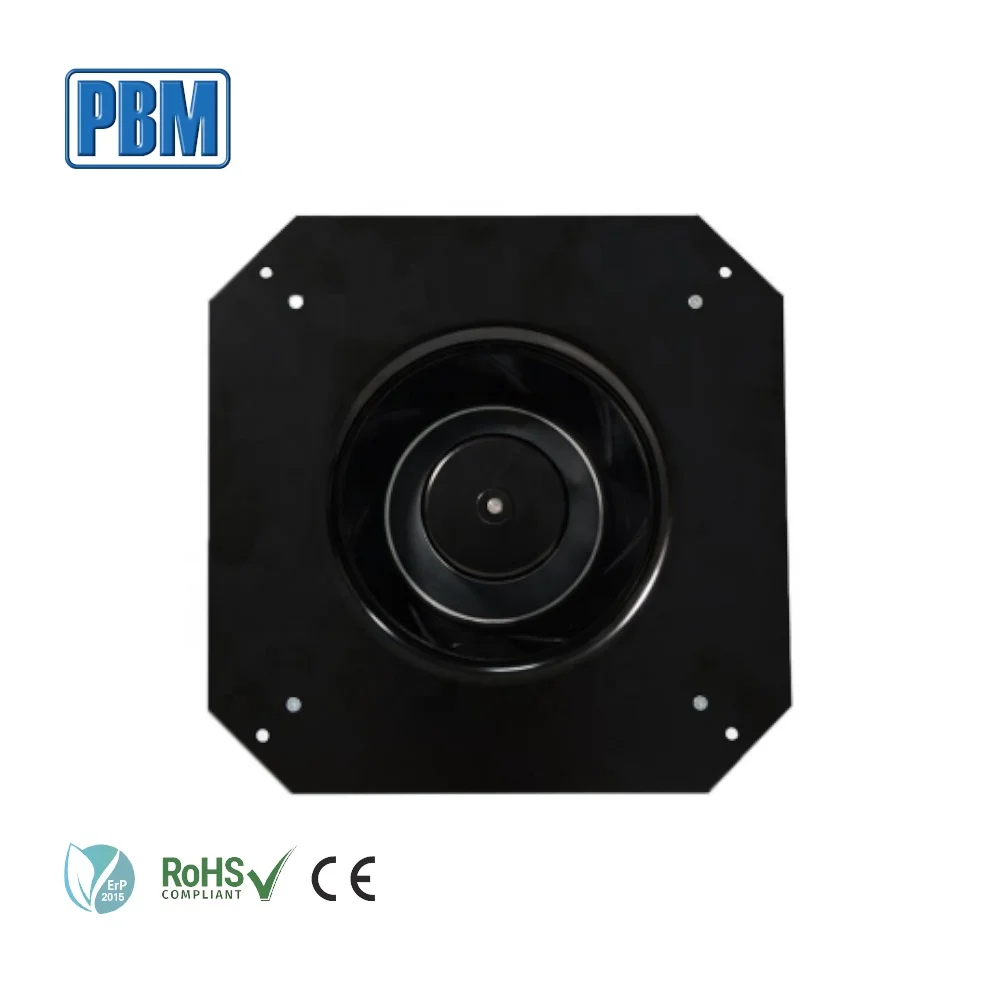

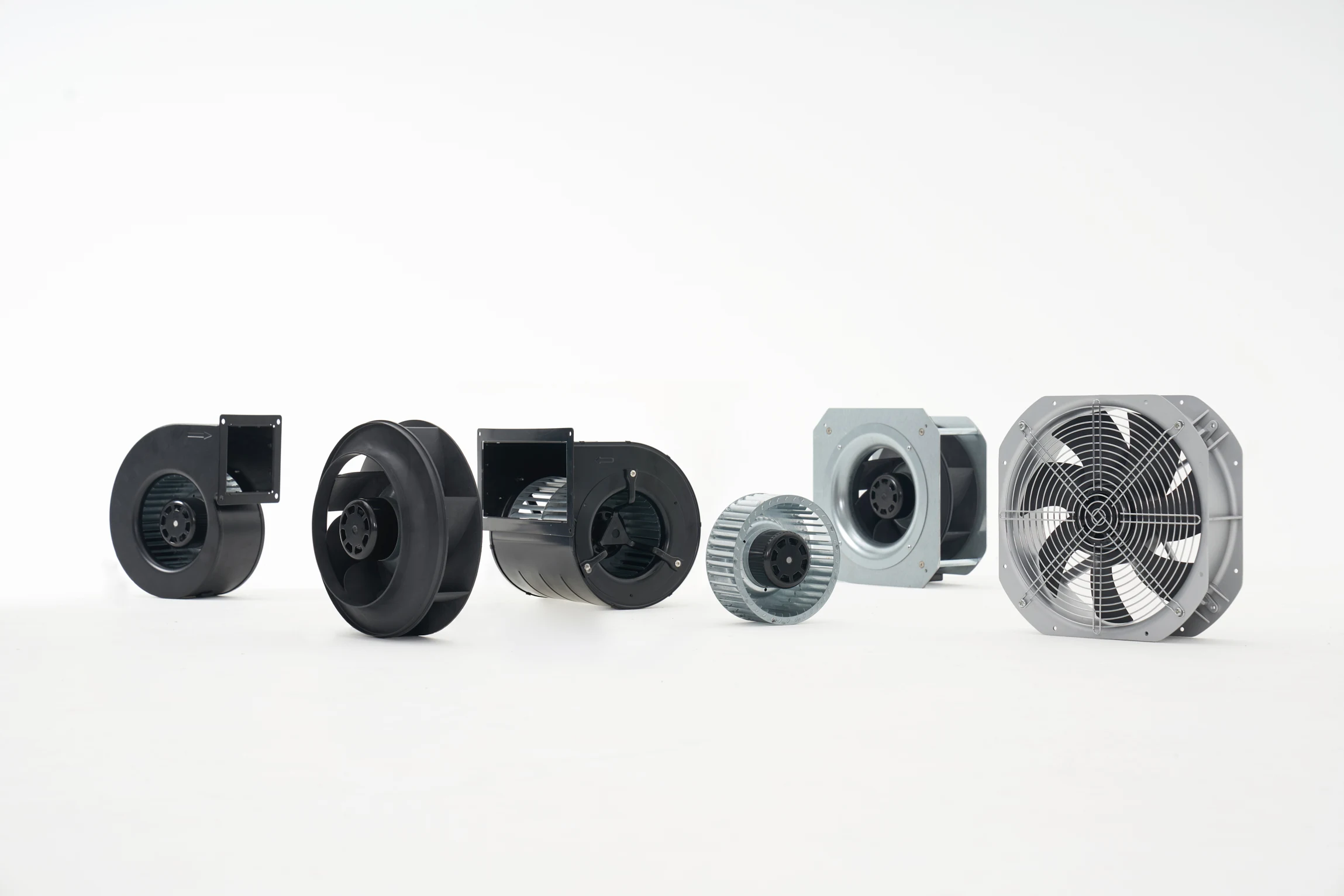

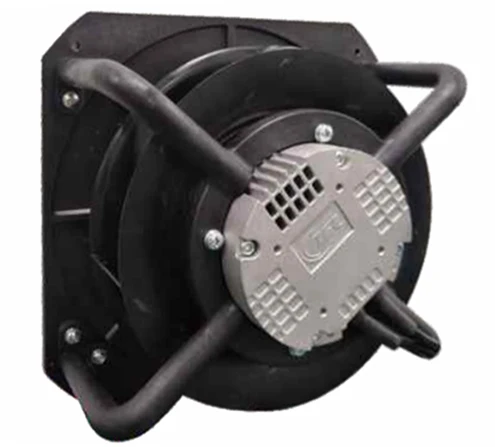

PBM centrifugal fans with support bracket, adopt both metal rivetstructure or welding and single-piece plastic with glass fiber reinforcement aerodynamic impeller, compact energy-saving smart EC motor drives it with maintenance free ball bearing, installed into easy-mounting, anti-vibration, robust support bracket design to guarantee stable, quiet fan operation with maximum “η” up to 55% efficiency at ErP Directive satisfaction of customers in their ventilation, heating, refrigeration product or system.
Product Specification
1. General Characters
Model | PK3N190B2E-TZ0 |
Rated Voltage | 230 VAC |
Operating Voltage | 184~277 VAC |
Rated Speed | 4550 RPM |
Input Current | 1.2 A |
Input Power | 170 W |
Air Flow | 945 m³/H |
Static Pressure | 1000 Pa |
Sound Level | 72 dB(A) |
Protection Type | IP55 |
2. Mechanical
Dimension | 225mm X 225mm X 95.6mm (see dimension drawing) |
Material of Impeller | Propylene with glass-fiber reinforced |
Number of Blades | 6 |
Impeller Plate | Injection-moulded round sheet-metal plate |
Mounting Position | Any |
Surface of Rotor | Coated in black |
Bearing System | NMB ball bearing |
Lead Wire | AC(AWG20#)，DC(AWG22 #) |
Weight | 1850g |
Package | Standard |
3. Electrical Protection
Locked-rotor Protection | Over-current limiting circuit protects motor from damage at least for 72 hours of locked rotor condition at rated voltage. |
under Locked Rotor | A, Typical inrush current when the motor is trying to re-start under locked rotor conditions is 2~4 times the normal running current reoccurring and for 16~20% of restarting cycle period. B, If he CL function is used this restarting inrush current is about the same as the normal running current. |
Reverse Polarity Protection | No damage if the positive and negative leads are reversed under maximum operation voltage conditions. |
The circuit will be shut down automaticlly when input voltage over threshold. And re-started when Voltage down to threshold below. | |
Soft Start | In 5 seconds after power on and speed control voltage gets to 1.5V or PWM duty cycle at 10% above. |

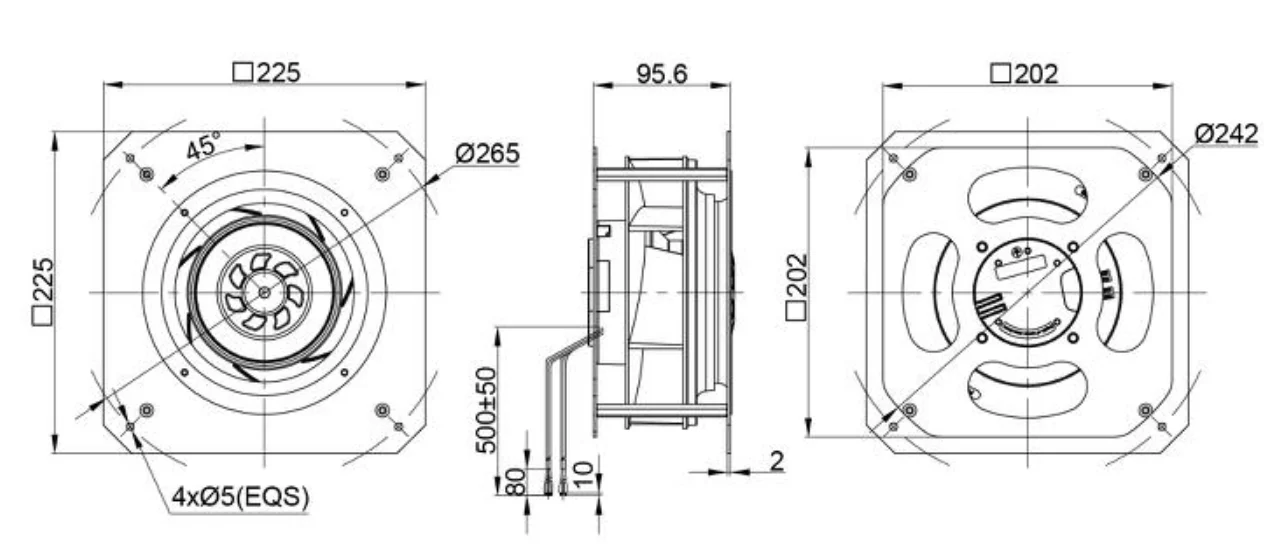

4. Outline Drawing

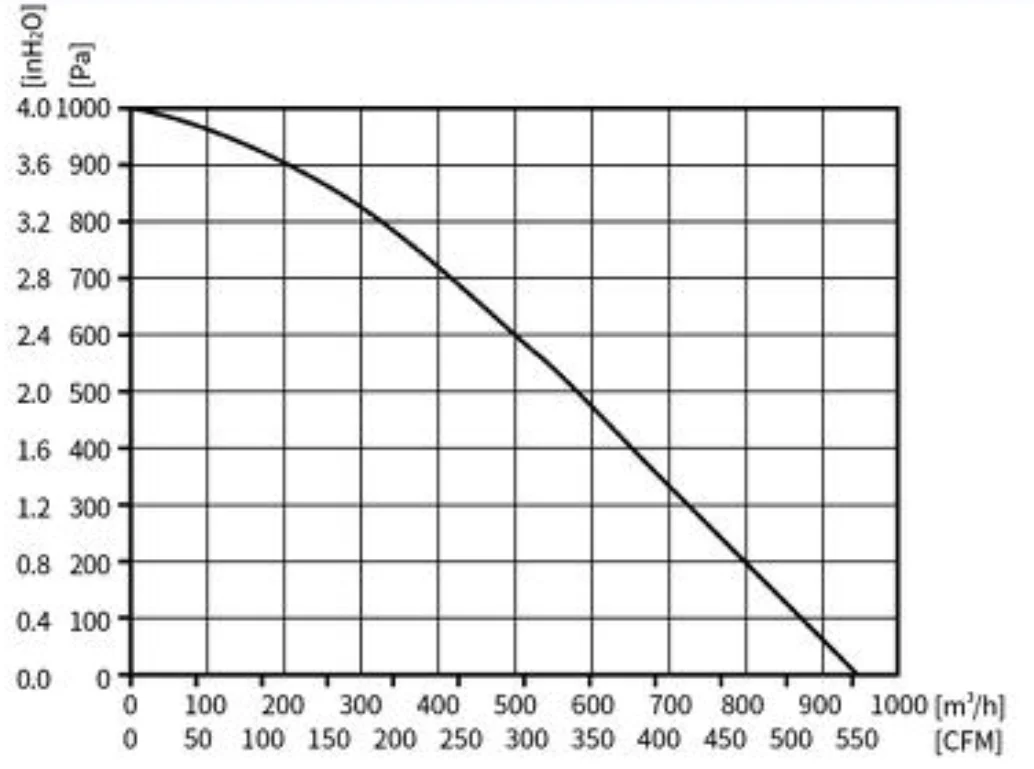

5. Performance Curve
Company Profile
222

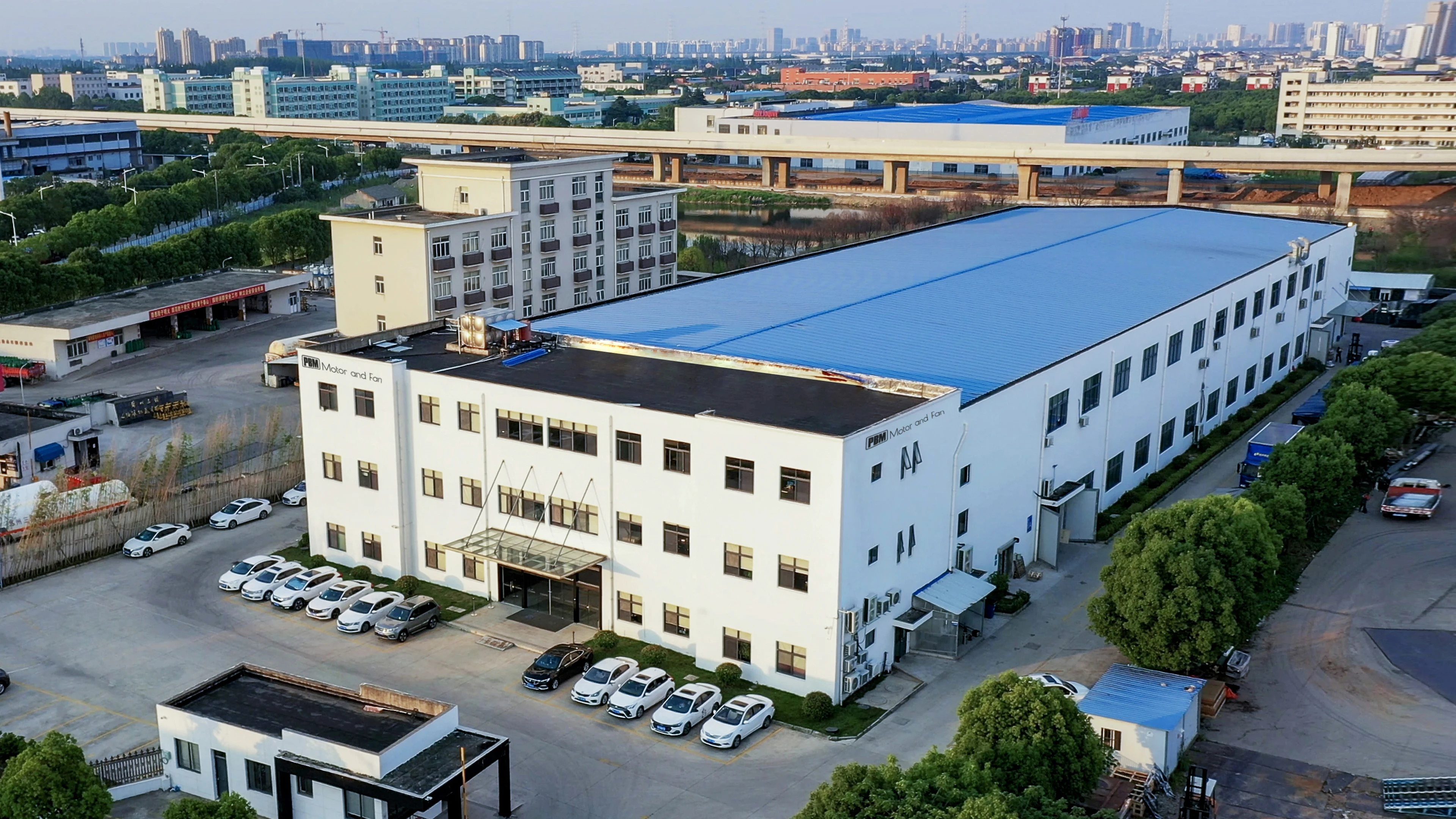

PBM is a China mainland EC(Electronically Commutated) brushless motor manufacturing and technology consulting company offering an extensive range of EC motors, fans and intelligent ventilation solutions for air-moving precisely and constantly with maintenance-free throughout the life cycle of products in last decades.
