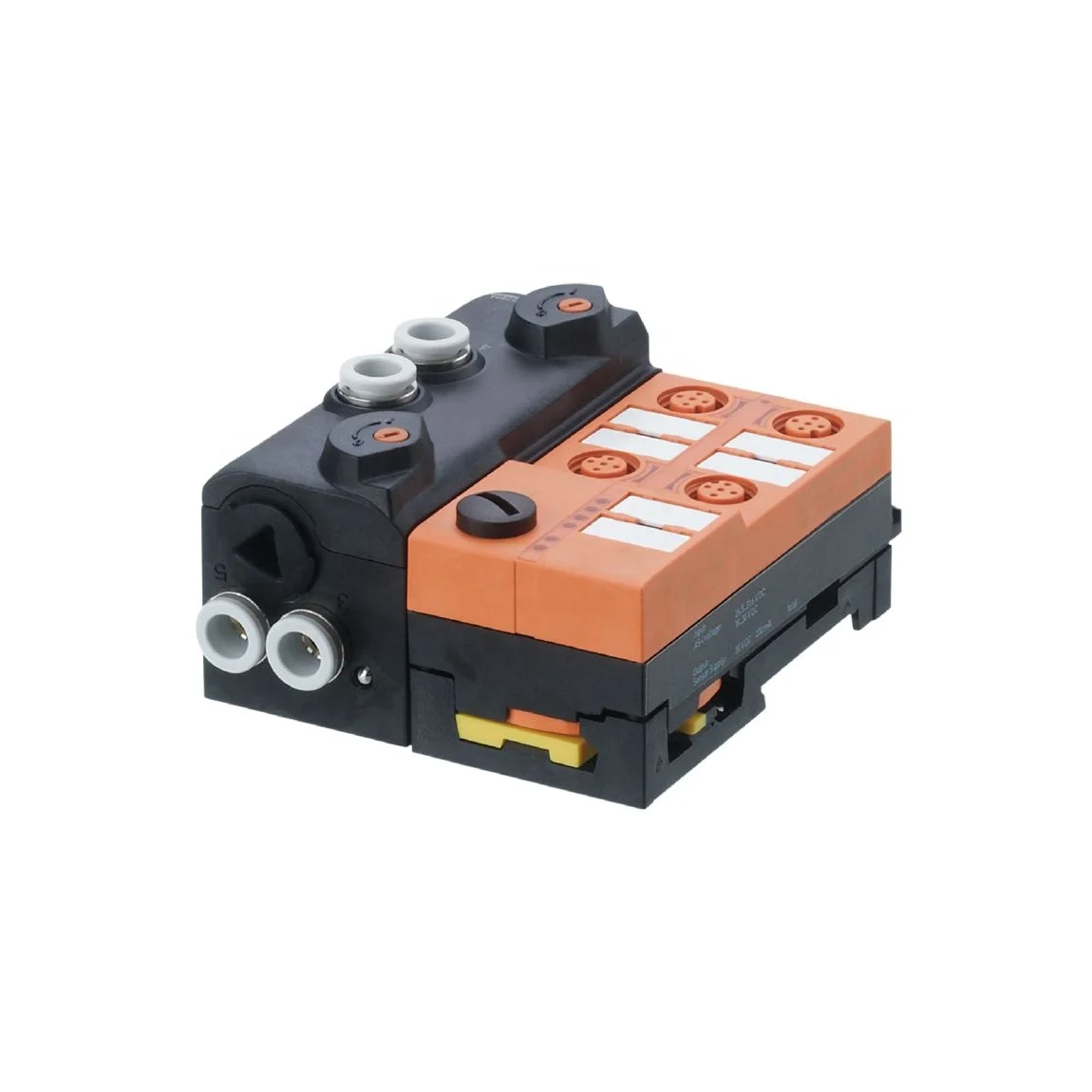

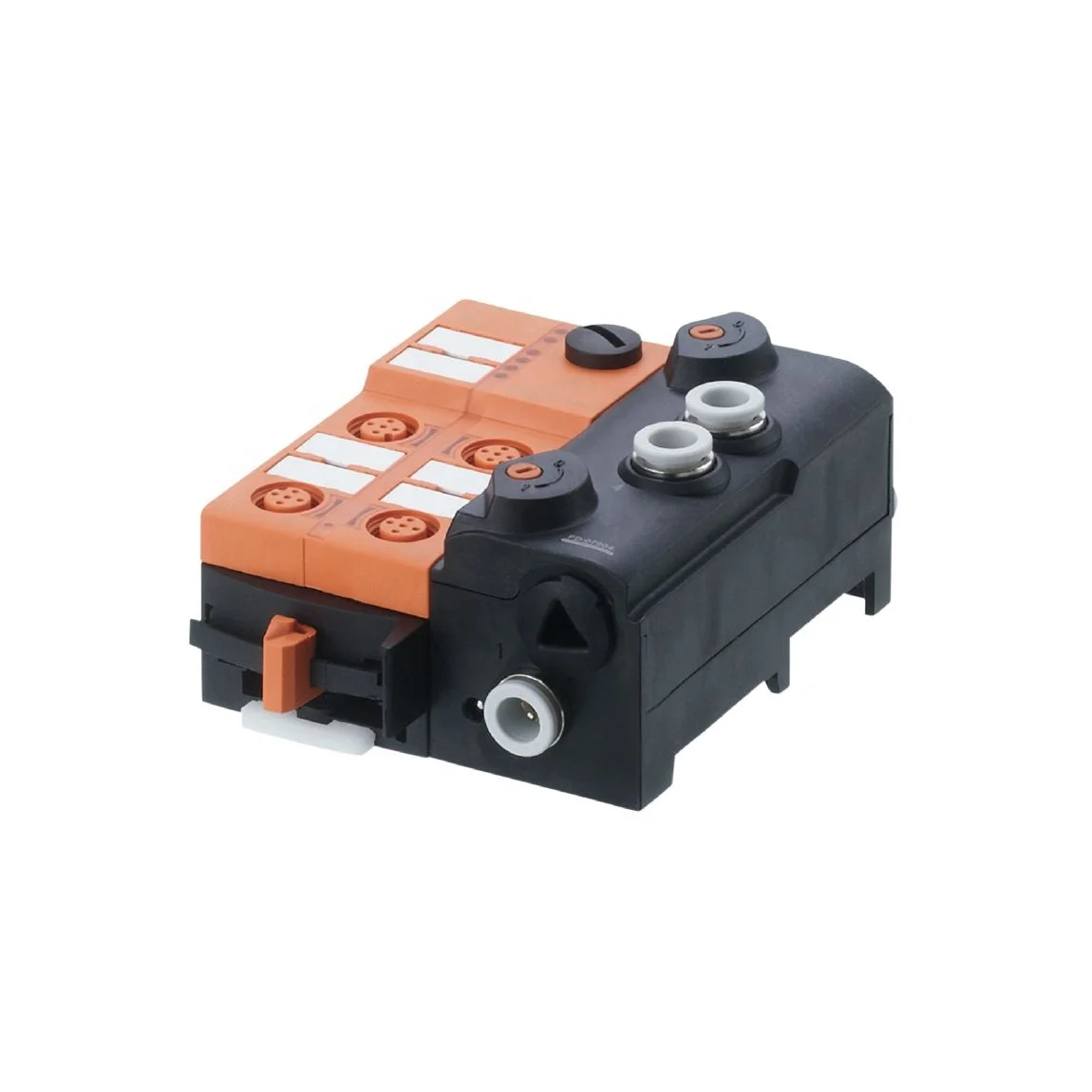

IFM AC5228 AS Interface Airbox with Quick Mounting Technology
IFM AC5228 AS-Interface Airbox with Quick Mounting Technology
IFM AC5228 AS-Interface Airbox with Quick Mounting Technology
IFM AC5228 AS-Interface Airbox with Quick Mounting Technology

IFM AC5228 AS Interface Airbox with Quick Mounting Technology

Share on (1600675274802):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


Application
Application
field installation
Medium temperature [°C]
-10...50
Electrical data
Operating voltage [V]
26.5...31.6 DC
Max. current consumption from AS-i [mA]
280
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 4; Number of pneumatic outputs: 2
Inputs
Number of digital inputs
4
Input circuit of digital inputs
PNP
Sensor supply of the inputs
AS-i
Voltage supply [V]
20...30; (via flat cable)
Max. total current rating of inputs [mA]
200
Input current High [mA]
6...10
Input current Low [mA]
0...2
Switching level high [V]
> 11
Digital inputs protected against short circuits
yes
Outputs
Number of pneumatic outputs
2
Actuator supply outputs
AS-i
Operating conditions
Ambient temperature [°C]
-10...55
Protection
IP 65; IP 67
Mechanical data
Weight [g]
378
Type of mounting
quick mounting
Materials
PA; POM; piercing contacts: CuSn6 nickel-plated and tin-plated
Pneumatic system
2 x 3/2-way slide valves (free from overlapping)
Operating pressure range [bar]
2...8
Operating pressure range [MPa]
0.2...0.8
Operating pressure range [psi]
29...116
Air flow at 6/5 bar [l/min]
500
Permissible compressed air
non-lubricated compressed air class 6-3-1; lubricated compressed air class 6-3-4
Manual override
pressing/releasing or pressing/turning/locking
Tube fittings
8 mm
Exhaust
exhaust can be discharged through tube connection


Packing & Delivery




Well pack in boxes.
