22kw High shear emulsifying dispersing mixer for lotion toner detergent liquid soap mixing tank bottom emulsifier
- Category: >>>
- Supplier: Wenzhou Ranking Imp.& Exp. Co. Ltd.
Share on (1600675338781):
Product Overview
Description
Product Description
BRS series mixer - high-performance dispersing mixer is designed for bottom entry into stainless steel mixing and bending vessels. It mixes, emulsifies, and disperses free-flowing particulates and liquid media with max 5,000 mPas viscosity in batch operation. Using the rotor-stator-principle, the BRS series high shear mixer is well suited for applications that cannot be accomplished using conventional stirring methods.
Features
1. Strong vortices as well as aeration are avoided with this bottom mounting design even when very low loading levels occur in the tank or vessels are emptied during stirring or dispersing. With the mechanical seal cooling design, our BRS series shear mixer can run even when liquid load has been fully discharged without damage the seal
2. Coupling flange will be offered together with all of our BRS series high shear mixers. Users can weld this flange on their stainless steel tanks / vessels. With the coupling flange, it is much more easier to disassemble the mixer from the tank body
Specification
Main specifications
Model | Power | Voltage | Speed | Capacity liter | Cooling by | |
kw | HP | |||||
BRS-1.5 | 1.5 | 2 | 380V 50Hz 3P | 2800 rpm | 10~50 | exterior water |
BRS-2.2 | 2.2 | 3 | 50~100 | exterior water | ||
BRS-3 | 3 | 4 | 50-100 | exterior water | ||
BRS-4 | 4 | 5.5 | 380V 50Hz 3P | 100~200 | exterior water | |
BRS-5.5 | 5.5 | 7.5 | 200-600 | exterior water | ||
BRS-7.5 | 7.5 | 10 | 200~800 | exterior water | ||
| BRS-11 | ||||||
| BRS-15 | ||||||
| BRS-18.5 | ||||||
| BRS-22 | ||||||
| BRS-30 | ||||||
| BRS-37 | ||||||
| BRS-45 | ||||||
… | … | … | … | … | … | … |
Options

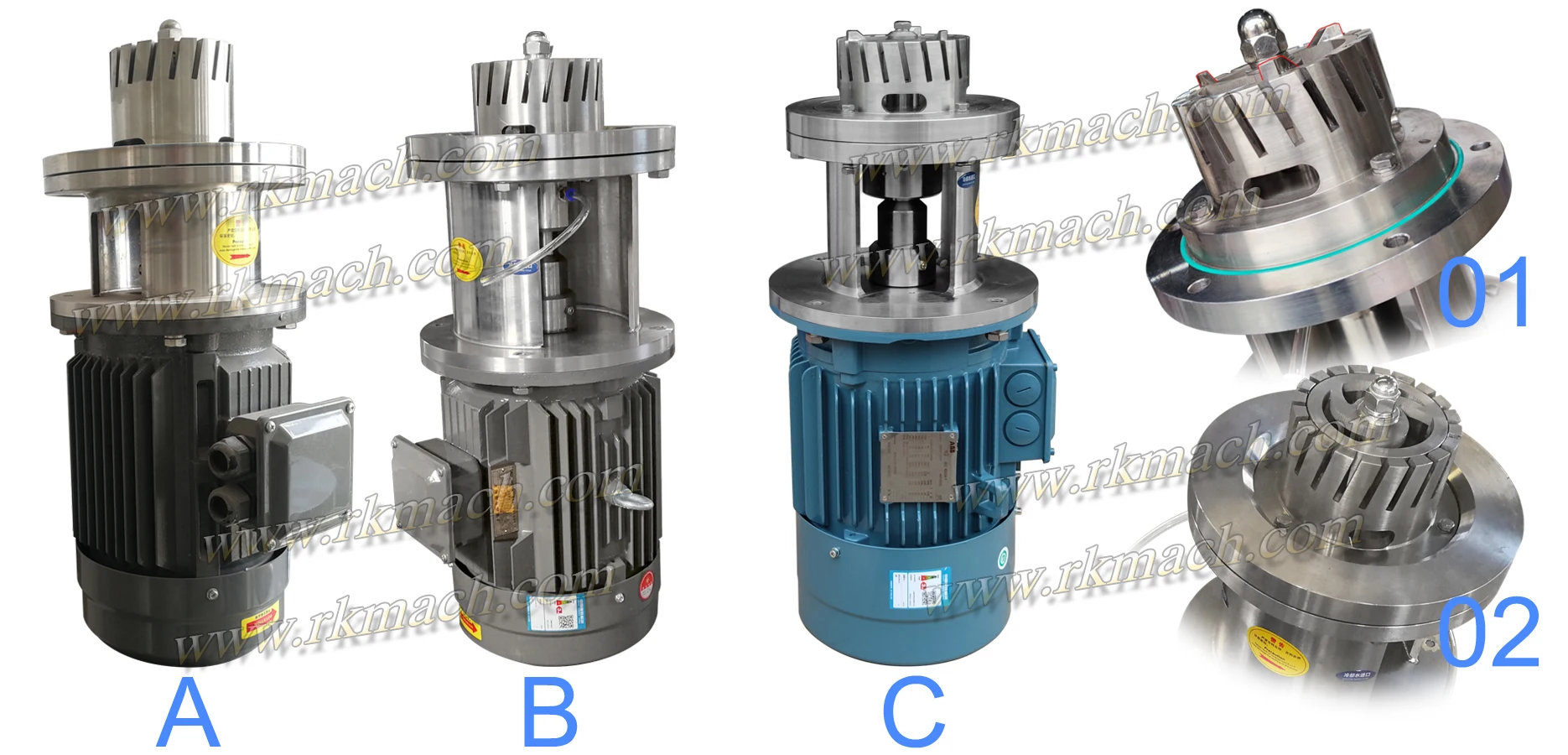

22KW / 30HP bottom mount homogenizer have three different designs:
A. cost effective design mode BRS-22L
B. standard design, with mechanical seal flush, model BRS-22
C. a higher configered design with special designed rotor, model BRS-22X
model BRS-22L usually use cost effective brand motor.
model BRS-22 usually use local famous brand motor
model BRS-22X usually use world famous brand motors such as A B B / S i e m e n s
Motor power can be 220V 60Hz 3phase, or 380V 50Hz 3phase. (customized)
Similar product
Our price
Please contact our online service team to get the latest price of the bottom entry homogenizer that you are looking for.
we offer a reasonable price, not too high, not too low. all the prices are based on the tank configuration that you choose.
for example, a 22KW / 30HP homogenizer with VFD controller will have a higher price than the homogenizer with 2800rpm fixed mixing speed.
all of our bottom mount / top mount homogenizer are made of stainless steel. SS304, or SS316L. Due to the price of stainless steel raw material and the motor keep changing, the price you see in this site may not correct. please contact our on line service team to get the latest price.
