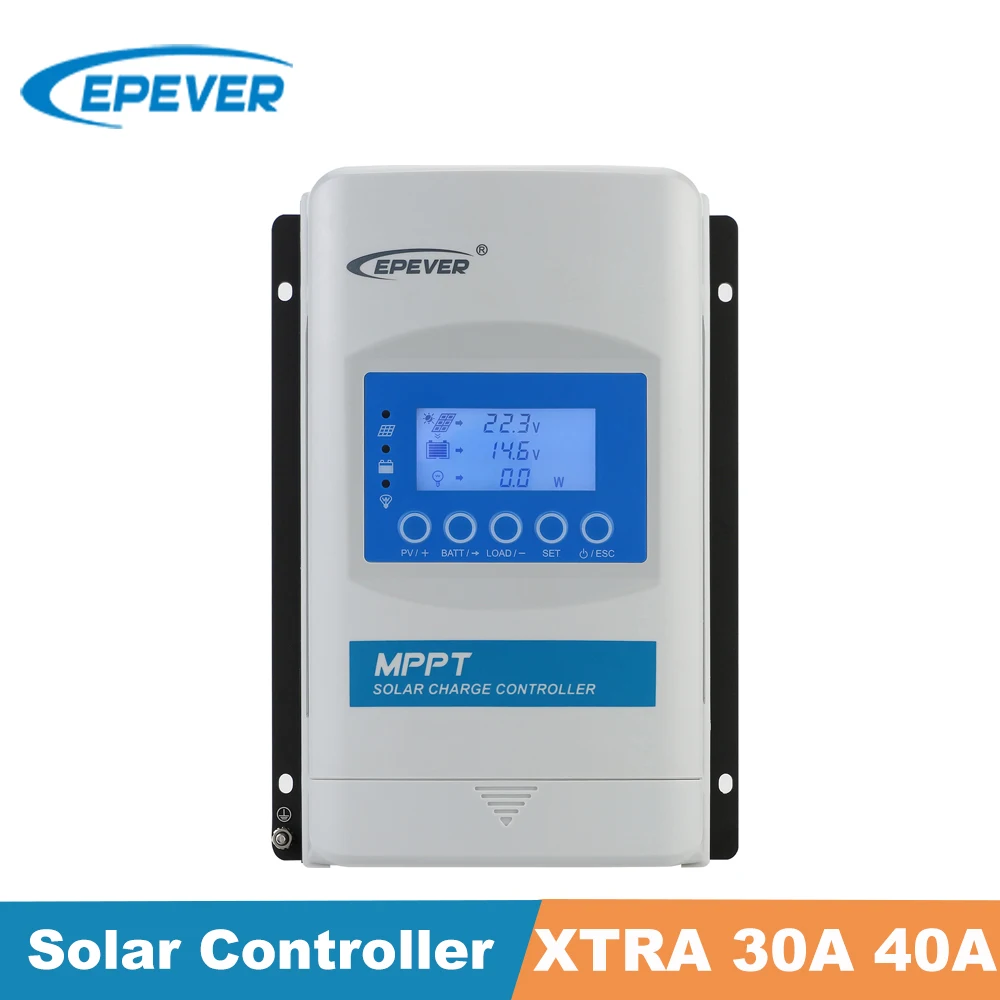

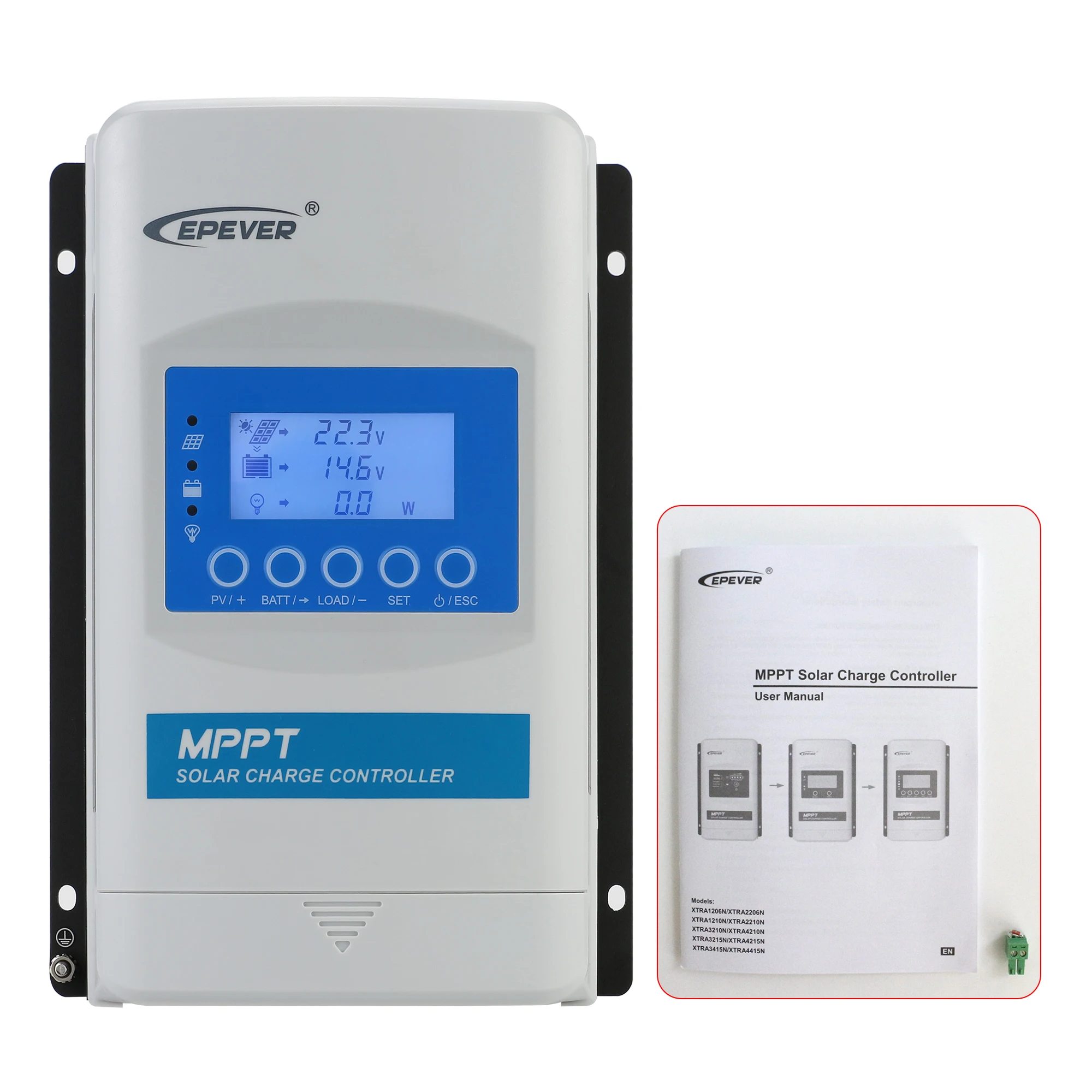

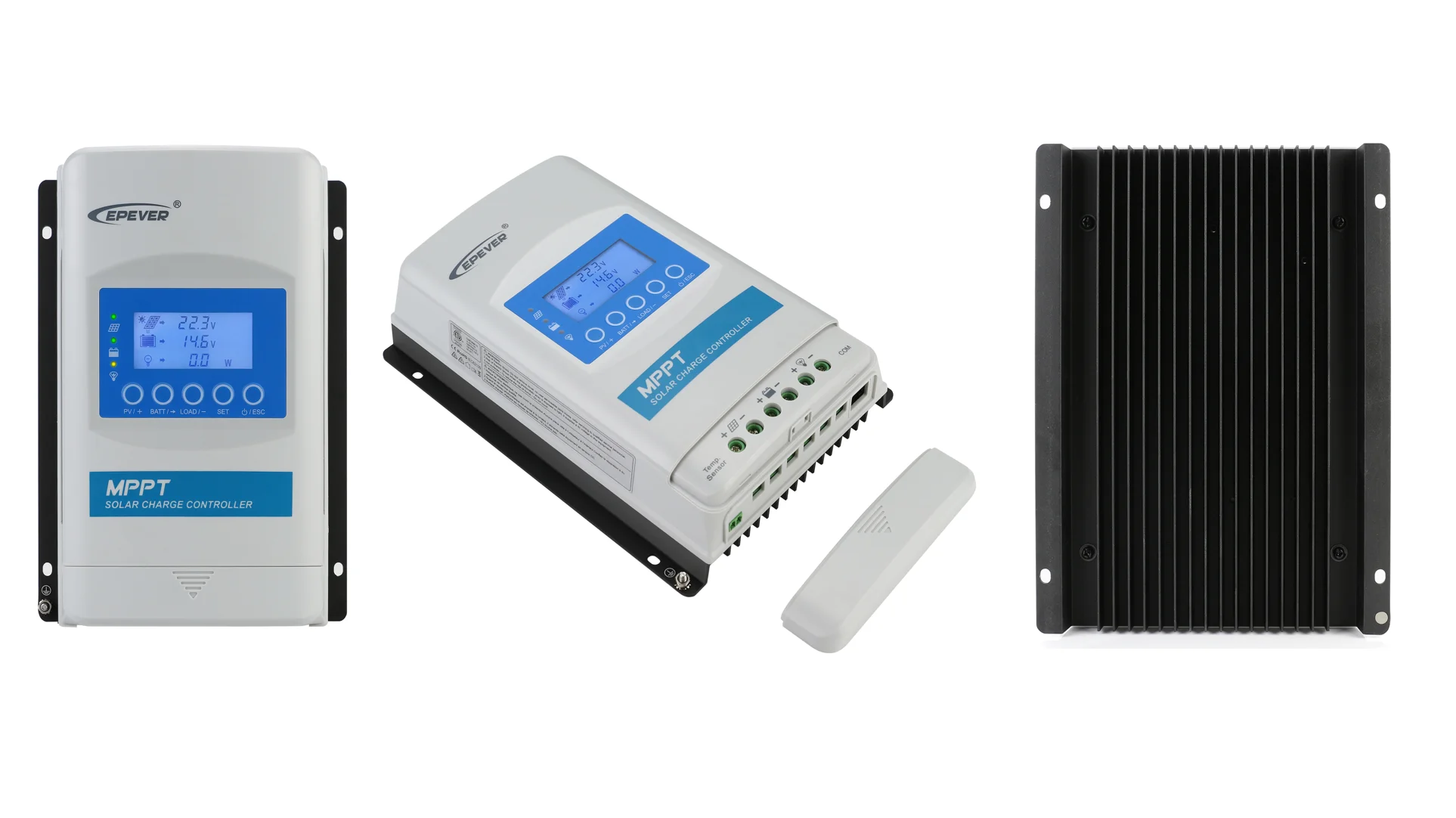

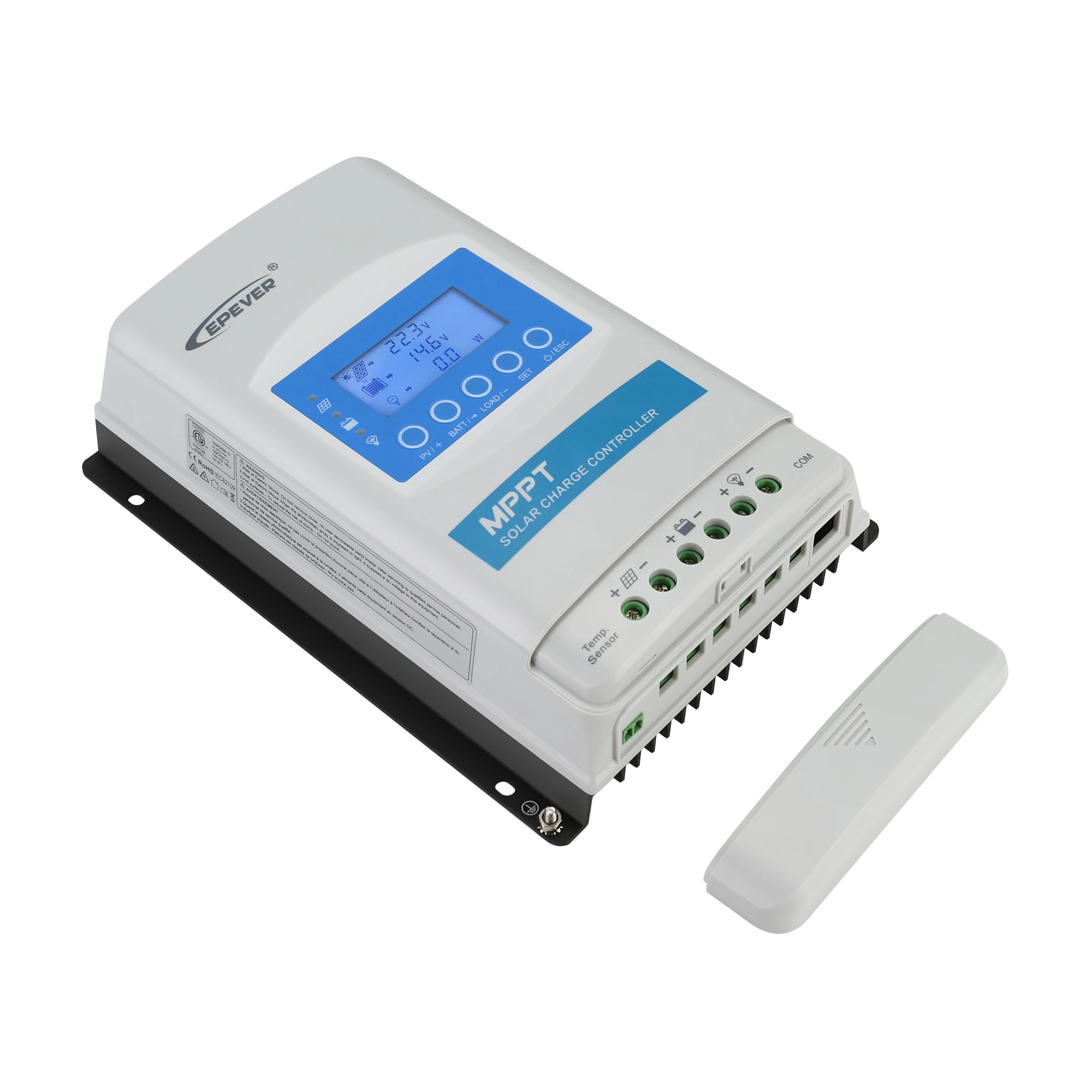

EPever XTRA Series MPPT 20A 30A Solar Charger Controller LCD Solar Regulator 12V 24V and Support lead acid and Li Batteries
- Category: >>>
- Supplier: Yiwu Yuegao Trading Firm
Share on (1600675418110):
Product Overview
Description
Products Description
EPever XTRA Series MPPT 20A 30A Solar Charger Controller LCD Solar Regulator 12V 24V and Support lead-acid and Li Batteries
XTRA series are advanced maximum power point tracking(MPPT) charge controllers, for off-grid photovoltaic systems, with optional display units(XDB1/XDS1/XDS2).
In order to maximize the energy harvest from PV arrays and simultaneously minimize the power loss within a wide range ofoperating conditions, XTRA series apply an advanced smart algorithm which results in up to 30% higher efficient charging, compared to a conventional pulse width modulation(PWM) charge controller. Xtra series controller have limit protection function on charging current & charging power, as well as auto derating power operation at high temperature; the above protection ensure the stability of system even at exceeded rated PV power and over temperature conditions.
Protection class IP32 and isolated RS485 communication port further improve the controller's reliability under different
application requirements. XTRA series controllers incorporate a self-adaptive three-stage charging algorithm based on a digital control circuit, which effectively prolongs the lifespan of battery and significantly improve the system performance. It also has extensive electronic protection for overcharge, over discharge, PV& battery reverse polarity and etc. to ensure the sustainability and durability of the off-grid solar system.
●Advanced MPPT technology & ultra-fast tracking speed is up to 99.5 % guaranteed
● Maximum DC/DC transfer efficiency is as high as 98 %, full load transfer efficiency is up to 97.4%
● Wide MPP operating voltage range
●Low temperature protection and self activate function for lithium battery charging
● Limit charging power & current over rated range
●Real-time energy statistics function
● Multiple load work modes
●Comprehensive electronic protection

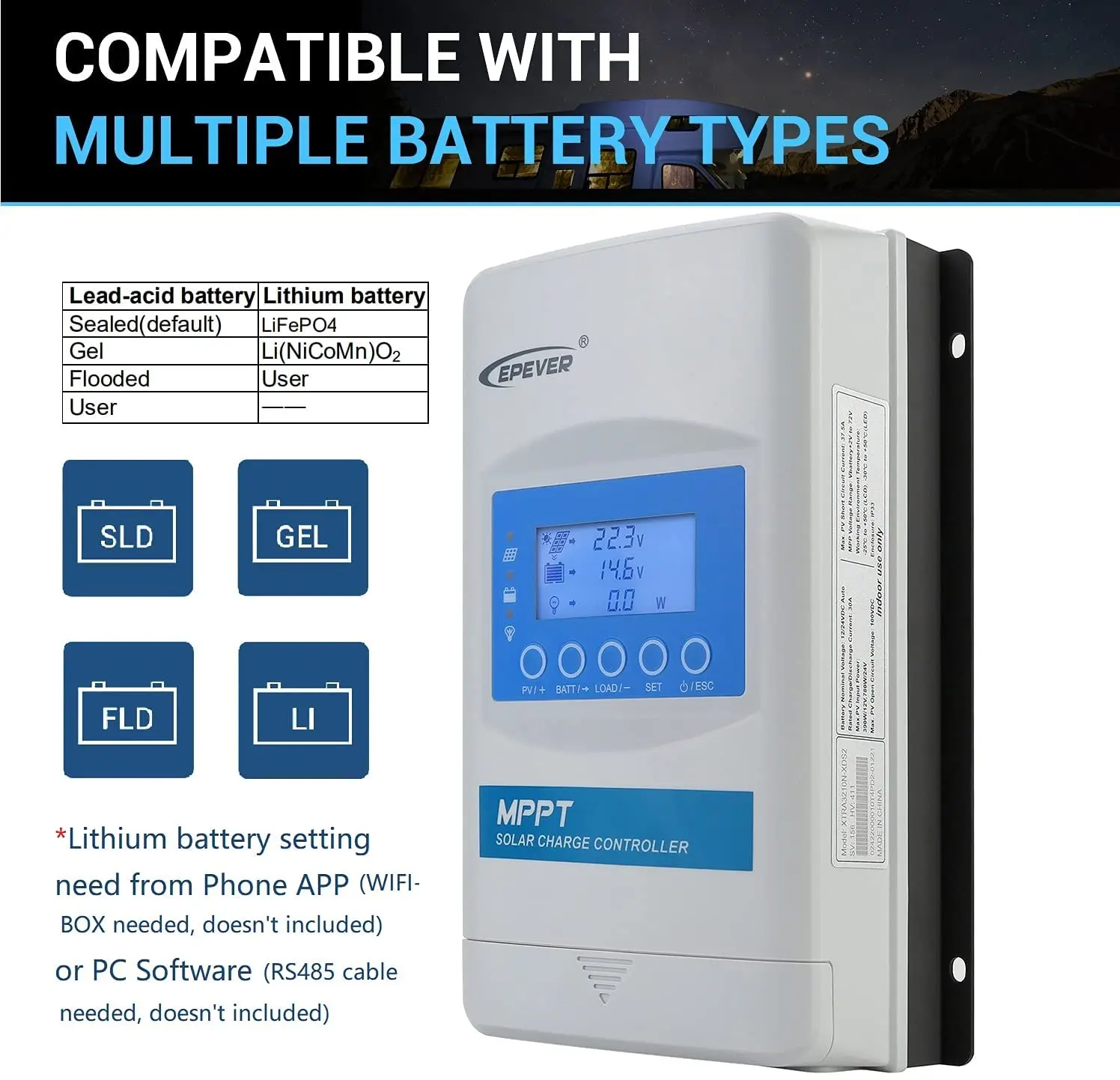

● Compatible with lead acid and lithium-ion①batteries
● Over temperature protection and power degrading in higher temperature
● Optional LCD display units (XDB1/XDS1/XDS2) and accessories
● High quality and low failure rate components of ST or IR to ensure service life
● lsolated RS485 communication port with 5V/200mA protected output, with standard Modbus protocol
●Monitor and set the parameters via APP or PC software
●Dustproof and waterproof design with IP32② protection class
●CE certification(LVD IEC62109, EMCEN3/1-6-61000)
NOTE:
①Ifusing Lithium battery, customer should ask help for "PCsoftware"to set the lithium battery parameters
②Ingress of solid objects: Protected against solid objects over 2.5mm
②Ingress of liquids: Protected against falling drops of water, if the case is disposed up to 15 from vertical
XTRA series are advanced maximum power point tracking(MPPT) charge controllers, for off-grid photovoltaic systems, with optional display units(XDB1/XDS1/XDS2).
In order to maximize the energy harvest from PV arrays and simultaneously minimize the power loss within a wide range ofoperating conditions, XTRA series apply an advanced smart algorithm which results in up to 30% higher efficient charging, compared to a conventional pulse width modulation(PWM) charge controller. Xtra series controller have limit protection function on charging current & charging power, as well as auto derating power operation at high temperature; the above protection ensure the stability of system even at exceeded rated PV power and over temperature conditions.
Protection class IP32 and isolated RS485 communication port further improve the controller's reliability under different
application requirements. XTRA series controllers incorporate a self-adaptive three-stage charging algorithm based on a digital control circuit, which effectively prolongs the lifespan of battery and significantly improve the system performance. It also has extensive electronic protection for overcharge, over discharge, PV& battery reverse polarity and etc. to ensure the sustainability and durability of the off-grid solar system.
●Advanced MPPT technology & ultra-fast tracking speed is up to 99.5 % guaranteed
● Maximum DC/DC transfer efficiency is as high as 98 %, full load transfer efficiency is up to 97.4%
● Wide MPP operating voltage range
●Low temperature protection and self activate function for lithium battery charging
● Limit charging power & current over rated range
●Real-time energy statistics function
● Multiple load work modes
●Comprehensive electronic protection
● Compatible with lead acid and lithium-ion①batteries
● Over temperature protection and power degrading in higher temperature
● Optional LCD display units (XDB1/XDS1/XDS2) and accessories
● High quality and low failure rate components of ST or IR to ensure service life
● lsolated RS485 communication port with 5V/200mA protected output, with standard Modbus protocol
●Monitor and set the parameters via APP or PC software
●Dustproof and waterproof design with IP32② protection class
●CE certification(LVD IEC62109, EMCEN3/1-6-61000)
NOTE:
①Ifusing Lithium battery, customer should ask help for "PCsoftware"to set the lithium battery parameters
②Ingress of solid objects: Protected against solid objects over 2.5mm
②Ingress of liquids: Protected against falling drops of water, if the case is disposed up to 15 from vertical
Item | XTRA 2210A | XTRA 3210A | XTRA 4210A | |||
Rated Charge Current | 20A | 30A | 40A | |||
Battery Voltage Range | 8~32V | |||||
Max.PV Open Circuit Voltage | 100V | |||||
MPPT Voltage Range | (Battery voltage +2V)~72V | |||||
Max. PV Input Power(WV) | 260W/12V | 390W/12V | 520W/12V | |||
520W/24V | 780W/24V | 1040W/24V | ||||
Equalization Voltage | Sealed:14.6V;Flooded:14.8V;User:17-9V | |||||
Boost Votage | Gel:14.2V;Sealed:14.4V;Flooded:14.6V;User.17-9V | |||||
Float Voltage | Gel/Sealed /Flooded:13.8V;User:17-9V | |||||
Low Voltage Reconnect Voltage | Gel/Sealed/Flooded:12.6V;User:17-9V | |||||
Low Voltage Disconnect Voltage | Gel/Sealed /Flooded:11.1V;User:17-9V | |||||
Self-consumption | ≤35mA(12V) ≤22mA(24V) | |||||
Discharge circuitvoltage drop | ≤0.23V | |||||
Temperature Compensate coefficient | -3mVpC/2V(Default) | |||||
Grounding | Common negative grounding | |||||
RS485 interface | 5VDC/200mA(RJ45) | |||||
LCD backlight time | 60S (Default) | |||||
Environmental Parameters | ||||||
Working environment temperature | -30℃～+50℃(No LCD) -25℃～+50℃(LCD) | |||||
Storage temperature range | -20°C~+70°C | |||||
Relative humidity | ≤95%, N.C | |||||
Enclosure | IP33 | |||||
Mechanical Parameters | ||||||
Dimension | 217×158×56.5mm | 230×165×63mm | 255×185×67.8mm | |||
Mounting dimension | 160×149mm | 173×156mm | 200×176mm | |||
Mounting hole size | Φ5mm | |||||
Terminal | 6AWG(16mm 2 ) | 6AWG(16mm 2 ) | 6AWG(16mm 2 ) | |||
Recommended cable | 10AWG(4mm 2 ) | 8AWG(6mm 2 ) | 6AWG(10mm 2 ) | |||
Weight | 0.96kg | 1.31kg | 1.70kg | |||
Safety | EN/IEC62109-1EMC(Emission immunity)EN61000-6-3/EN61000-6-1 | |||||
NOTE:
①When selecting lithium battery type, the system voltage can't be identified automatically
②At minimum operating environment temperature
③At 25℃ environment temperature
④ When selecting lithium battery type, the temperature compensation coefficient is 0, and can't be set
⑤The parameters are 12V system at 25C,×2 in 24V system at 25 C,×4 in 48V system at 25C
⑥ The controller can full load working in the working environment temp. range, When the internaltemperature reach to 81℃, the
reducing charging power mode is turned on
⑦3-protection against solid objects: protected against solids objects over 2.5mm
2-protection against liquids: protected against direct sprays up to 15? from the vertical
①When selecting lithium battery type, the system voltage can't be identified automatically
②At minimum operating environment temperature
③At 25℃ environment temperature
④ When selecting lithium battery type, the temperature compensation coefficient is 0, and can't be set
⑤The parameters are 12V system at 25C,×2 in 24V system at 25 C,×4 in 48V system at 25C
⑥ The controller can full load working in the working environment temp. range, When the internaltemperature reach to 81℃, the
reducing charging power mode is turned on
⑦3-protection against solid objects: protected against solids objects over 2.5mm
2-protection against liquids: protected against direct sprays up to 15? from the vertical
