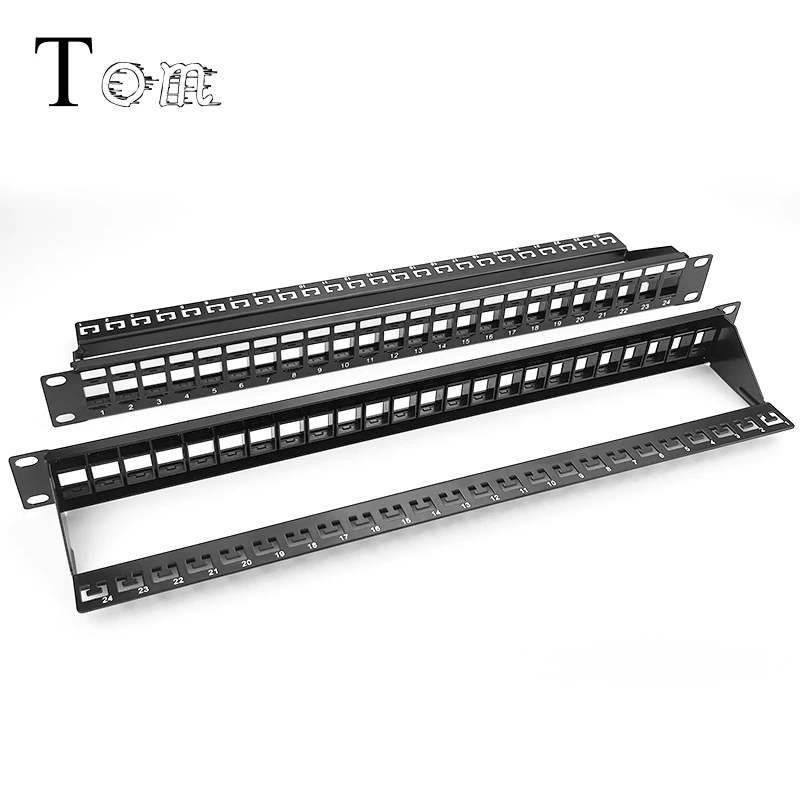

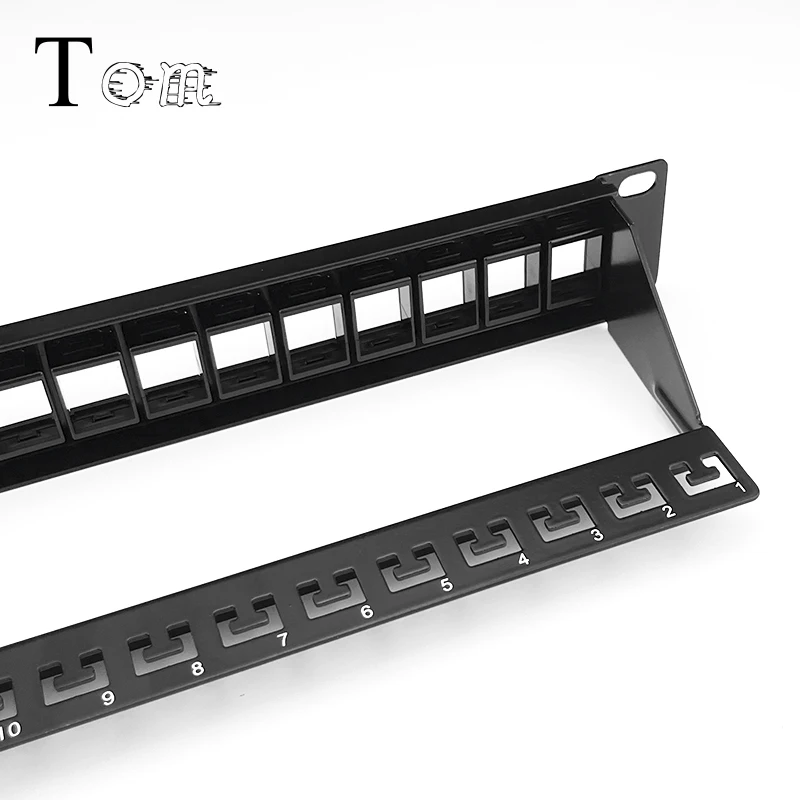

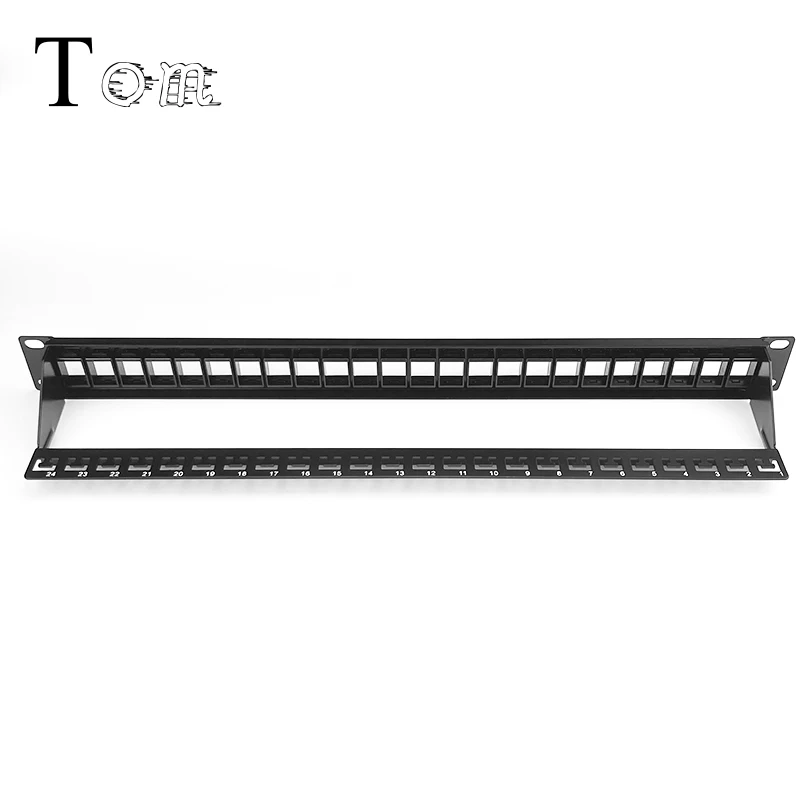

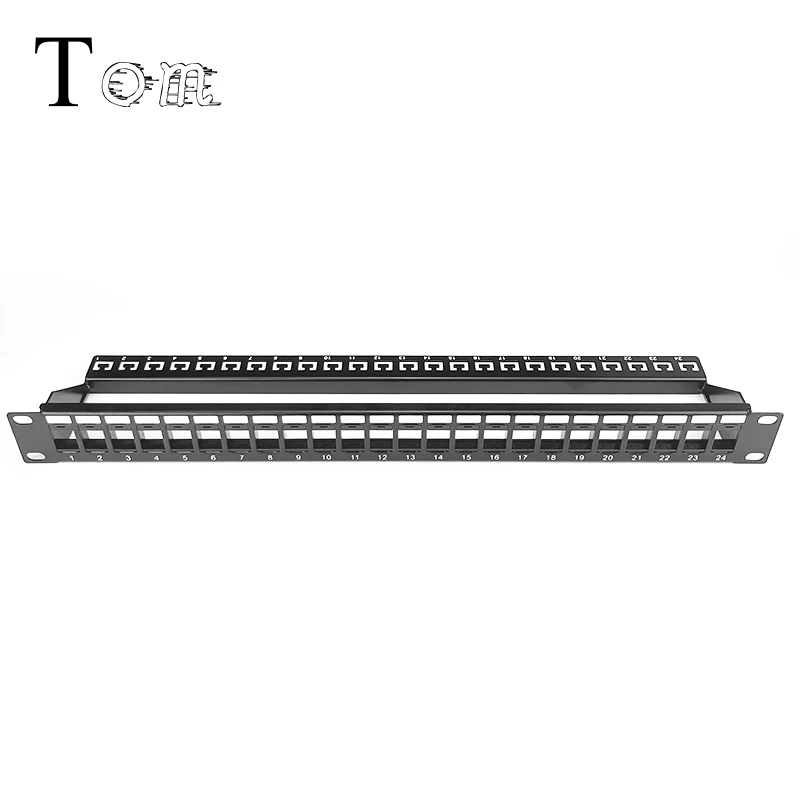

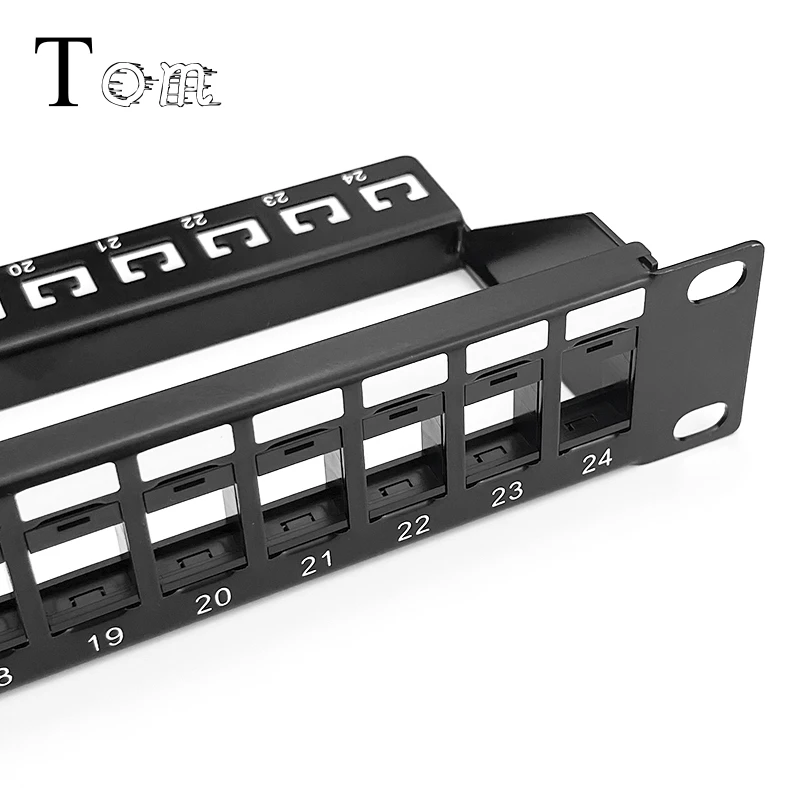

TOM P 16 19' 1U UTP Blank 24port patch panel with back bar unshielded Modular distribution frame empty frame patch panel

Share on (1600675444844):


Price:

Quantity:


Product Overview

Description



TOM-P-16 19'' 1U UTP Blank 24port patch panel with back bar unshielded Modular distribution frame empty frame patch panel



Product description
Product name: Modular distribution frame, empty frame
Product type: 24-port patch panel, unshielded (without modules)
Specifications: 19 "installation size, 24 ports
Material: Use high-quality cold-rolled steel plate
Color: black
Main technical parameters
*IDC: Phosphor bronze, silver plated (20~50uiLZh), applicable cable is 22, 24 and 26AWG (0.64, 0.5 and 0.4mm), life is not less
than 250 times.
*8-line pin: phosphor bronze, gold-plated (20~50uiLZh), the plug socket can be plugged and unplugged repeatedly for not less than
750 times
*Flame retardancy: It is made of PPO+PC injection molding, which meets international standards
*Contact resistance: no more than 2.5mΩ under normal atmospheric pressure (excluding bulk resistance)
*Insulation resistance: not less than 1000MΩ under normal atmospheric pressure
* Dielectric strength: DC 1000V (AC, 700V) without breakdown and arcing within 1 minute
*Standard: Designed and manufactured according to the international standard ISO/IEC11801; TIA/EIA568


Product Name
24 ports patch panel
Type
UTP
Application
Network Cabling System
Color
BLACK
Keyword
Keystone Jack Patch Panel
Category
Blank Patch Panel
Packing
1 pcs /Box
Classification
RJ45
Fluke
YES







Q1:Are you a factory or trade company?
We are a factory.

Q2: Can your company accept customize?
Welcome OEM & ODM.

Q3: What's your delivery time?
If our company have stock , we will send to you within 3 day once receive your deposit.

Q4: How do you solve after sale service?
This please ask us for technical support if you have workers know how to repair.
If do not have engineers, please send back the items, we can repair the items for you or we will re-produce for you.

Q5: Can you send a sample for us to develop?
Yes, we can. Sample can be sent out once you ask for it, if the samples cost is very higher , we will ask a sample fee. At the
same time. the Sample fee will return back in future order.

Q6: What packing ways do you offer?
We offer with own brand packing, neutral packing or customized packing.

Q7: How could I ensure the product quality?
We have our own QC control department, and we also have got many certifications such as, CE, , RoHS and so on to ensure the
quality of our products, you could just trust us.
