Automatic Industry Pet Feed Cat Dog turtle fish Pellet Food puffeTwin Screw Extruder Production Line Making Processing Machine
- Category: >>>
- Supplier: Jinan Morningstar Machinery Equipment Co. Ltd.
Share on (1600675627055):
Product Overview
Description
Product Details
This pet food production line is 70 series, the output is 260-300KG/H, if you need higher output, welcome to consult, we have more models and higher output.
Production process: raw material mixing → extrusion and puffing → multi-layer oven drying → spraying → cooling system (optional) → packaging (optional)
Equipment configuration: Mixer → Screw elevator → Twin Screw Extruder → Air Conveyor → Continuous Dryer - Hoist →Automatic Double Drum seasoning line → Cooling Conveyor Belt (Optional) → Packaging Machine (Optional)
Equipment configuration: Mixer → Screw elevator → Twin Screw Extruder → Air Conveyor → Continuous Dryer - Hoist →Automatic Double Drum seasoning line → Cooling Conveyor Belt (Optional) → Packaging Machine (Optional)
Product Paramenters
Name | mixer |
Power | 3KW |
Production capacity | 50kg/batch |
Dimensions | 850*530*1040mm |
Material | food stainless steel |
It is a device that adds various raw materials to a certain amount of water or additives and stirs them to achieve full mixing.
High efficiency, uniform mixing, high mixing quality, can be mixed with solid and liquid
Name | Screw elevator |
Power | 1.5KW |
Production capacity | 260-300kg/h |
Dimensions | 950*850*2200mm |
Material | food stainless steel |
The material is conveyed to the top through the screw spindle, falls and continues to circulate, so as to achieve the purpose of conveying the material. Use this machine to transport the mixed material to the feed hopper of the twin-screw extruder
Name | Twin Screw Extruder |
Power | 40KW |
Production capacity | 260-300kg/h |
Dimensions | 2500*1000*1900mm |
Screw diameter | 70mm |
Screw material | 38CrMoAl |
1. Adopt inverter control, visual temperature control. Parameters such as speed and temperature can be easily adjusted.
2. It adopts twin-screw extrusion method with good puffing degree.
3. The screw has undergone special treatment such as nitriding, which has long service life, high temperature resistance and wear resistance.
2. It adopts twin-screw extrusion method with good puffing degree.
3. The screw has undergone special treatment such as nitriding, which has long service life, high temperature resistance and wear resistance.

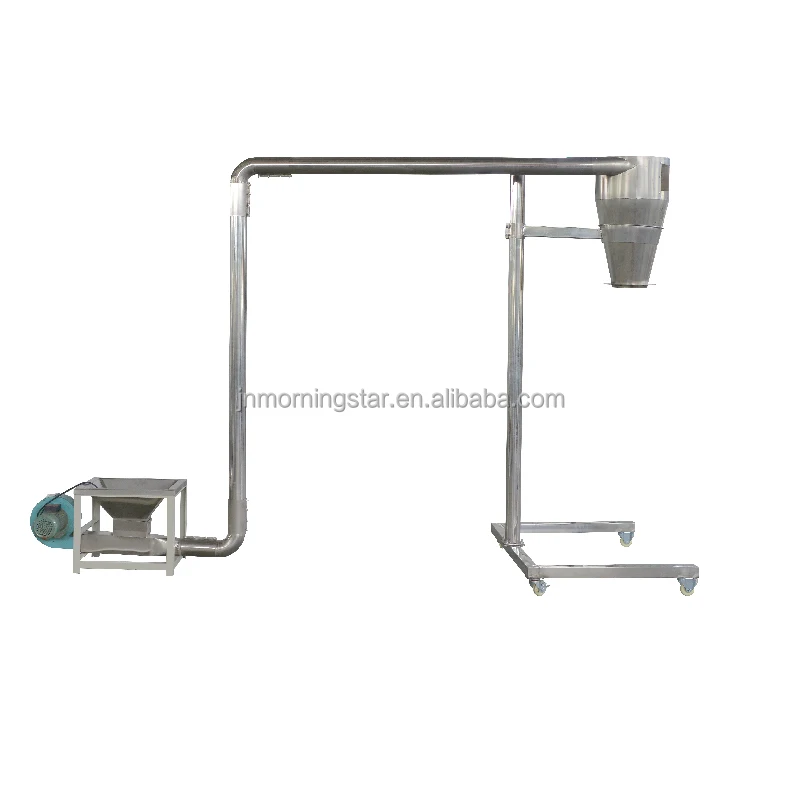

Name | Air elevator |
Power | 1.5KW |
Production capacity | 260-300kg/h |
Dimensions | 1500*800*1900mm |
Material | food stainless steel |
Lift the product through the air duct to the dryer，Use the wind to send the material into the dryer to avoid particle damage and sticking together.

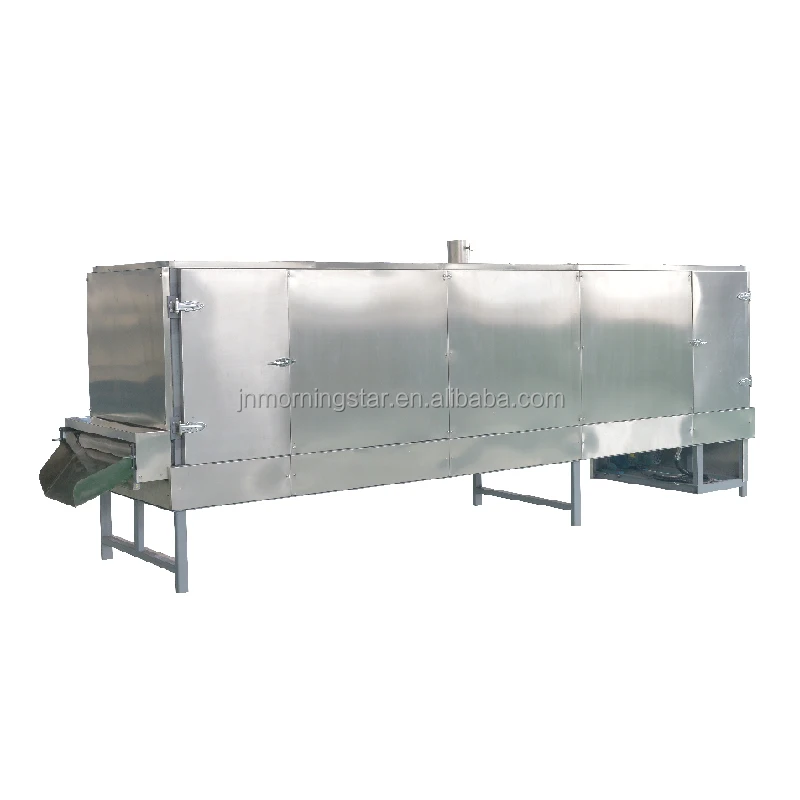

Name | Continuous multi-layer Dryer oven |
Power | 35KW |
Production capacity | 260-300kg/h |
Dimensions | 5000*1200*2000mm |
layers | 5 |
The puffed granular product is dried in 5 layers, and the drying effect is good.

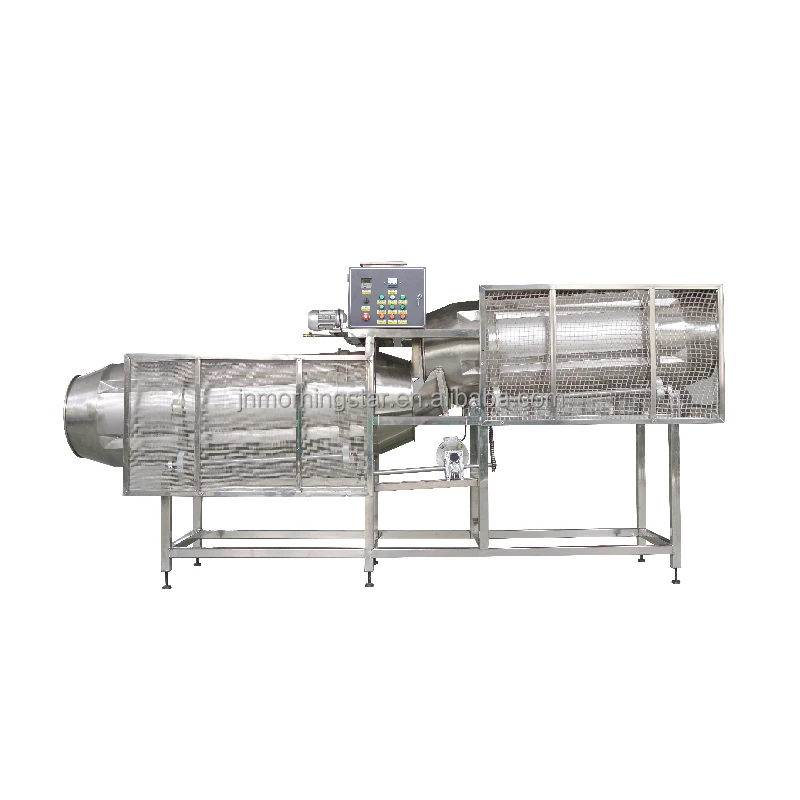

Name | Automatic Double Drum seasoning line | |
Production capacity | 260-300kg/h | |
Power | 3.5KW | |
Dimensions | 3500*900*1800mm | |
Material | food stainless steel | |
Including hoist | ||
High degree of automation, simple operation, and wide application range. The double-drum seasoning machine uses the elevator to automatically feed the seasoning, and the screw conveys the seasoning quantitatively. It is also designed with a sprinkling mechanism, and the seasoning is uniform. Evenly sprayed, the amount of fuel injection can be controlled and adjusted
Product Description

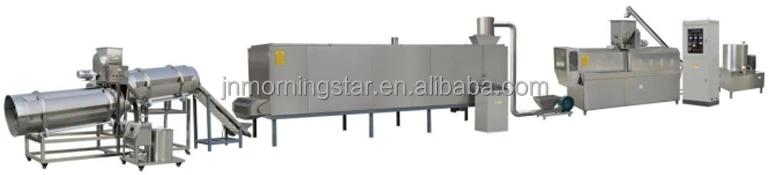

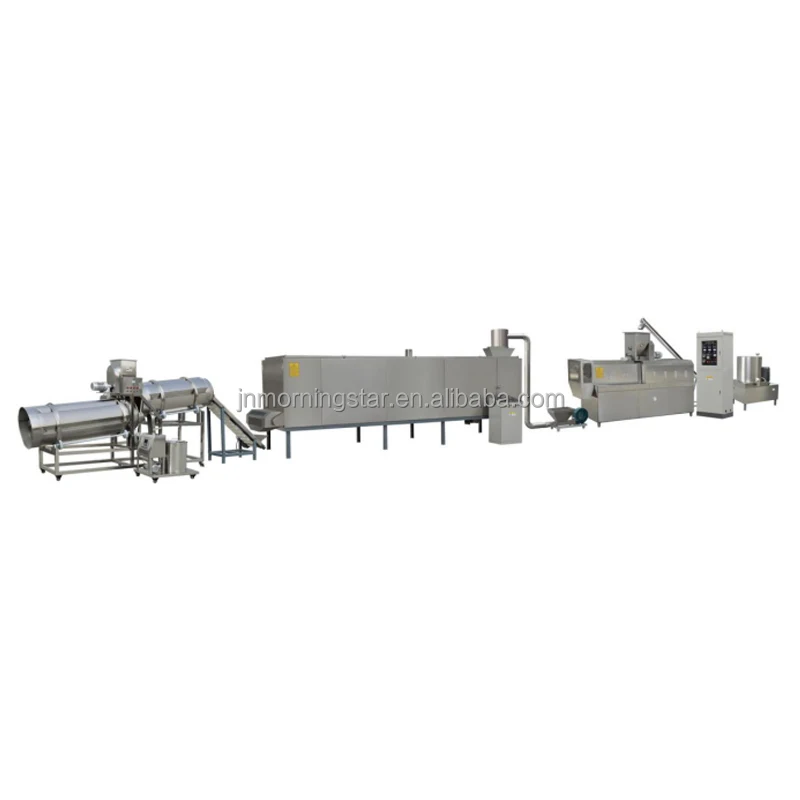

The pet feed twin-screw extruding production line adopts twin-screw extruding extrusion molding, inverter control, adjustable speed, visual temperature control, adjustable temperature, and high degree of automation. Can produce dog food, cat food, fish food, turtle food and other pet food.
