Lathe chuck 3 jaw 250mm,10' chuck 3 jaw self centering chuck for heavy duty lathe,K11 250 two sets jaws chuck

Product Overview

Description

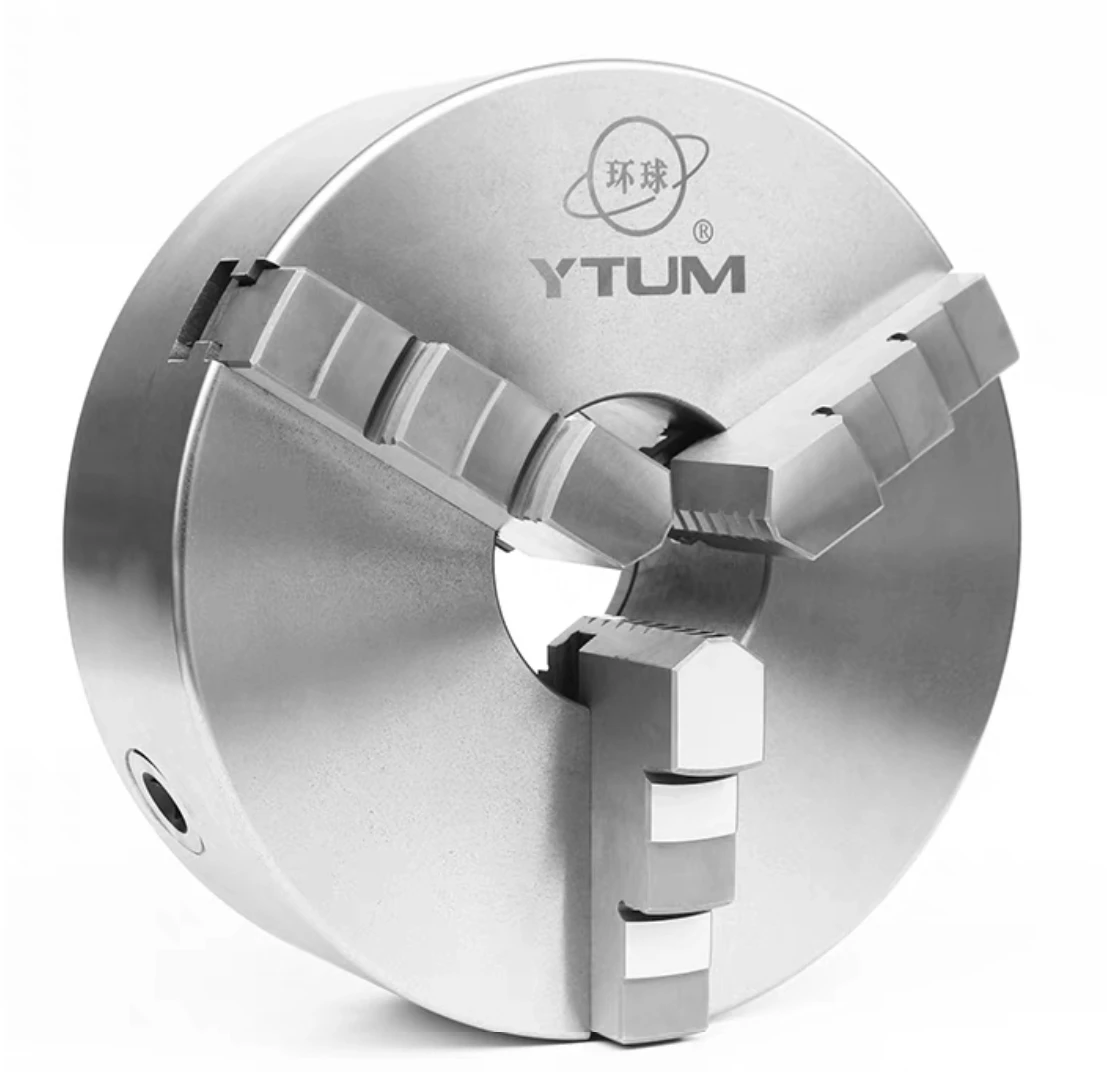

K11 Series 250mm three jaw self-centering chuck



Specifications:
Jaws material: Hardened Steel
Model: K11-250
Max RPM: 4000 r/min
Jaw: 3 Jaw
Power: Manual

Features:

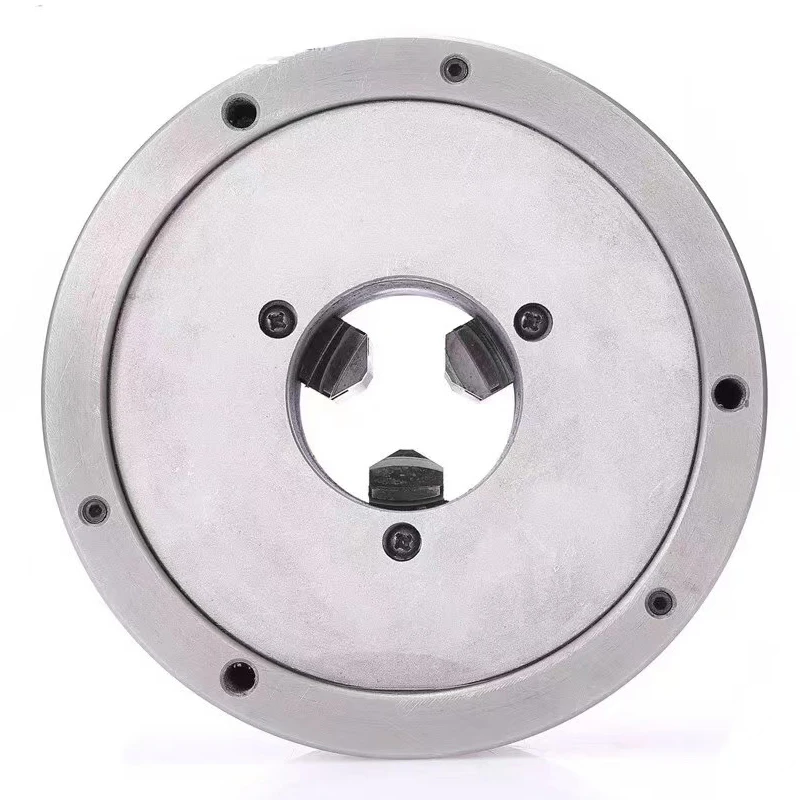

1. Short cylindrical center mounting .

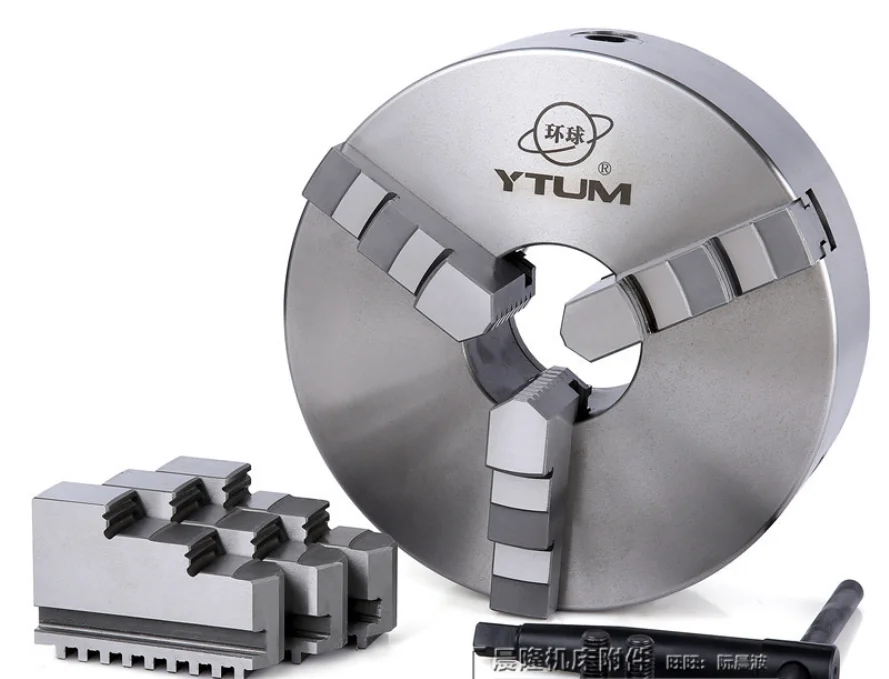

2. Model K11 chucks are provided with one- piece jaws(which include a set of internal jaws and a set of external ones ).
3 .Model K11 chucks are supplied with traditional two-piece jaws.

Internal Jaw:
Clamping Range A-A1: 6- 110 mm
Jamming Range B-B1: 80- 250mm
External Jaw
Clamping Range C-C1: 90- 250mm

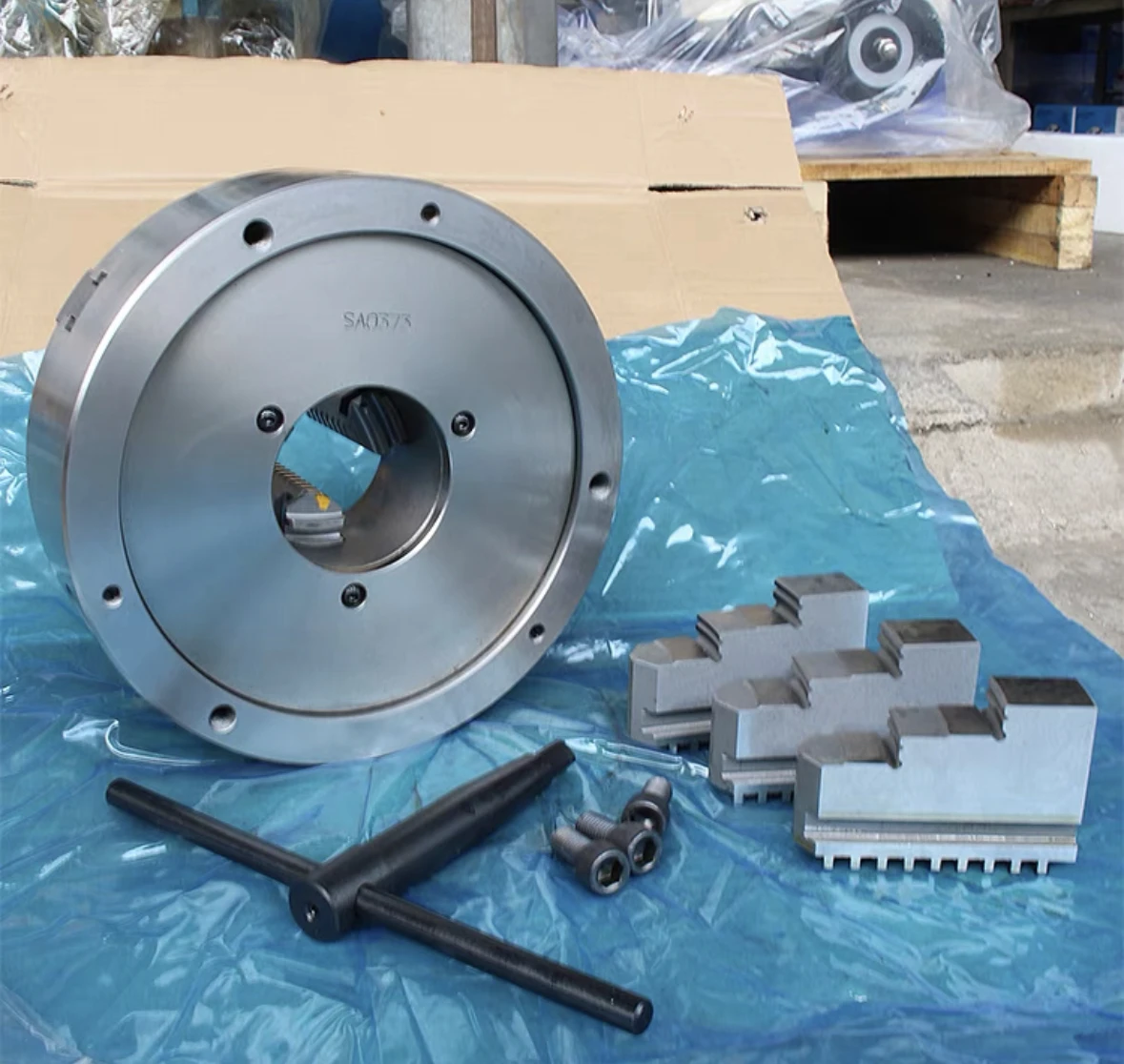

Packaged included :
Self-Centering chuck body x1
Inside jaws x 3
Outside jawslarge x 3
Safety chuck key x 1
Mounting bolts x 3
