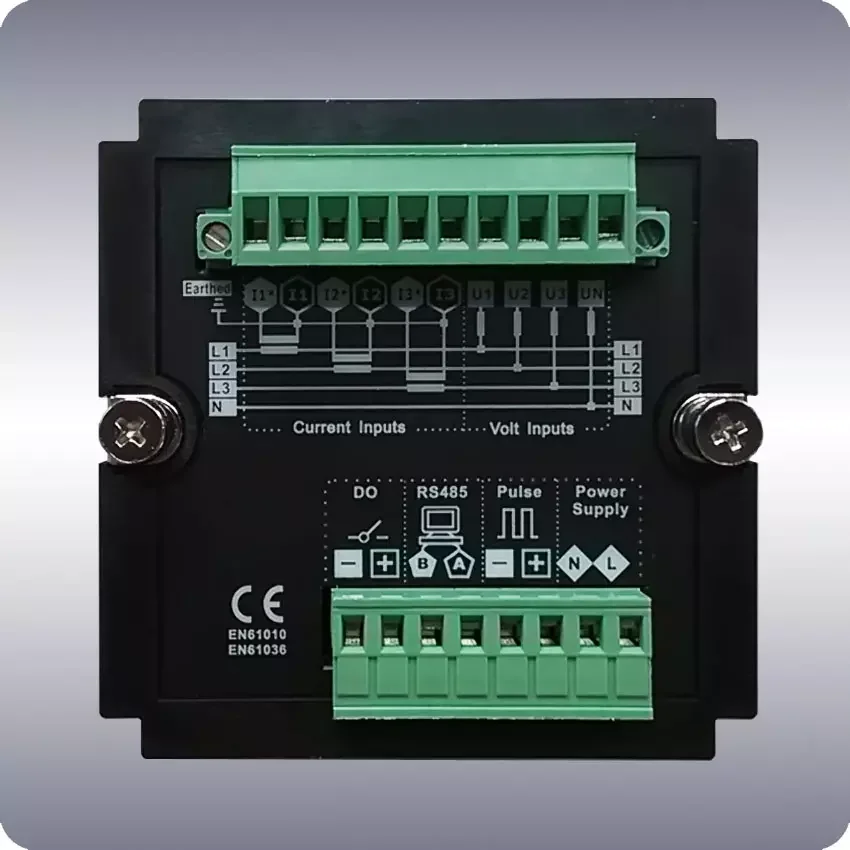

SMD96TEL C 200A вход 3X220/380V 3 фазы Modbus многофункциональный счетчик энергии переменного тока с CT трехфазный цифровой только в том случае,



     SMD96TEL power analyzer is designed special for electrical detection system in the field of electric, of mining, of infrastructure, of intelligent buildings etc.. It may measure all the parameters on the electrical networks, such as currents, voltages, active powers, reactive powers, apparent powers, frequency, power factors and 4 quadrant energies.
     It has a big and high visible LCD display and it may be installed in any industrial space. It also has 4 front keys and users may easily change display page and set network parameters by them. Every SMD96TEL is equipped RS485 interface to connect master device, such as PLC, data center computers.
     SMD96TEL has good cost performance, as an intelligent unit and a digital electrical data collection unit; it has been widely used in many intelligent systems, such SCADA, energy management systems.

- Measuring: 30 parameters on AC electrical network:
             AL1, AL2, AL3(current senses), VL1, VL2, VL3, VL1-2, VL2-3, VL3-1, Fr,
             PL1, PL2, PL3, PL,QL1, QL2, QL2, QL, SL1, SL2, SL3, SL, PF1, PF2, PF3, PF,
             imp & exp kWh, L & C kvarh
- Display: With big white LCD display, it's well visible in any somber space;
- Dimension: 96×96×85mm;

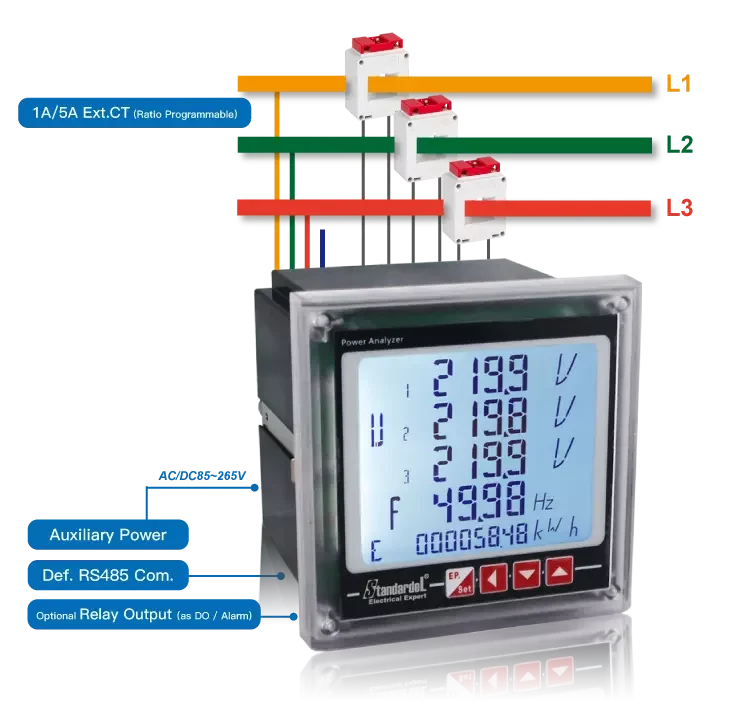

- Current Input: 1A/5A External CT;
- Line & Voltage Input:
             3P4L (3x57.7/100V, 3x127/220V, 3x230V/400V,3x240/415V);
             3P3L (3x100V, 3x220V, 3x380V)
- Power Supply: Default axiliary power supply AC/DC85~265V;
- Communication: With 2 cables isolated RS485 interface up to 38400bps (Def. Modbus-RTU protocol);
- Pulse: kWh impulse output (comply DIN43864);
- Relay ouput: Optional 1 relay output as remote switch or as alarm;
- Autodiagnosis: for wiring error alarm, check error reason by alarm code;
- Software: With free testing software, to easily read its data and set its parameters by computer;
- Secondary Develop: provide DLL dynamic library and C# example, to develop you own software;

Q: Can I ask for sample ?
A: Yes, for sample orders, please order from our online shop.

Q: Are you trading company or manufacturer ?
A: We are factory located in Shanghai.

Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 10-15 days for the items out of stock.

Q: What is your terms of payment ?
A: Order amount less than $5000, 100% paid before shipment; order amount more than $5000,30% as deposit, 70% before shipment, or by negotiated for the both parties.

Q: Do you provide software ?
A: We have the free testing software for every model device. In the meantime, we also provide detection software to manage the device data, and charge of these software, you may demand our salers.
