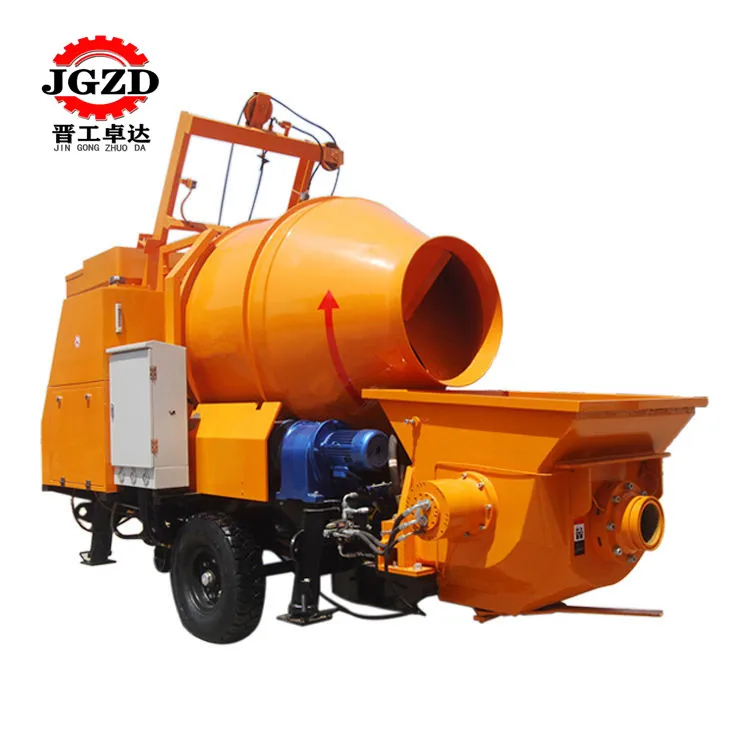

Construction Mini Concrete Mixer Truck Portable Trailer Mounted Cement Diesel Concrete Mixer Pump

Product Overview

Description

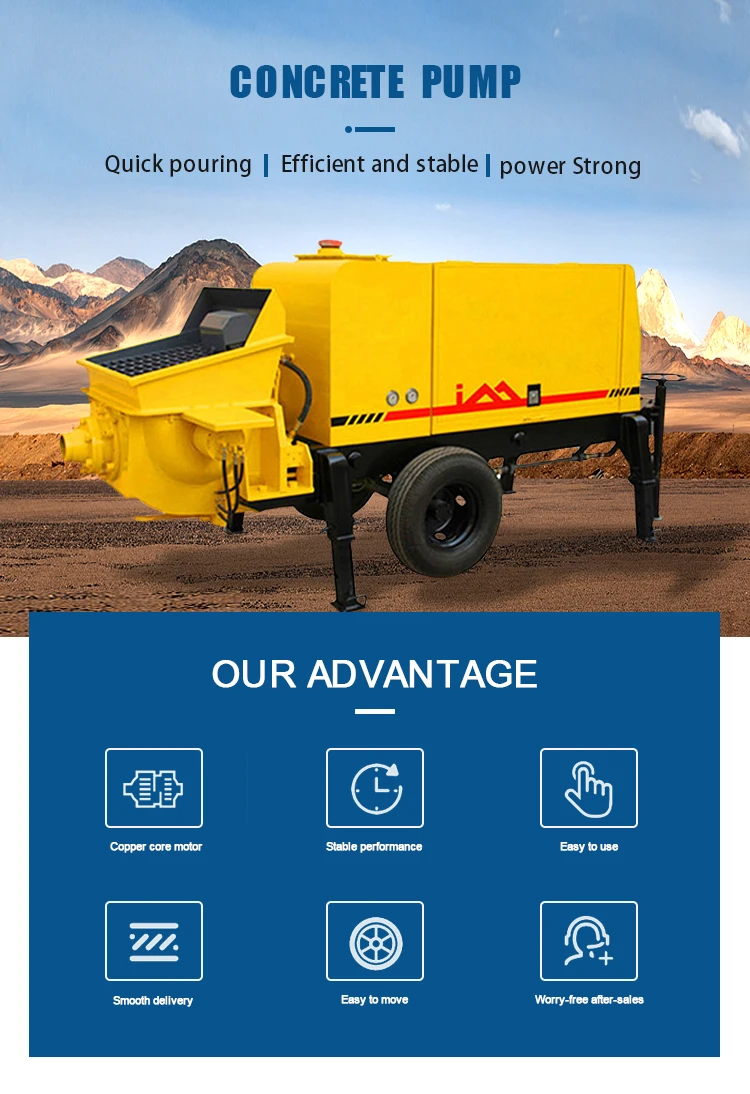

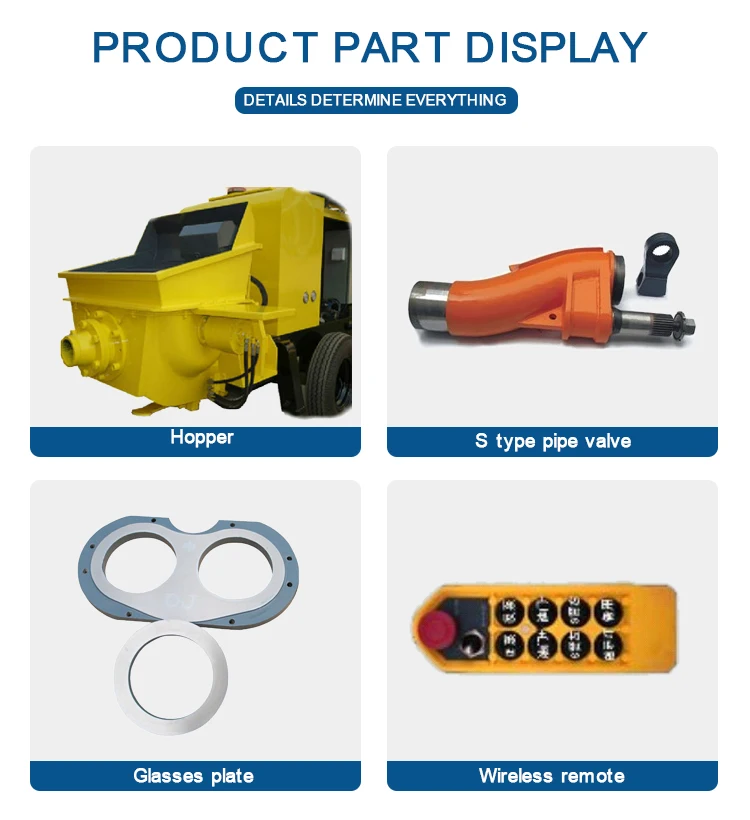

Concrete pump is a small fluid mixture conveying equipment, not only widely used for wet-mixed mortar pumping and wall plastering in high floor buildings construction, but also for support lining construction in ground heating project, tunnels, mines and other underground engineering. Concrete pump less than 30 mm fine aggregate concrete with lower investment cost and operating cost, it is first choice ideal equipment for engineering construction. It adopts S tube as distributing valve to meet large aggregate concrete pumping. The hydraulicdriven mixing device can play the good role of secondary mixing conducive to pumping. The glasses plate and cutting ring adopt hard alloy material inlay manufacturing with wear resistant and long service life. The hydraulic system adopts independent three circuit electro - hydraulic control with high reliability. The electrical system control is fully functional with returning pressure control function eliminating pipe blocking failure. Its elegant appearance and light weight is easy to transport; Working with batching mixing equipment can achieve continuous pumping construction to improve construction schedule.





Feature:

1.Reliable performance, smooth operation.

2.High material suction capability, strong pumping capability.

3.Long life S pipe and wearing parts.

4.Advanced hydraulic and electrical systems, safety and reliability.

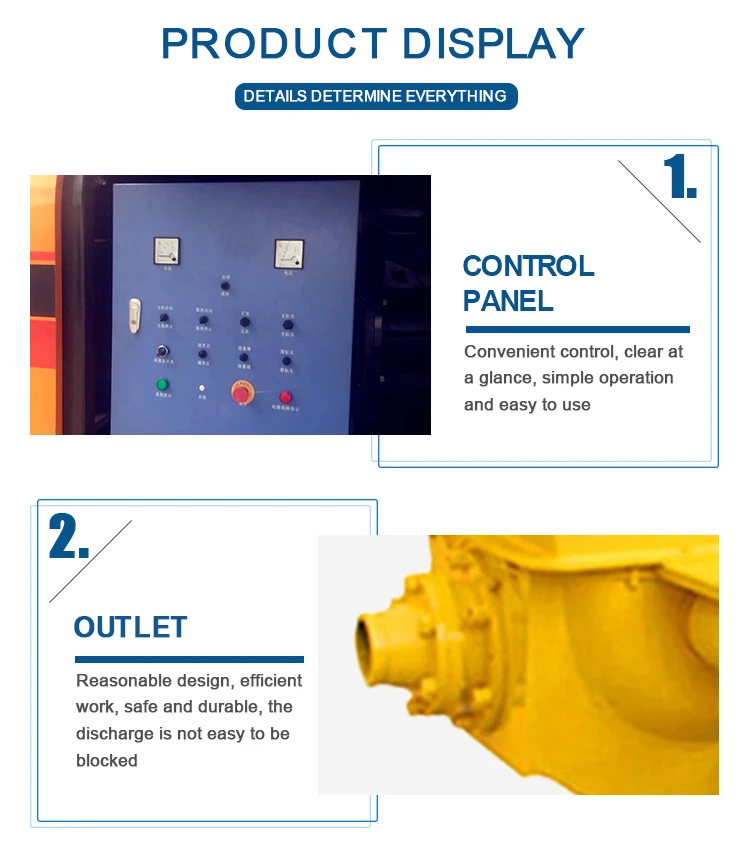

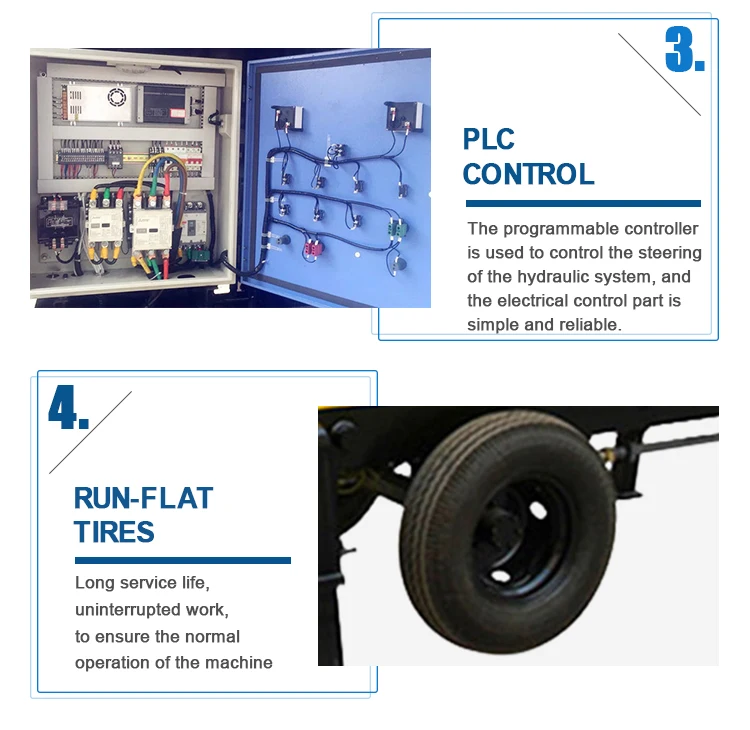

5.Intelligent control system, high efficiency.

6.Wireless remote control function, more convenient, simple operation.



Model	YG-10D	YG-20D	YG-30D	YG-40D
Maximum Through (m3/h)	6	12	15-18	20-22
Delivery Pressure (Mpa)	15	18/5	15/18	23
Delivery Distance  V/H(m)	20/50	40/80	80/160	120/260
Distribution Valve	S-Tube	S-Tube	S-Tube	S-Tube
Conveyor Cylinder  (mm)	Φ80*1600	Φ80*1600	Φ80/100*1800	Φ100/80*1800
Hopper Volume(m3)	0.8	0.8	0.8	0.8
Motor Power(kw)	15	22	37	45
Aggregate Size (mm)	5-15	5-20	5-20	20
Whole Machine Weight(kg)	600	1600	2200	2400
Dimensions(mm)	1800*700*1100	3400*1200*1600	3800*1500*1600	4000*1500*1550
