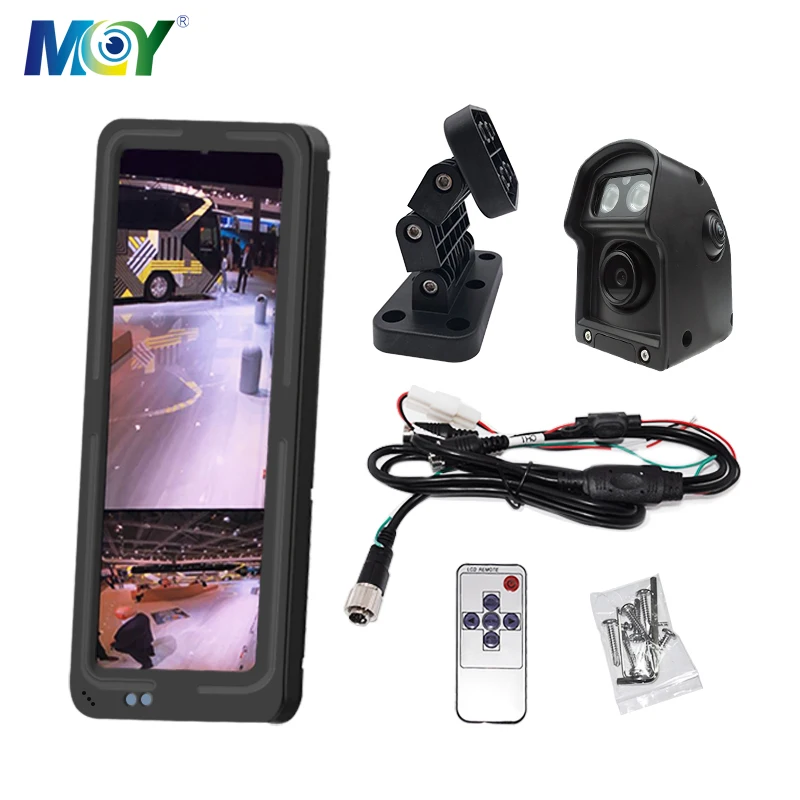

12.3 inch 2 channel Bus Rear Side View Mirror Replacement Blind Spot Monitor System for Truck/Bus
- Category: >>>
- Supplier: Shenzhen Mingzhiyuan Technology Co. Ltd.
Share on (1600675945489):
Product Overview
Description
Related Products
Specification
FEATURES:

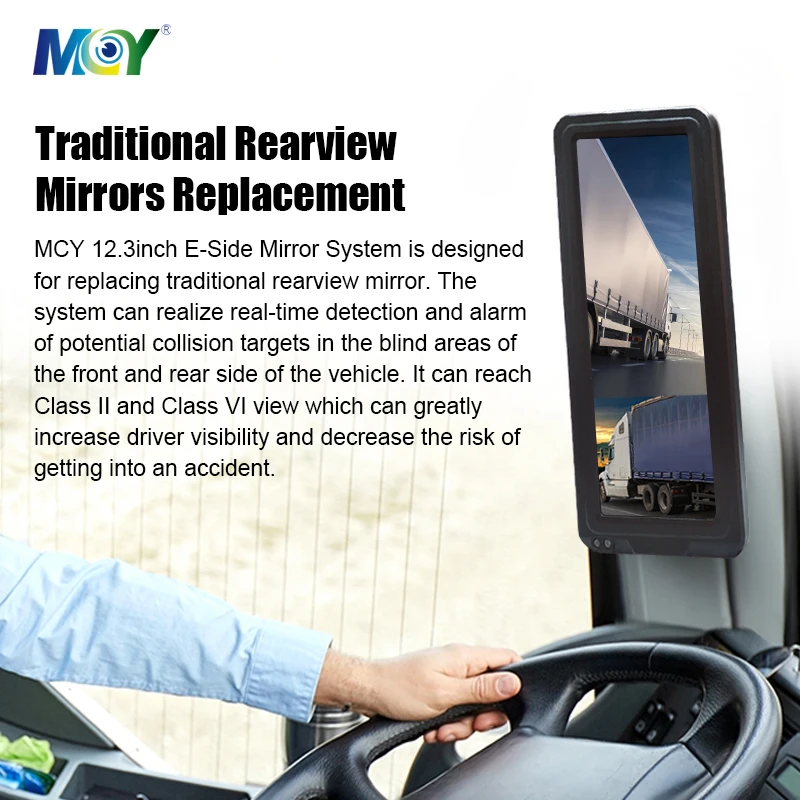

MCY 12.3inch BSD E-Side Mirror System is designed for replacing traditional rearview mirror. The system collectes image from dual lens camera mounted left/right side of the vehicle, and inputs the image signal of the road conditions to the 12.3inch screen fixed on the A-pillar inside the vehicle, and then display on the screen.

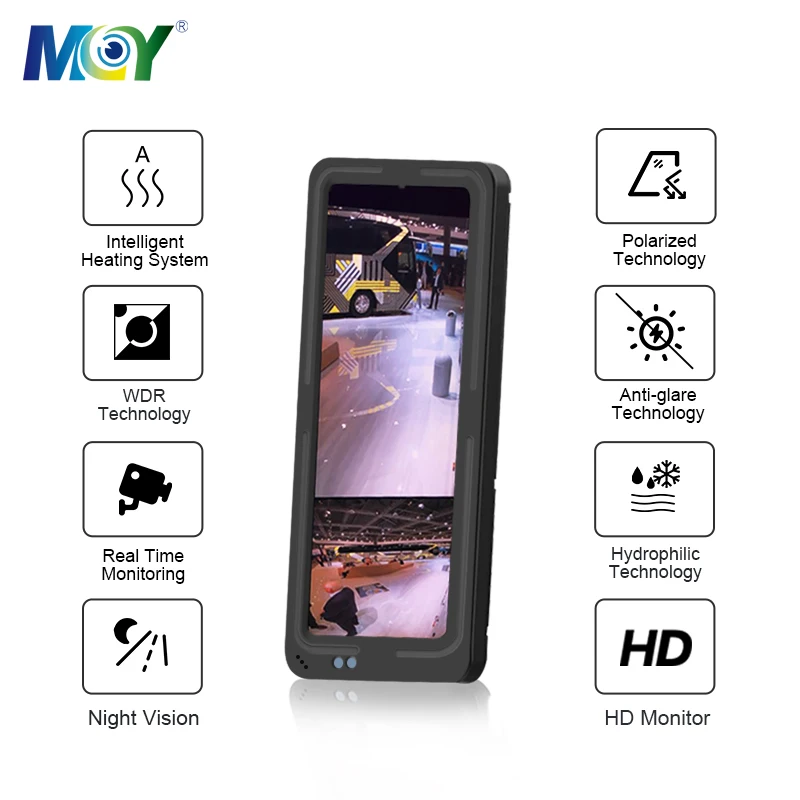

WDR for capturing clear and balanced images/videos
Class II and Class IV view to increase driver visibility
Hydrophilic coating to repel water droplets
Glare reduction to lower eye strain
Automatic heating system to prevent icing (optional)
BSD system for road users detection
Support SD card storage (max. 256GB) (optional)
MCY 12.3inch BSD E-Side Mirror System is designed for replacing traditional rearview mirror. The system collectes image from dual lens camera mounted left/right side of the vehicle, and inputs the image signal of the road conditions to the 12.3inch screen fixed on the A-pillar inside the vehicle, and then display on the screen.
WDR for capturing clear and balanced images/videos
Class II and Class IV view to increase driver visibility
Hydrophilic coating to repel water droplets
Glare reduction to lower eye strain
Automatic heating system to prevent icing (optional)
BSD system for road users detection
Support SD card storage (max. 256GB) (optional)
1: 12.3inch Electronic Rearview Mirror Monitor | ||
Model | TF1233-02AHD-B1 | |
Screen Size | 12.3 inch (8:3) IPS | |
Resolution | 1920 * 3 (RGB) * 720 Pixel | |
View Angle | L: 85° / R: 85° / U: 85° / D:85° | |
Active Area | 292.32 (H) * 109.62 (V) [mm] | |
TV System | PAL&NTSC (Auto) | |
Brightness | 750cd/m2 | |
Contrast | 1000:1 | |
Operation Method | Remote Control | |
Language | Simplified Chinese/ English | |
Power Supply | DC10V-32V | |
Power Consumption | MAX 25W | |
Working Temperature | -40℃~75℃ | |
Storage Temperature | -40℃~75℃ | |

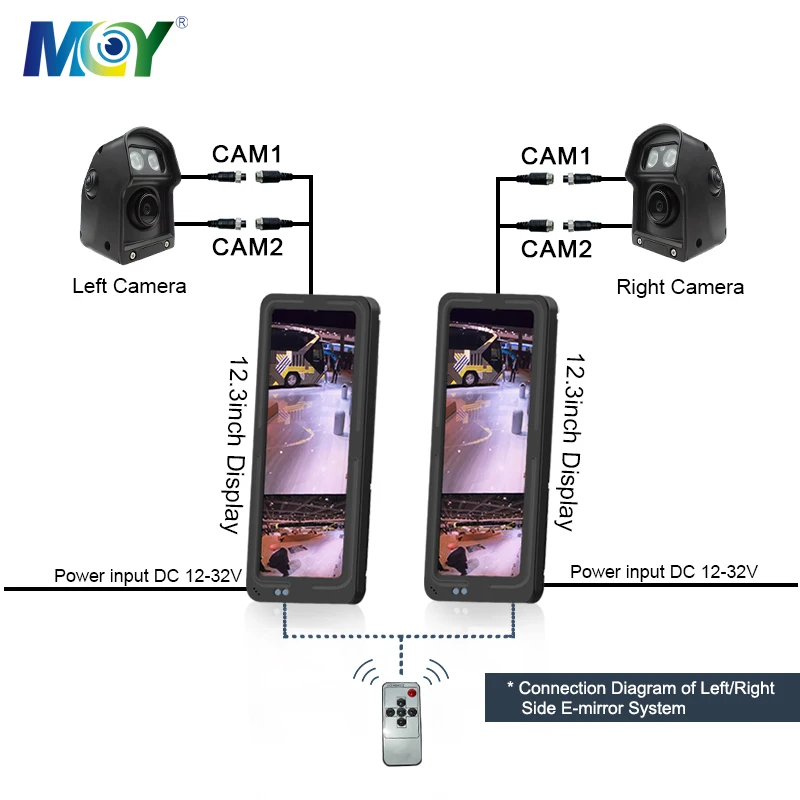

Signal Interface | 4pin Din Aviation Male Connector (1. +12V; 2. GND; 3. NC; 4. VIDEO) | |
Video Input | 2ch Video Input (AHD 720P/1080P) | |
Housing Material | Metal | |
Cable Length | 2.3m | |
Outer Dimension | 338.5mm*147.5mm*37.5mm (L*W*H) | |
Net Weight | 1035g | |

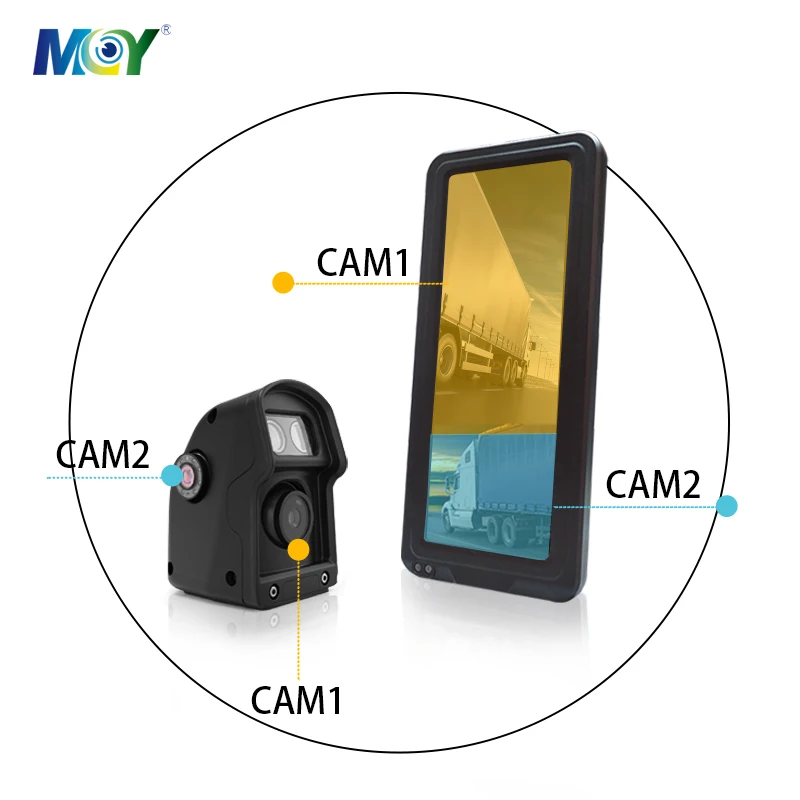

2:Dual Lens Side View Camera | ||||
Model | MSV18-20EM-25-M&20EM-12-M | |||
TV System | PAL/NTSC (optional) | PAL/NTSC (optional) | ||
Picture Elements | 1280 (H) x 960 (V) | 1280 (H) x 960 (V) | ||
Sensitivity | 0 Lux (IR LED On) | 0 Lux (IR LED On) | ||
Scanning System | Progressive scan RGB CMOS | Progressive scan RGB CMOS | ||
Synchronization | Internal | Internal | ||
S/N Ratio | More than 46dB (AGC Off) | More than 46dB (AGC Off) | ||
Auto Gain Control (AGC) | Auto | Auto | ||
Electronic Shutter | Auto | Auto | ||
BLC | Auto | Auto | ||
Infrared Spectrum | 850nm | 850nm | ||
Infrared LED | 8 LEDs | 2 LEDs(Array Leds) | ||
Video Output | 1 Vp-p, 75Ω,AHD | 1 Vp-p, 75Ω,AHD | ||
Audio | N/A | N/A | ||
Mirror | Available | Available | ||
ICR | N/A | N/A | ||
Noise Reduction | 3D | 3D | ||
Dynamic range | 120 dB | 120 dB | ||
Lens | f1.58mm Megapixel | f3.6mm Megapixel | ||
Power Supply | 12V DC±10% | 12V DC±10% | ||
Power Consumption | 160mA(Max) | 300mA(Max) | ||
Dimensions | 144x88 x 119 mm | |||
Cable Length | 0.7m | |||
Weatherproof/Water Proof | IP69K | |||
Operating Temperature | -30° C ~ +70 ° C | |||
