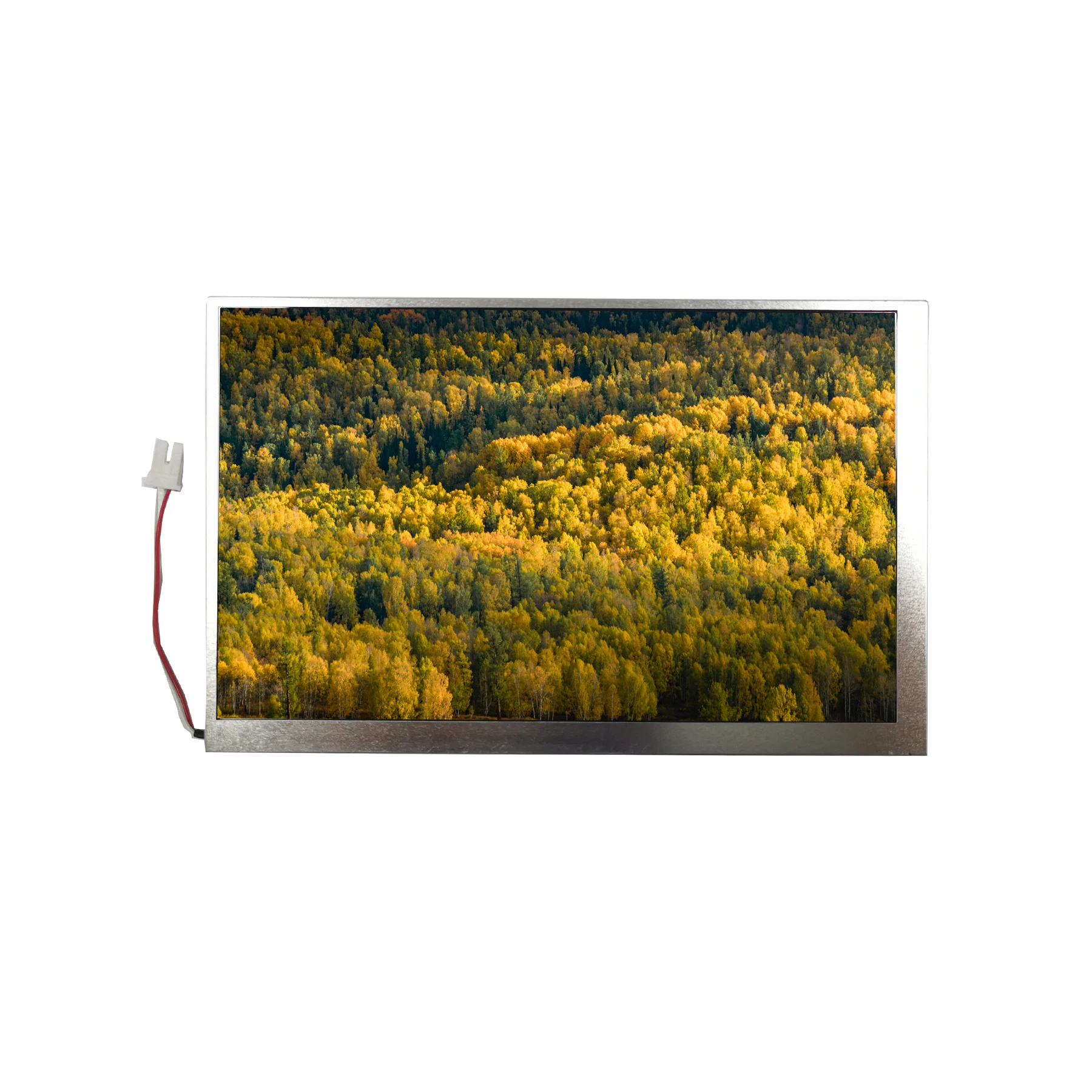

TFT 800*480 RGB 7 inch High Backlight 1000nits IPS TTL 40Pins LCD Module Screen
- Category: >>>
- Supplier: Shenzhen Aptus Technology Co. Ltd
Share on (1600675948460):
Product Overview
Description
Product Description

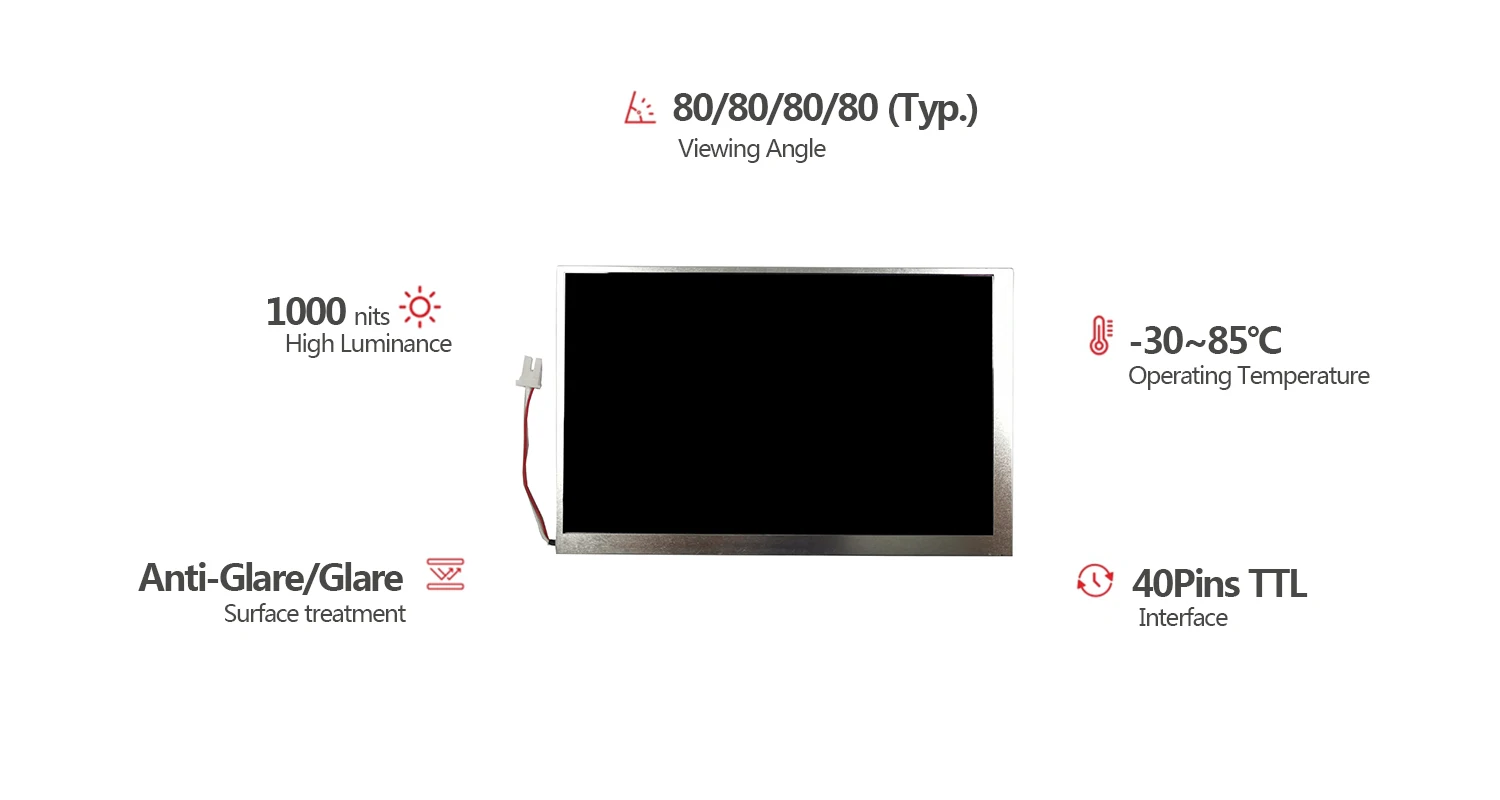

Item | Specification |
LCD size | 7.0 inch(Diagonal) |
Luminance | 1000cd/m² |
Resolution | 800x480 |
Active area | 152.4(W)x91.44(H) mm |
Viewing Angle | 80/80/80/80 (Typ.) |
Support Color | 16.7M |
Operating Temperature | -30 ~ +85 ℃ |

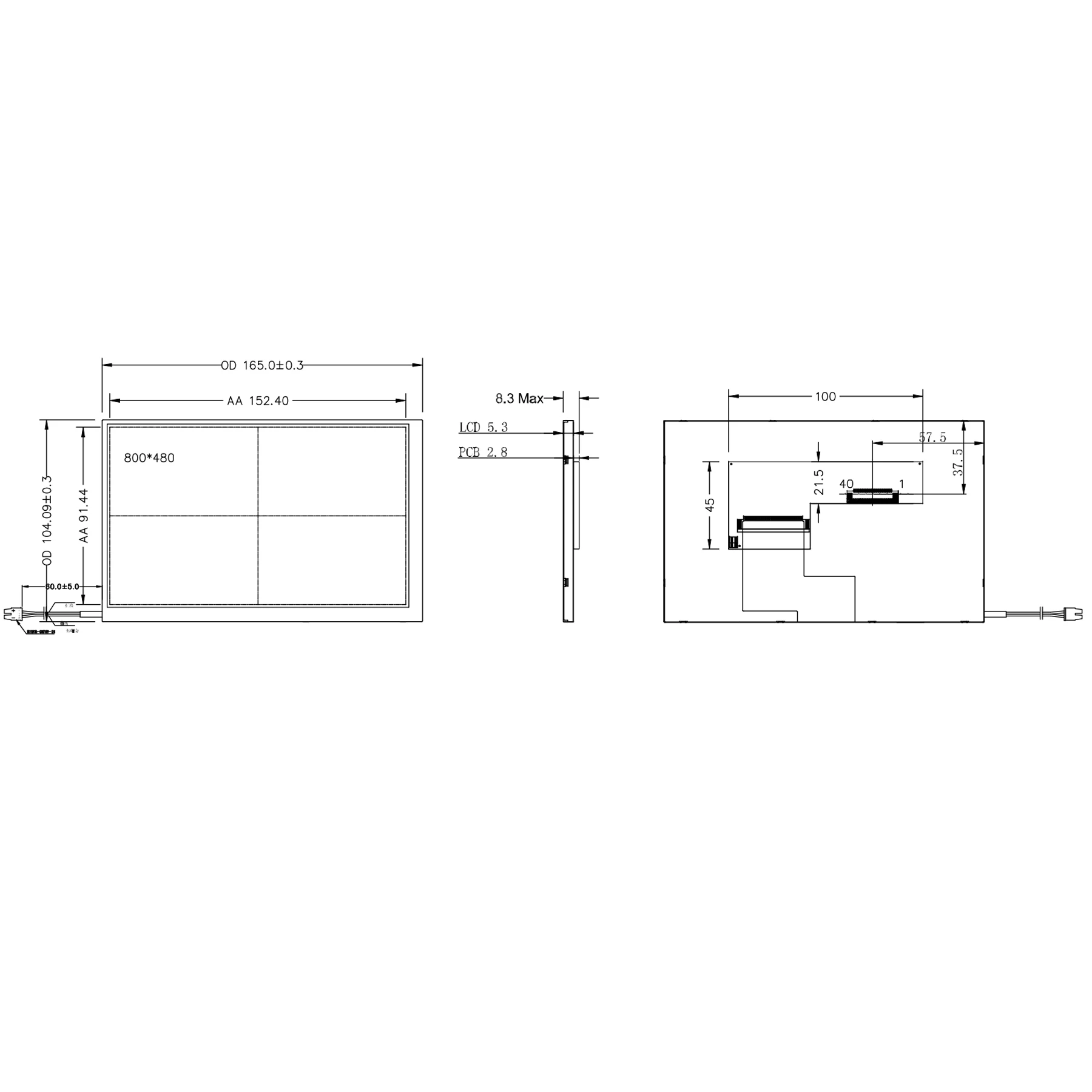

Outline Dimension | 165(H)*104.09(V) *5.3(D)mm |
Surface | Antiglare |
Interface Type | TTL |
Touch Screen | Without but available |
Weight | TBD |
Design your display:
We have professional R&D team, who can develop, design and customize LCD/LCM for customers. OEM and ODM are welcomed. We have world advanced technology LCD/LCM manufacturing workshop, with certifications of ISO9001, ISO14001 and TS16949
At present we have three series of special display, namely: wide temperature, high resolution, high brightness.
Related Products
Click the product "Model number" in the list to enter the corresponding product interface for details!If you feel that there are too many words and it is inconvenient to find the product you want, you can contact our sales staff.

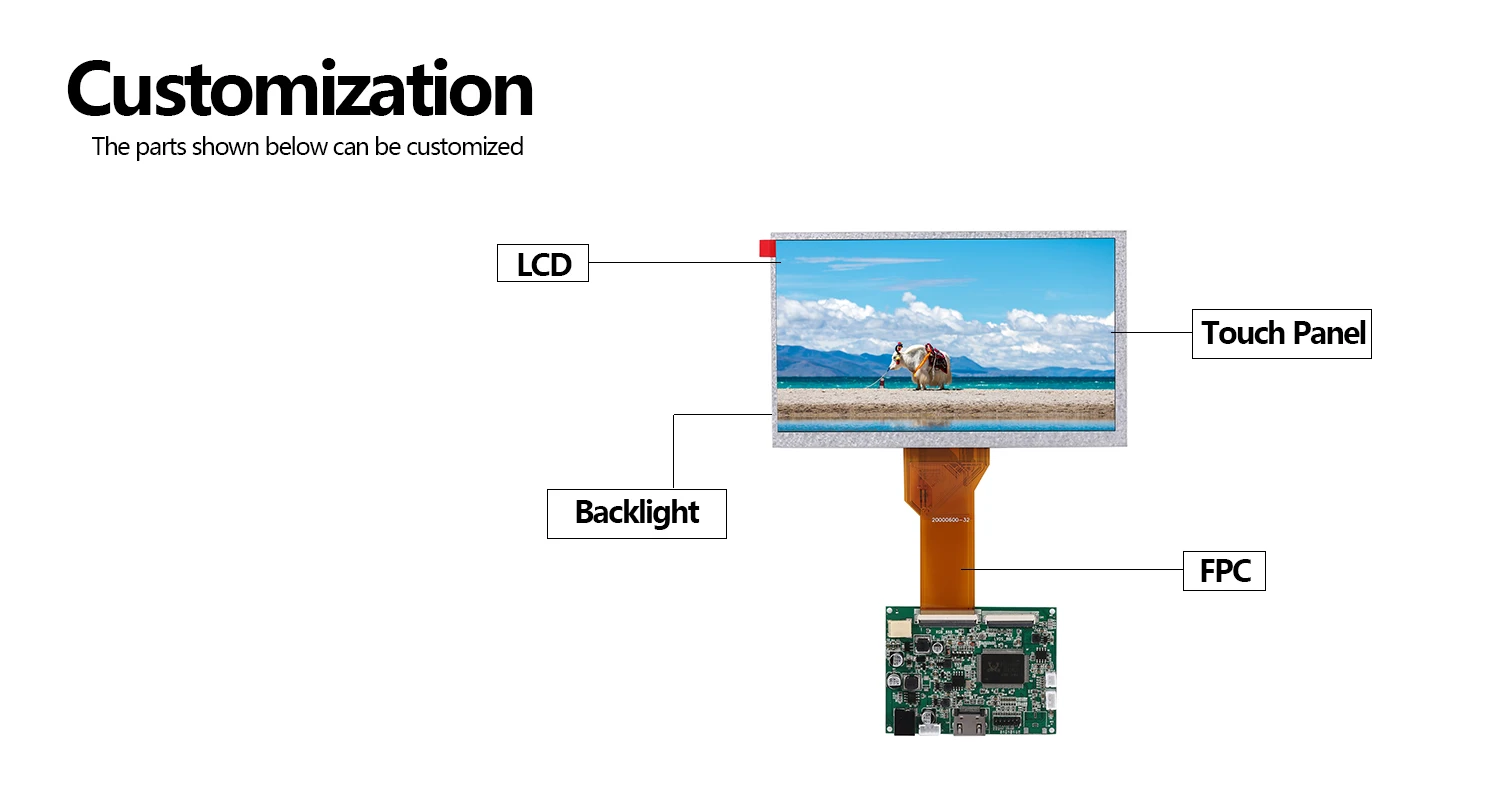

All products support customization!
Backlight, Touch panel, FPC, Outline dimensions., etc.
Size | Model number | Resolution | Interface | Viewing angle (Typ.) | Brightness |
1.33" | 240xRGBx240 | 8BIT MCU | 80/80/80/80 | 200cd/m2 | |
1.44" | 128xRGBx128 | 4-Line Serial MCU | 70/70/65/60 | 200 cd/m2 | |
1.77" | 128xRGBx160 | 4 wire spi | 45/45/45/20 | 180 cd/m2 | |
2" | 240×RGB×320 | MPU 8 Bits | 80/80/80/80 | 180 cd/m2 | |
2.31" | 320xRGBx240 | 6-RGB | 70/70/70/60 | 180 cd/m2 | |
2.31" | 320xRGBx240 | SPI | 70/70/70/60 | 180 cd/m2 | |
2.4" | 240xRGBx320 | MPU 8 Bits | 70/70/70/60 | 200cd/m2 | |
2.4" | 240xRGBx320 | 4-LINE SPI | 80/80/80/80 | 200cd/m2 | |
2.4" | 240×RGB×320 | SPI | 80/80/80/80 | 220cd/m2 | |
2.8" | 240×RGB×320 | MPU 8 Bits | 70/60/70/70 | 180cd/m2 | |
3" | 360xRGBx640 | MIPI | Free | 230cd/m2 | |
3.4" | 800xRGBx800 | MIPI (3 data lanes) , FPC , 39 pins | 80/80/80/80 | 350cd/m2 | |
3.5" | 320×RGB×480 | MCU 16 Bits | 70/70/60/60 | 250cd/m2 | |
3.6" | 1024xRGBx768 | MIPI, 35 pins | 85/85/85/85 | 900 cd/m2 | |
4" | 480×RGB×800 | MIPI | 80/80/80/80 | 250Cd/m2 | |
4.3" | 800xRGBx480 | 40 pins LVDs | 80/80/80/80 | 800 cd/m2 | |
5" | 1080xRGBx1080 | MIPI (3 data lanes) , FPC | 80/80/80/80 | 400cd/m2 | |
5.1" | 480xRGBx480 | parallel RGB 24-bit | 80/80/80/80 | 500cd/m2 | |
7" | 720xRGBX720 | 40 pin LVDs | 80/80/80/80 | 500 cd/m2 | |
7" | 800xRGBx480 | 40 Pins TTL | 80/80/80/80 | 350 cd/m2 | |
7" | 800xRGBx480 | 40 Pins TTL | 80/80/80/80 | 350 cd/m2 | |
7" | 800xRGBx480 | 50pins TTL | 70/70/50/70 | 1000 cd/m2 | |
7" | 800xRGBx480 | 8bits LVDS | 80/80/80/80 | 800cd/m2 | |
7" | 800xRGBx480 | 60PIN FPC,24bit RGB,TN | 60/70/75/75 | 2500cd/m2 | |
7" | 800xRGBx480 | 50PIN FPC,24bit RGB | 50/70/70/70 | 500cd/m2 | |
7" | 1024xRGBx600 | 50 pin TTL | 70/70/60/70 | 1500cd/m2 | |
7" | 1200xRGBx1920 | MIPI | 80/80/80/80 | 400cd/m2 | |
7" | 1200xRGBx1920 | MIPI | 80/80/80/80 | 600cd/m2 | |
7" | 1280xRGBx800 | 40 pins LVDs FPC | 88/88/88/88 | 400cd/m2 | |
8.8" | 768xRGBx768 | LVDS | 85/85/85/85 | 400~1200 cd/m2 | |
9" | 800xRGBx480 | 50pins TTL | 70/70/50/70 | 1000 cd/m2 | |
10.1" | 1280xRGBx800 | 40 pins LVDS | 85/85/85/85 | 1000~1200 cd/m2 | |
10.1" | 1920xRGBx1080 | I2C (Up to 400kbits/sec) | 85/85/85/85 | 1100cd/m2 | |
10.1" | 1920xMONOx1080 | 40 Pins EDP | 80/80/80/80 | 500~4000 Cd/m2 | |
10.1" | 1920xRGBx1200 | 45Pins LVDS | 85/85/85/85 | 1500cd/m2 | |
10.4" | 1024xRGBx768 | 30Pins LVDS | 88/88/88/88 | 400~1200 cd/m2 | |
11.6" | 1920xRGBx1080 | 30Pins EDP | 85/85/85/85 | 400~1200 cd/m2 | |
15.6" | 1920xRGBx1080 | eDP (2 Lanes),30 pins | 85/85/85/85 | 300 cd/m² |
General Clauses
1 | MOQ | 1 pcs(Small batch orders are supported.) |
2 | Lead time | Samples in stocks within 2 days,3~6 weeks for mass production |
3 | Trade Terms | EXW or FOB |
4 | Payment | 100% Paypal or T/T or Western union in advanc for samples |
5 | Warranty | 12 months |

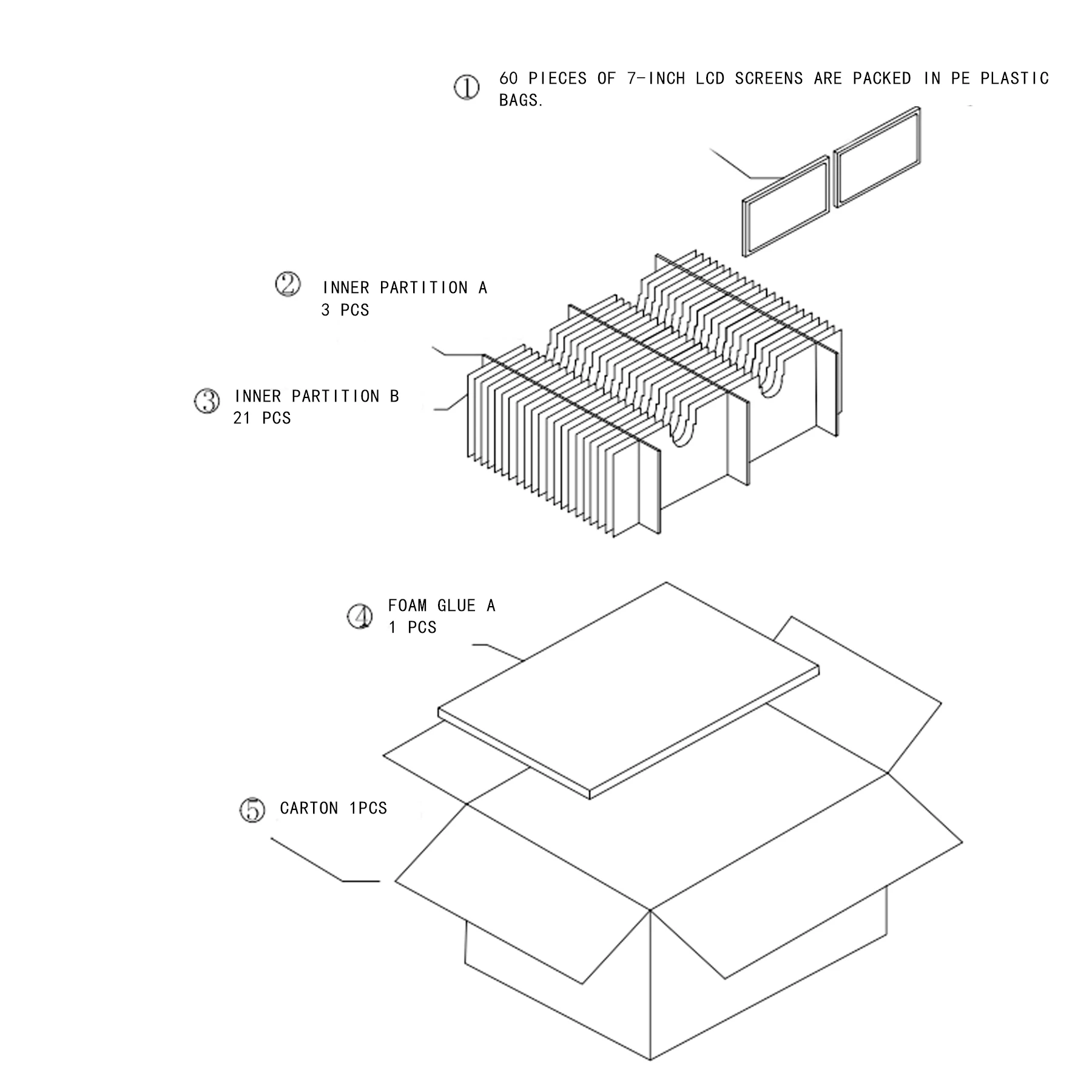

6 | Package | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
All our products are standard packed, you can contact us sales for detailed information.
We can ship the products by DHL, UPS, FedEx,EMS Express.
OEM and ODM
Our Company
Our Factory
Certifications
FAQ
Q: What is the MOQ?
A: Generally if you choose the different products, our minimum order qty also will be different.
Q: What about the delivery time?
A: The LCD products need 3-4 weeks to be made after receive deposit.
Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
Q: What's your payment method?
A: We usually accept the payment methods include T/T, Western Union and Trade Assurance. 50-100% deposit in advance and balance before shipping upon the payment amount. Buyer can choose which payment ways that you accept.
Q: What's your shipping method?
A: We provide comprehensive shipping methods.
For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
For large quantity orders we ship by buyer's cargo agent in China, we can also ship by Air transportation or sea transportation.
Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click now!
