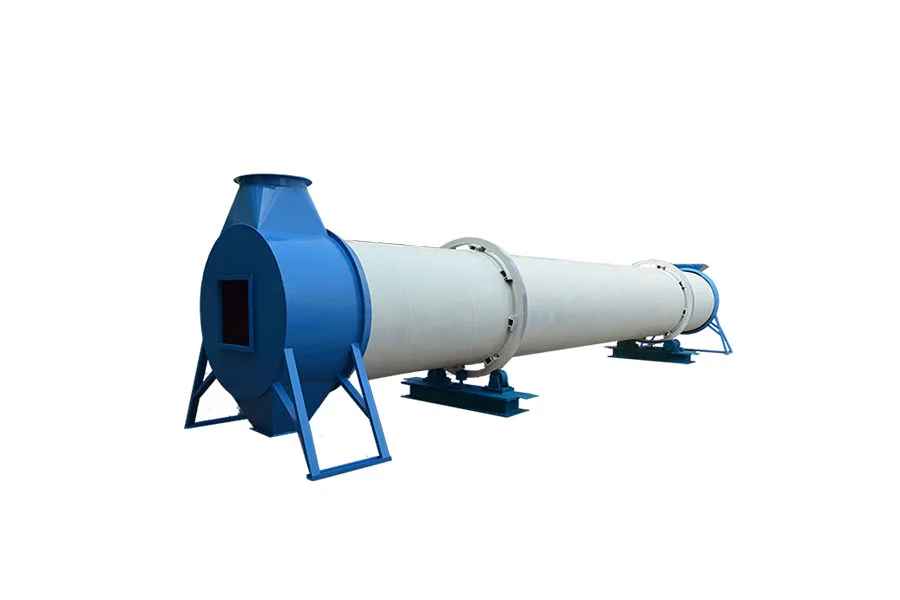

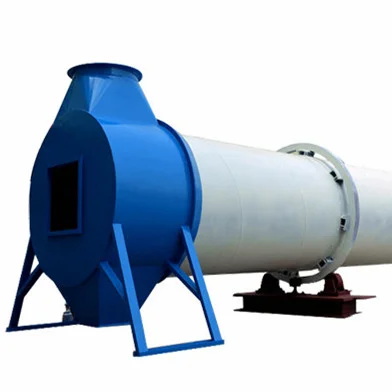

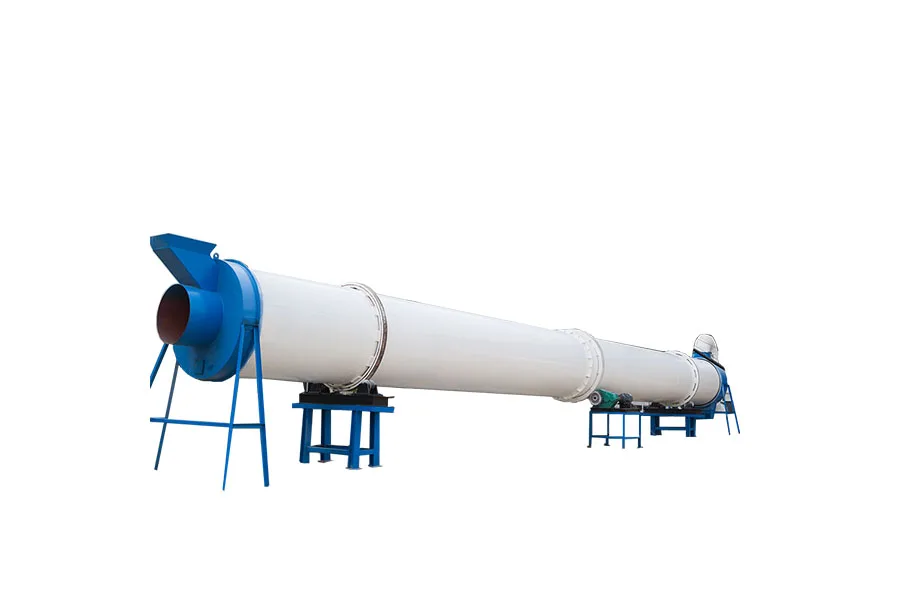

Wood Shavings Wood Powder YGHG 2.2*24 High Efficiency Biomass Rotary Dryer

Product Overview

Description

Wood Shavings Wood Powder YGHG 2.2*24 High Efficiency Biomass Rotary Dryer

Introduction of Sawdust Rotary Dryer



Sawdust dryer with heating furnace, feed port, rotating cylinder, delivery pipe, dust collector and discharge port. Wet material is continuously sent to the drying cylinder by a conveyor. Heat air makes full contact with the material. Being delivered and scattered by the high-speed hot air, water in the wet material is evaporated. The material gets fully dried in the rotating cylinder.



Sawdust dryer is widely used in industries like biomass fuel, wood pellet fuel, sawdust briquette, farming etc. The applicable materials are wood powder, wood shavings, sawdust, wood chipps, straws, grass, etc

Technical Parameter of Sawdust Rotary Dryer

Model	Power(kw)	Evaporation(t/h)	Cylinder Diameter(mm)	Cylinder Length(m)
YGHG1.2*12	5.5+15+2.2+1.5	0.3-0.6	1.2	12
YGHG1.5*12	11+18.5+3+2.2	0.47-0.91	1.5	12
YGHG1.8*18	18.5+37+3+2.2	1.01-1.90	1.8	18
YGHG2.0*18	18.5+55+5.5+2.2	1.25-2.3	2.0	18
YGHG2.2*24	22+90+5.5+2.2	2.02-3.36	2.2	24
YGHG2.5*24	22+90+5.5+3	2.61-4.16	2.5	24
YGHG3.0*24	30+132+5.5+3	3.76-5.6	3.0	24

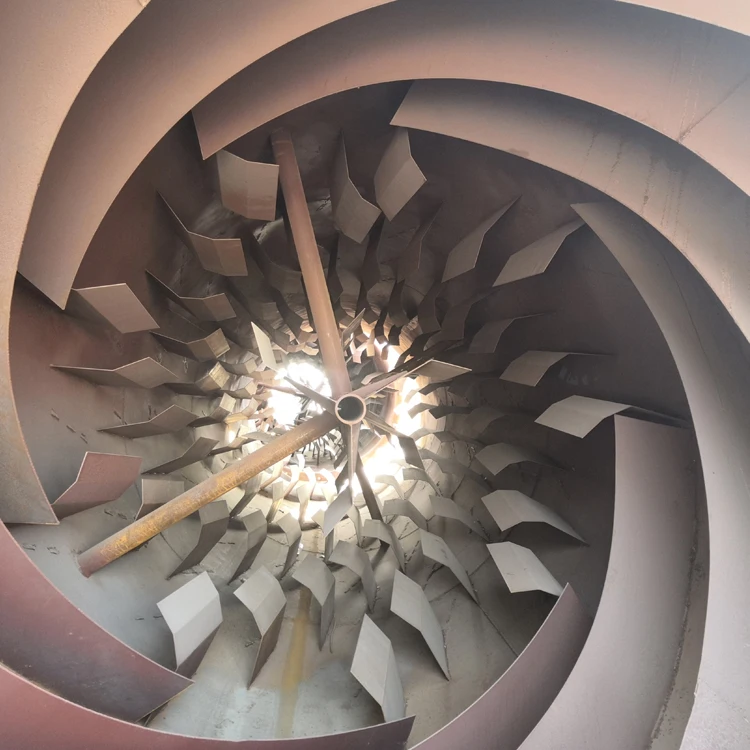

Inner Sturcture of Rotary Dryer Machine



The inner structure of Rotary Dryer Machine for Drying Sawdust is dryer wall plate + triangle plate,widely increase the drying efficiency, larger capacity. It is mainly used for drying wood chips,wood sawdust,efb fiber etc.

Design: spiral plate weld, accord with welding rule, it won't easily crack and deformation.



Material of  Rotary Dryer Machine







The toral weight of Rotary Dryer Machine for Drying Sawdust is 10t-30t, which makes sure the dryer work stable,firmly enough.

Material: Q235 carbon steel

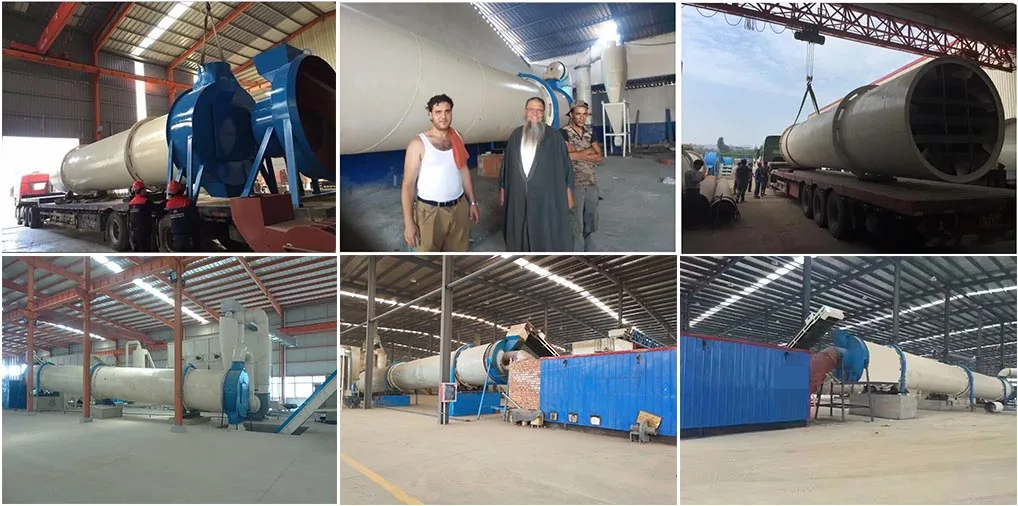

Customer cases
