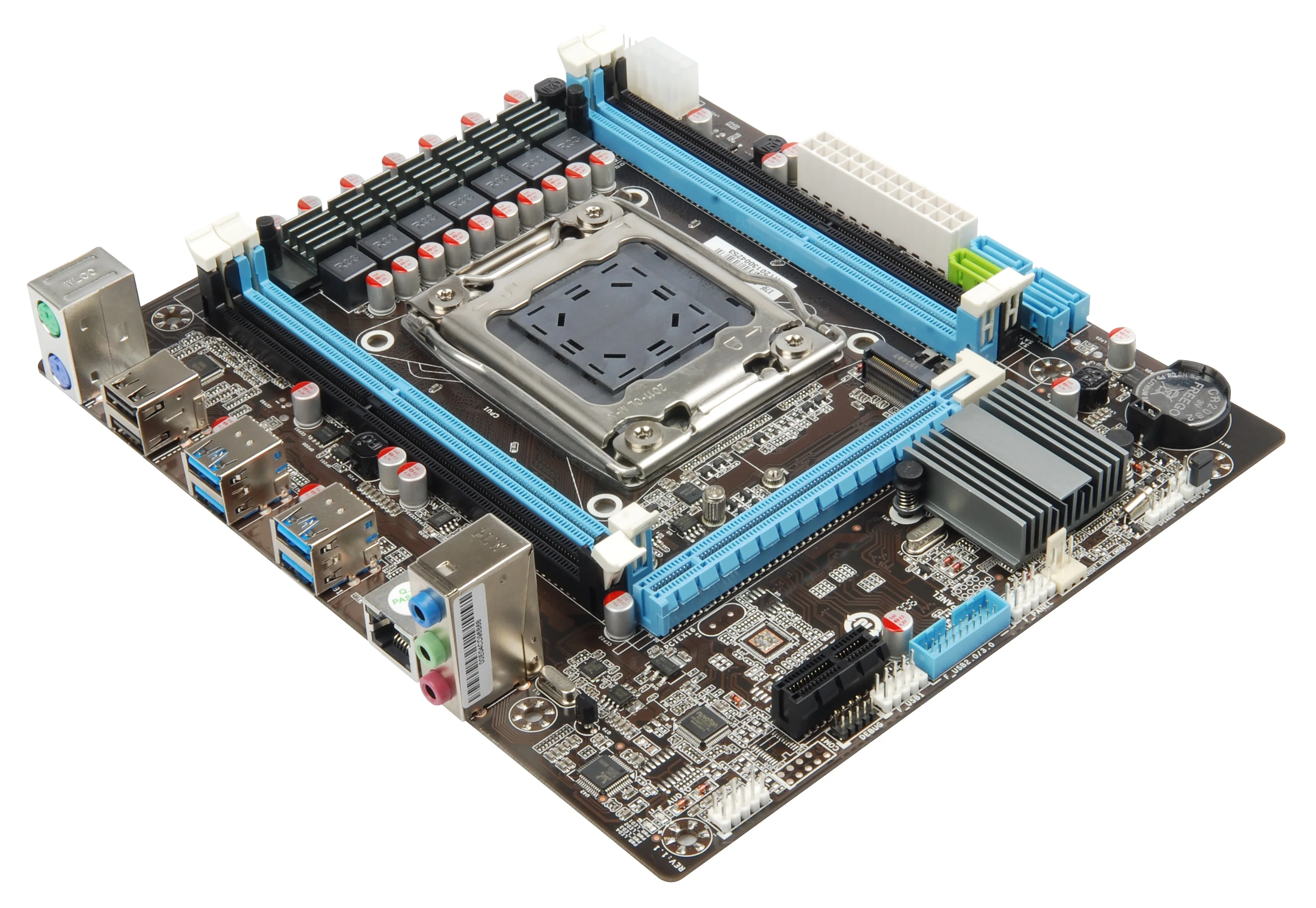

Model | X79F-2011KK |
Item Condition | New |
Processor Support | Support Int el LGA 2011 CPU; Supports Intel® E5-V1 / E5-V2 Series processors / Intel Intel Xeon Series processors |
Chipset | Intel® X79 Chipset |
Memory Support | 4*240-Pin DDR3 SDRAM,Double Channel Mode Support DDR3 1866/1600/1333/MHz Memory Memory expandable up to 64GB |
LAN | Support Realtek®8111F Gigabit LAN |
SATA | 1 * SATA 3.0; 3 * SATA 2.0 |

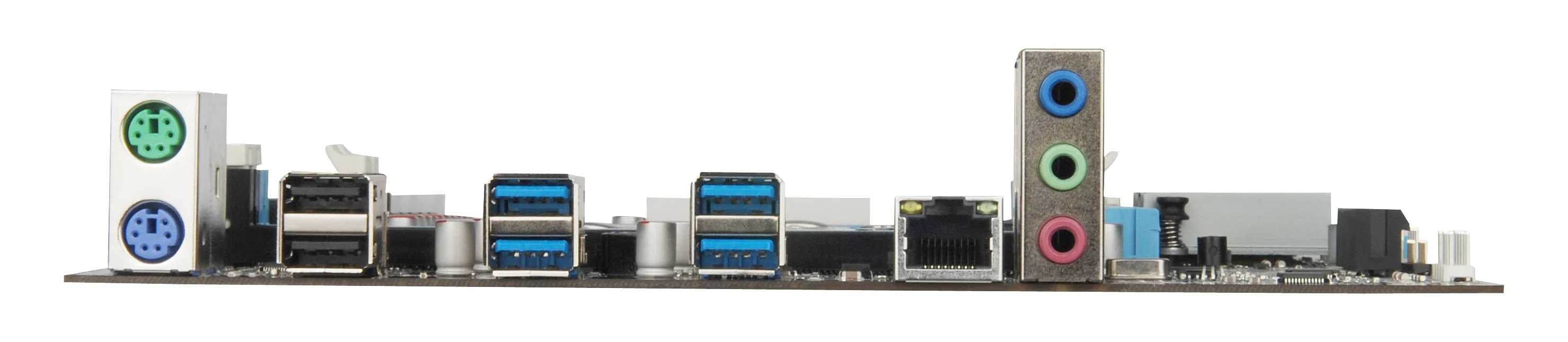

Back panel | 1 * PS2 Mouse/Keyboard Port; 6 * USB 2.0 Port; 1 * LAN Port; 1 * Audio Jacks(Line in / Line Ourt / Mic in) |
Onaboard Pinheaders / Connectors | 1 * USB2.0 Pinheader,for 2*USB 2.0 Port 1 * USB3.0 Pinheader,for 2*USB 3.0 Port 1 * Auto_PWR Pinheader 1 * Front panel Audio Header 1 * Front panel header 2 * CPU /SYS Fan Connectors 1 * 24-pin ATX Power Connector 1 * 8-pin ATX 12V Power Connector 1 * CLR_COMS Pin Header 1 * SPEAK Pin Header |
Slots | 1*PCIe X16 slot 1*PCEe X1 slot |
Form Factor | 215 × 185mm |
Application | Server/Workstation |
Socket Type | LGA 2011 |
Form Factor | x86 |
Brand Name | ESONIC MOTHERBOARD |
Place of Origin | SHENZHEN |
