Environmental protection metal mesh fencing machine price
- Category: >>>
- Supplier: Hebei Jiake Welding Equipment Co. Ltd.
Share on (1600676314331):
Product Overview
Description

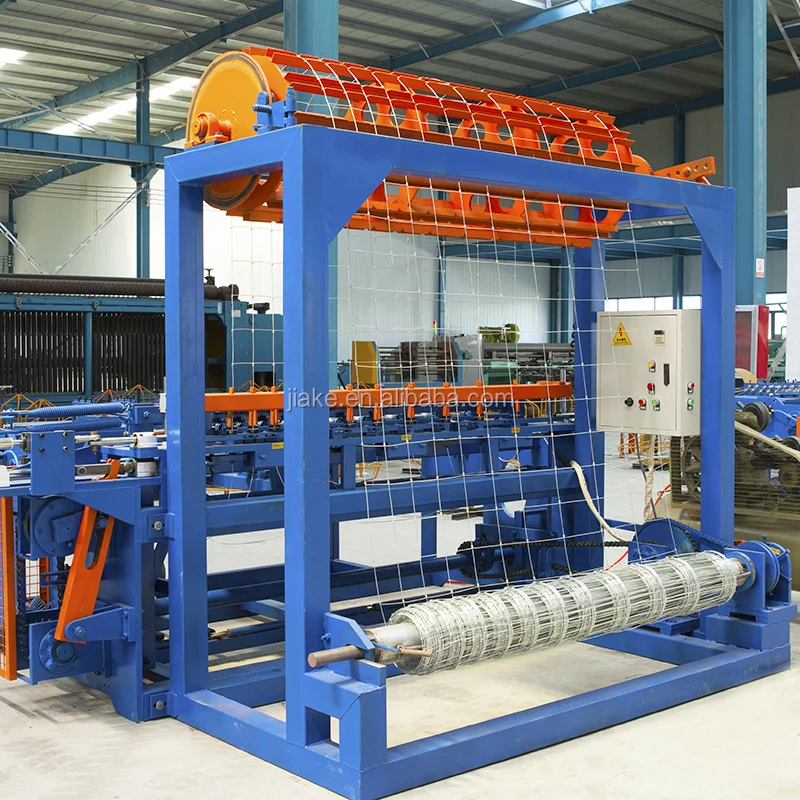

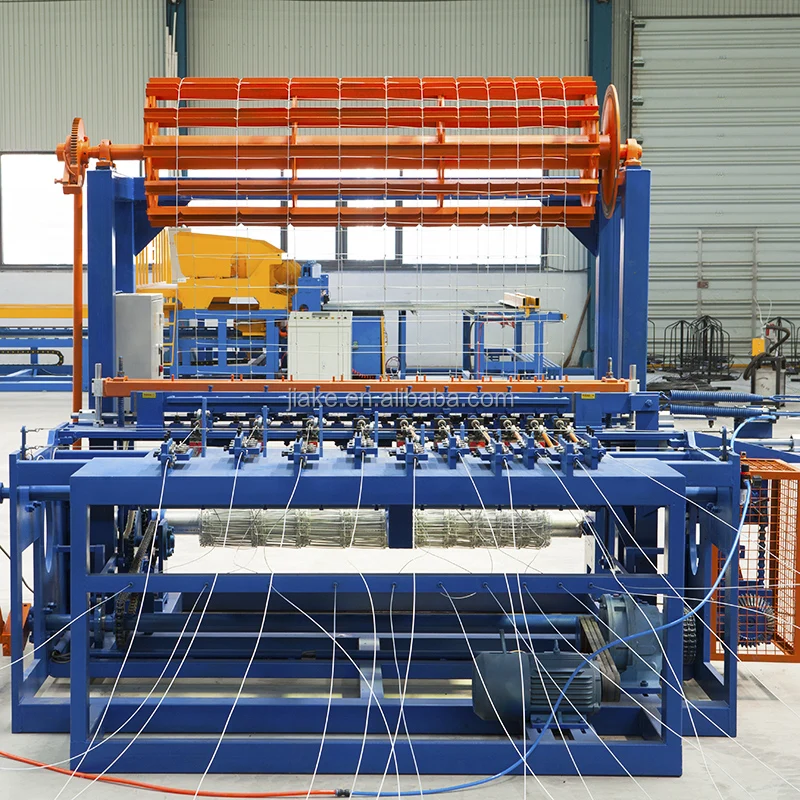

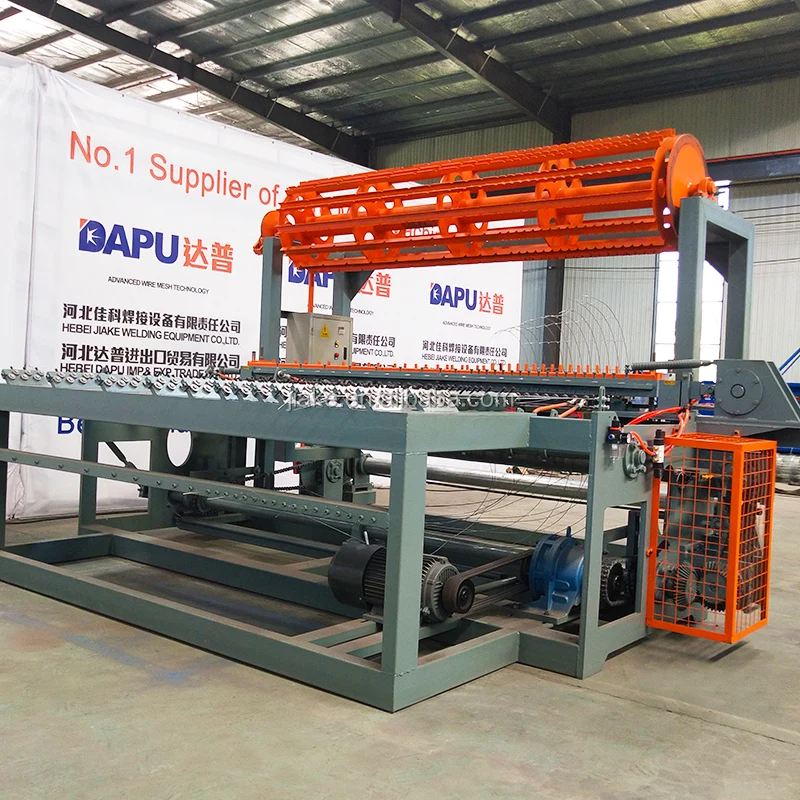

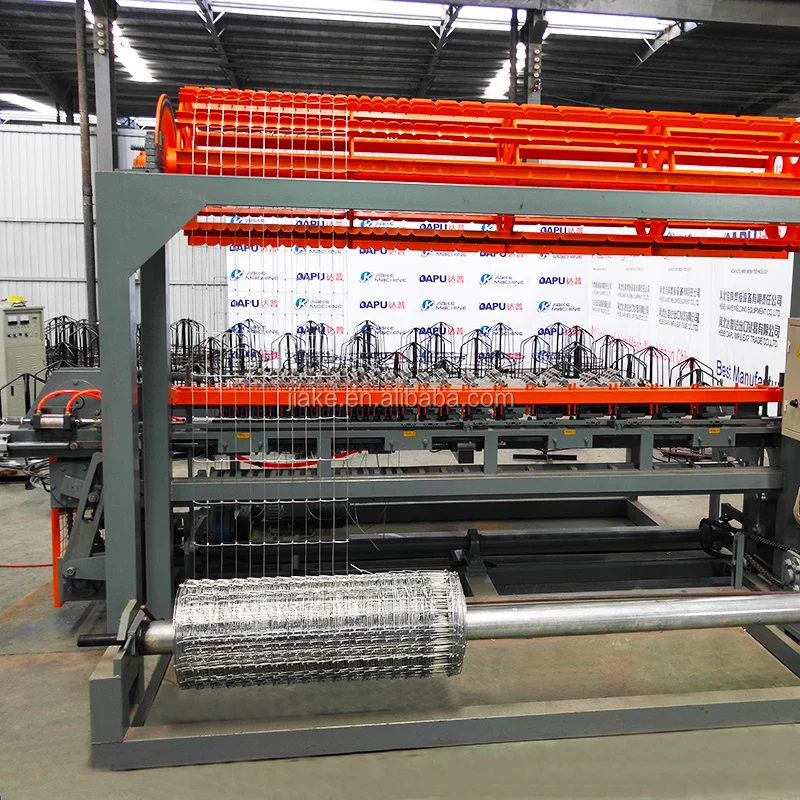

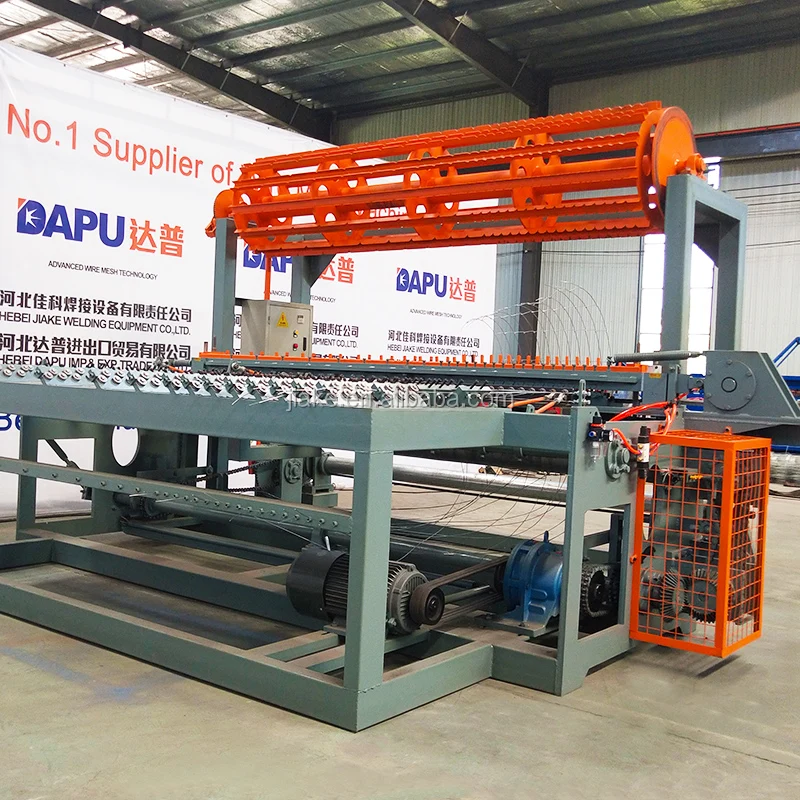

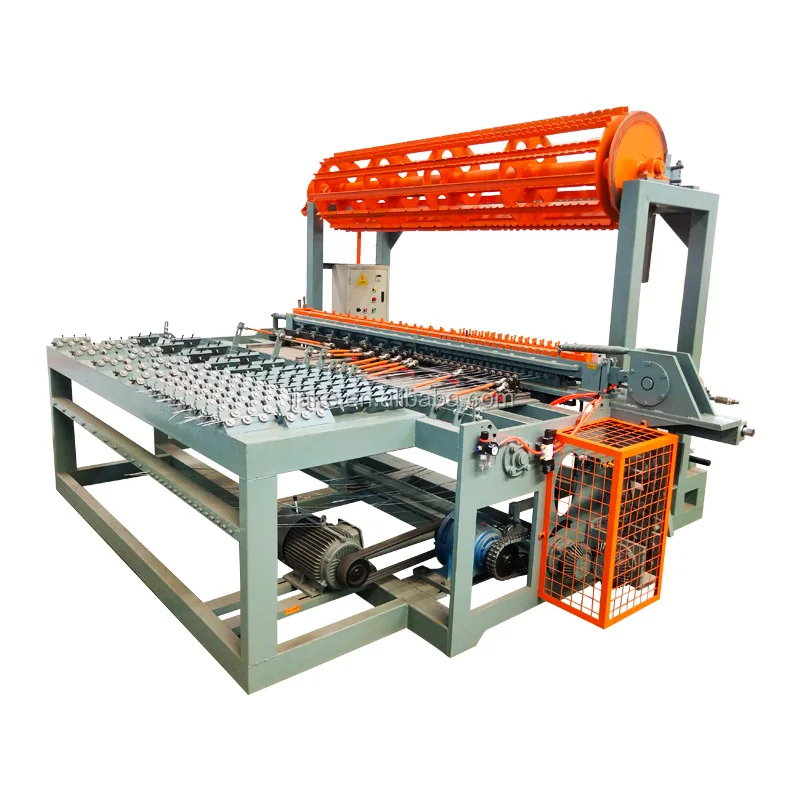

Automatic grassland fence mesh making machine
Product Description
Product Description

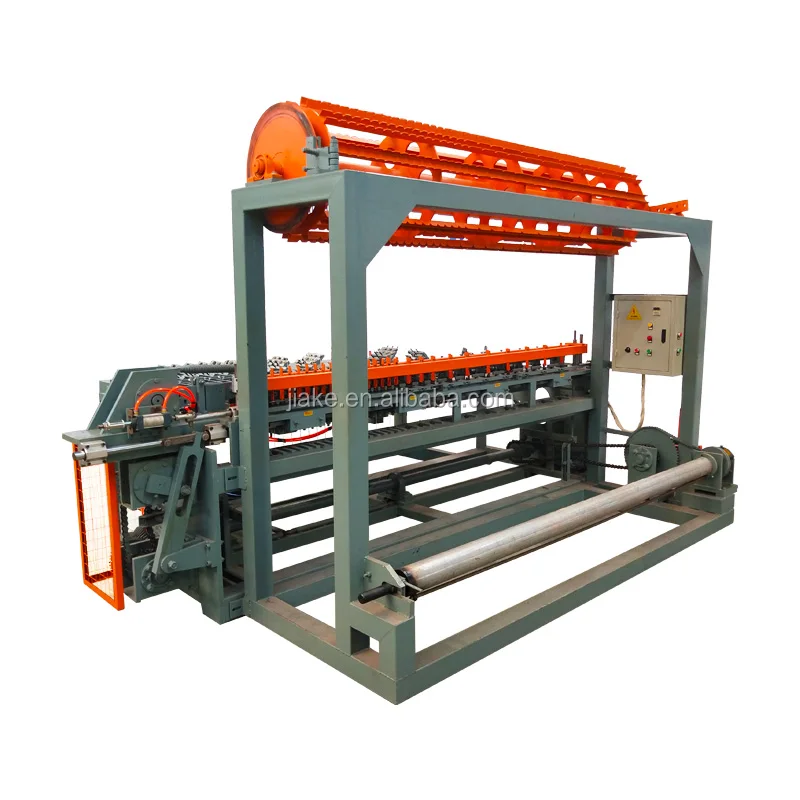

Hinge field fence machine, also named grassland fence machine; used to produce cattle fence, grassland fence.
Technical Parameter
Technical Parameter
| Model | CY-A | CY-B | CY-C | CY-D |
| Mesh width | 1427mm | 1880mm | 2000mm | 2500mm |
| Motor | 4kw | 5.5kw | 7.5kw | 11kw |
| Max. line wire number | 11 | 13 | 19 | 24 |
| Line size | Min.75mm or Min. 50mm if required | |||
| Weft size | 50-500mm(adjustable) | |||
| Twine wire diameter | 1.8mm-2.5mm | |||
| Line wire diameter | 1.8mm-3.0mm | |||
| Side wire diameter | 2.0mm-3.5mm | |||
| Twine wire tensile strength | 300-500N/mm² | |||
| Line wire tensile strength | 300-1400N/mm² | |||
| Max. work efficiency | 60rows/min | |||
| Voltage | 3phase, 380V/220V/415V/440V, 50HZ/60HZ | |||
| Size of the machine | 2.8×3.2×2.4m | 3.3×3.2×2.4m | 3.3×3.2×2.4m | 3.9×3.4×2.4m |
| Weight of the machine | 3T | 3.5T | 4T | 4.5T |
Note: We can design the machine according to the customer’s request. | ||||
Machine Details
Machine Details

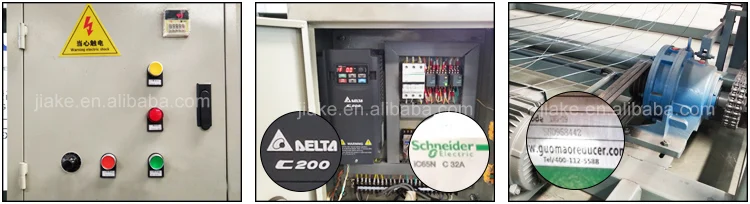

1. The Control System: The operation interface is simple and easy to understand. Delta inverter and Schneider electronic components in control box adjust machine working speed, saving 30% energy. Guomao reducer-China top brand, low energy consumption and high output.  | |

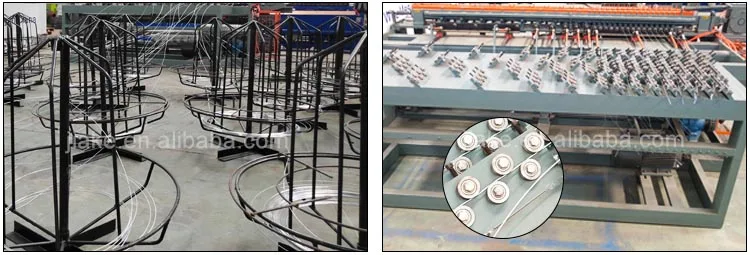

2.Each wire pay-off can hold 100-200kgs material. | 3. 14pcs of Straightening rollers for cross wire |
 | |

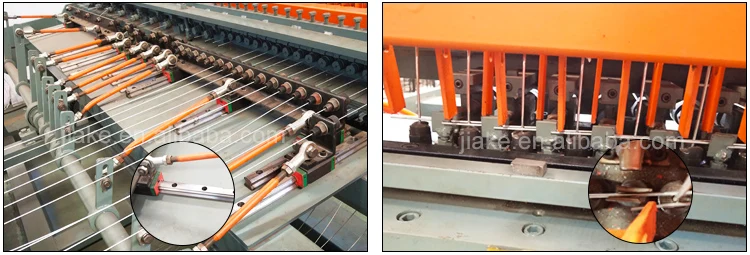

| 4. Linear rail feeding cross wire, moving fast. | 5. Pneumatic cutting and twisting weft wire. |
 | |

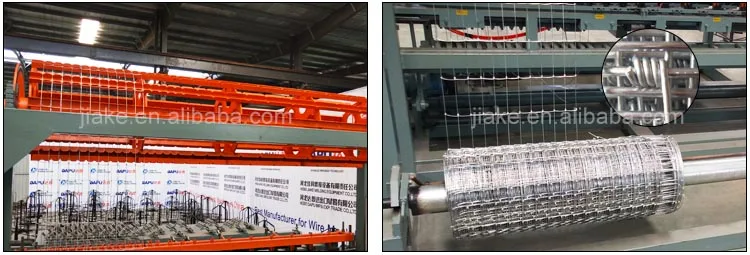

| 6. Automatic pulling mesh | 7. Automatically mesh rolled |
 | |
| |
Product Application
Product Application
The hinge joint fence is widely used for livestock husbandry, grassland production, and other isolation usages.

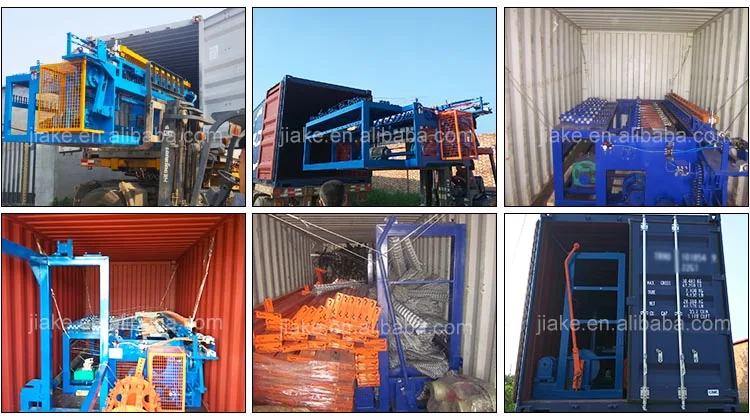

Machine Loading
Machine Loading
About Us
About Us
Hebei Jiake Welding Equipment Co., Ltd. It’s the leading manufacturer of wire mesh machines in China and we always offer ADVANCED WIRE MESH TECHNOLOGY.
After-sales Service
FAQ
FAQ
Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology to develop the department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guaranteed time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have a lot of experience in exporting. And we can supply the CE certificate, Form E, passport, SGS report, etc, your customs clearance will be no problem.
Contact Us
If you are looking for a wire mesh machine, please feel free to buy the quality automatic machine with competitive price from our factory. Excellent service is available in 24 hours.
