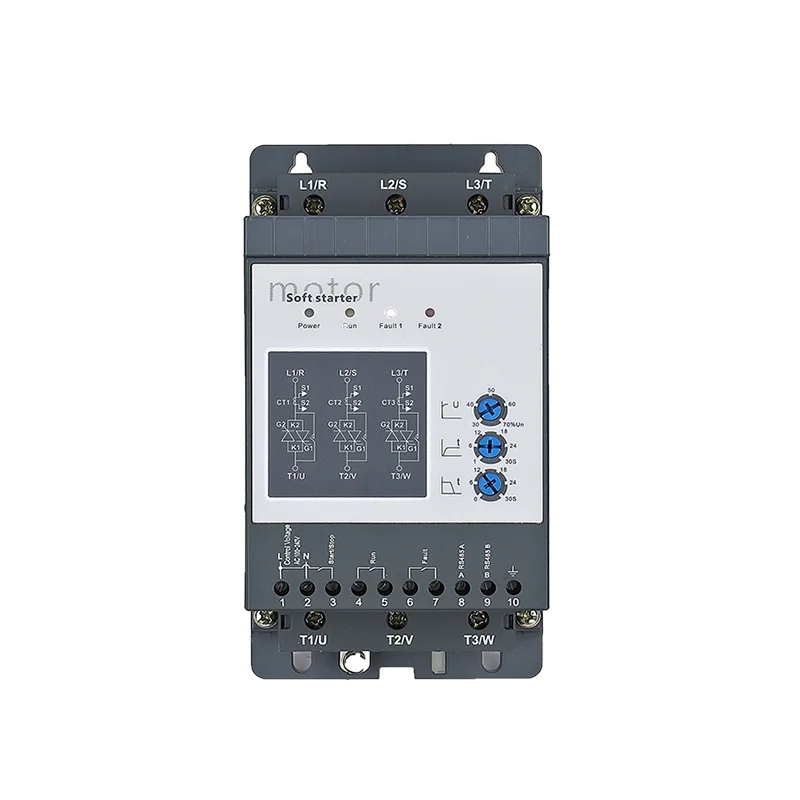

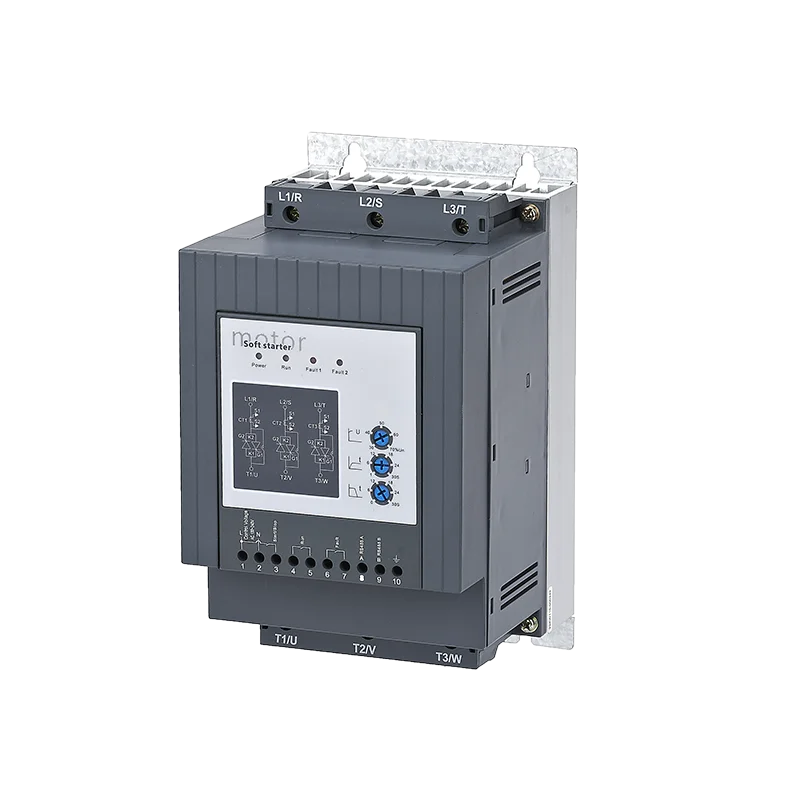

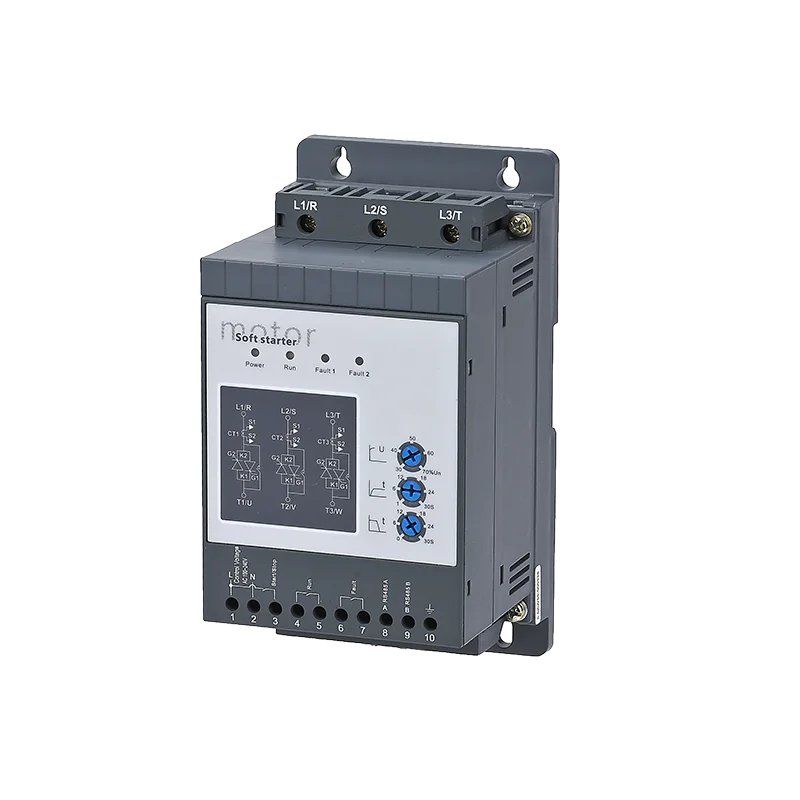

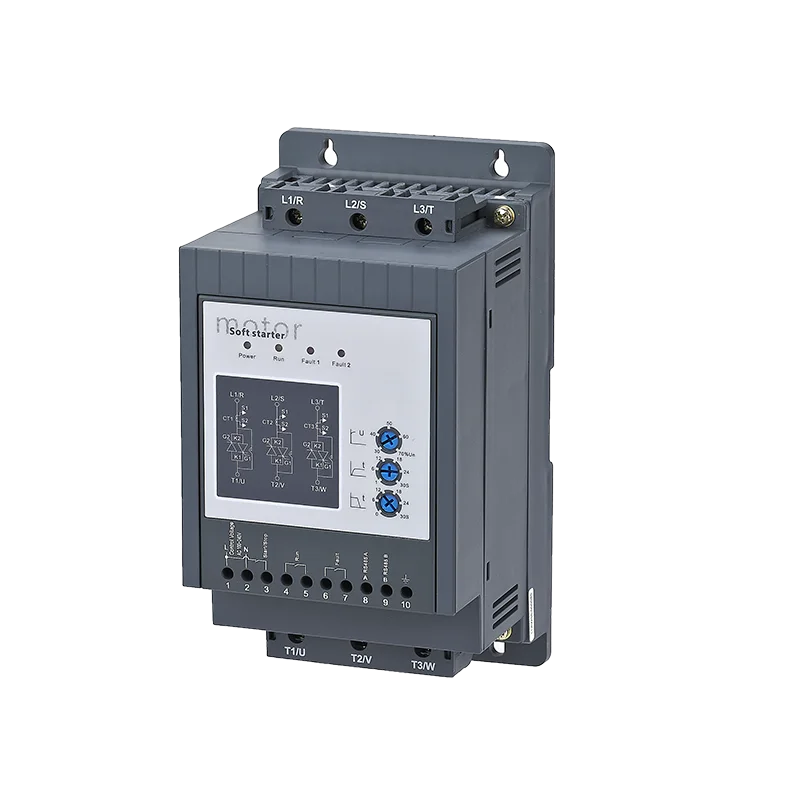

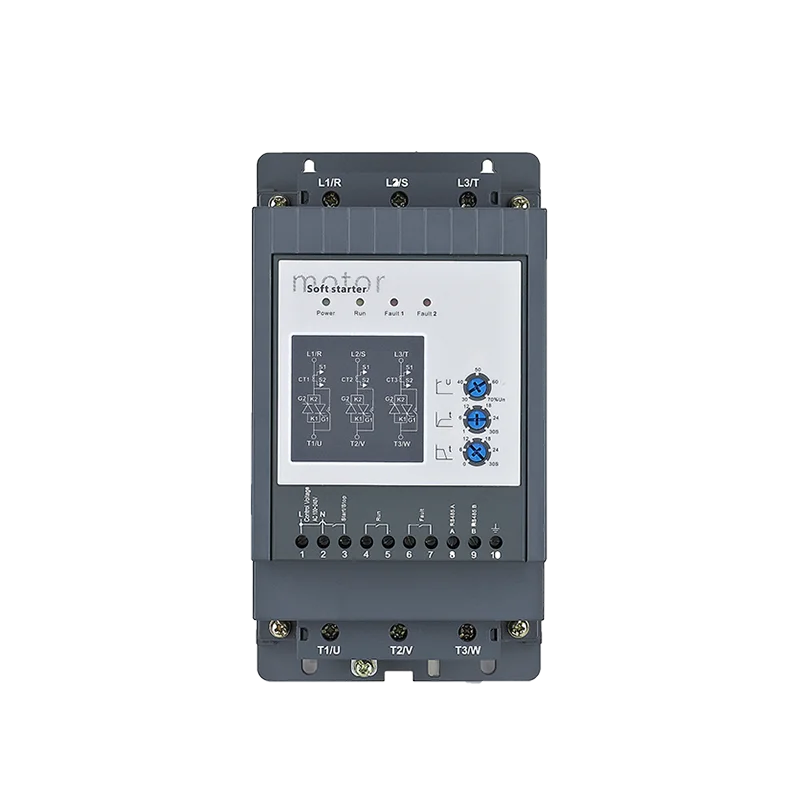

Двигатель переменного тока, встроенное отводное реле, мягкое пусковое устройство 15 кВт 20 л.с. 30 А, распродажа, 18 кВт, трехфазное по отрасли, 18 месяцев, 400 В, IP20 0,75 ~ 37 кВт
- Category: Power Supplies >>>
- Supplier: Zhejiang Saikong Electrical Technology Co. Ltd.
Share on (1600676344978):
Product Overview
Description
RS485 optional communication 3 phase ac electric softstarter 220V 380V 15KW 18.5KW 22KW 30KW ac motor soft starter for fan
banner

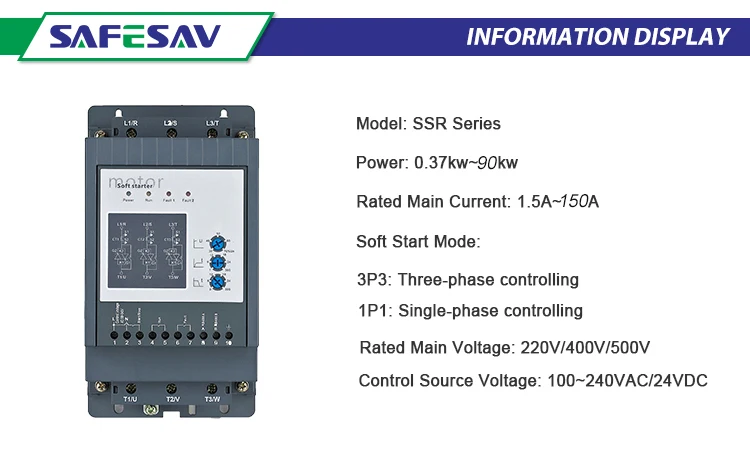

Product Description
Products Specification:
Parameters(Type 3P3)
| Model | Rated power of the motor | Rated current | Structure | Weight | ||
| 220V Pe/kW | 400V Pe/kW | 500V Pe/kW | le A | F | kg | |
| SSRXX 1T5-X-3P3 | 0.37 | 0.75 | 1.1 | 1.5 | A | 1 |
| SSRXX 2T2-X-3P3 | 0.55 | 1.1 | 1.5 | 2.2 | ||
| SSRXX 03-X-3P3 | 0.75 | 1.5 | 2.2 | 3 | ||
| SSRXX 4T5-X-3P3 | 1.1 | 2.2 | 3.7 | 4.5 | ||
| SSRXX 7T5-X-3P3 | 1.5 | 3.7 | 5.5 | 7.5 | ||
| SSRXX 11-X-3P3 | 2.2 | 5.5 | 7.5 | 11 | ||
| SSRXX 15-X-3P3 | 3.7 | 7.5 | 11 | 15 | B | 1.4 |
| SSRXX 22-X-3P3 | 5.5 | 11 | 15 | 22 | ||
| SSRXX 30-X-3P3 | 7.5 | 15 | 18.5 | 30 | C | 2.4 |
| SSRXX 37-X-3P3 | 11 | 18.5 | 22 | 37 | ||
| SSRXX 45-X-3P3 | 15 | 22 | 30 | 45 | ||
| SSRXX 60-X-3P3 | 18.5 | 30 | 37 | 60 | ||
| SSRXX 75-X-3P3 | 22 | 37 | 45 | 75 | ||
| SSRXX 90-X-3P3 | 25 | 45 | 55 | 90 | D | 5 |
| SSRXX 110-X-3P3 | 30 | 55 | 75 | 110 | 5.2 | |
| SSRXX 150-X-3P3 | 37 | 75 | 90 | 150 | ||
Note: 1. 1T5 means 1.5A, 4T5 means 4.5A, 7T5 means 7.5A in Rated current.
2. Other voltage classes can be made to order.
Parameters(Type 1P1)
| Model | Rated power of the motor | Rated current | Structure | Weight | |
| 220V Pe/kW | 400V Pe/kW | le A | F | kg | |
| SSRXX02-X-1P1 | 0.37 | 0.55 | 2 | A | 1 |
| SSRXX03-X-1P1 | 0.55 | 0.75 | 3 | ||
| SSRXX04-X-1P1 | 0.75 | 1.1 | 4 | ||
| SSRXX06-X-1P1 | 1.1 | 1.5 | 6 | ||
| SSRXX09-X-1P1 | 1.5 | 2.2 | 9 | ||
| SSRXX12-X-1P1 | 2.2 | 3.7 | 12 | ||
| SSRXX20-X-1P1 | 3.7 | 5.5 | 20 | 2.4 | |
| SSRXX30-X-1P1 | 5.5 | 7.5 | 30 | C | |
| SSRXX37-X-1P1 | 7.5 | 11 | 45 | ||
Ordering Guide
Light Load Application: For example pump, compressor, venting equipment, conveying equipment...select the SSR soft starter based on rated power.
Heavy Load Application: For example,centrifugal fan, mixer, grinder, blender...Or other equipment started frequently in short time we recommend to choose a higher power grade softstarter.
Internal Analytic Diagram
Features:
Internal Control Diagram:
Soft Starter Wiring Mode:
Application Diagram
Application
Related Products
Company Information
FAQ
Q1:Can I have a sample order?
A1:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2:What about the lead time?
A2:Sample needed 3-5 days, mass production time needed 1-2 weeks.
Q3:Do you have any MOQ limit?
A3:1pc for sample checking available.
Q4:How do you ship the goods and how long does it take to arrive?
A4:We usually ship by DHL, UPS, Fedex or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping for option.
Q5:Is it OK to print my logo on modified sine wave inverter?
A5:Yes. Please inform us formally before our production and confirm the design firstly based on the sample.
Q6:Do you offer quarantee for the products?
A6:Yes, we offer 18 months warranty.
Q7:Can I get one for sample?
A7:Yes, we accept sample order or trial order for testing first.
Q8:What's the price and MOQ??
A8:NO MOQ. Please just send us inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price.
Q9:What's you delivery time?
A9:It depends on your quantity, usually 1-3 days for sample order, but for batch order, it according to theactual situation.
Q10:How about your payment and shipment?
A10:Payment: We accept T/T, Western Union, Paypal etc. terms of payment.
Shipment: For sample order, we use DHL, TNT, FEDEX, EMS etc.express; for batch order, by sea or by air.
Q11:How about your warranty?
A11:We provide 1.5 and 2 years warranty for different products and whole life technical support.
