1024(RGB)*768 BOE EV121XOB N10 lcd panel 12.1 inch tft lcd screens for industry and medical imaging
- Category: >>>
- Supplier: Hangzhou Chuanbao Electronic Technology Co. Ltd.
Share on (1600676515545):
Product Overview
Description
Product Description
BOE's EV121X0B-N10 is a 12.1-inch LCD module product with a-Si TFT-LCD technology, which is equipped with WLED backlight, including LED driver backlight drive, no touch. Its typical features are: white LED backlight, life is more than 50,000 hours, including LED driver, terminal formal installation, up/down, left/right flip display. It has an operating temperature of -20 ~ 70°C, a storage temperature of -30 ~ 80°C, and a vibration resistance of 1.5G (14.7 m/s²). This model is suitable for industrial and medical imaging applications. According to the product specification with version number Rev.0 released by BOE on March 20, 2019, the EV121X0M-N10 has a display resolution of 1024 (RGB) ×768 (XGA), an aspect ratio of 4:3 (width:height), and pixels arranged in RGB vertical bars. Its display area dimensions are 245.76×184.32 (W×H) mm, the visible dimensions are 249×187.5 (W×H) mm, the external dimensions are 260.5 (W) × 204 (H) × 9.2 (D) mm, and the net weight of the product is 520g (Max.). In terms of backlight, this product adopts a WLED light-emitting side-entry light source, and the service life of the light source is 50K hours, including LED driver. The EV121X0M-N10 adopts LVDS (1 ch, 8-bit) signal interface, a total of 20 pins, and a terminal connection with a drive voltage of 3.3V (Typ.). Its typical vertical refresh rate, Fv, is 60Hz.
Specification
item | value |
Type | TFT |
Display Size | 12.1 inch |
Supplier Type | lcd panel |
Place of Origin | China |
Brand Name | BOE |
Resolution | 1024(RGB)×768 XGA 105PPI |
Mobel Number | EV121X0B-N10 |
Body Size | 249×187.5 mm |
Panel type | Liquid crystal glass, a-Si TFT-LCD |
Contrast Ratio | 1200 : 1 (Typ.) |
Frequency | 60Hz |
Screen voltage displacement | 12.0V (Typ.) |

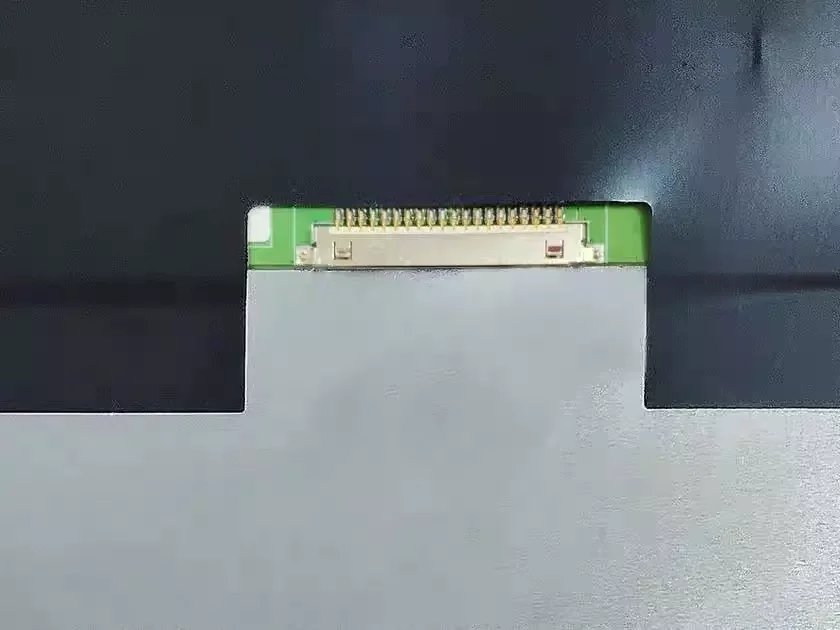

Signal interface | 20 pins LVDS (1 ch, 8-bit),terminal |

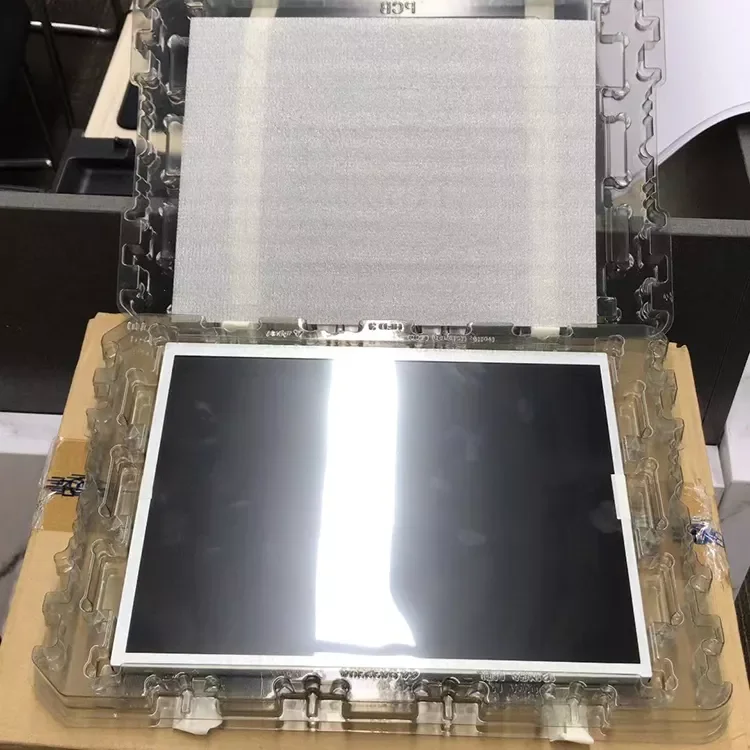

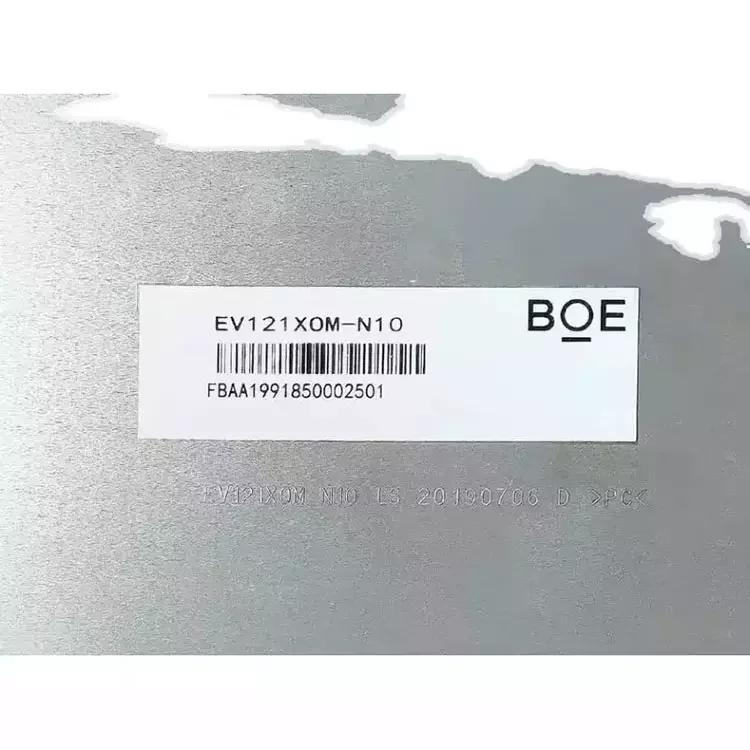

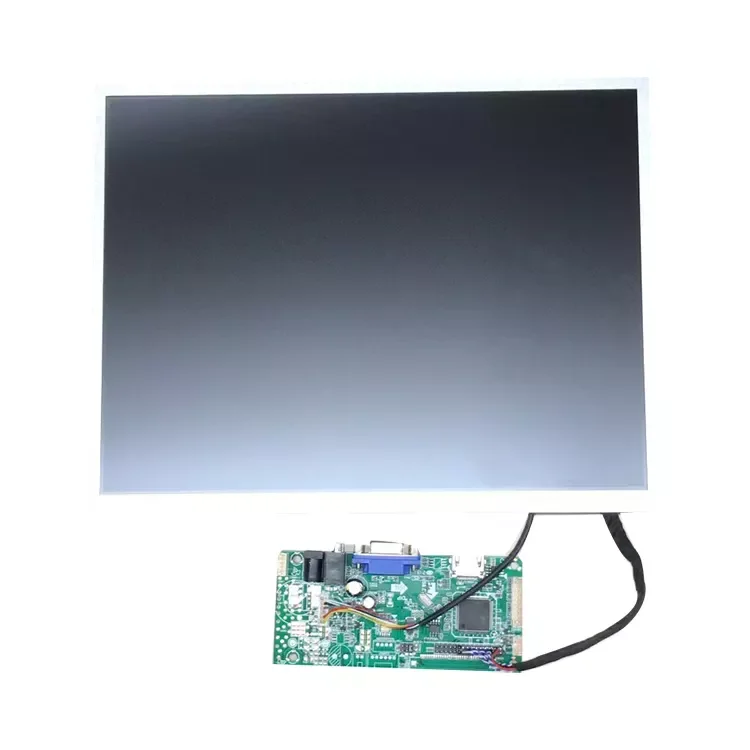

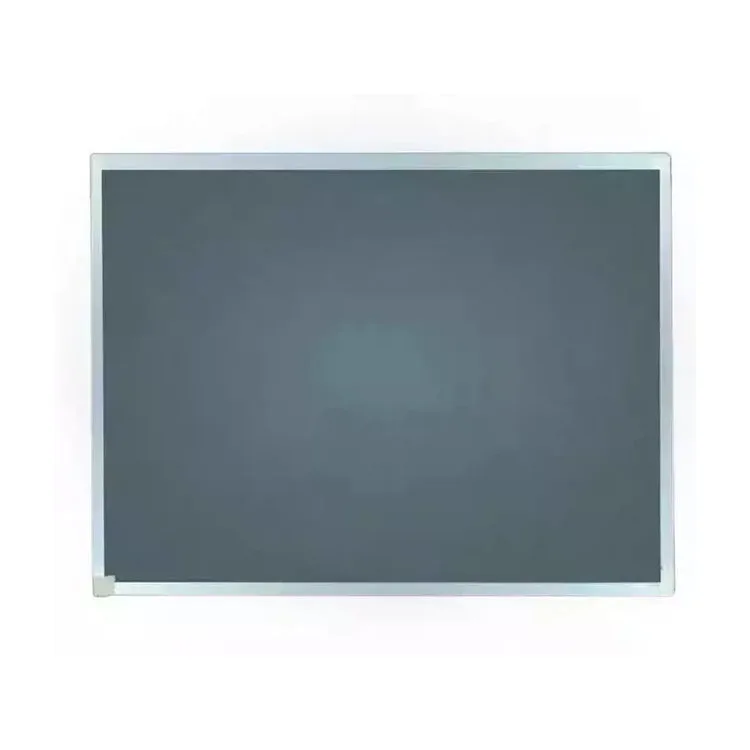

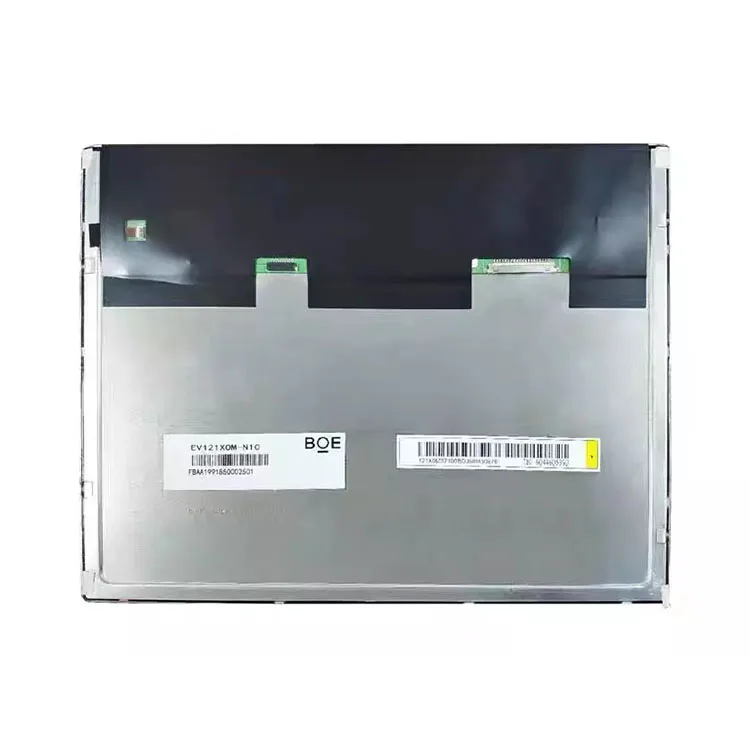

Product photos
Packing & Delivery
Standard export packing
Other Hot Sale Models
Application
Our products can be used in PC, TV, digital signage, industrial, medical, conference etc.
Company Profile
Hangzhou Chuanbao Electronic Technology Co., Ltd. mainly operates services: electronic products, computer software and hardware, LCD displays, household appliances, office supplies, intelligent equipment, communication equipment, monitoring equipment technology development, technical consultation, technical services and achievement transfer; Computer Network Engineering; Wholesale, retail: computer software and hardware; LCD display; Household appliances; office supplies; smart devices; communication equipment; monitoring equipment, etc. The registered capital of the company is RMB1,000,000, our company's office address is located in the largest city in Zhejiang Province, the paradise on earth Hangzhou, we have the best products and professional sales and technical team, the company is developing rapidly, we provide customers with the best products, good technical support, sound after-sales service!
FAQ
1.What Brand do you have?
Re:We mainly provide BOE brand products. If customers have any needs, you can communicate with us. We will try our best to provideyou with other electronic components and accessories with higher quality and lower price
2.What’s your products condition?
Re: Brand New,A grade,Original Package.
3.what’s your MOQ of your products?
Re: According different products,1pcs or 1 box .
4.What is the warranty period of the product?
Re:According to different products, our warranty time is 1 - 3 years.
Re:We mainly provide BOE brand products. If customers have any needs, you can communicate with us. We will try our best to provideyou with other electronic components and accessories with higher quality and lower price
2.What’s your products condition?
Re: Brand New,A grade,Original Package.
3.what’s your MOQ of your products?
Re: According different products,1pcs or 1 box .
4.What is the warranty period of the product?
Re:According to different products, our warranty time is 1 - 3 years.
