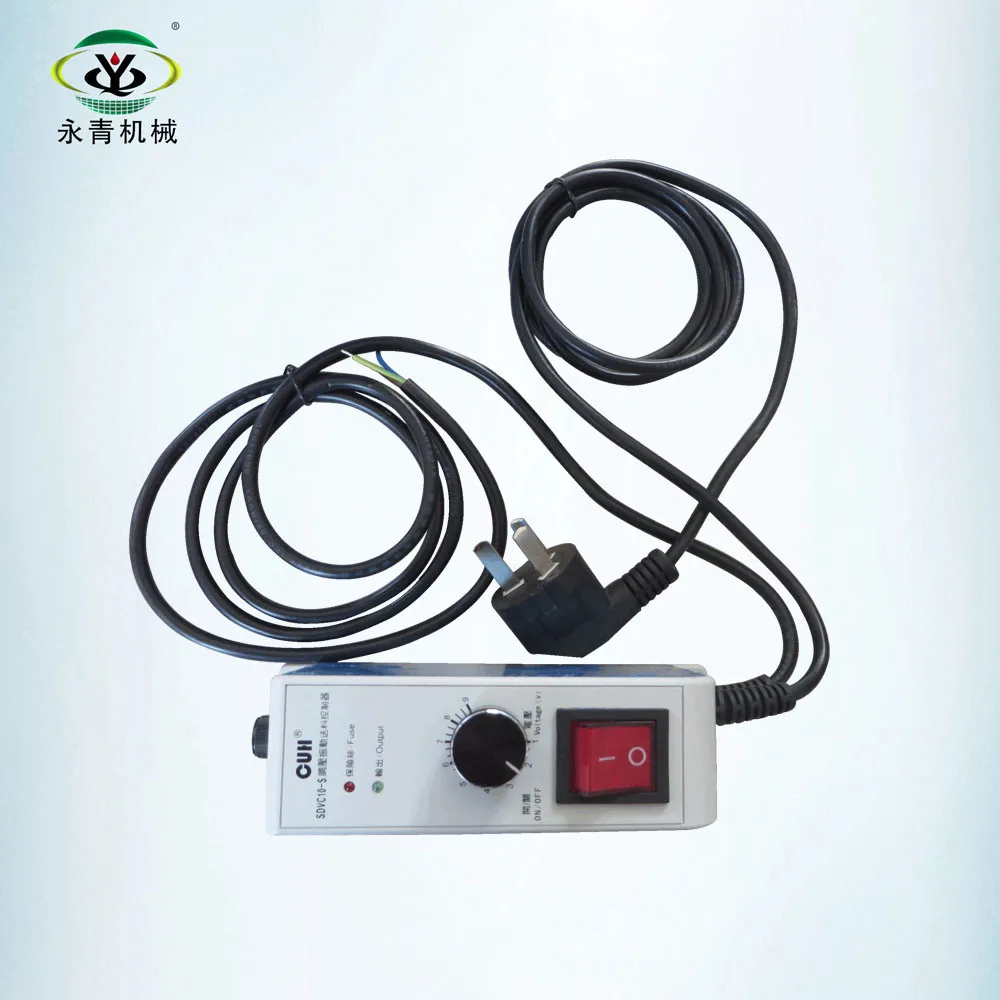

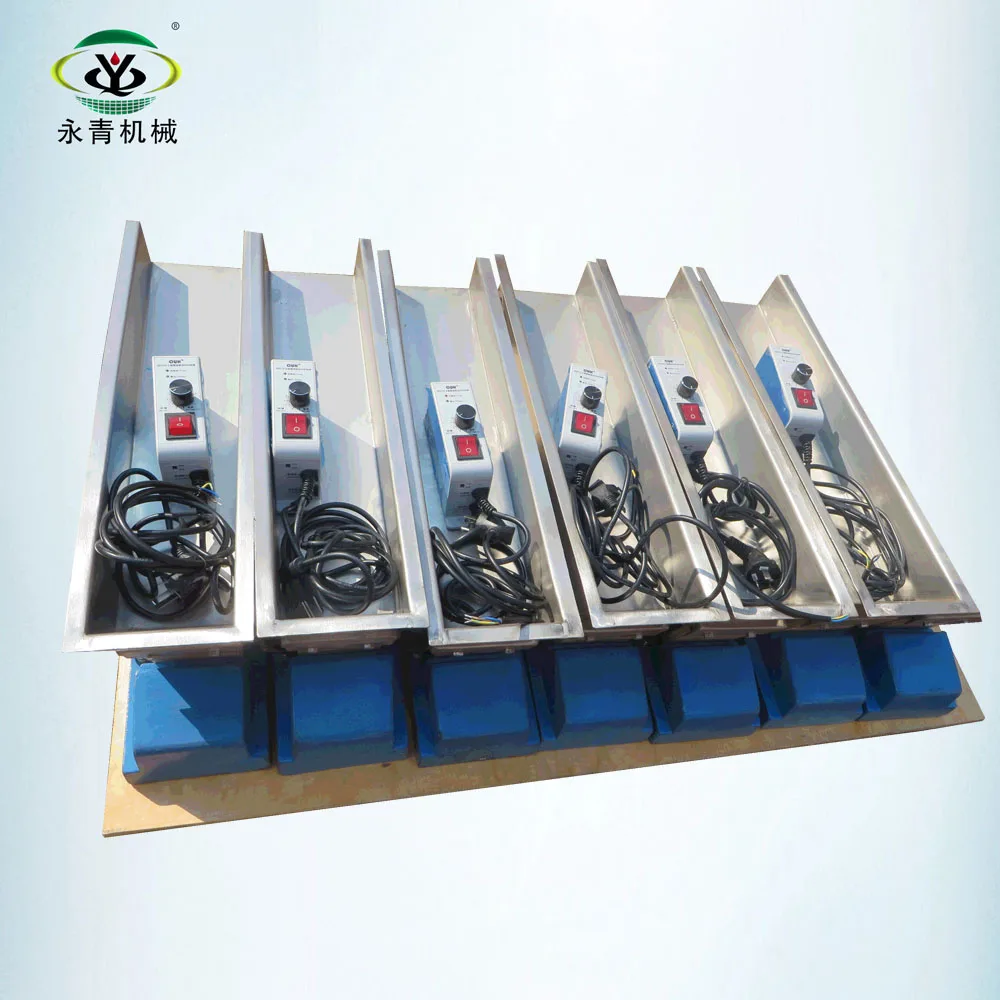

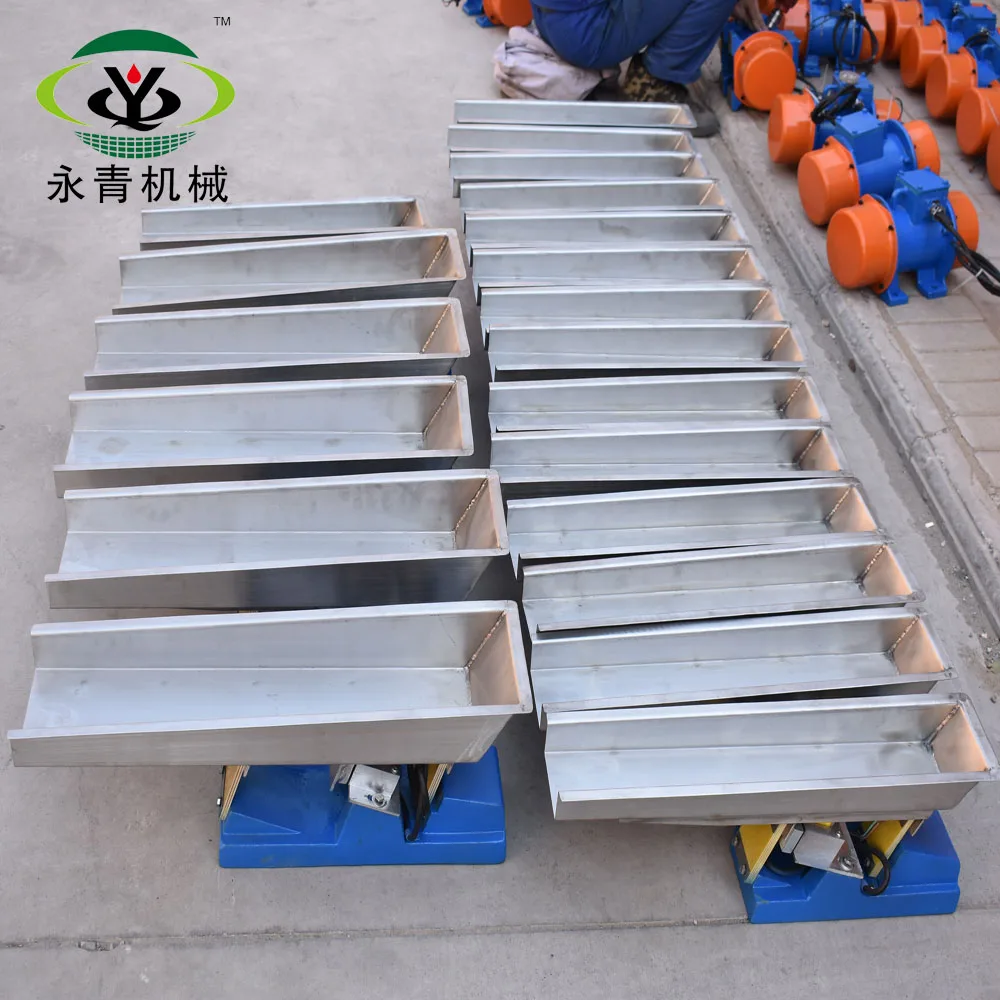

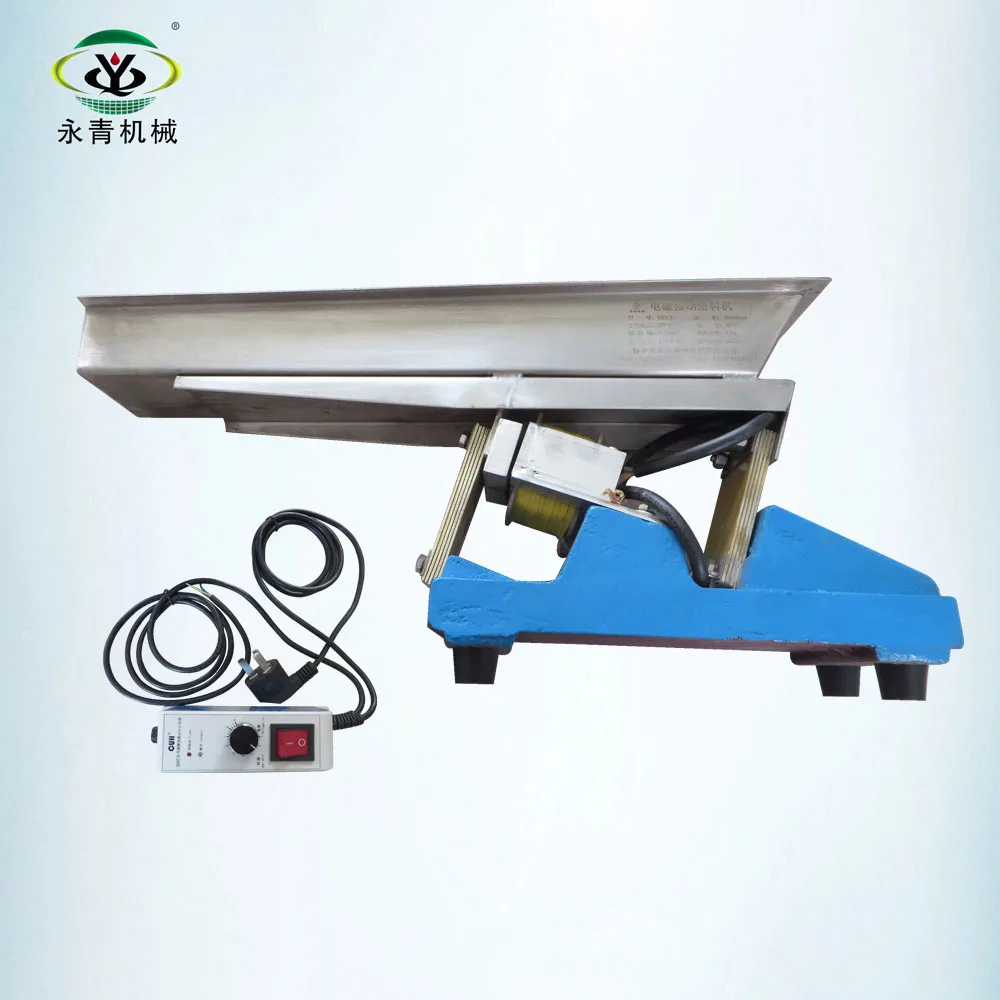

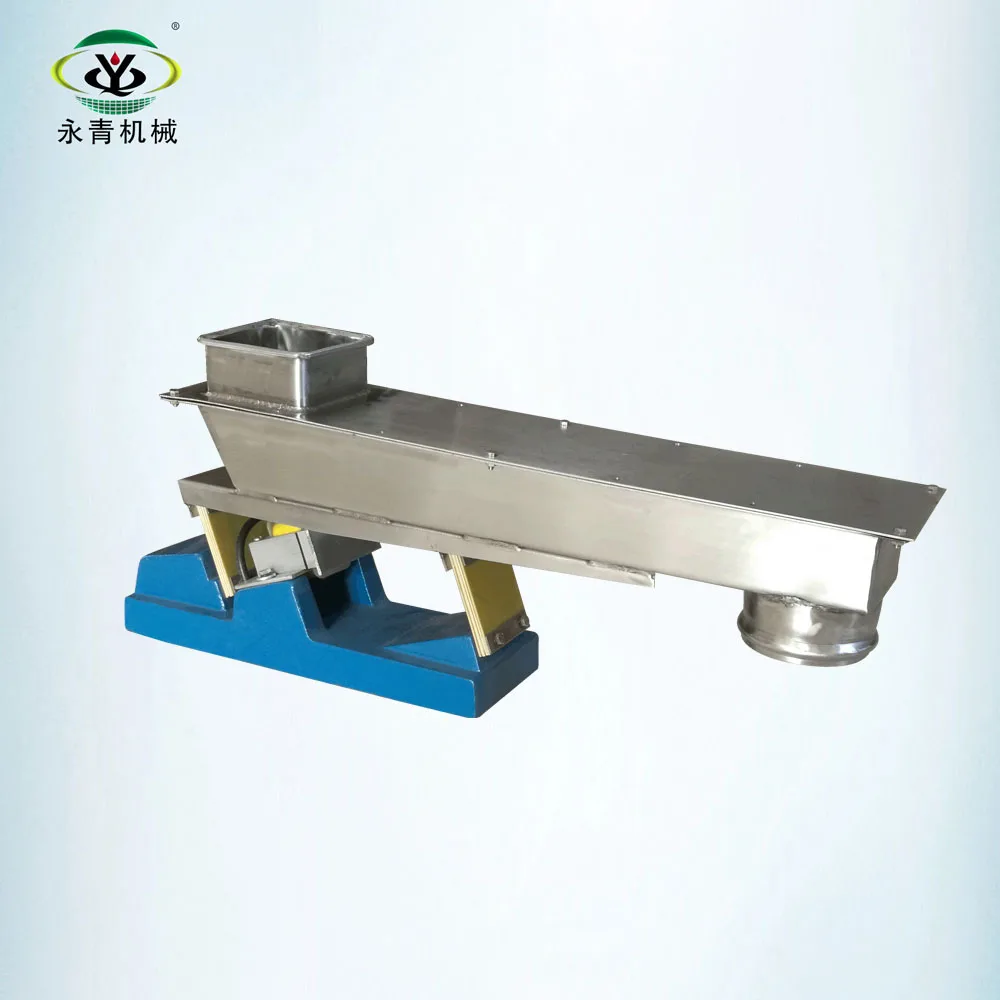

Adjustable speed electromagnetic vibrating feeder with controller

Product Overview

Description

Adjustable speed electromagnetic vibrating feeder with controller



Introduction

Electromagnetic vibrating feeder adopts the electromagnetic as the vibrating source. Compared with the normal vibration motor, electromagnetic is smaller, lighter, and more energy-saving, while the operation is much simpler and the flow rate can be steplessly adjusted.



As a mini material feeder, our electromagnetic feeder can be widely used in many industries like light industry, chemical, grain processing, and so on. Specifically, it can serve in the feeding system, dosing system, and automatic quantitative packing system. In addition, the centralized and automatic control can also be achieved.



Parameters

Model	Capacity (t/h)	Dual amplitude (mm)	Rpm (r/min)	Voltage (V)	Power (W)	Weight (kg)
GZV1	0.1	1.5	3000	220	5	7
GZV2	0.5				8	10
GZV3	1				20	17
GZV4	2				25	22
GZV5	4				30	32
GZV6	6				50	53





Features

It is a new type of feeding equipment, widely used in mining, metallurgy, coal, building materials, chemical , electric power , food and other industries. It adapts to automatic batching , quantitative packaging and automatic control.



Uniformly and quantitatively feeding:

It is used for transmitting the massive, granular and powdered materials from storage silo to the stored material equipment Uniformly and quantitatively.



Adjustable capacity:

Electromagnetic feeder can adjust the feeding capacity by changing the electromagnetic wave at any time



Easy operation:

simple structure and automatic feeding help the staff to operate easily.



Low cost of maintenance:

simple structure, less easily damaged components and eletromagnetice excitor ensure long service time, reduce the cost of maintenance.



high adaptation:

Electromagnetic feeder is made of stainless steel or carbon steel plate. It is applicable for conveying high temperature, severe abrasion and corrosive materials, meet customer’s high demand.



Environment-friendly :

Small size, less raw material, less power consumption, low noise, dust-free processing environment, providing workers with healthy working environment.



Dimensions
