Economical 4-axis 1325 efficiency door furniture manufacturer new model KT board woodworking supplier router cnc wood machine
- Category: >>>
- Supplier: Shandong,Anben,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
CNC router 4 axis dsp wood cnc kit complete cnc machine woodworking

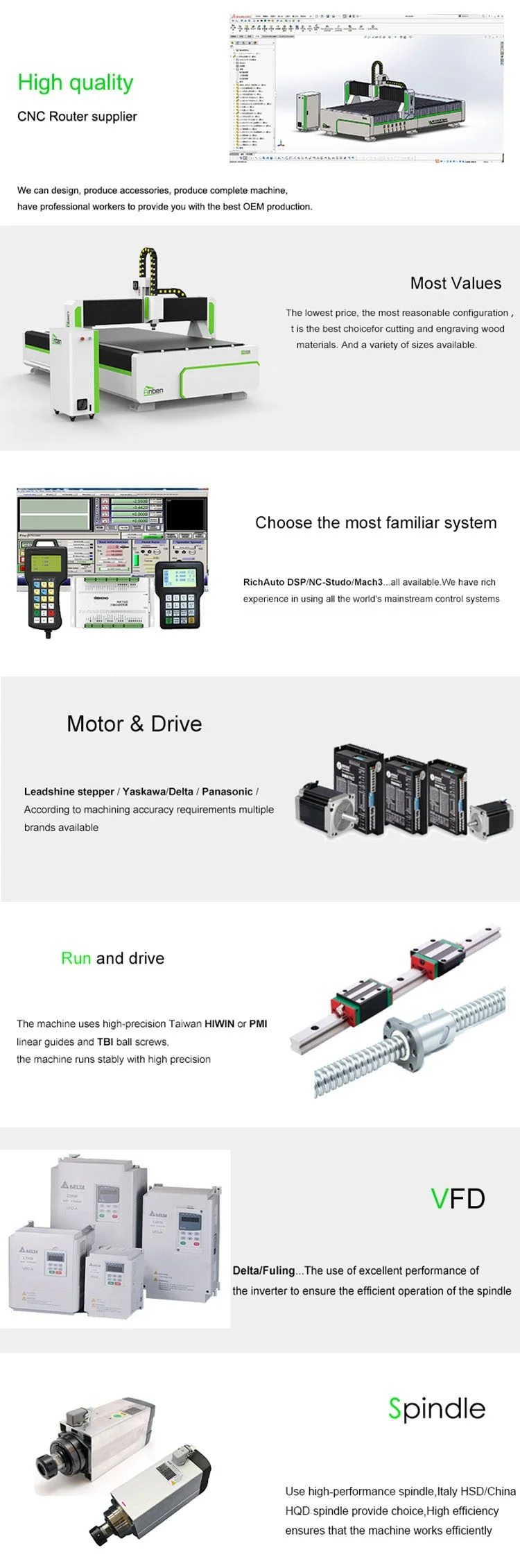

Features of cnc router wood :
--1300*2500*200mm working area.
--3 KW Hanqi water cooling spindle.
--3.7kw Fuling Inverter.
--NC Studio control system.
--Leadshine drive and FL118 Stepper motor.
CNC router 4 axis dsp wood cnc kit complete cnc machine woodworking | ||||
Model | AN1325 | AN1530 | AN2030 | AN-Customize |
Working area(X*Y*Z) | 1300*2500*200mm | 1500*3000*200mm | 2000*3000*200mm | Customize |
Table Surface | T-slot Table / Vacuum & T-slot Table | |||
Frame | Heavy-duty Industrial class square tube strong structure | |||
X, Y Structure | Helical Rack and Pinion Drive, Taiwan PMI linear guide rails | |||
Z Structure | Taiwan TBI Ball Screw Drive, Taiwan PMI linear guide rails | |||
Spindle Power | 3KW / 4.5KW / 5.5KW / 6KW / 7.5KW / 9KW-ATC | |||
VFD Power | 3.7KW / 5.5KW / 7.5KW / 11KW | |||
Operating System | DSP control system / Nc Studio control system | |||
Drive Motors | Leadshine drive and FL118 stepper motors | |||
Max. Rapid Travel Rate | 33000mm/min | |||
Max. Working Speed | 23000mm/min | |||
Cutting accuracy | ±0.03/1000mm | |||
Working Voltage | AC380V, 50Hz, 3PH (Option: 220V) | |||
Command Language | G Code | |||
Software Compatibility | Artcam / Power mill / Type 3 / Ucancam | |||
Optional parts:
1. Rotary device: Dimensions can be customized
2. Lubrication system:Manual or automatic lubrication system
3. Vacuum pump:Water circulation pump/Germany Becker/Tongyou vacuum pump
4. Dust collector:Single or double packet dust collector
5. Reducer:Germany Eisele/Japan Shimpo/Taiwan APEX
6. Configure more spindles according to customer requirement
Application & Sample
Application of cnc router wood :
1.Mould: wood,wax, wood, gypsum,foams,wax 1325 cnc router wood working machine wood machine
2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process. 1325 cnc router wood working machine wood machine
Popular Products
AN1325 |
AN1530ATC |
AN1325-4Axis |

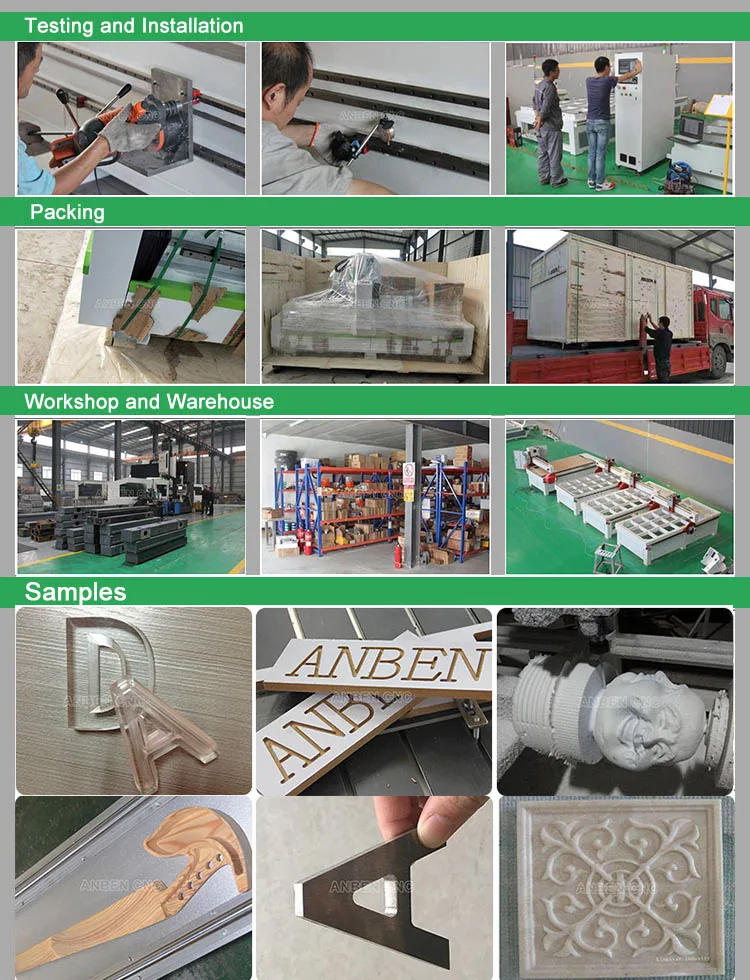

Packaging & Shipping
Standard Package: 1. Inner package: Covered with plastic film on the cnc machine.
2. Outside package: Standard marine export plywood case.
We can package according to your requests.
Delivery Detail: Shipped within 10 working days after payment.
Our Services
1.24 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period. wood cnc machine wood cnc router
2. Free training course at our plant. Lifetime maintenance free of charge.
3. Our staff can be sent to your company to install or adjust if necessary.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery. wood cnc machine wood cnc route
