industrial laser engraving machine pen laser printer engraver machine
- Category: >>>
- Supplier: Shandong Focus Laser Technology Co. Ltd.
Share on (1600677354909):
Product Overview
Description
Product Overview

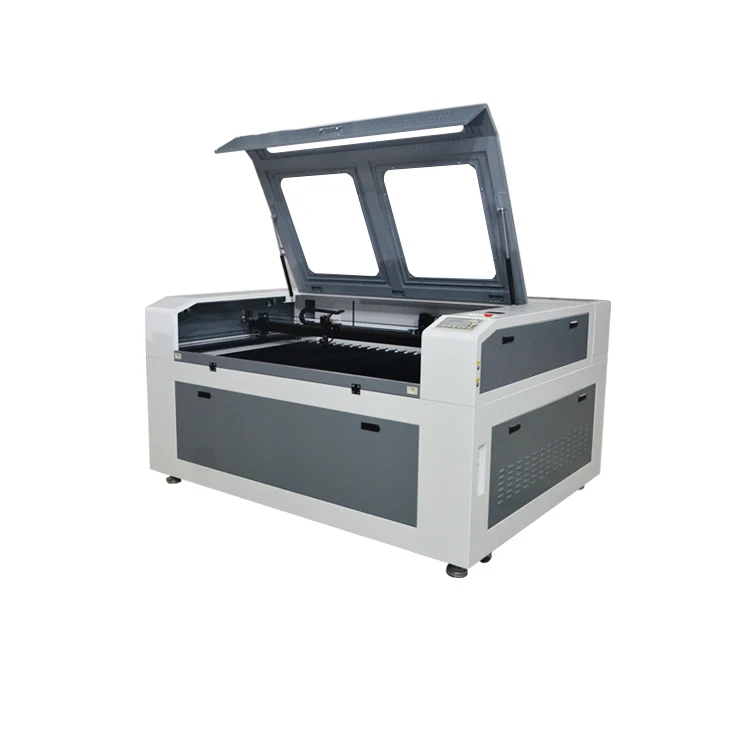

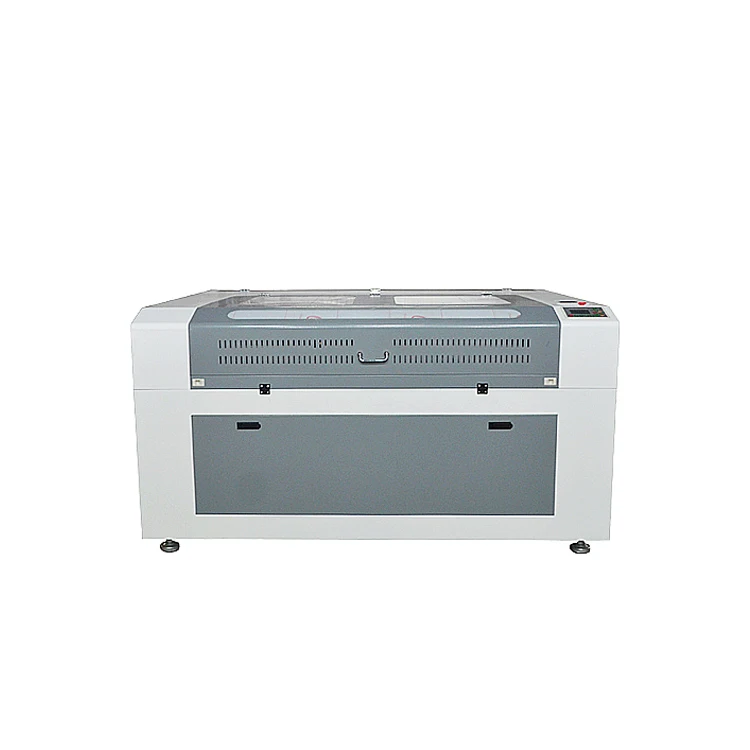

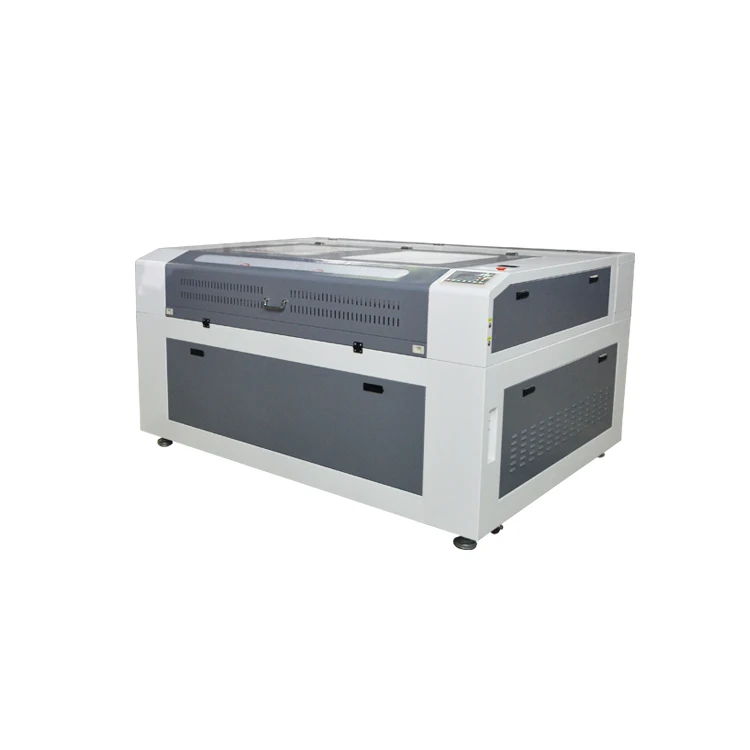

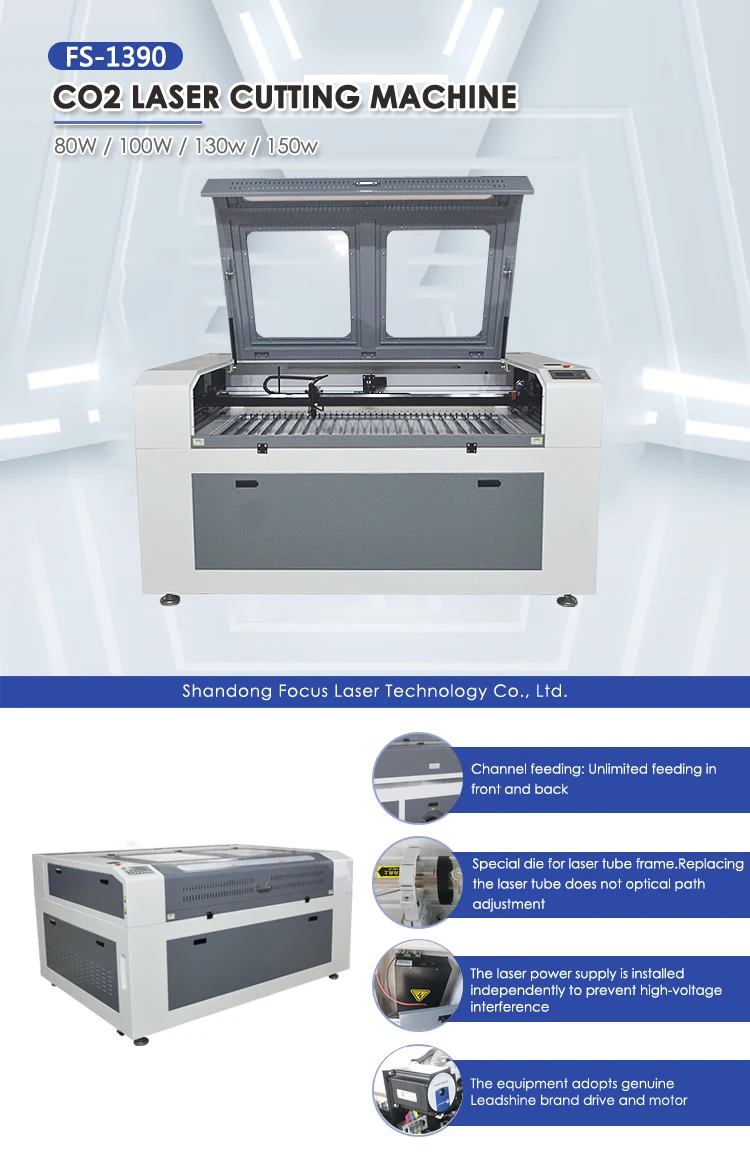

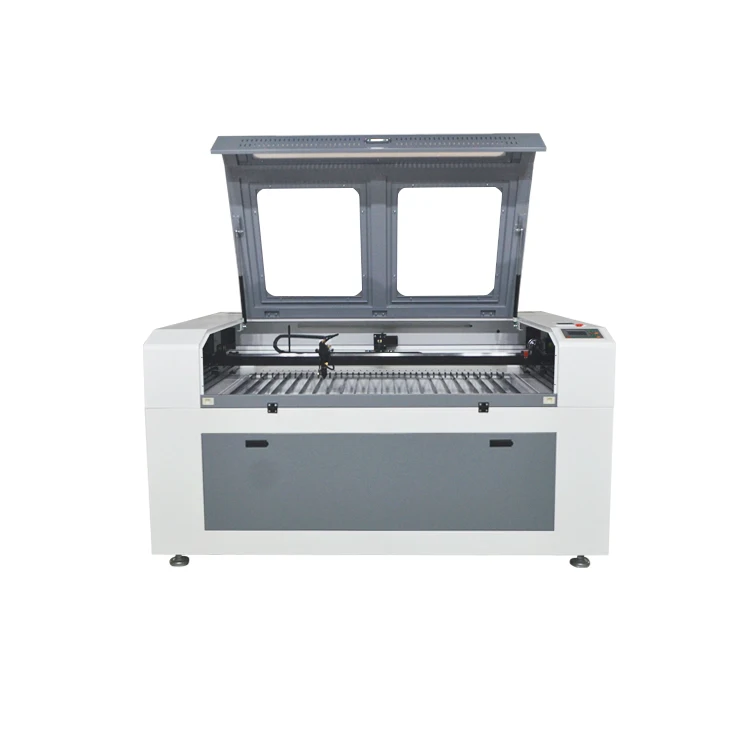

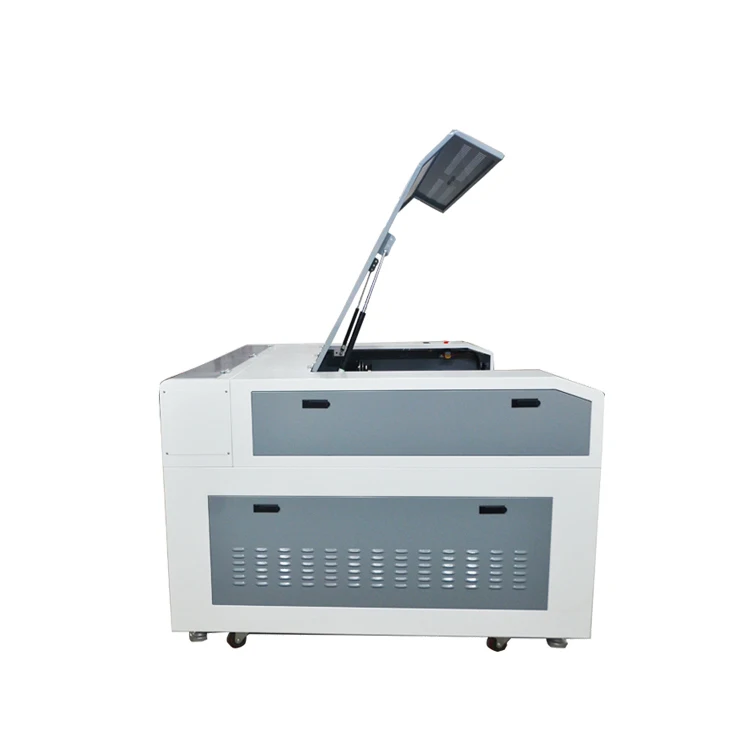

FS-1390 Laser Engraving And Cutting Machine
Based on years of experience in production and use, focus laser technology co., ltd. adopts the latest design concept, equipped with advanced laser components at home and abroad, open a new generation of multi-functional laser engraving and cutting machine, simple operation, convenient maintenance, production safety protection more perfect. Its characteristic is: open the placement of the work platform to facilitate the processing of materials, and can cooperate with the assembly line work, meet the needs of large area of material processing, and combining with large size bee platform, platform and lift platform makes the laser cutting machine is not only suitable for large processing industry, such as: shoes, clothing industry, advertising, etc., can also satisfy the model industry, handicraft industry, bamboo products industry and other small.
PRODUCT SPECIFICATIONS
Model | FS-1390 |
working area | 130cm*90cm / 51in*35in (L*W) |
controller | RUIDA control system |
Laser type | CO2 sealed laser tube |
Cooling type | water cooling |
Laser power | 80w/100W/120W/150W |
Engraving speed | 25-60000mm/min |
Cutting speed | 20-10000mm/min |
Power supply | 220V±10% /50HZ , 110V±10%//60HZ |
Min. shaping a character | Letter 1.0 x 1.0mm |
Graphics format supported | BMP, PLT, DST, DXF, AI, CDR |
Software supported | CorelDraw, PhotoShop, AutoCAD |
Laser Output Control | 1-100% software setting |
Highest Scanning Precision | 2500DPI |
Location precision | 0.1mm |
Working temperature | 5 to 45 degrees |
Operating humidity | 5%-95%(without condensed water) |
Equipment Dimension | 1900mm*1455mm*1040mm(L*W*H) |
Net Weight | 400KG |
Optional parts | Rotary device, CW3000 or CW5000 Water cooling system |
Warranty | 3 years |
Total power | <500w |
PRODUCT APPLICATIONS
Laser engraving cutting machine application industry: wood plate cutting, advertising text, large surface cutting, garment
proofing, leather industry, footwear industry, decoration industry, furniture industry, packaging and printing industry, model
industry, craft gift industry.
proofing, leather industry, footwear industry, decoration industry, furniture industry, packaging and printing industry, model
industry, craft gift industry.
Suitable materials for laser engraving and cutting machine: wood sheet, acrylic, plexiglass, glass, cloth, leather, paper, bamboo and wood products, thin film, etc
Materials | Cutting | Engraving |
Wood/Cork/Bamboo/Veneer/MDF | √ | √ |
Acrylic/Rubber/Plexiglass/Pmma | √ | √ |
Glass/Fiberglass | √ | |
Mylar/Delrin/Matte Board | √ | √ |
Fabric/Cloth/Textile/Garment | √ | √ |
Leather/Pig leather/Cow leather/Sheep leather | √ | √ |
Ceramic/Marble/Tile | √ | |
Plastic | √ | √ |
Paper/Cardboard/Pressboard | √ | √ |
Organic board / Double color plate | √ | √ |
Corian | √ | √ |
PRODUCT ADVANTAGES

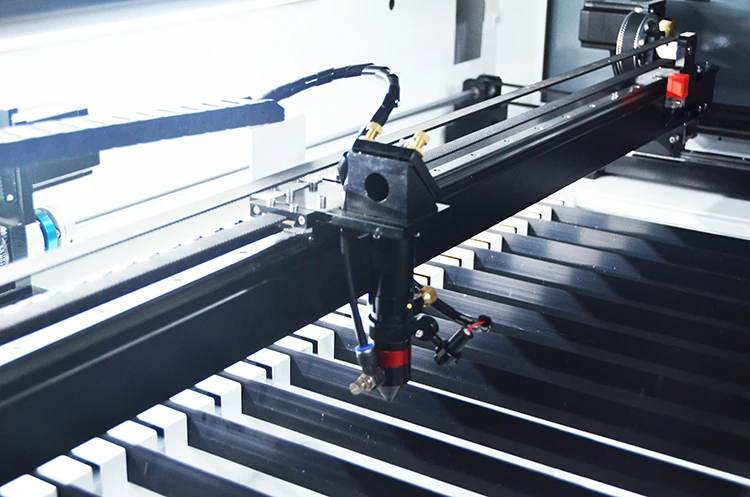

Galvanized, with good verticality, up and down adjustable.Equipped with red light positioning system, the positioning is more accurate, equipped with automatic blowing system, can prevent burning and clean the role of the lens.

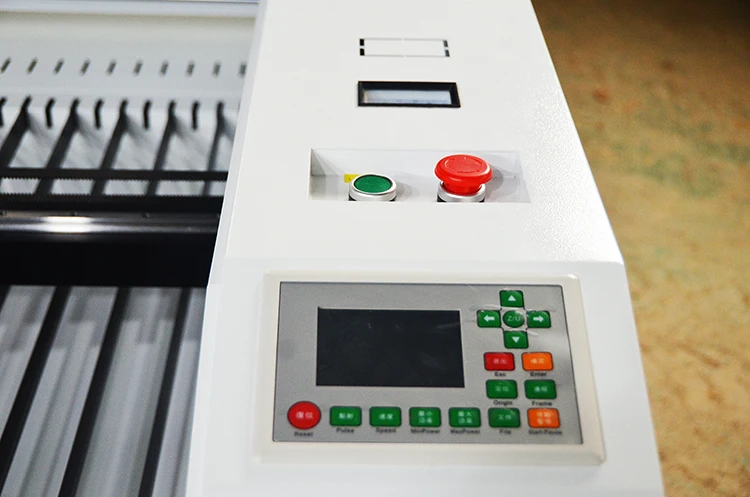

Control system
RUIDA control system:Color screen, dynamic display processing trajectory/Support to modify layer parameters directly online/Onboard memory, high-speed data transmission/Different engraving and cutting parameters can be set for different parts of
the same pattern/Engraving and cutting can work simultaneously/It can be read by usb flash drive or connected to a computer/Power
cut continuous carving/slope carving function/Multi-function key operation/Online preview
the same pattern/Engraving and cutting can work simultaneously/It can be read by usb flash drive or connected to a computer/Power
cut continuous carving/slope carving function/Multi-function key operation/Online preview

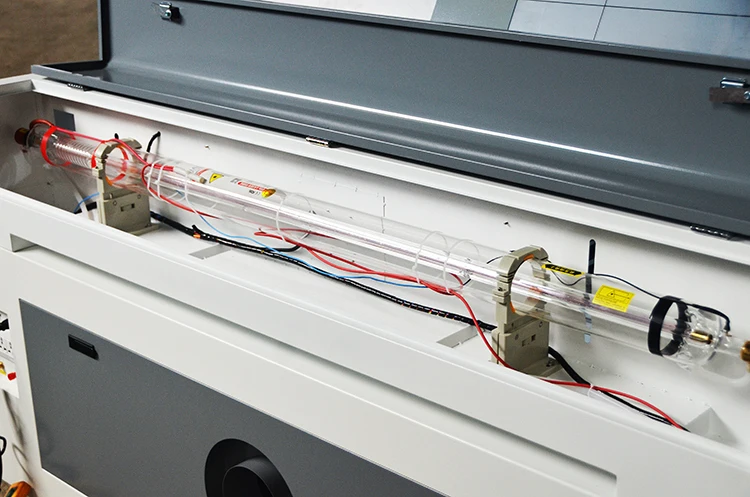

Adopt isolated co2 laser tube:CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, service time
over 8500~10000 working hours.
over 8500~10000 working hours.

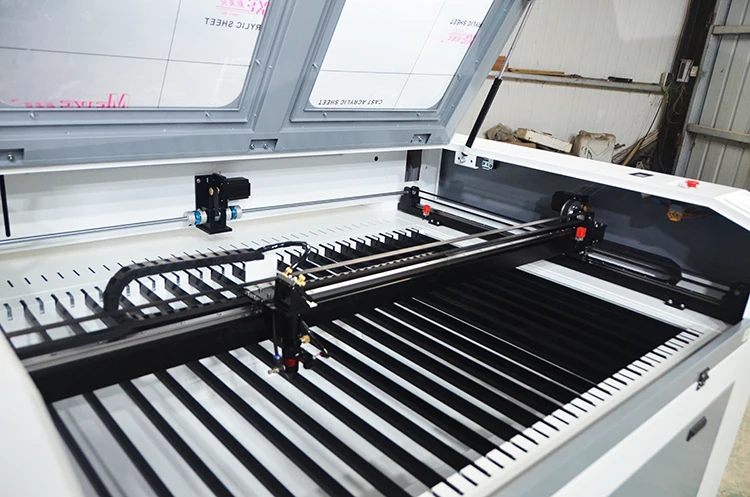

Rugged and durable/Low running resistance/Low friction/Can effectively improve the working speed/Low environmental requirements/Can work in a harsh environment/Aluminium blade table: to process hard materials like acrylic, wood and so on.
All metal/No glass/Good reflective effect/Durable

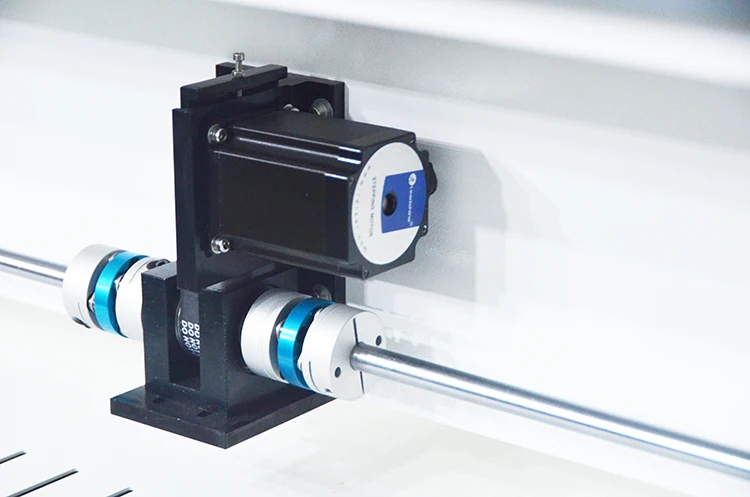

Leadshine brand stepper motor and drive/Work more stable and reliable

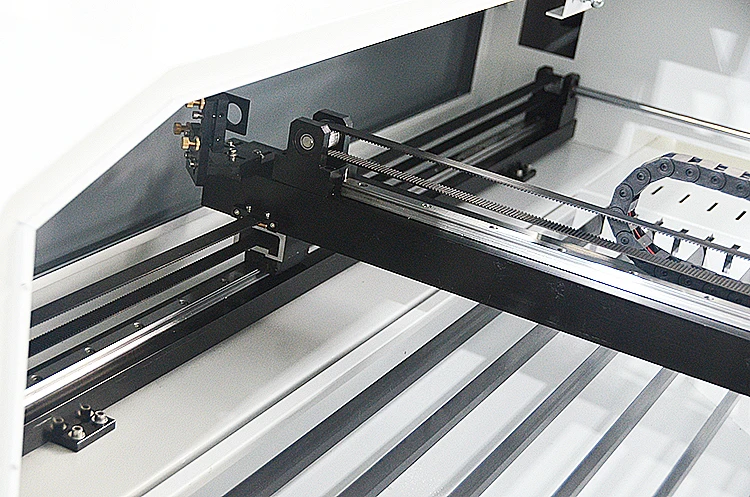

High accuracy stepper motors and drivers. Belt transmission.

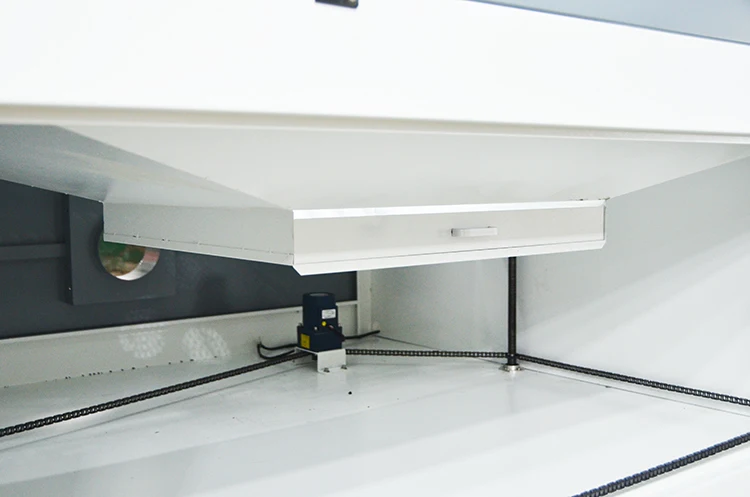

Chain drive; honeycomb table and knife table can be configured,UP and DOWN,The unique exhaust system effectively protects the
laser engraving cutting material.
laser engraving cutting material.

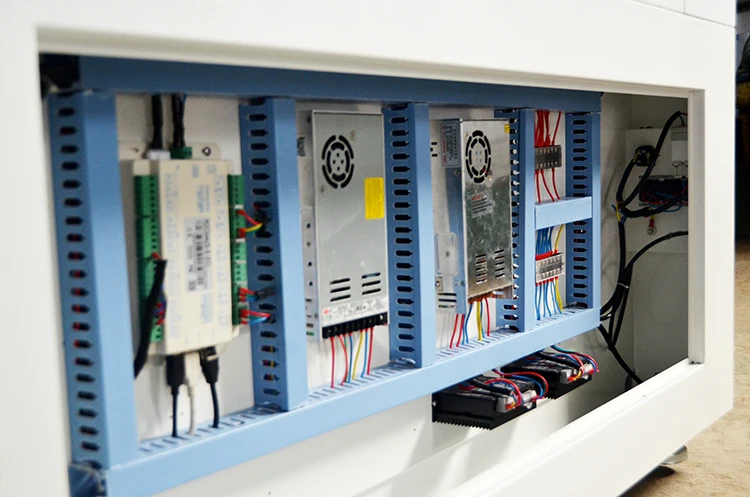

High quality electrical components, stable performance, for the good operation of the machine to provide a guarantee

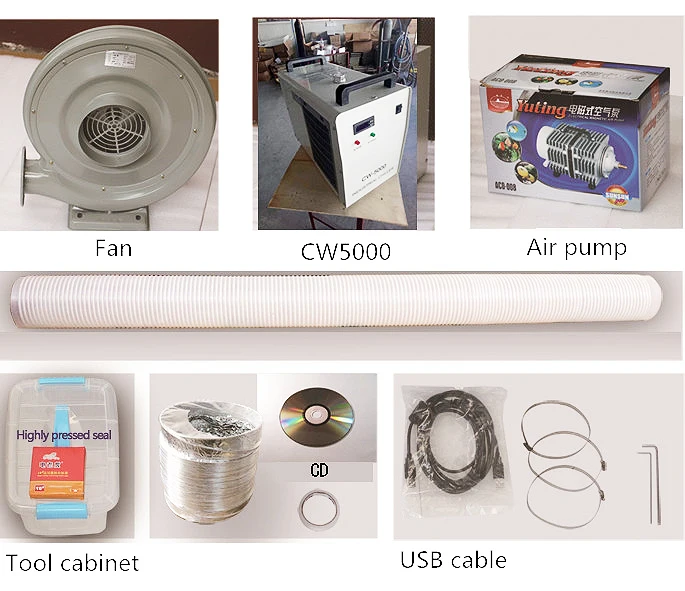

Product Standard Accessories
Optional Accessories
CW3000 Water cooling system
CW5200 Water cooling system
Water-cooling system
The water cooling system can better cool down the laser engraving machine. The customer can choose the water cooling system if the machine is used very frequently or the high-power cutting ground is often used. It is recommended to use the water cooling system at 80W/100W/120W/150W
The water cooling system can better cool down the laser engraving machine. The customer can choose the water cooling system if the machine is used very frequently or the high-power cutting ground is often used. It is recommended to use the water cooling system at 80W/100W/120W/150W
Simple rotary
Rotary fixture
Rotary
Simple rotary is suitable for regular cylinder, such as pen holder, cup, bamboo, etc., only need to put the engraving material on the simple rotary, the material will rotate with the roller.
Rotary fixture is suitable for all objects, there are no regular restrictions, if the irregular surface of the object engraving
arc patterns, the best choice.
Rotary fixture is suitable for all objects, there are no regular restrictions, if the irregular surface of the object engraving
arc patterns, the best choice.
About us

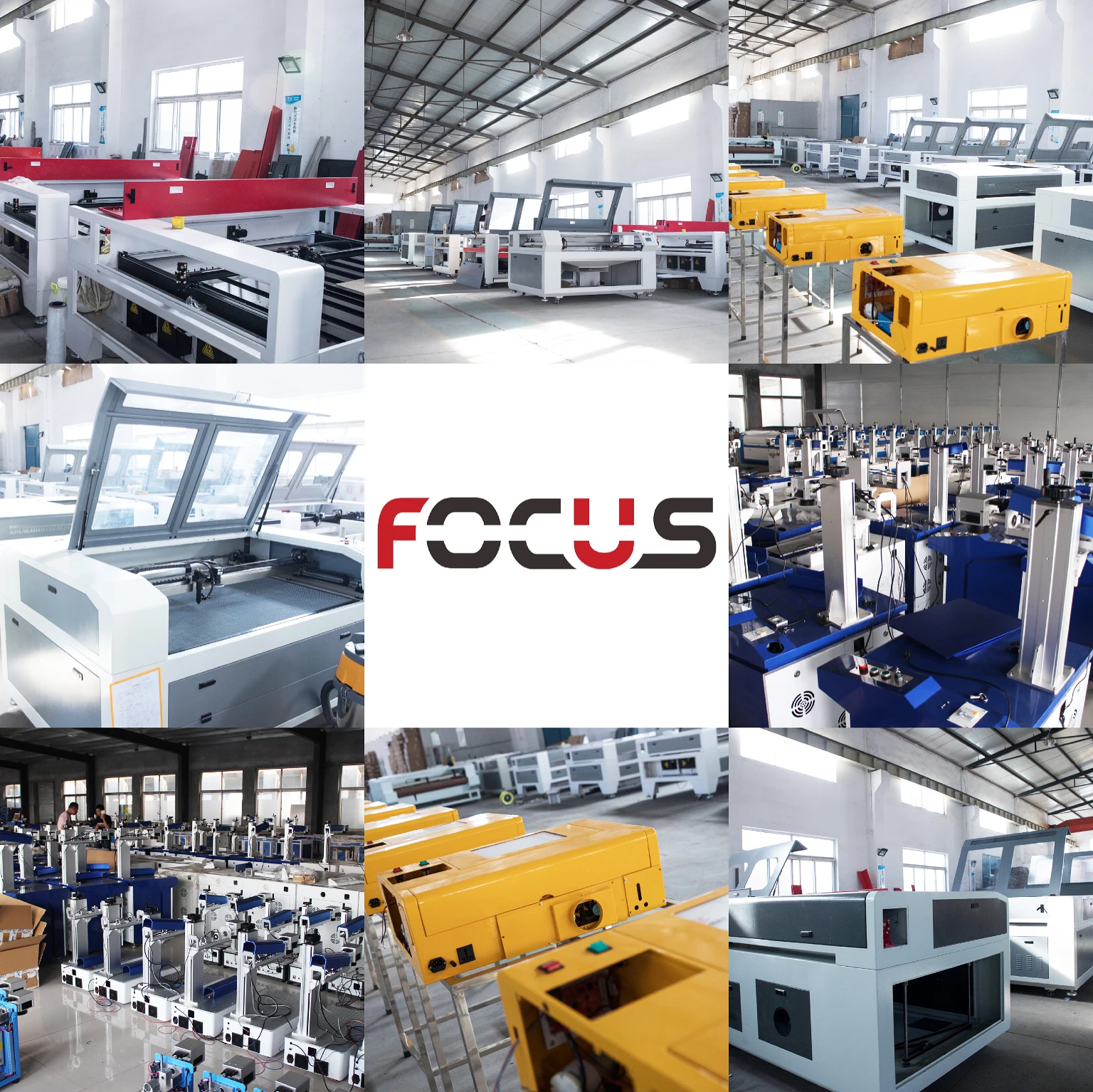

EXHIBITION SCENARIOS
SCOPE OF BUSINESS
STRENGTH CERTIFICATE

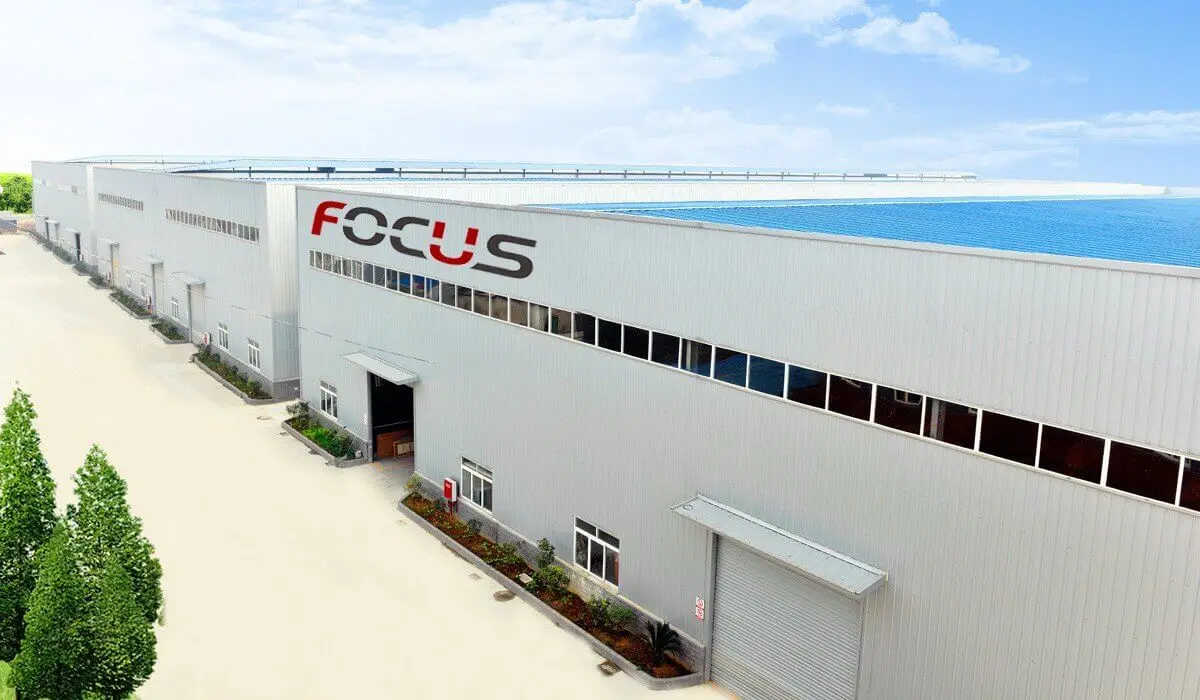

Shandong Focus Laser Technology Co. Ltd
The company specializes in manufacturing laser engraving machine, laser cutting machine,mini laser engraving machine, laser metal and non-metal hybrid cutting machine. Fiber laser marking machine, CO2 laser marking machine,laser welding machine, CO2 laser engraving and cutting machine, rubber stamp laser engraving machine, granite stone laser engraving machine and other series of products.
The company specializes in manufacturing laser engraving machine, laser cutting machine,mini laser engraving machine, laser metal and non-metal hybrid cutting machine. Fiber laser marking machine, CO2 laser marking machine,laser welding machine, CO2 laser engraving and cutting machine, rubber stamp laser engraving machine, granite stone laser engraving machine and other series of products.
TRANSACTION PROCESS
The machine is packed with great care and tough material.The machine is packed with cling films first and then film bags.The machine is packed with wooden case which is reinforced with the iron bar on the top and bottom.With this kind of package, all our laser machine can protect well during long trip by sea or by train.
FAQ
1. The Whole FS-1390 laser cutting and Engraving machine:Five years
2. Laser tube:
* 40W for 5 months.
* 60W for 6 months.
* EFR / RECI 80W, 100W for 10 months (this is what laser tube supplier offer to us).
3. Laser lens and mirrors of FS-1390 laser cutting and Engraving machine: a year
If it is damaged during the warranty period, we will replace a new one for you free of charge. You only need to pay the
transportation cost of the accessories
4.How To Choose The Right Laser Machine?
2. Laser tube:
* 40W for 5 months.
* 60W for 6 months.
* EFR / RECI 80W, 100W for 10 months (this is what laser tube supplier offer to us).
3. Laser lens and mirrors of FS-1390 laser cutting and Engraving machine: a year
If it is damaged during the warranty period, we will replace a new one for you free of charge. You only need to pay the
transportation cost of the accessories
4.How To Choose The Right Laser Machine?
1).Are the materials you process metallic or nonmetallic? metallic: Fiber laser machine nonmetallic: CO2 laser machine
2) According to the size of your material area choose the appropriate machine model, different models of the machine, the maximum working area is not the same.
3)If it is cutting, choose the appropriate power according to the thickness of the cutting material.
4)Contact our company in time, our sales staff will give professional advice and solve your difficulties.
5.I Don't Know How To Use After I Receive Or I Have Problem During Use,how To Do?
1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
6.Do I Need Two Laser Machines To Engrave And Cut Separately?
No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.
7.How Long Will It Take To Learn To Operate A Laser Machine?
If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.
8.24 hours online technical support, such as WhatsApp, Wechat, you can calling us if urgent.The accessories of the machine include the installation program of the operating software of the machine and the teaching video.
The operation and learning of the machine are very simple. If there are problems that cannot be solved or cannot be solved, we can teach online by video. We have a professional after-sales service team, when necessary, our after-sales staff can also go abroad to serve customers, but the round-trip tickets, accommodation needs to be responsible for the buyer.
The operation and learning of the machine are very simple. If there are problems that cannot be solved or cannot be solved, we can teach online by video. We have a professional after-sales service team, when necessary, our after-sales staff can also go abroad to serve customers, but the round-trip tickets, accommodation needs to be responsible for the buyer.
