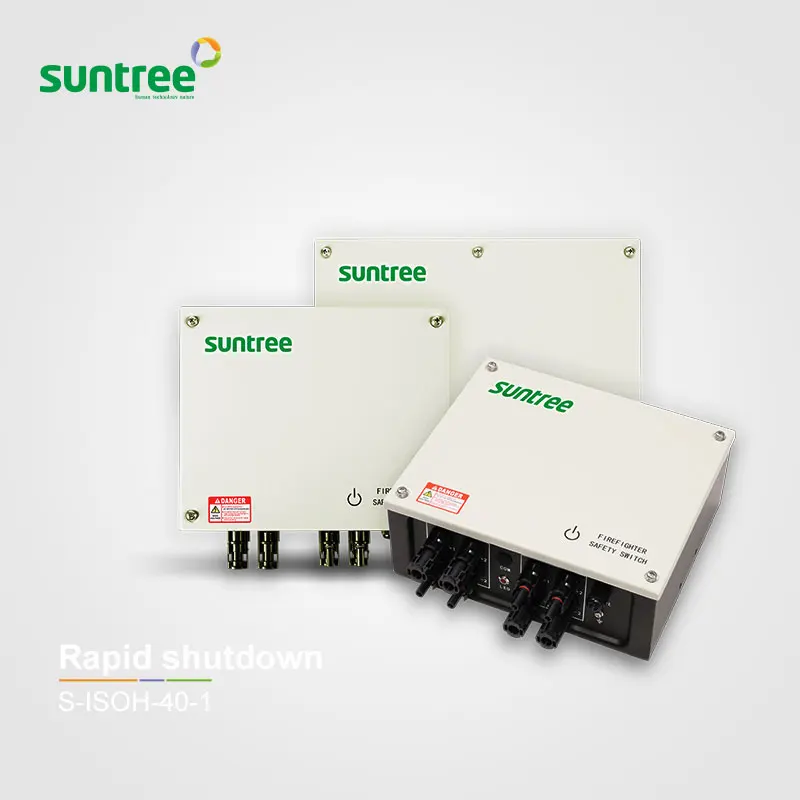

Single Strings Solar rapid shutdown switch firefighter safety switches for solar panel array dc 1500V
- Category: >>>
- Supplier: Wenzhou Xinchi International Trade Co. Ltd.
Share on (1600677403733):
Product Overview
Description
Product Description
Product parameters
Model | S-ISOH-40-1 | S-ISOH-40-2 | S-ISOH-40-3 | S-ISOH-40-4 | S-ISOH-40-5 | ||||
Main loop parameters | |||||||||
Number of string | 1 | 2 | 3 | 4 | 5 | ||||
Max DC voltage | 1500V DC | ||||||||
Max DC current | 40A | ||||||||
Parameters | 1500V26A,1000V40A,600V40A | ||||||||
DC connector | MC4 | ||||||||
Control loop parameters | |||||||||
Power supply type | AC single phase | ||||||||
Nominal voltage | 230V AC | ||||||||
Operating voltage | 100-270 VAC | ||||||||
Nominal frequency | 50Hz | ||||||||
Operating frequency | 47-53 Hz | ||||||||
Nominal Current | 30 mA | ||||||||
Max current | 300 mA | ||||||||
AC connector | Plug-in | ||||||||
Product parameters | |||||||||
Protection degree | IP65 | ||||||||
Protection level | Class II | ||||||||
Certification | CE | ||||||||
Switch according to | EN 60947-3 | ||||||||
Number of operations | >10000 | ||||||||
N. of operations under load | >1500 | ||||||||
Operating temperature | -20℃~70℃ | ||||||||
Temperature sensor trigger | 70℃ | ||||||||
Warranty | 5 years | ||||||||

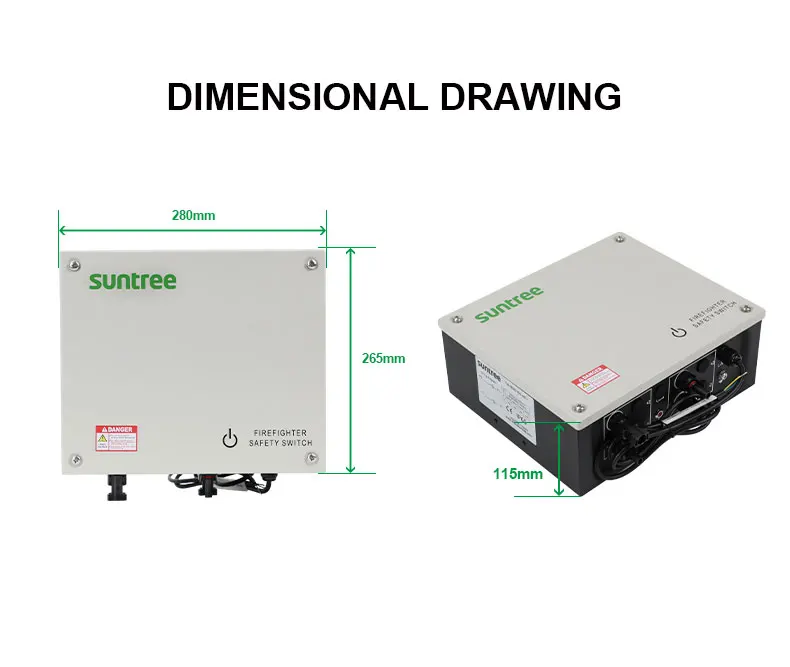

Dimensions(L*W*H) | 265*280*115 | 300*280*115 | 350*280*115 | 348*270*137 | |||||
Weight | 2950g | 3130g | 3440g | 3950g | 4700g | ||||
FEATURE
• 1~10 STRINGS AVAILABLE APP REMOTE CONTROL
• UP TO 40A
• 1~10 STRINGS AVAILABLE APP REMOTE CONTROL
• UP TO 40A
• SHUTDOWN FEEDBACK SIGNAL
• UP TO 1500V AUTO SHUTDOWN EXCEEDING 70 ℃
• CE CERTIFICATION
• UP TO 1500V AUTO SHUTDOWN EXCEEDING 70 ℃
• CE CERTIFICATION
•10000 MECHANICAL LIFE CYCLES

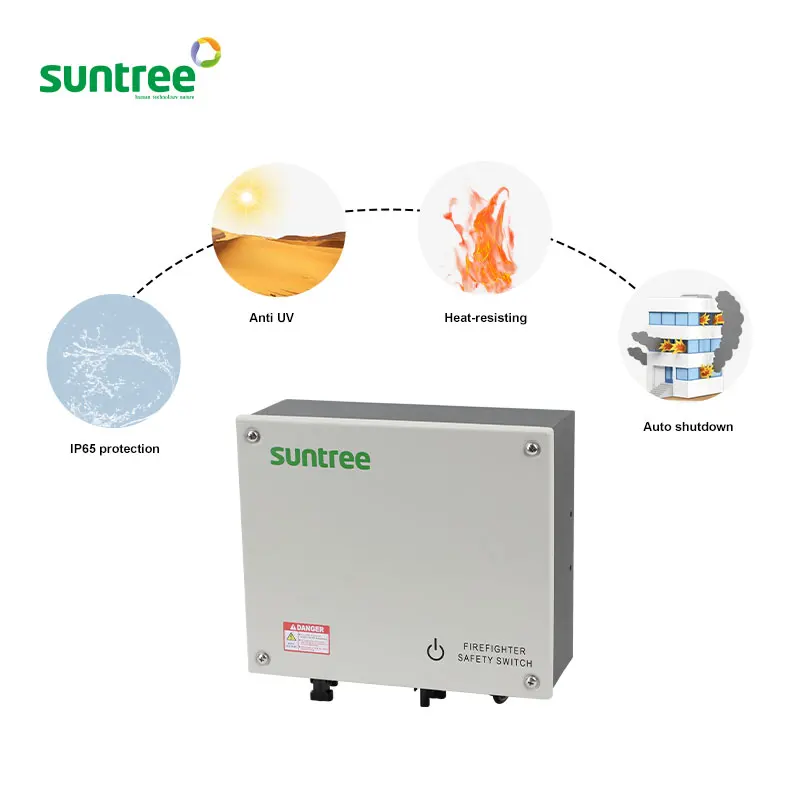

• IP65 PROTECTION & ANTI UV
• IP65 PROTECTION & ANTI UV
• LSOLATOR WITH CE,CB,TUV,SAA
