Low MOQ Equipment Leveling Feet Zinc Plated Swivel Adjustable Foot Machine M14 with Nylon Base Dia 100mm Bedroom Furniture
Low MOQ Equipment Leveling Feet Zinc Plated Swivel Adjustable Foot Machine M14 with Nylon Base Dia 100mm Bedroom Furniture
Low MOQ Equipment Leveling Feet Zinc Plated Swivel Adjustable Foot Machine M14 with Nylon Base Dia 100mm Bedroom Furniture
Low MOQ Equipment Leveling Feet Zinc Plated Swivel Adjustable Foot Machine M14 with Nylon Base Dia 100mm Bedroom Furniture
Low MOQ Equipment Leveling Feet Zinc Plated Swivel Adjustable Foot Machine M14 with Nylon Base Dia 100mm Bedroom Furniture
Low MOQ Equipment Leveling Feet Zinc Plated Swivel Adjustable Foot Machine M14 with Nylon Base Dia 100mm Bedroom Furniture
Low MOQ Equipment Leveling Feet Zinc Plated Swivel Adjustable Foot Machine M14 with Nylon Base Dia 100mm Bedroom Furniture

Low MOQ Equipment Leveling Feet Zinc Plated Swivel Adjustable Foot Machine M14 with Nylon Base Dia 100mm Bedroom Furniture

Share on (1600677449494):


Price:

Quantity:


Product Overview

Description





Low MOQ Equipment leveling feet zinc plated Swivel Adjustable Foot machine Leveling feet M14 with Nylon base dia 100mm

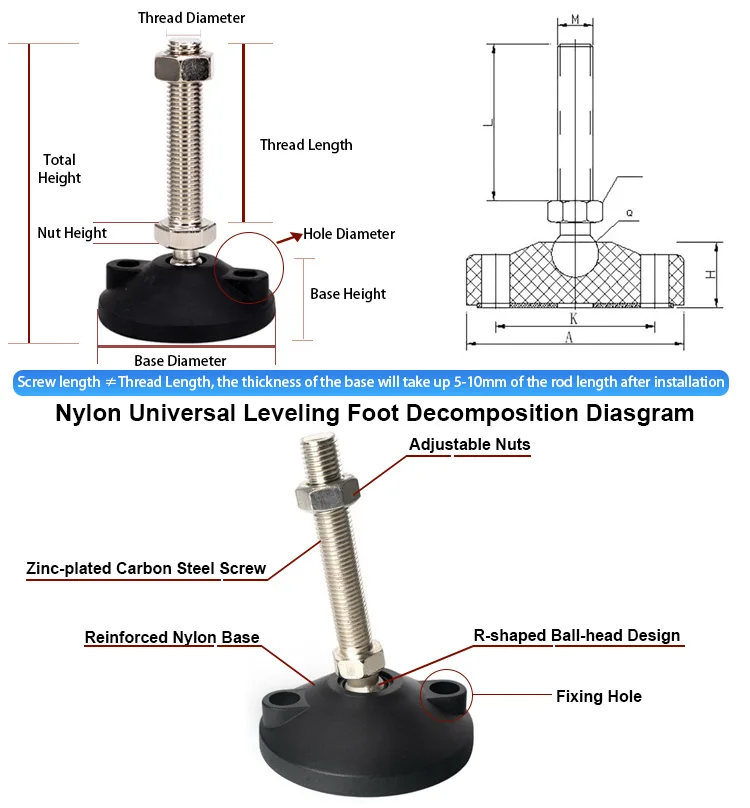

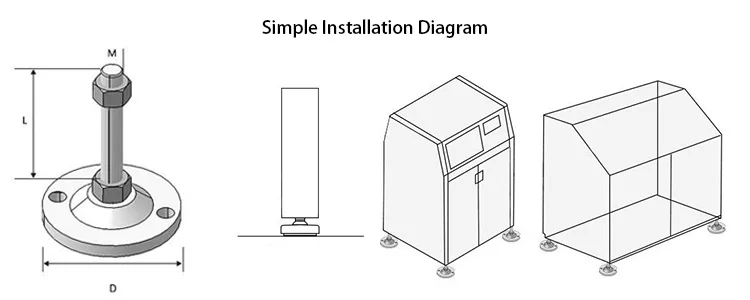

Product Paramenters





Model
Base Diameter
(mm)
A
Base
Height
(mm)
H
Thread Diameter
(mm)
M
Thread Length
(mm)
L
Nut
Height
(mm)
Max Load
KG
A100*M14*80









100









43-50

14
80

10









750-1200kg
A100*M14*100
100
A100*M16*50


16
50


11
A100*M16*100
100
A100*M16*150
150
A100*M16*200
200
A100*M20*100


20
100


14
A100*M20*150
150
A100*M20*200
200
A100*M24*100


24
100


17
A100*M24*150
150
A100*M24*200
200
The above data are manually measured, there is about ±5mm error，Please contact us if you have precise requirements for specifications and sizes
OEM is available，We can customize according to customer's requirements




Products Description


Product Name
Material
Base Material
Thread Material
Surface Treatment

Levelling Feet
ZINC

Nylon
Carbon Steel
Galvanizing process or other
Stainless Steel:304/201
Stainless Steel
/
Product Features
Fixed or Adjustable


Leveling Feet

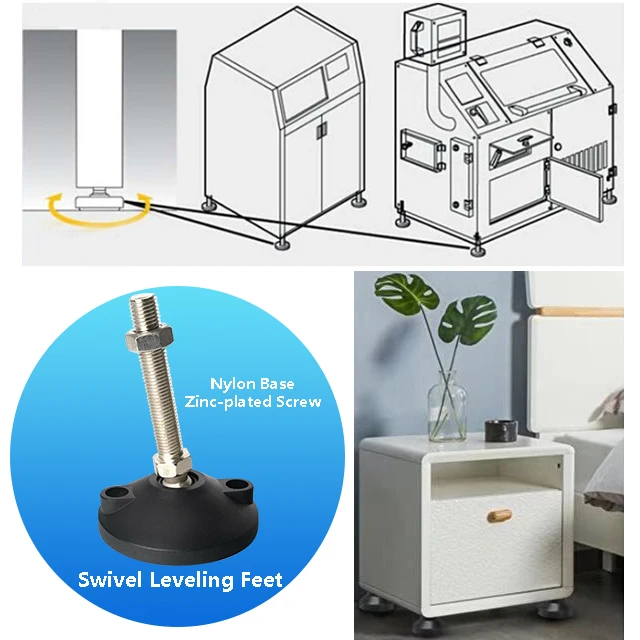

Foot cup, also known as a flat bottom machine foot or leveling feet is a component that uses threads for height adjustment. It is used to adjust the height, level and tilt of the equipment.
In addition, the foot cups also include galvanized foot plates,stainless steel adjustment feet, nylon foot cups, shock absorbing feet, etc.

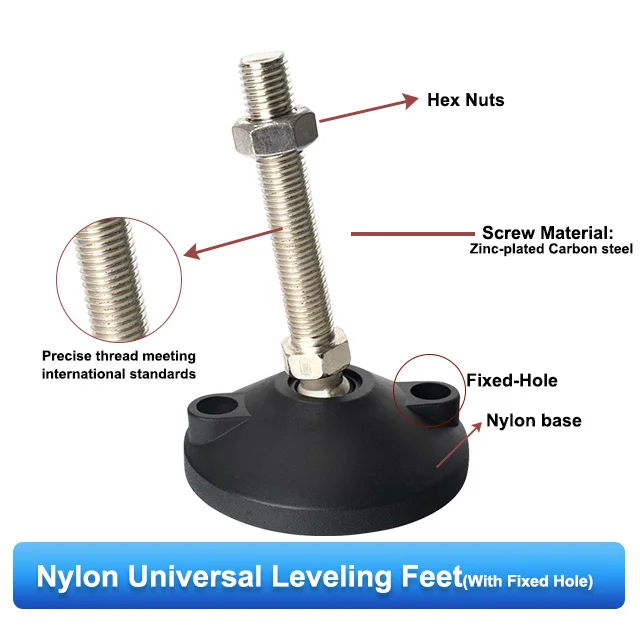

Material: base selected reinforced nylon (PA6), screw selected carbon steel (Q235) or stainless steel 304/316/201，screw surface treatment galvanized (optional nickel / chrome, etc.)

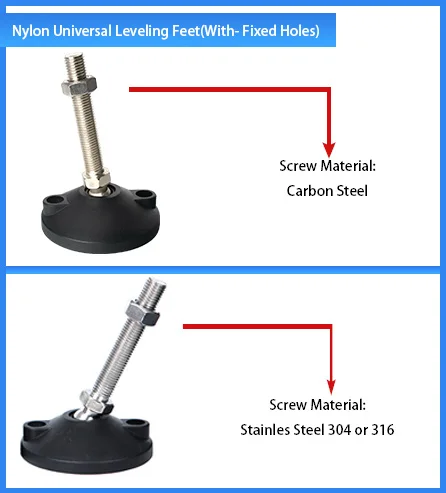

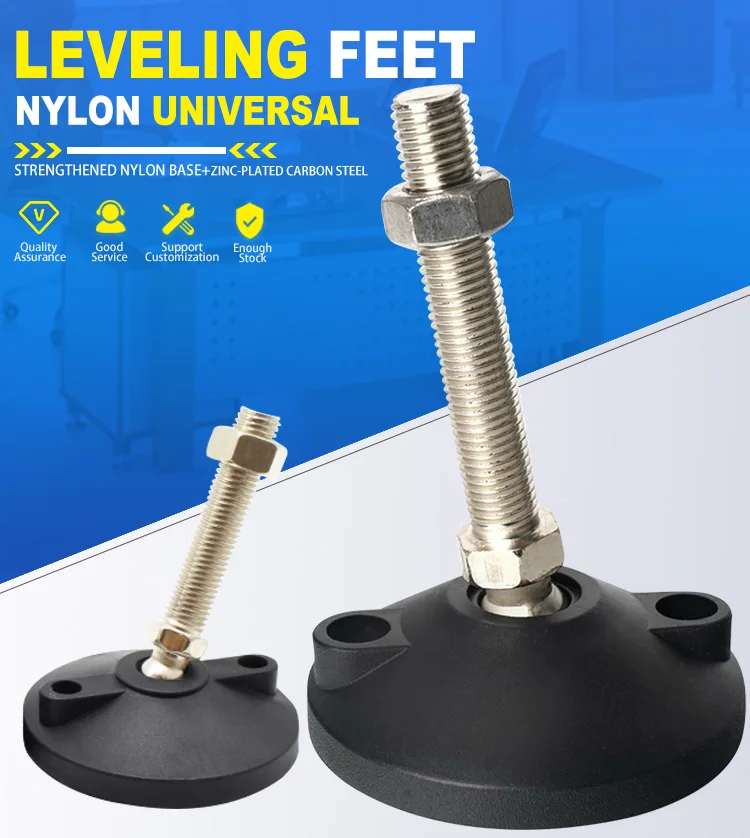

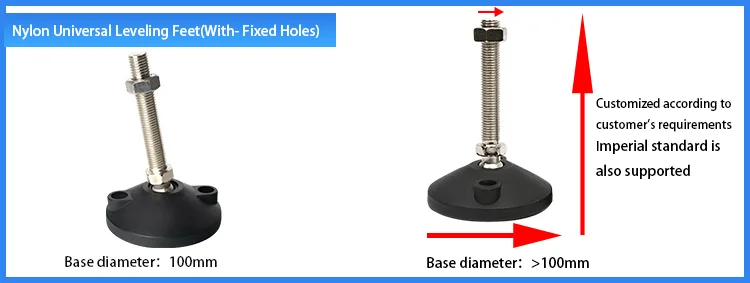

Nylon Universal Leveling Feet
1.screw material in addition to carbon steel, stainless steel 304 or 316 is OK
2.Except for the dimensions in the table, the other lengths of the screw can be customized
3.thread diameter can be done in imperial standard

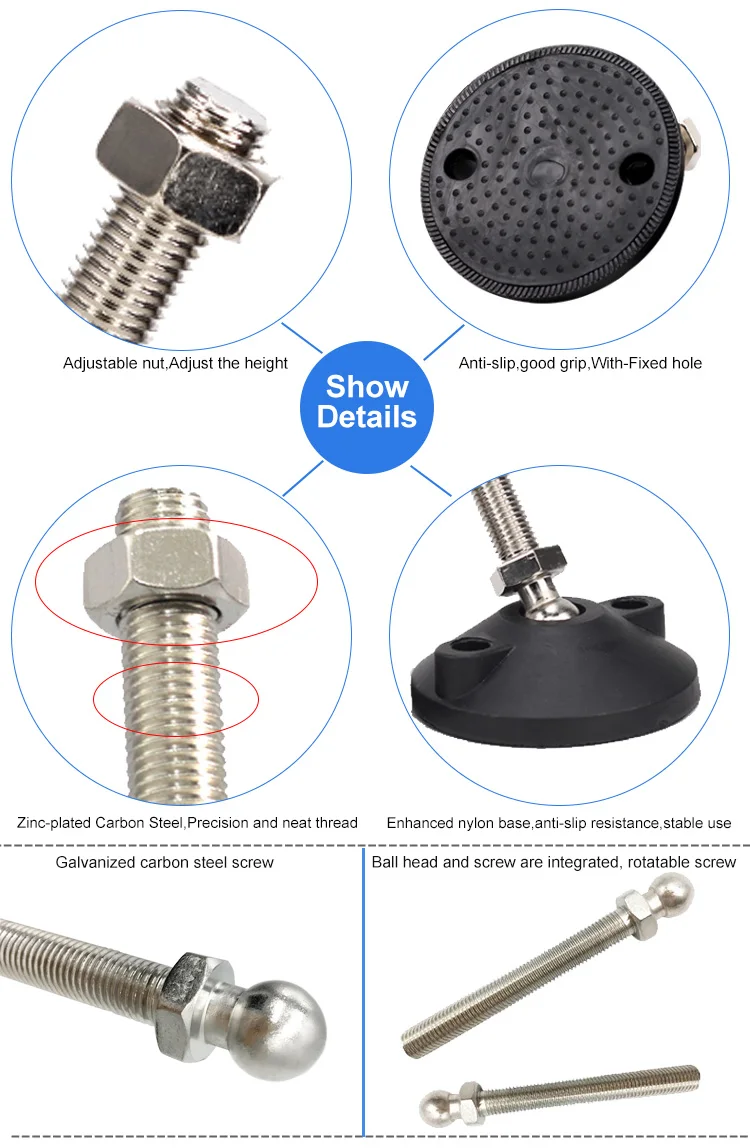

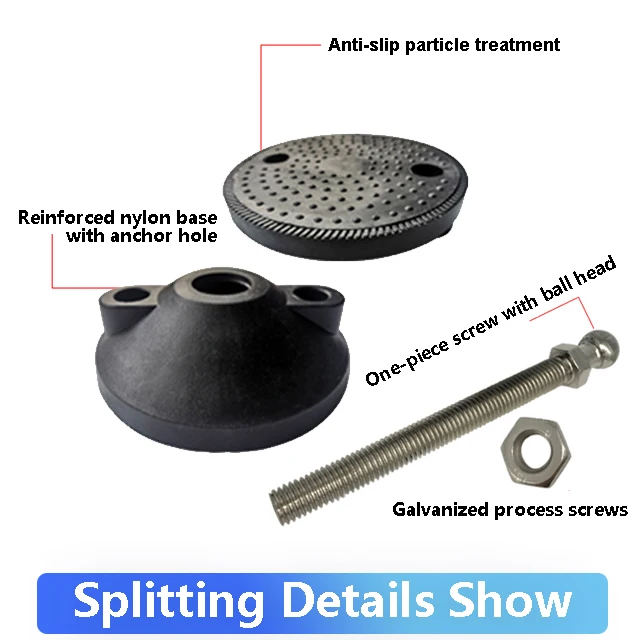

4.Product advantage: the bottom material is enhanced 15 hardness nylon, shock absorption and wear resistance, the bottom with rubber pads, to further strengthen the product anti-slip ability
5.The screw is connected between the ball and the base, which can be turned in a universal range to keep the equipment parallel on the unbalanced ground.

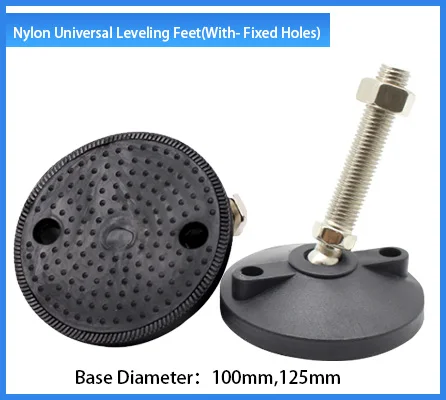

6.The base of the product is with positioning hole, which can support the equipment and improve the load-bearing capacity of the adjustment foot

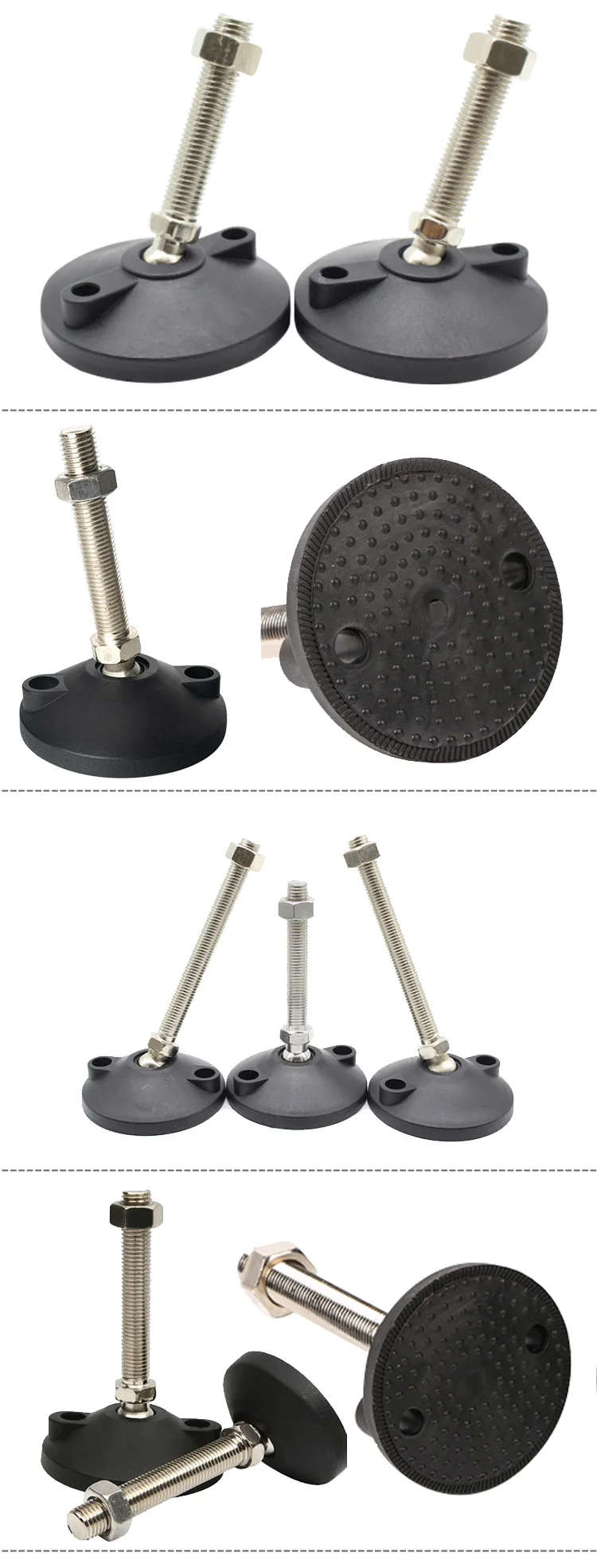

Details Images








Applications


Field of application of leveling feet
Our company products are widely used in general equipment,automobile, building, communication, electron, energy, printing machinery, textile machinery, packaging machinery, medical equipment, petroleum and petrochemical equipment,electrical home appliances and furniture, apparatus, machine tools, conveyor systems, and heavy industry in general,etc.


Company Profile


Wuxi Laojiu Hardware Electromechanical Co., Ltd
Wuxi Laojiu Hardware Electromechanical Co., Ltd. was established in 2005, combining R&D,foreign trade and professional service of fasteners as an organic whole.We have established a good image in the fastener producing and marketing field, well received by consumers.
We specialize in manufacturing all kinds of Leveling Mounts, Leveling Feet,Adjustable feet,Adjustable foot,Machine feet,Threaded Tube Ends and Inserts,Plum handle screw, adjustable handle lever,Pull Handle,all kinds of screws, nuts, bolts, washers, spring,rivet, anchor and CNC parts which sell well in Japan, the USA and the EU.
Our company are located in WUXI, Jiangsu Province, China ,where both the air and sea transportation are very convenient.We have our own factory,our company has strong production capacity and enough stock,sells professional standard fasteners.Our products accord with the international quality system, such as ANSI and BS. Our company offers high quality professional fasteners for industrial fields.
Our company products are widely used in automobile, building, communication, electron, energy, electrical home appliances and furniture, apparatus, machine tools, conveyor systems, and heavy industry in general,etc.Our materials are carbon steel, stainless steel, and reinforced nylon. We own advanced equipment and production lines and have a group of professional technicians. We also have attained ISO9001:2000 certification.
Welcome to consult, negotiate and order all series fastener from businessman in all countries, we will provide all –directions “one- stop purchase completely” service for you


Recommend Products




Product packaging




Package and Shipping
Shipping
1. Shipping Term: EXW,FCA,FOB, CIF, C&F, DDU,DDP..
2. Less than 50kg, you could choose international express, such as DHL, UPS, FedEx,TNT or EMS. (door to door, so convenient).Train(cheapest, 22-35 days, door to door, tax included).
3. From 50kg to 200kg, you could choose to send by air. (fast and safe, but expensive)
4. More than 200kg, you may consider to send by sea. (cheapest, but long transit time)
5. We can also deliver as client’s requirment
6. Nearest Port: Shanghai Port
7. We will suggest the most economical way for you according to your products.


FAQ


Q: How long is your delivery time?
A: We have large stock, 3 days for stock items,7-15days for production.
Q: Do you provide samples? Is it free or need extra fees ?
A: Yes, we could offer free samples for the items in stock,we can send you 4 or 5 pcs free samples for quality test.just need to pay shipping cost. Mold fee is necessary for customized item.
Q:Can we start with a small quantity as the trial order?
A:Yes, Trial order is welcome.
Q: What is your terms of payment ?
A:50% in advance ,50% before delivery.100% in advance if less than USD5000.
Q: What's your price terms ?
A: EXW/FOB/CIF/CFR/FCA/CPT/CIP/DAP/DDP
Q: What's your product range?
A: Our product range includes leveling feet,Plum handle screw,adjustable handle lever,Pull Handle,all kinds of screws, nuts, bolts, washers, spring,rivet, anchor and CNC parts.
Q: Are you trading company or manufacturer ?
A: We are manufacturer. If you have more questions, please feel free to contact us. We are glad at your service.
