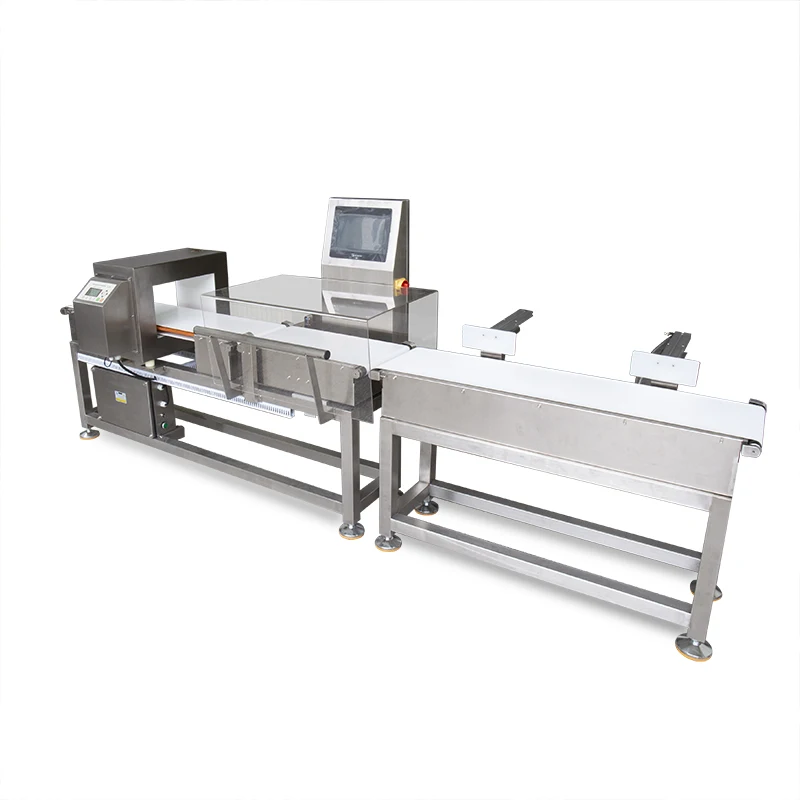

Juzheng Commodity Production Electronic Check Weigher and Metal Detector Combination
- Category: Weighing Scales >>>
- Supplier: Dongguan,Juzheng,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Juzheng Commodity Production Electronic Check Weigher and Metal Detector Combination
Introduction:
The Dynamic Checkweighing System is a method of safe guarding within the food and packaging industries for product weights. The automatic checkweighers are widely used for checking the weight of filled pack in motion, rejecting any products that are over or under the set weight. Thus helps the manufacturer to keep the track of production line, eliminate the complaints from the market and protect the brand reputation.
Juzheng is having the wide range of checkweigher systems. The maximum weighing capacity ranging from 1g to 100Kg for packs such as small hardware or tea bag to shipper cartons. Our engineering team can customized the weighing machine depend on the product weight, pack size and the production capacity. Besides, Juzheng's checkweighers can be used with metal detectors and X-ray inspection machines to enable other attributes of the pack to be checked and acted upon accordingly.
Product information
Product Features:
1. High Accuracy: Maximum accuracy ± 0.03g.
2. Fast speed: Maximum speed for Stand machine 150 pieces/minute and 200 pieces/minute for customized machine.
3. Good Service: Customized order is acceptable for us.
4. Long Warranty: 18 months warranty policy.
5. Brand Safeguard: Low material loss, labor cost saving and protect your brand's reputation.
WHAT THE SPECIFICATIONS OF MACHINE?
Model | XR-130mm | XR-220mm | XR-300mm | XR- 400mm | XR- 500mm | 600mm | XR- 700mm | XR- 800mm | XR- 1000mm |
Single Weighing range(g) | ≤ 300 | ≤ 5,000 | ≤20,000 | ≤50,000 | ≤100,000 | ≤100,000 | ≤200,000 | ≤200,000 | ≤200,0000 |
Accuracy(g) | ±0.07 -±0.3 | ±0.2 -±5 | ±0.3 -±15 | ±0.5 -±20 | ±1-±20 | ±1-±30 | ±5-±50 | ±5-±100 | ±5-±200 |
Max speed (pcs/min) | 120 | 150 | 100 | 60 | 50 | 50 | 40 | 40 | 40 |
Conveyor speed(m/min) | 20-80 | 30-90 | 30-90 | 30-80 | 25-80 | 25-80 | 20-50 | 15-50 | 15-25 |
Conveyor belt width(mm) | 130 | 220 | 300 | 400 | 500 | 600 | 700 | 800 | 1000 |
Display resolution(g) | 0.01/ 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
Conveyor direction | (Operator face to the operation panel): from left to right (Can be customized) | ||||||||
Power | AC220V±10%50HZ(60HZ) | ||||||||
Operation Panel | 10'' Touchable Screen | ||||||||
Language | English / Chinese/ Vietnamese | ||||||||
MS weighing scale module | JZXR-80TL | ||||||||
Weighing sensor | ZEMIC/HBM/Mettler Toledo | ||||||||
Motor | German JSCC | ||||||||
Conveyor belt | White PU Food-grade belt with SGS certificate | ||||||||
Working Environment | 0℃~40℃ | ||||||||
Material | SUS304 | ||||||||
Rejector | Air jet/Pusher/Drop Down/Diverter | ||||||||
Humidity | 90%Relative humidity(without condensate) | ||||||||
WHAT THE DRAWINGS OF OUR MACHINE?
Remark:
To ensure that we will provide the correct and qualified machine, we will offer machine drawings for client’s approval when order confirmed and before production.

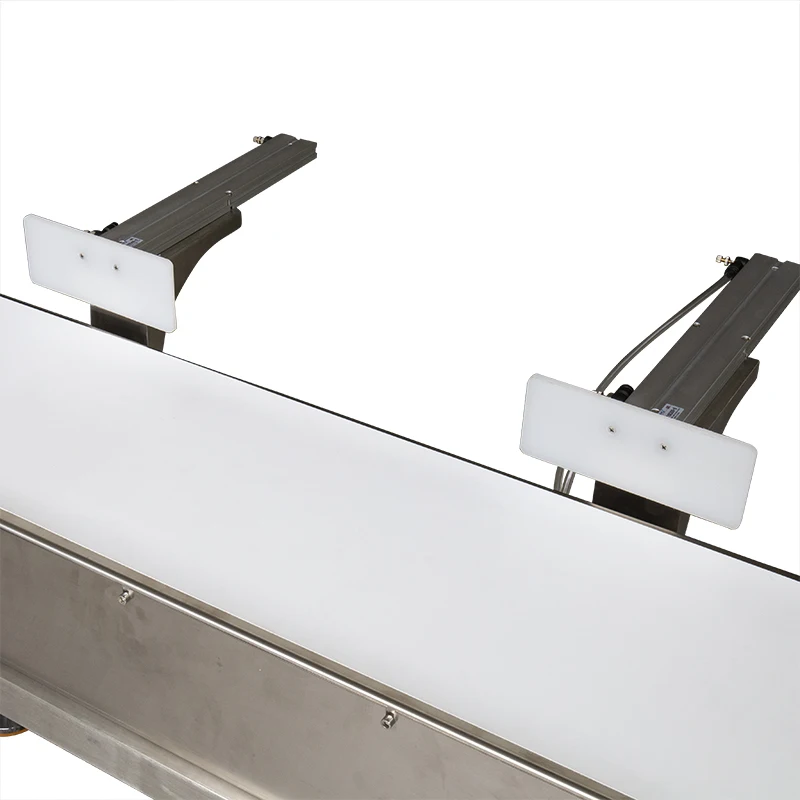

Detailed Images
WHAT ARE THE PRODUCT DETAILS?

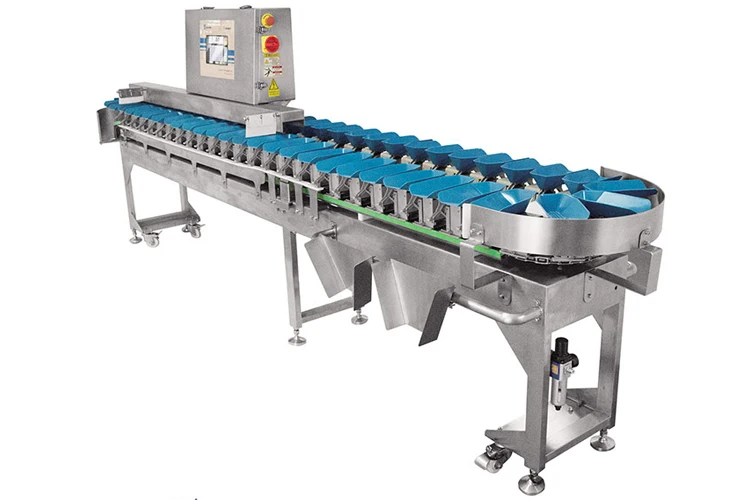

Related Products
“Click Above Photo”to get free customized solution!
WHAT ARE OUR SERVICE PROCESS?
Pre-sales Services:
1. Collecting customer’s product information and requirement.
2. Providing solution and offer for customer’s review 12 Hours after information colletion.
3. Hundreds of service cases and videos will help our customer to understand our machine better.
Kindly reminder:
Please provide below information when you send inquiry, so that we can quickily provide the precise feedback and the suitable solution for you.
- Product details (Product Name, Min./Max. Dimension & Weight )
- Package details (Packaging Material, Dimension, Shape)
- Capacity and inspection accuracy requirement
- Other special requirements
In-sale service:
4. Sending the machine drawings for customer’s approval before mass production.
5. Following up each production process to make sure on-time delivery.
6. Sending the machine inspection video for customer’s approval before delivery.
7.Working with forwarder for the shipping and keep the customer updated on ETD & ETA.
After-sales service:
8. Manules / Videos of machine installation, adjusting, setting, maintenance are available for our customers.
Online after-sales service:
9. We will give response in 4 hours in case of machine failure, solutions will be offered in 24 hours via whatsapp,wechat and facebook. What’s more, our engineer team can speak English, which can communicate more effective.
Onsite after-sales service:
10.If there is a need,we can arrange our engineer to your place for technical support.
Main spares replacement :
11.We store main spare parts at our warehouse,if need to change the accessories, you can receive it easily around 5-7 days by courier.
12. We provide 18 months warranty policy for our machines.
