Нижние уплотнения двери YDB108, дизайн австралийского стандарта
- Category: Other Door & Window Accessories >>>
- Supplier: Wenzhou,Yongtai,Electric,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

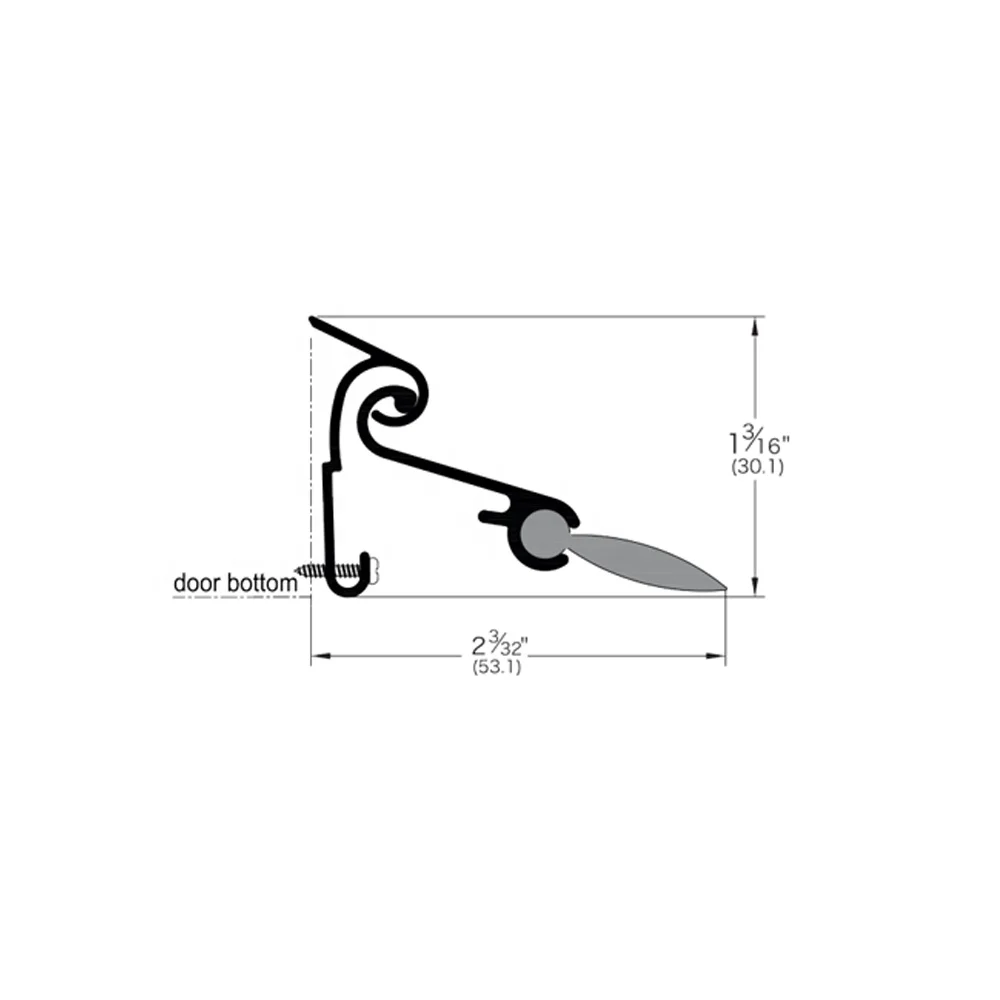

A cam activated, lifting action, automatic door bottom seal. It is quick and easy to install without cutting or removing the door and uses concealed fasteners. This product is Australian Design. Ideal for residential and light commercial applications such as motels and retirement villages.
Can be used in conjunction with YOTI threshold plates.
Material | Aluminum |
Finish | Mill Finish/Clear Anodized/Dark Bronze Anodized |
Location | Bottom of single inward opening butt hinged doors |
Seal Type | Vinyl Rubber Seal |
Fixing | Screw fix. Zinc plated, cross recess head S.T. screws supplied. Fixing holes are pre-slotted |
Min/Max Gap | 3mm to 16mm |
Minimum Door Thickness | 1-3/4"(44.45mm) |
Functions | Blocking penetration by: Sound,Air,Smoke,Flames |
Length | 915mm and 1220mm maximum (between door stops) |
Accessories | Screws are provided |
