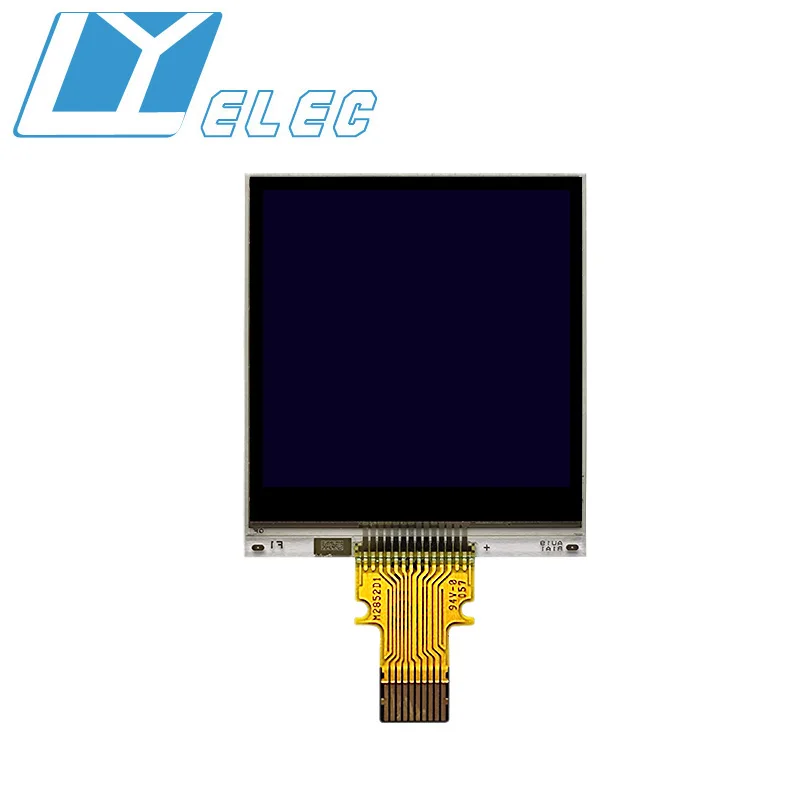

Sharp LS013B7DH03 1.33 inch 128x128 10Pin SPI Interface Reflective TFT LCD Display Panel Mono LCD Display


Item
Contents
Model Number
LS013B7DH03
Screen Size
1.33"
Resolution
128x128

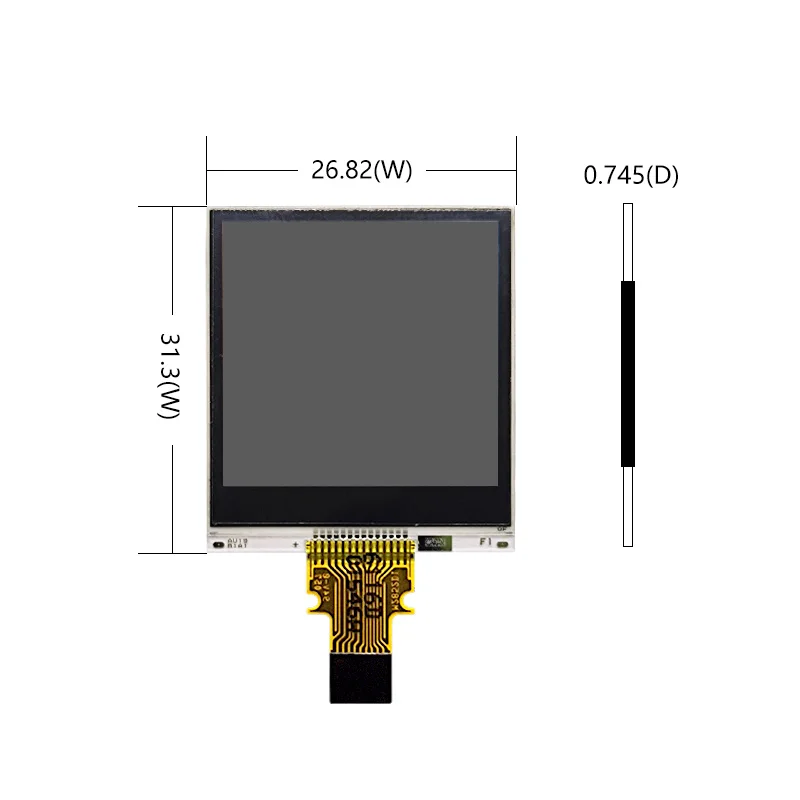

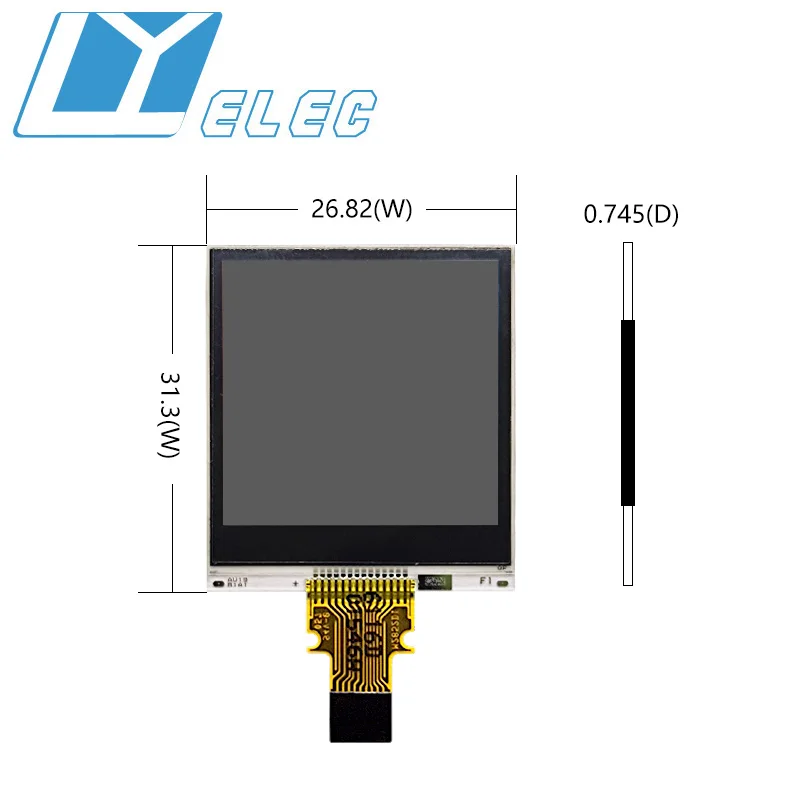

Active Area
26.82x31.3x0.745mm
Dot Pitch
0.062x0.186mm
Module Size
26.6x30.3x0.741mm
Interface
SPI
Number of Pin
10Pin Connection
Operating Temperature
-20~70℃


Details Images

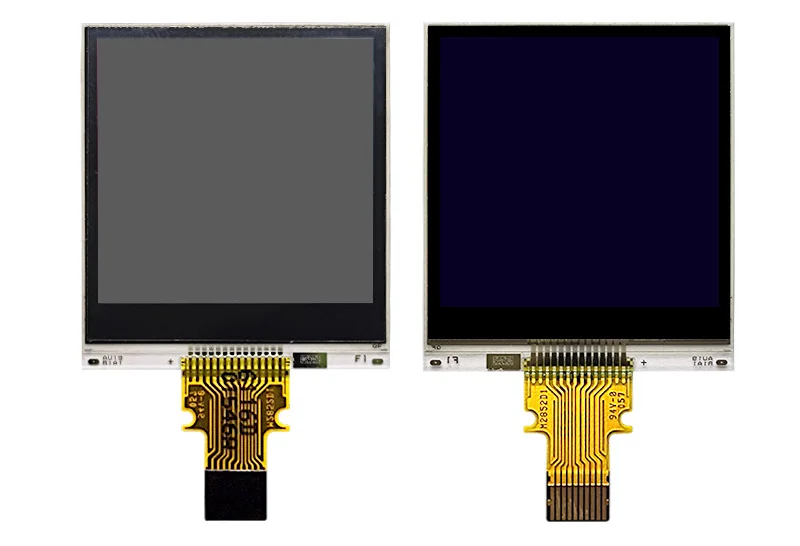

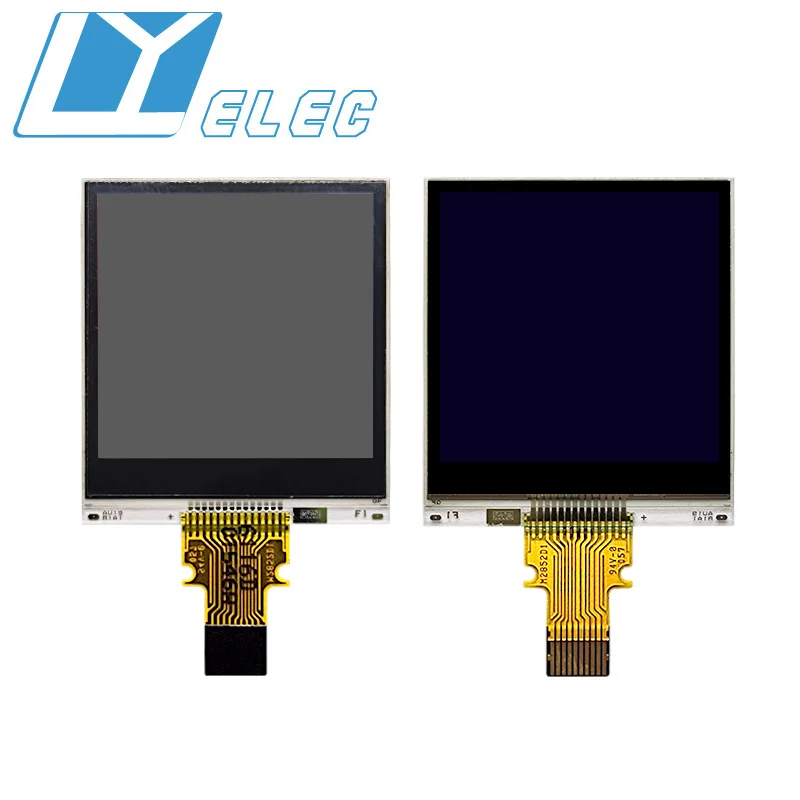

Product Overviews

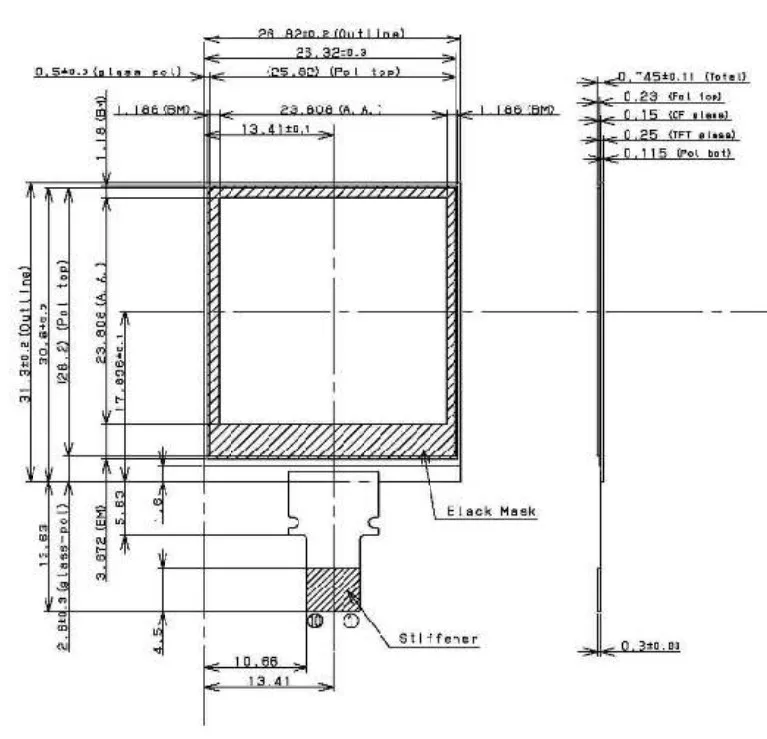

Mechanical Drawing

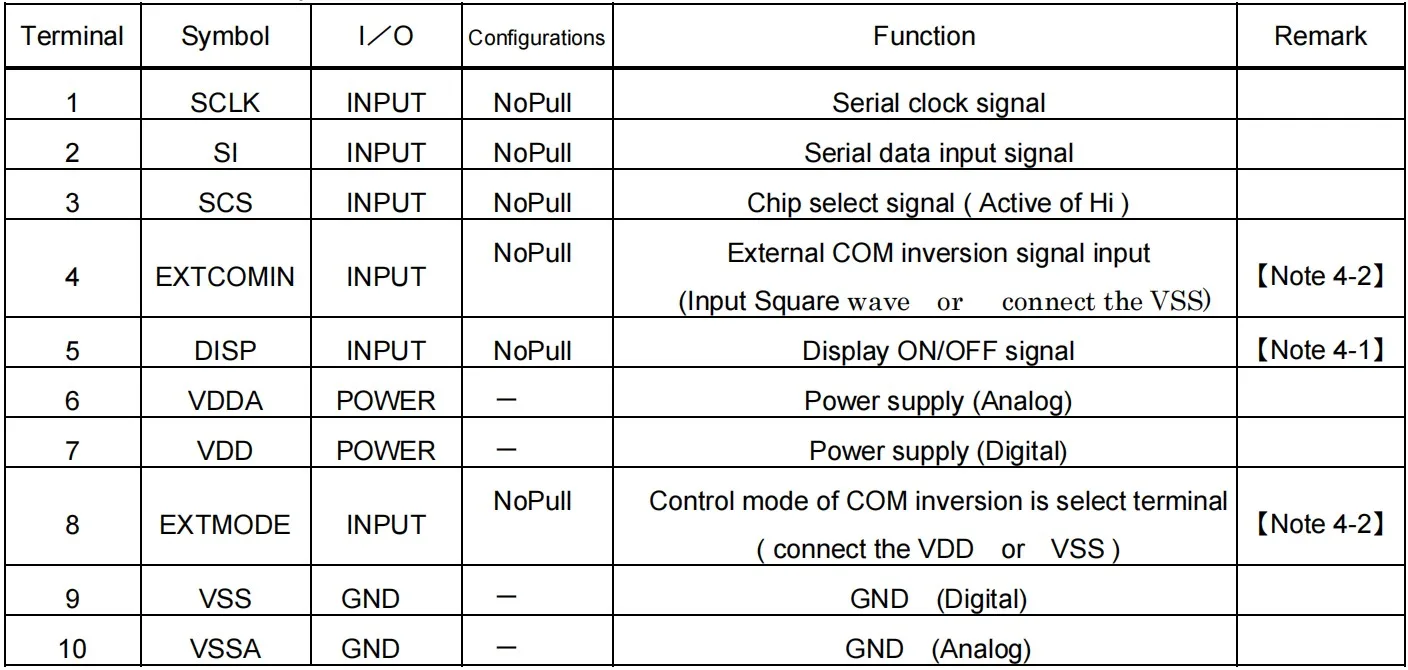

Pin Definition
