Smooth Pixel Addressable Led strip WS2811 IC White DC24V 10mm 12W/m Water Flow Cob Led Strip For Corridor
- Category: >>>
- Supplier: Shenzhen M-Lighting Technology Co. Ltd.
Share on (1600677666010):
Product Overview
Description
Product Description

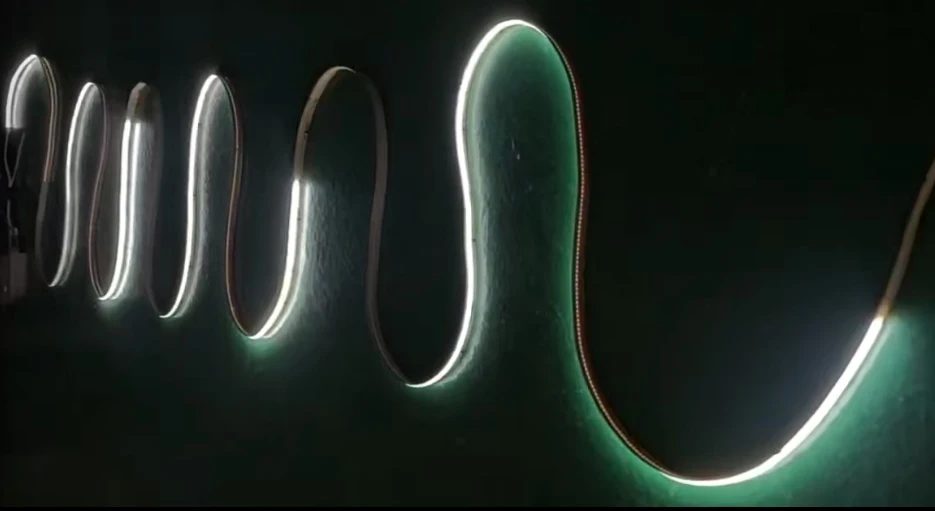

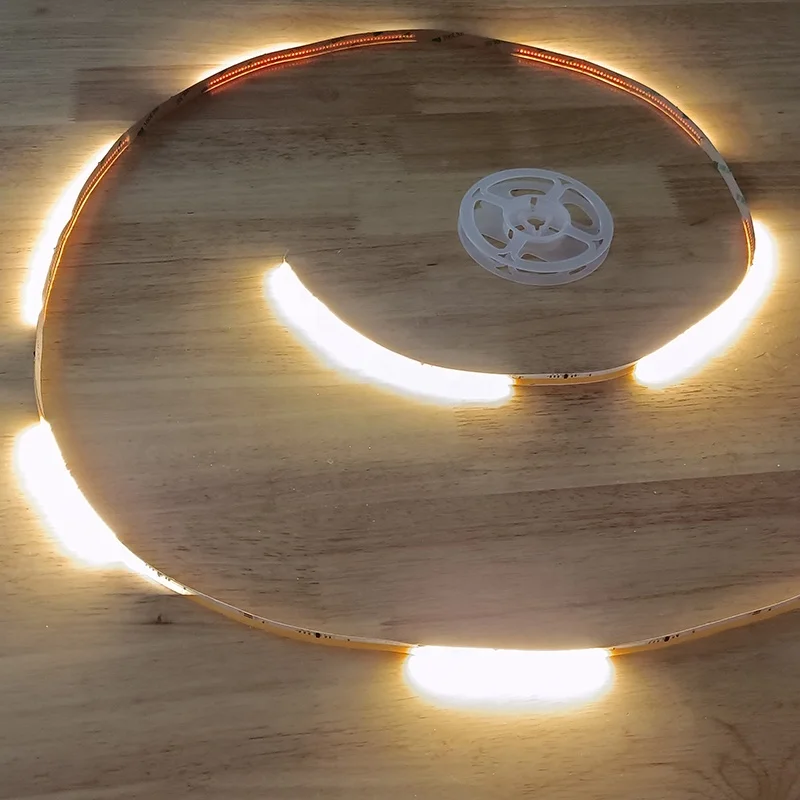

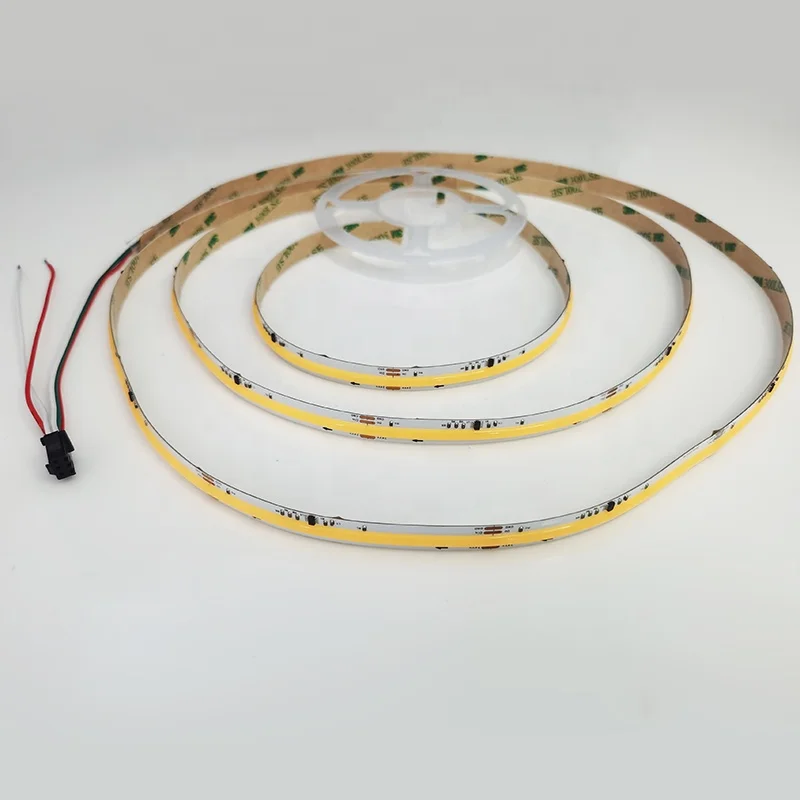

Water Flowing COB led strip

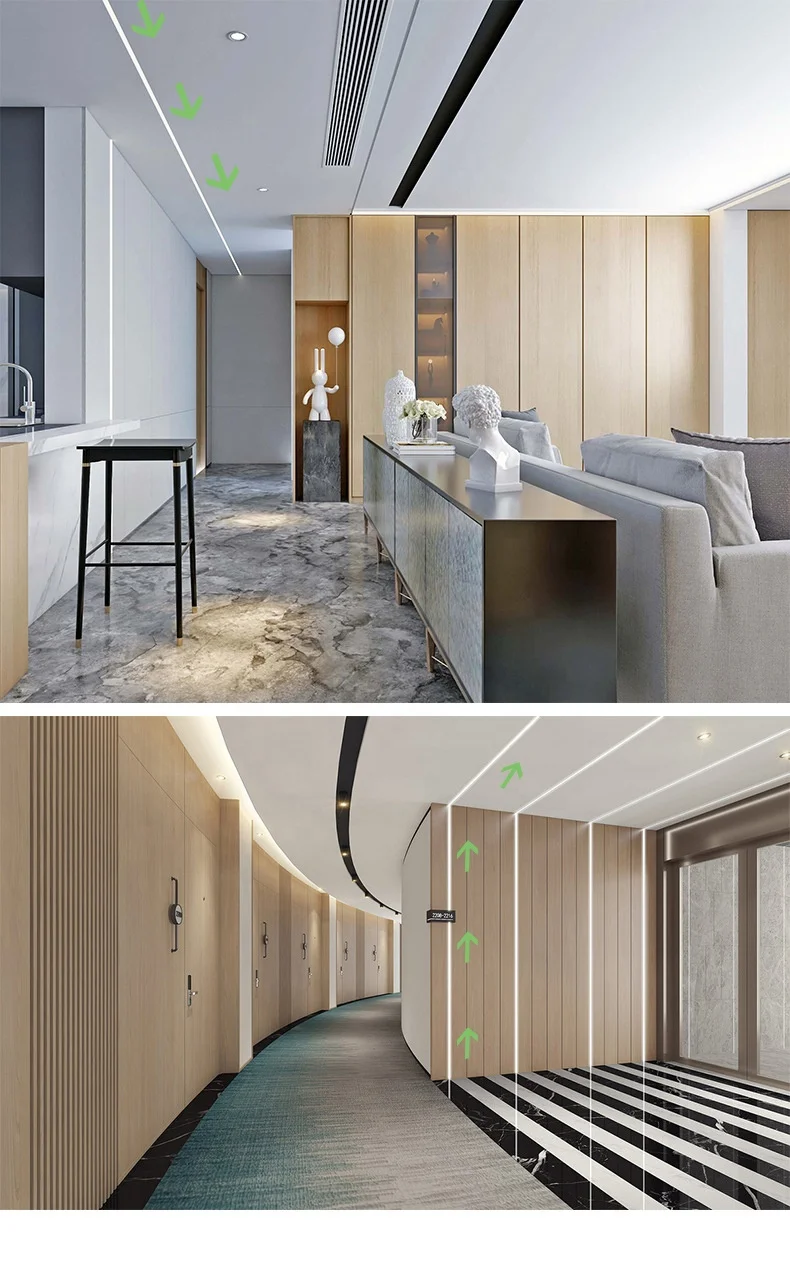

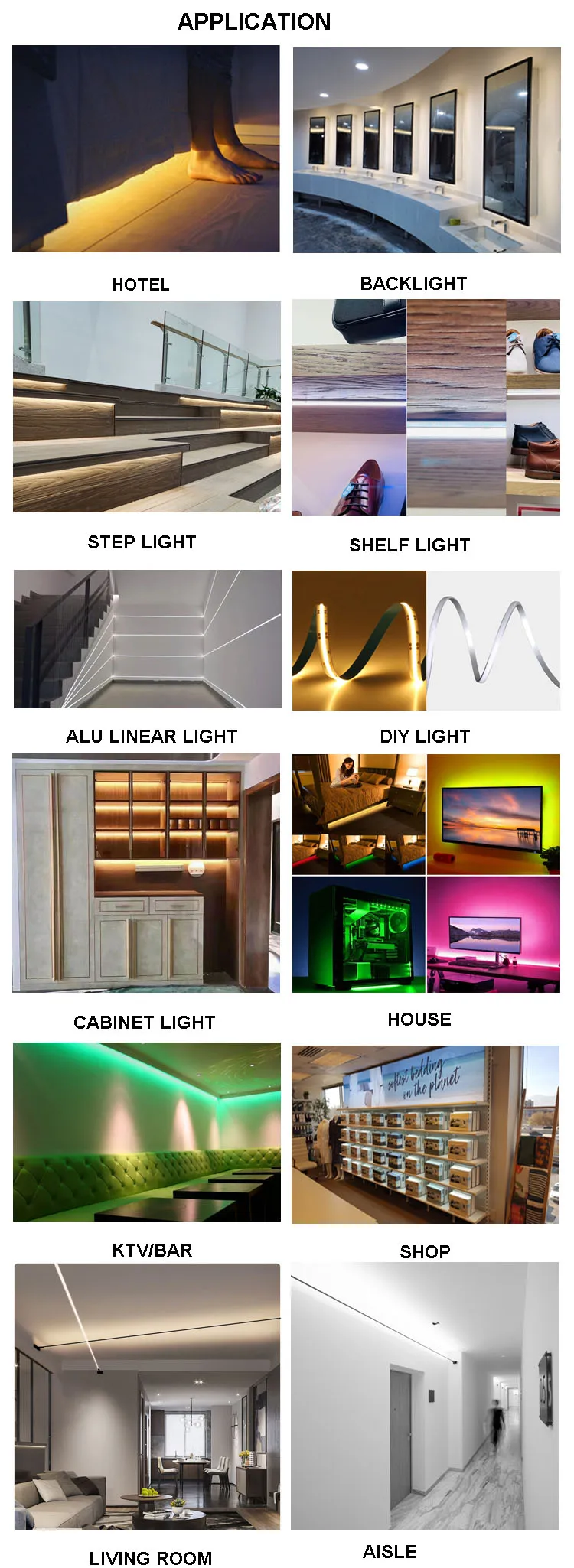

This cob led strip adopted the WS2811 IC to realize danymic visual effect. Combined with the cob technology, it can provide a good smooth danymic looking effect for room,corridor, shop, office...etc.

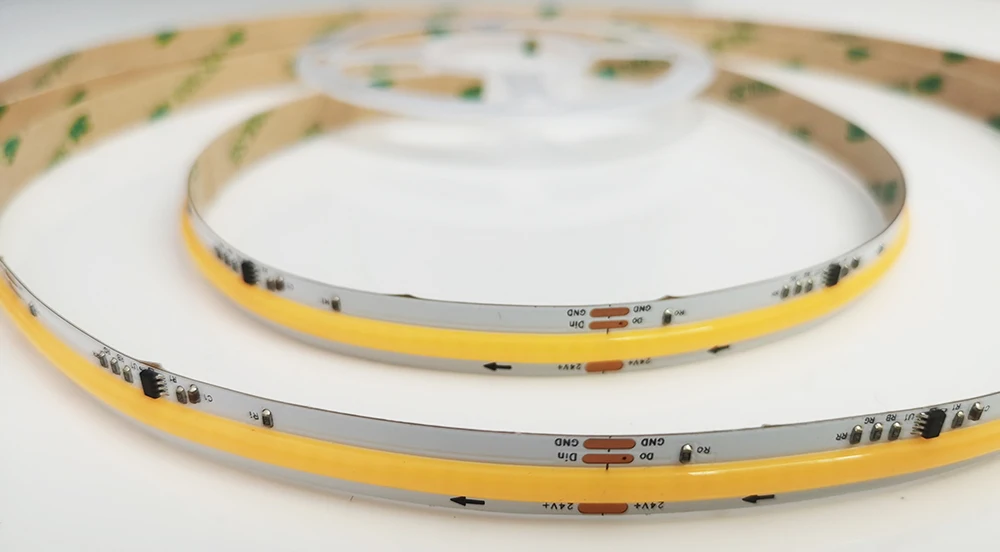

Flexible COB LED strip, also called FOB LED Strip, It took the flip chip technical to die-bond the chip directly on the FPC board and then cover it by phosphor & silicone gel.
Compare with traditional SMD led strip, there are several main advantage for COB led strip:
1) Smooth light(no light dots) and bigger view angle(180 degree)
2)The filip-chip could be die-bond on the FPC directly which makes the strips more flexible and with better heat radiation.
3) For the Filip-chip the electrical connection is surface(not point as normal-chip), it can stand higher current impact. And it can stand higher pushing force(2000g compare to 10g).

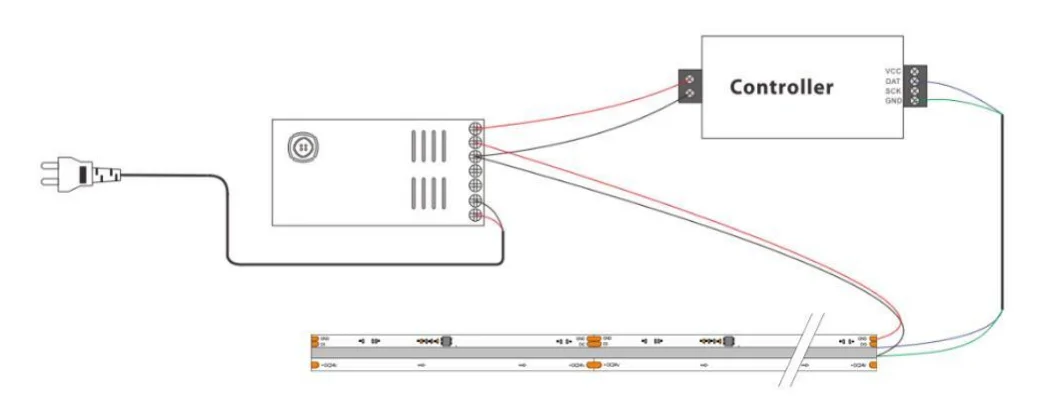

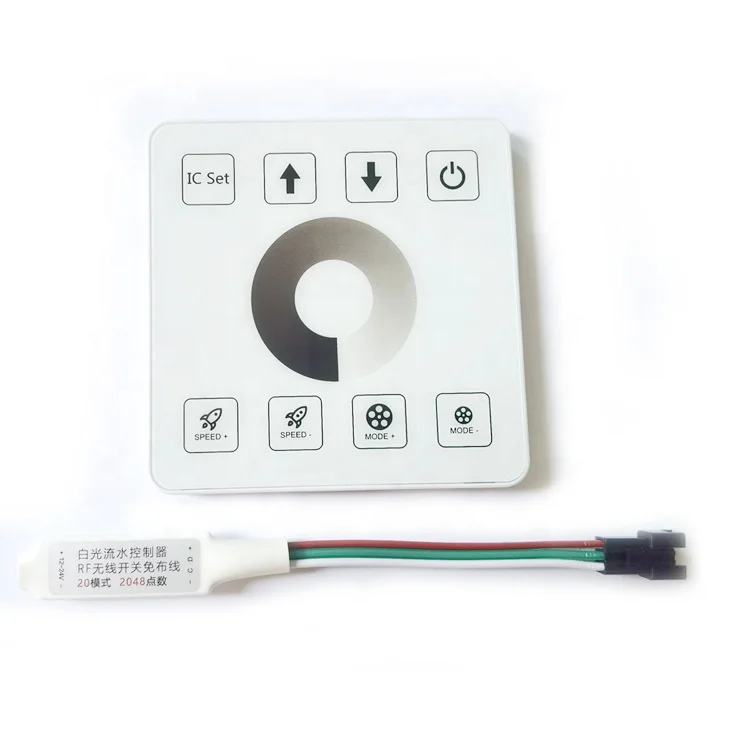

SPI Controller
1024 pixels,could be installed nearby the door.
SPI Amplifier
To provide 4 strips simultaneously and can be used as a distract controller for following connection.
Specification
Item No. | LR8004 |
LED Qty(pcs/m) | 360 |
Voltage | DC12V/24V |
Power(w/m) | 12(Max) |
Emitted Colors | 3000K/4000K/6000K(for other colors please advise) |
Cutting Size | 83mm |
CRI | >90Ra |
CCT | 2700K/3000K/4000K/6500K |
PCB width | 10mm |
IP Rank | IP20/IP65/IP67/IP68 |
Beam Angle | 180° |
Certification | CE/RoHS |
Brightness(lm/m) | 1200 |
Packing & Delivery
5m Rolled with plastic shell and then in anti Static Bag
By DHL,Fedex,UPS,TNT | 4~7days | Fast |
Standard shipment | 10~15days | Economical |
By air | 7~14days | For goods above 100kgs |
By sea | Above 20days | For bulk shipment |
Company Profile
Shenzhen M-Lighting Co. Ltd i a high-tech enterprise, founded in 2008, which is professionally engaged in researching, developing and manufacturing energy saving products, mainly specialize in led lighting products. The factory is located in ShenZhen City of Guangdong province (factory area about 3,000sqm) which started the production since 2008. We cooperated assisting with many overseas importers and manufacturers to increase their market shares.
FAQ
Q1 How about your product's quality A: We use the big chip which is different with the cheap small chip, to make sure good quality.
Q2: Can I take samples?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q3. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q6: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FEDEX, TNT (3-7 working days), air or sea
