Pressure Transducer Companies Melt Pressure Transducers
US $598.00-$629.00
various media air water oil piezoelectric pressure sensor for general industrial control field
- Category: Pressure Sensors >>>
- Supplier: Shanghai,Zhaohui,Pressure,Apparatus,Co.,Ltd.
Share on:
Product Overview
Description
Product Information
Details Images
Product Specification

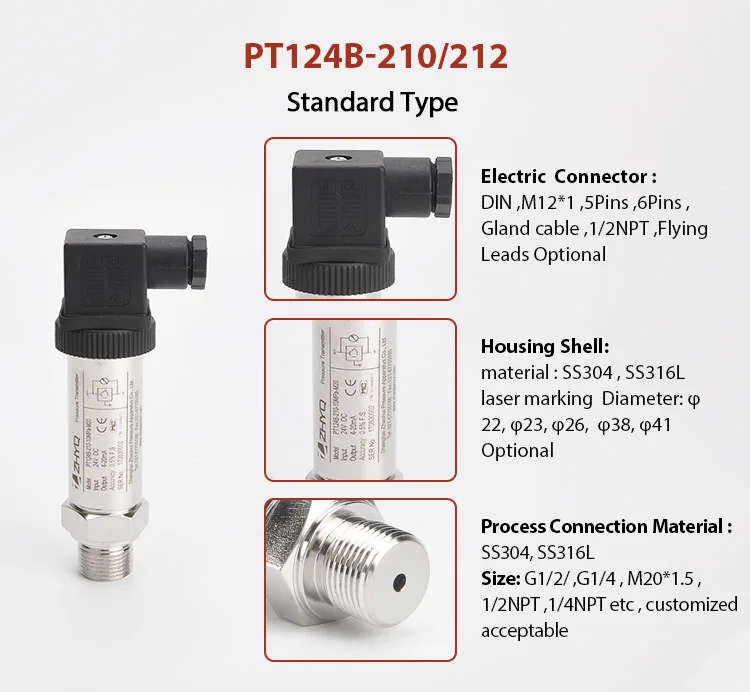

Model | PT124B-210 China Silicon Chip Water Pipe Pressure Sensor |
Pressure range | 0~50bar~1000bar |
Over load | 150%FS |
Burst pressure | 300%FS |
Output | 4-20mA, 1-5V/0-5V, 0-10V |
Power supply | 12~36VDC |
Response time | <5ms |
Combine error | 0.5%FSO; 0.25%FS (Including Linearity, Repeatability & Hysteresis) |
Repeatability | ≤ +/- 0.2%FSO |
Long term stability | ≤ +/-0.2%FS/year |
Pressure connection | M20×1.5,G1/2,G1/4,1/2NPT ( customer tailor ) |
Operating temperature | -20 ℃ ~ 80 ℃ |
Temperature compensation | 0℃ ~ 60℃ |

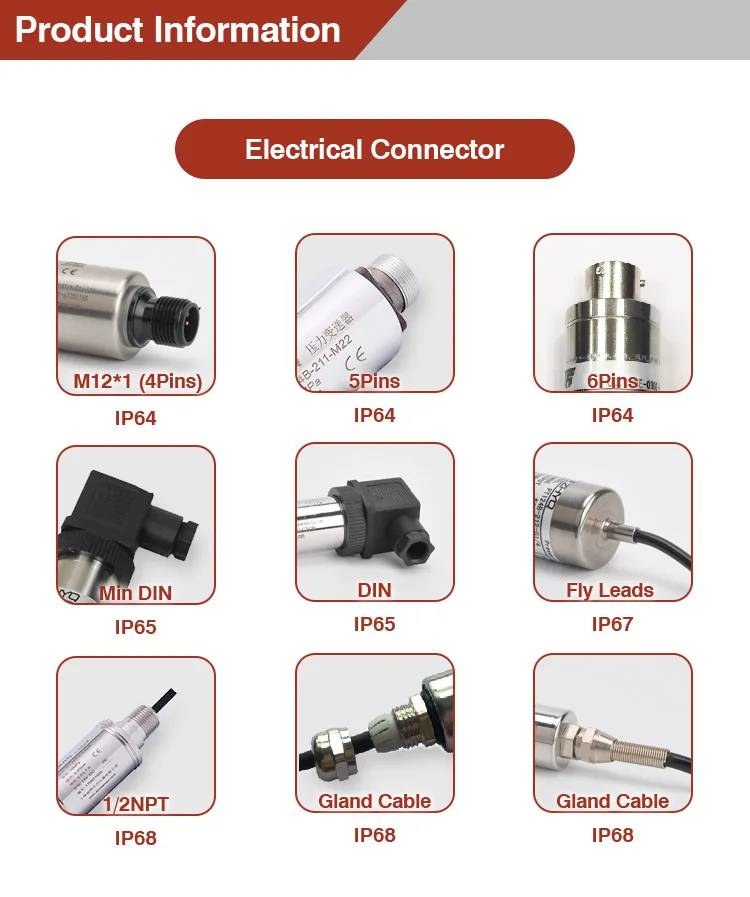

Electrical connector | Bendix connector,Hirschman DIN4365 and Gland lead |
Drawing
Wiring Code
Production Process

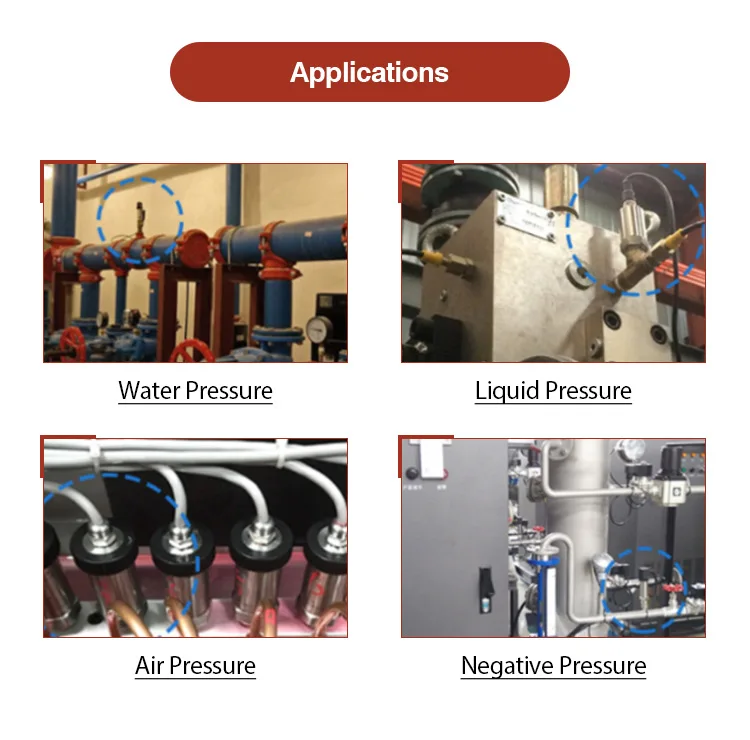

Application
Promotions
Company Profile
FAQ
Q1. What is your terms of packing?
A: Generally, ZHYQ brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.
Q2. What is your trade terms & payment terms can you accept?
A: Trade terms: EXW, FOB, CFR, CIF for your convenient
Payment terms: 100% T/T or credit card or paypal advance before shipment.
Q3. Will you supply the free sample?
A: Yes, buyer only need to pay the courier cost.
Q4. How do you ensure good product quality?
A: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
