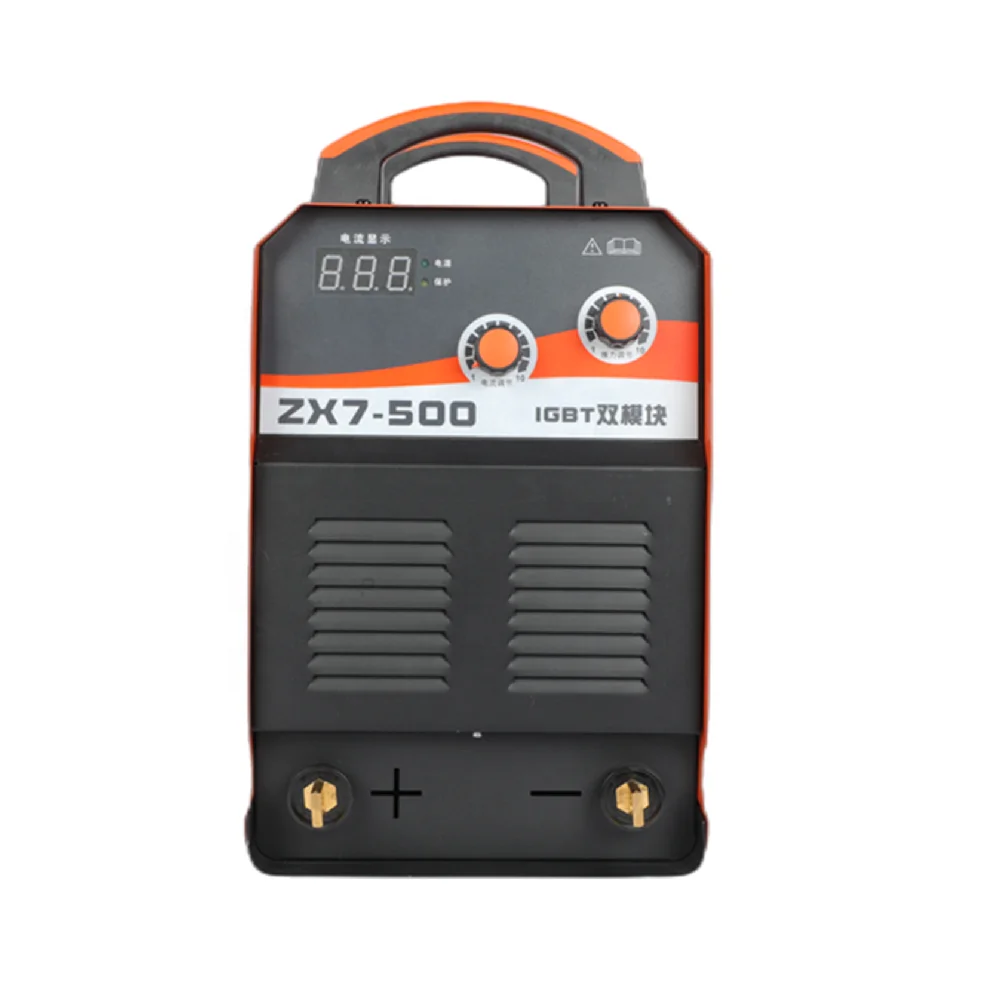

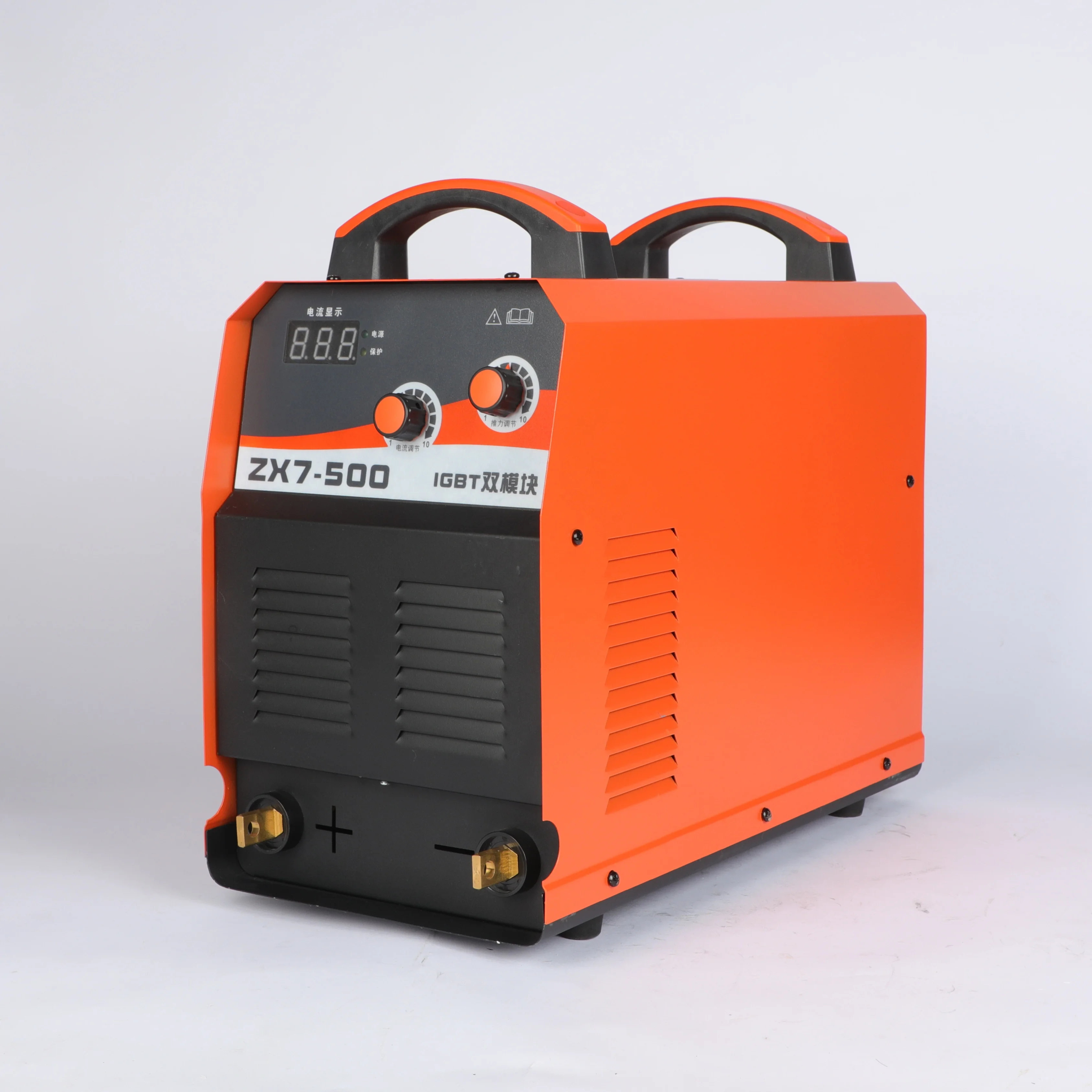

Three phase 300 amp 400 amp 500 amp Arc Inverter 220V Zx7 500 mma inverter arc welding machine
- Category: >>>
- Supplier: Shandong Aohe Electric Technology Co. Ltd.
Share on (1600677752876):
Product Overview
Description
Product Description
1.Accurate digital display of preset current, actual current and voltage value.
2.IGBT yingbian soft switching technology, high efficiency, good depth, no deviation, and high welding performance.
3.It has the function of white motion compensation for power grid voltage fluctuation and has strong resistance to power grid fluctuation (± 15%).
4.It has complete automatic protection functions for overvoltage, undervoltage, overheating, overcurrent and overload, with complete and reliable support.

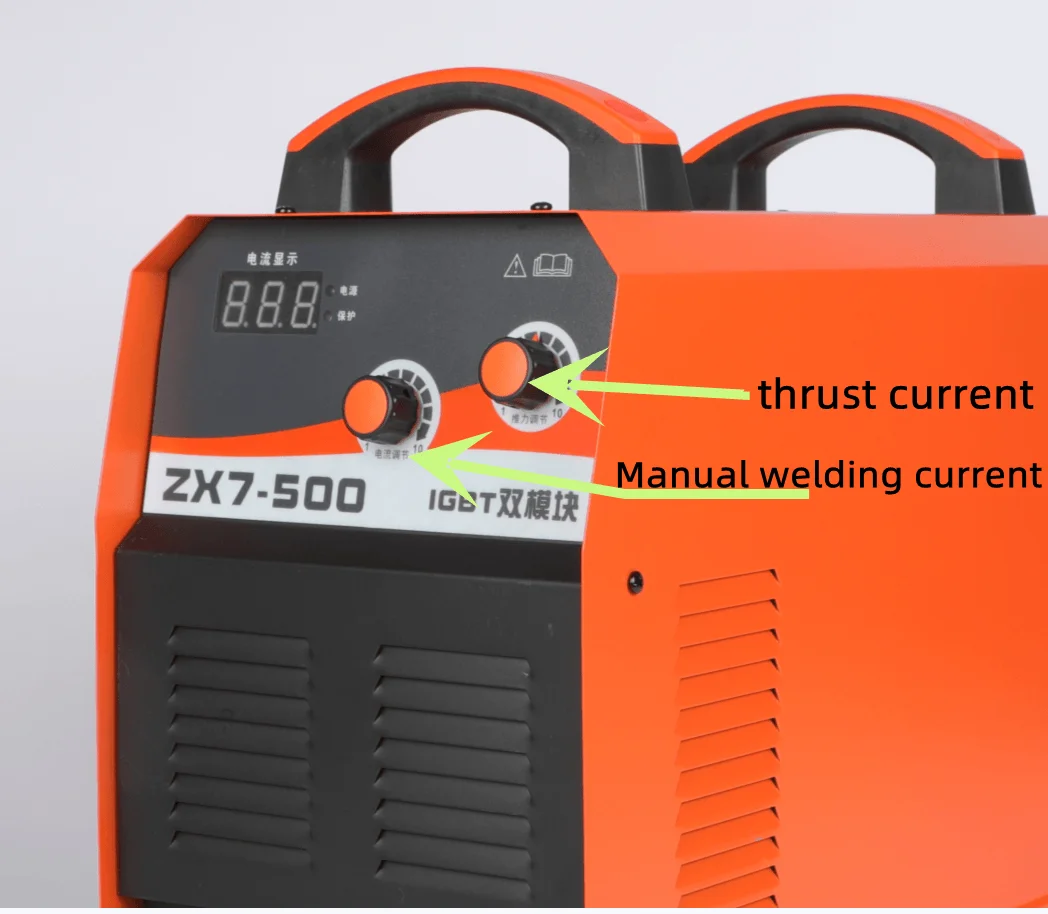

5.Thrust current and arc striking current are continuously adjustable, with strong arc thrust, anti sticking and good arc striking performance.
6.The welding cable up to 50-100m can still work stably.
2.IGBT yingbian soft switching technology, high efficiency, good depth, no deviation, and high welding performance.
3.It has the function of white motion compensation for power grid voltage fluctuation and has strong resistance to power grid fluctuation (± 15%).
4.It has complete automatic protection functions for overvoltage, undervoltage, overheating, overcurrent and overload, with complete and reliable support.
5.Thrust current and arc striking current are continuously adjustable, with strong arc thrust, anti sticking and good arc striking performance.
6.The welding cable up to 50-100m can still work stably.
Technical Specifications
Product Model: | ZX7-500 | |||
Rated Input Voltage: | 380V | |||
Input Power Frequency (Hz): | 50/60Hz | |||
Rated Input Capacity (KVA): | 14.5KVA | |||
Rated Output Current: | 400A | |||
Output Current Range (A): | 20-400A | |||
Insulation class: | Class F | |||
Protection Grade: | IP21S | |||
Dimensions: | 52*26.5*47cm | |||
Package Dimension: | 56*31*49.5cm | |||
weight: | 16.9KG | |||
Applicable electrode: | 2.5/3.2/4.0/5.0 | |||
Accessories: | 1.Welding gloves 2.Welding wire 3.Ground Wire 4.Ground clamp 5.Mask + glasses 6.Slag hammer 7.welding torch 8.straps | |||
Particular attention: the optional accessories is required extra cost, if you need them, please inquiry factory before placing order | ||||
Related products
Workshop
Application Display
Certifications
Exhibition
Our Company
FAQ
1. Q: Are you a factory or trading company?
A:We are a modern welder manufacturer with a history of more than 20 years. Our company specializes in the production of welding and cutting equipment, including MIG/TIG/MMA arc welders, and plasma cutting machines in 4 categories.
2. Q:Where is your factory and how can we get there?
2. Q:Where is your factory and how can we get there?
A:Our factory is located in 20 Guolu Road, Tancheng County, Linyi City,Shandong Province. Linyi Qiyang Airport:20mins by car High speed railway station:50mins by car Train station:30mins by car
3. Q:Does your product support OEM?
A:Yes, we support OEM/ODM. Our customized products are always praised by our old customers!
4. Q: How about quality control in your factory?
4. Q: How about quality control in your factory?
A: Aohe staff are always paying attention to quality controlling from the
beginning to the end.
5. Q:How about your warranty?
A:Complete goods are guaranteed for one year and core parts for three years.
beginning to the end.
5. Q:How about your warranty?
A:Complete goods are guaranteed for one year and core parts for three years.
