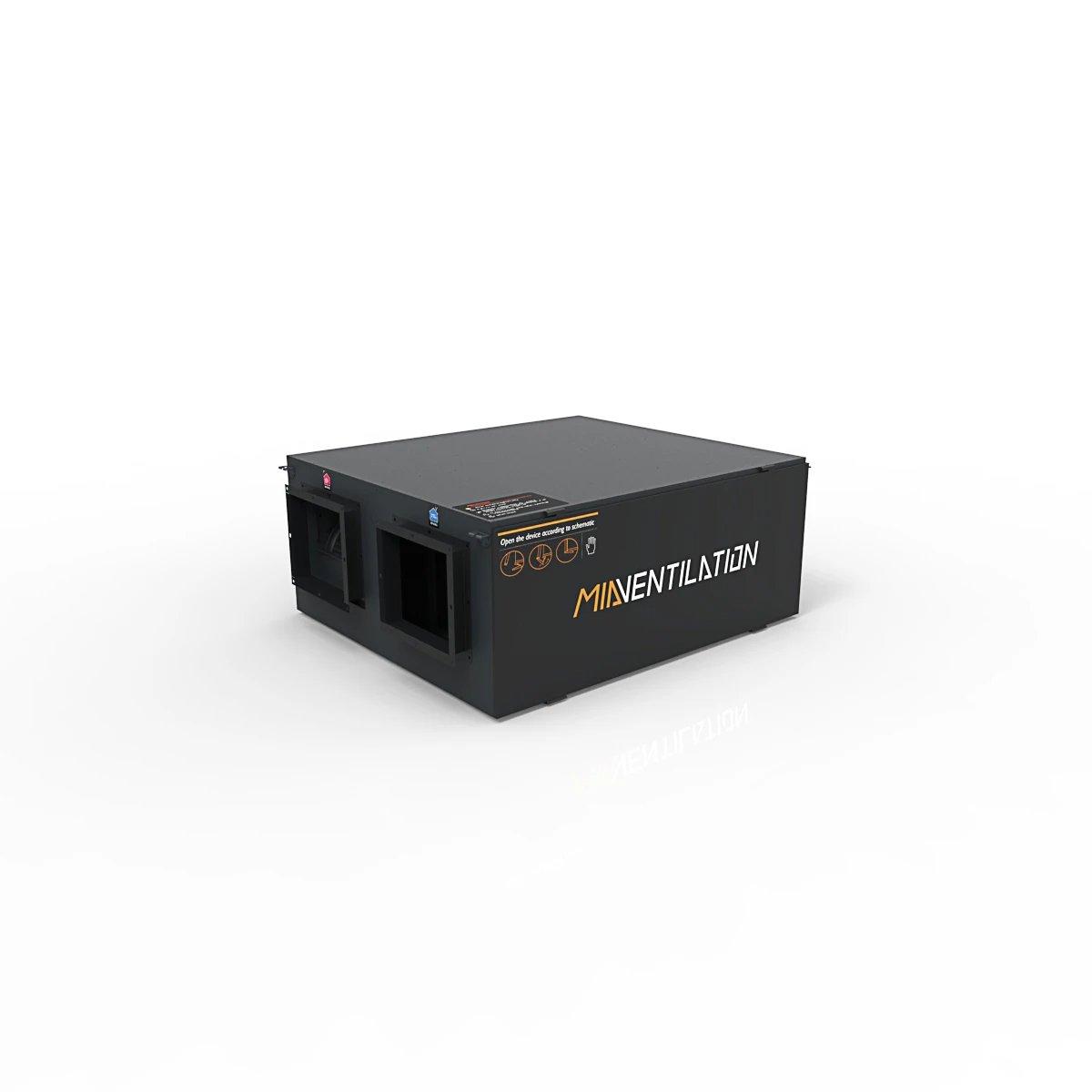

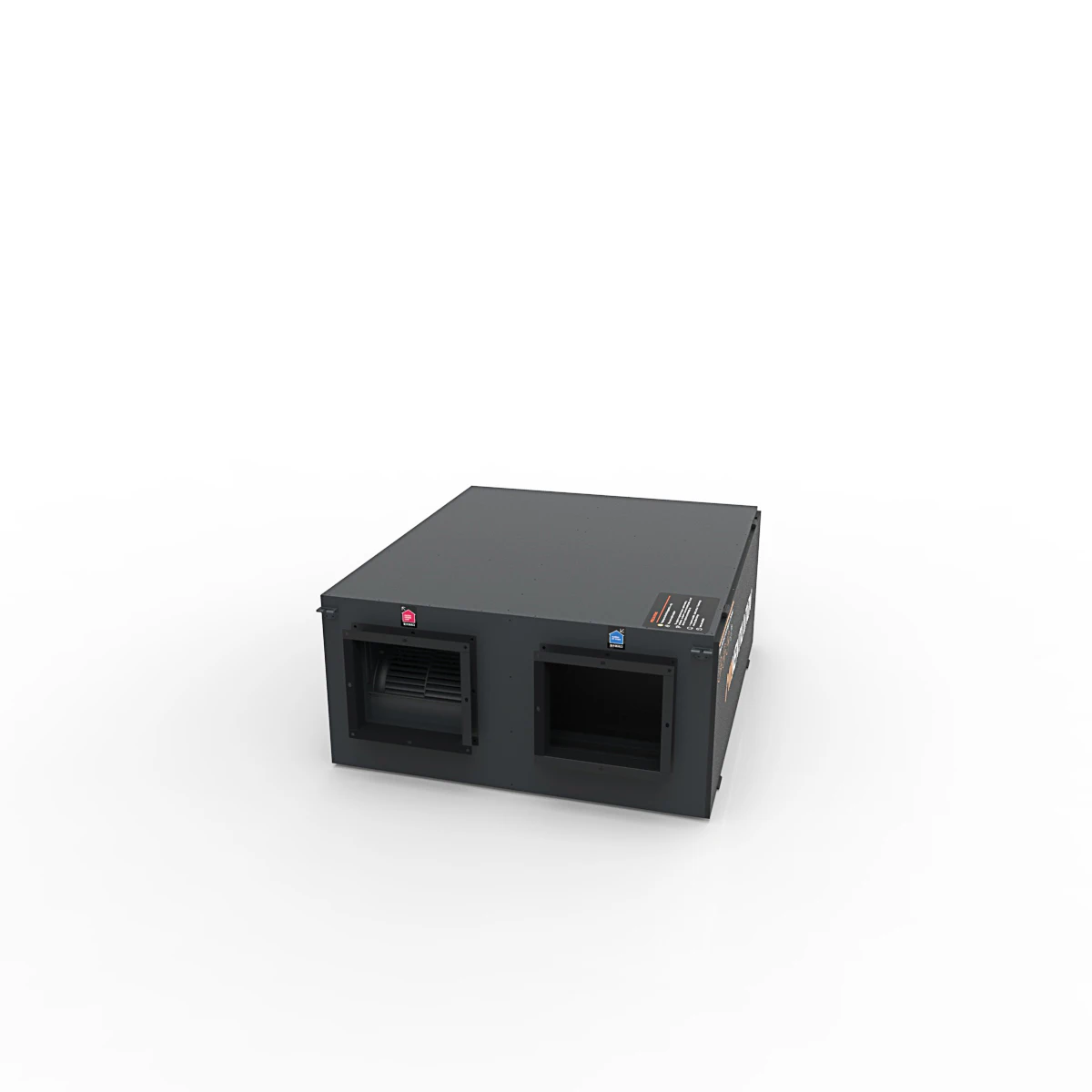

150M3/H MIA Factory Ceiling Mounted hrv heat recovery ventilation system
150M3/H MIA Factory Ceiling Mounted hrv heat recovery ventilation system
150M3/H MIA Factory Ceiling Mounted hrv heat recovery ventilation system
150M3/H MIA Factory Ceiling Mounted hrv heat recovery ventilation system
150M3/H MIA Factory Ceiling Mounted hrv heat recovery ventilation system
150M3/H MIA Factory Ceiling Mounted hrv heat recovery ventilation system

150M3/H MIA Factory Ceiling Mounted hrv heat recovery ventilation system

Share on:


Price:$175.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Details


Special Note:
The page only displays EXW price and distribution price. Please contact us to confirm the total payment (Transportation costs and other expenses) before you place the order!

Contacts: Martina
Mail: [email protected]
TEL/ WA/ Skype: 0086-18852950357
Wechat:18112583126
Website: http://www.miachina.net/


Residential High-pressure Ceiling type ERV Series Energy Recovery Ventilator 150m3/h-500m3/h
Household High-Pressure Ceiling Type Energy Recovery Ventilator ERV Series




PSY Washable Energy Recovery Exchanger
The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat recovery efficiency. It can infiltrate water molecules in the process of heat exchange; with the washable material, also can avoid the problem of bacteria and molds production.




Early Effect+Activated Carbon
The sealing property is far more than the paper border with using the plastic margin. The filter with composite fiber, sprayed with activated carbon powder, can filter dust particle efficiently and the wind resistance is very small. The even-distributed activated carbon power can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect+activated carbon, greatly reduces the total cost of consumables.


H13 High Efficiency Particulate Filter
The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the enviromental friendly imported sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard-H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.



High-voltage Electrostatic Dust
With pin type electric discharge way,the high-voltage electrostatic dust can replace the traditional tungsten filament high-voltage electrostatic dust collection. It’s thickness is only 4cm, can be suitable for all kinds of models. The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. It’s washable, also can be cleaned with brush, and will not increase the using cost.


Model and cooresponding configuration instructions
MIA-AHE· N:Ceiling Energy recovery ventilator equipped with activated carbon and AC inner rotor fan
MIA-AHE· NB:Ceiling Energy recovery ventilator equipped with activated carbon and AC outer rotor fan
MIA-AHE· NB/C:Ceiling Energy recovery ventilator equipped with activated carbon and DC brushless fan
MIA-AHE· GL:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and AC inner rotor fan
MIA-AHE· GLB:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and AC outer rotor fan
MIA-AHE· GLB/C:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and DC brushless fan
MIA-AHE· JDN:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and AC inner rotor fan
MIA-AHE· JDNB:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and AC outer rotor fan
MIA-AHE· JDNB/C:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and DC brushless fan



Contact With Supplier
Contacts: Tina Yu
Mail: [email protected]
TEL/ WA/ Skype: 0086-18852950357
Wechat: cqa09336
Website: http://www.miachina.net/


Technical Parameters


Filter Section: 1 Piece Early Effect Activated Carbon
Model
Voltage
Power
Volume
Pressure
Efficiency
Noise
Motor

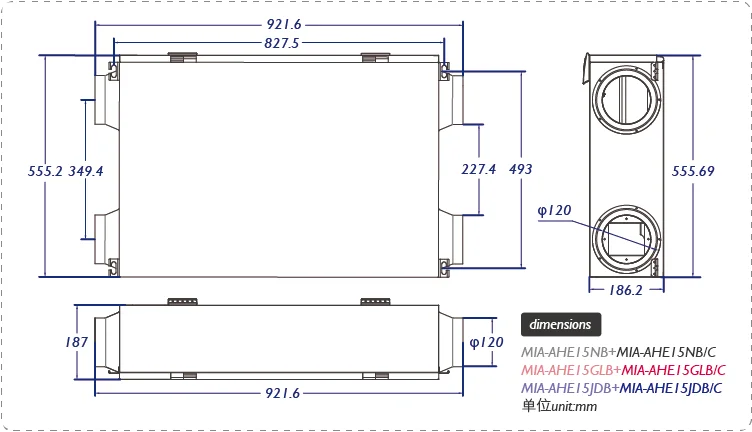

MIA-AHE15NB
220V
122W
150m³/h
290Pa
86%~92%
30dB(A)
AC
MIA-AHE15NB/C
220V
92W
150m³/h
290Pa
86%~92%
30dB(A)
EC

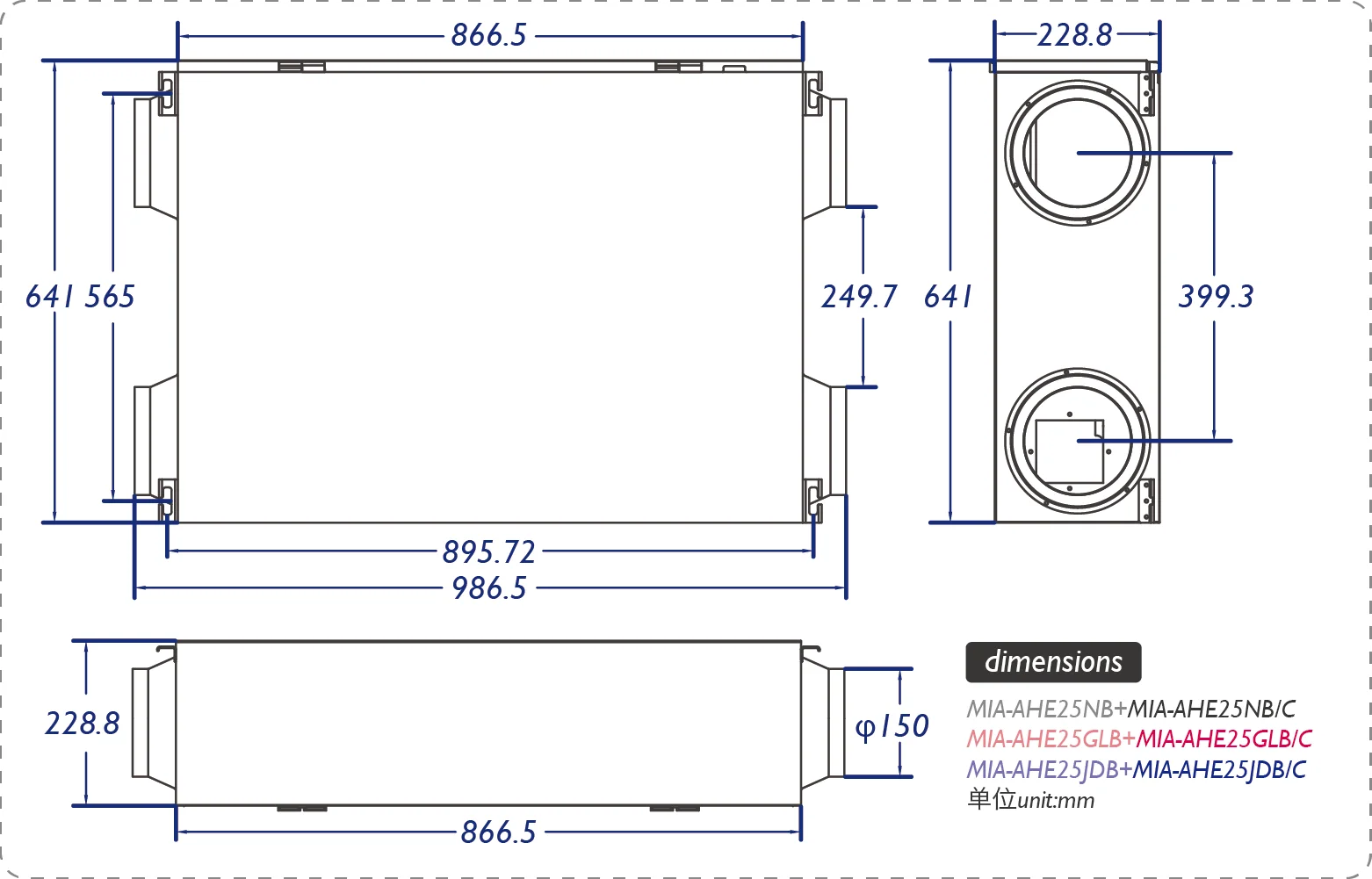

MIA-AHE25NB
220V
178W
250m³/h
370Pa
86%~89%
32dB(A)
AC
MIA-AHE25NB/C
220V
166W
250m³/h
370Pa
86%~89%
32dB(A)
EC

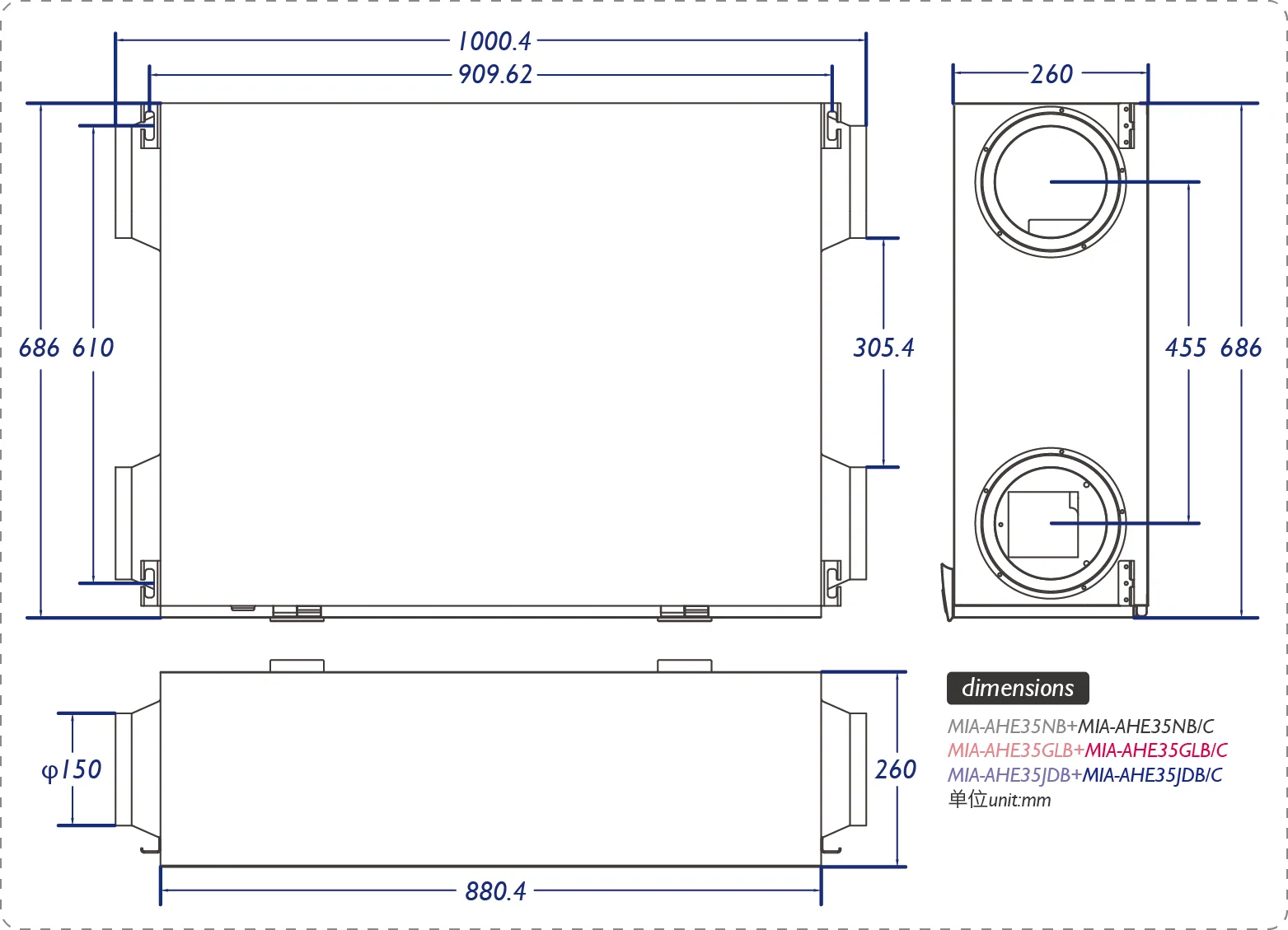

MIA-AHE35NB
220V
246W
350m³/h
392Pa
85%~88%
35dB(A)
AC
MIA-AHE35NB/C
220V
233W
350m³/h
392Pa
85%~88%
35dB(A)
EC

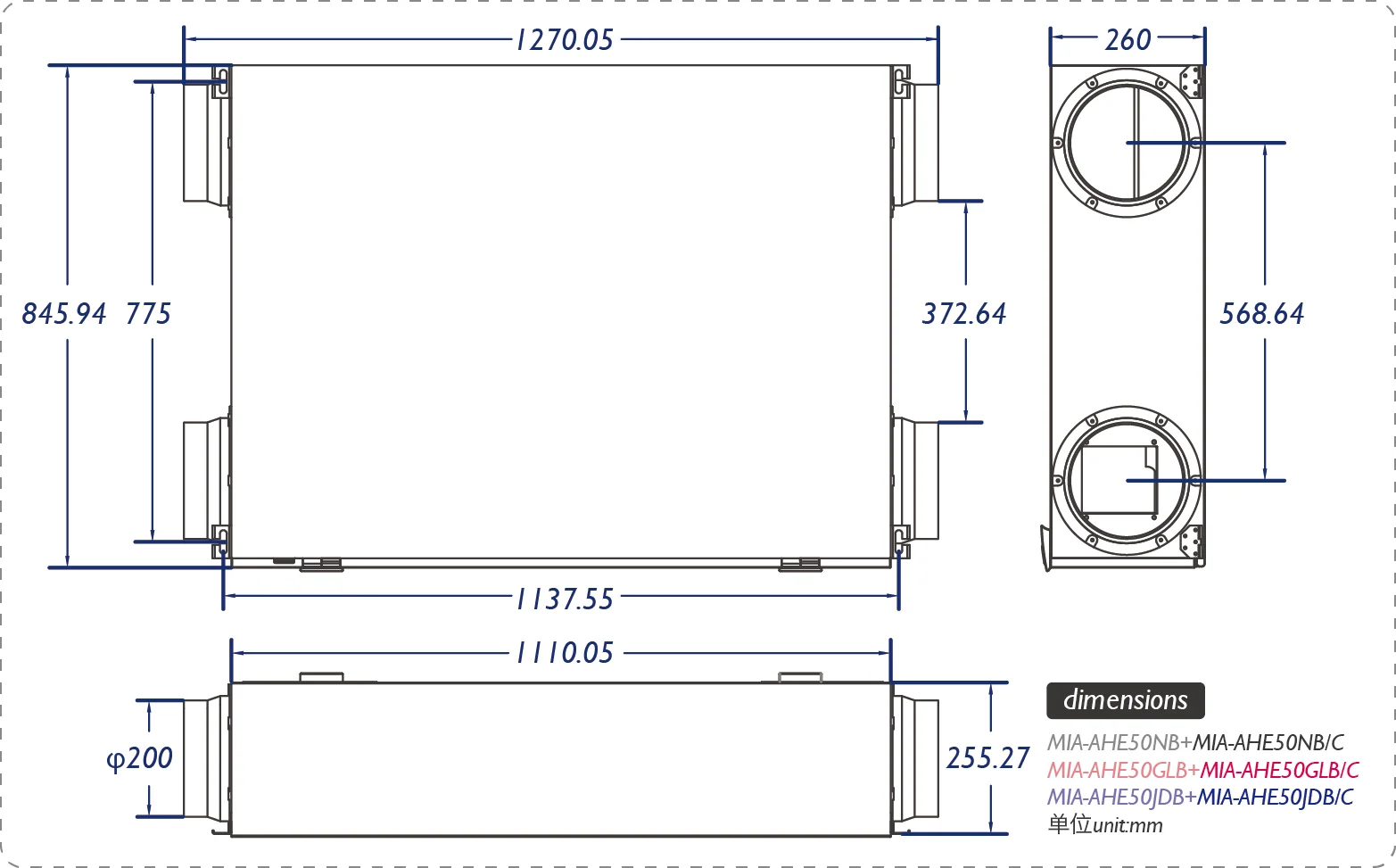

MIA-AHE50NB
220V
453W
500m³/h
425Pa
84%~87%
37dB(A)
AC
MIA-AHE50NB/C
220V
288W
500m³/h
425Pa
84%~87%
37dB(A)
EC


Filter Section: 1 Piece Early Effect Activated Carbon + 1 Piece HEPA 13
Model
Voltage
Power
Volume
Pressure
Efficiency
Noise
Motor
MIA-AHE15GLB
220V
130W
150m³/h
285Pa
86%~92%
31dB(A)
AC
MIA-AHE15GLB/C
220V
98W
150m³/h
285Pa
86%~92%
31dB(A)
EC
MIA-AHE25GLB
220V
182W
250m³/h
360Pa
86%~89%
33dB(A)
AC
MIA-AHE25GLB/C
220V
176W
250m³/h
360Pa
86%~89%
33dB(A)
EC
MIA-AHE35GLB
220V
265W
350m³/h
385Pa
85%~88%
36dB(A)
AC
MIA-AHE35GLB/C
220V
241W
350m³/h
385Pa
85%~88%
36dB(A)
EC
MIA-AHE50GLB
220V
462W
500m³/h
420Pa
84%~87%
38dB(A)
AC
MIA-AHE50GLB/C
220V
306W
500m³/h
420Pa
84%~87%
38dB(A)
EC


Filter Section: 1 Piece Early Effect Activated Carbon + 1 Piece High-voltage Electrostatic Dust + 1 Piece HEPA 13
Model
Voltage
Power
Volume
Pressure
Efficiency
Noise
Motor
MIA-AHE15JDB
220V
130W
150m³/h
285Pa
86%~92%
31dB(A)
AC
MIA-AHE15JDB/C
220V
98W
150m³/h
285Pa
86%~92%
31dB(A)
EC
MIA-AHE25JDB
220V
182W
250m³/h
360Pa
86%~89%
33dB(A)
AC
MIA-AHE25JDB/C
220V
176W
250m³/h
360Pa
86%~89%
33dB(A)
EC
MIA-AHE35JDB
220V
265W
350m³/h
385Pa
85%~88%
36dB(A)
AC
MIA-AHE35JDB/C
220V
241W
350m³/h
385Pa
85%~88%
36dB(A)
EC
MIA-AHE50JDB
220V
462W
500m³/h
420Pa
84%~87%
38dB(A)
AC
MIA-AHE50JDB/C
220V
306W
500m³/h
420Pa
84%~87%
38dB(A)
EC










Air Ventilation System Controller

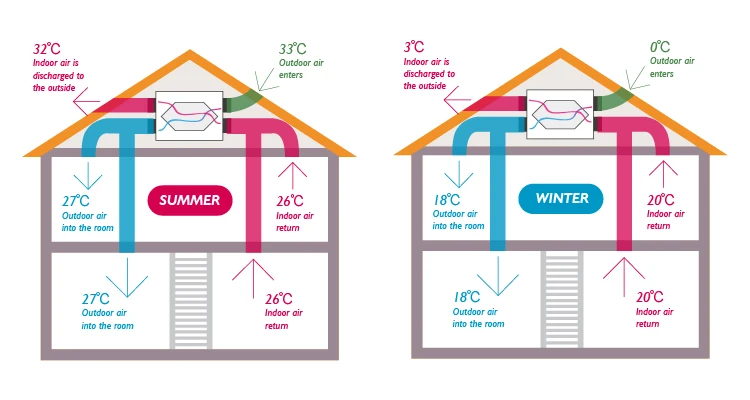

Energy Recovery Exchange Principle








Applicable Scenarios
