Name | Shark2323FDM IGZO series X-ray detector |
Model Number | Shark2323FDM |
Sensor | IGZO (Indium Gallium Zinc Oxide) |
Active Area | 227 x 227 mm |
Communication Interface | Optical Fiber; High voltage generator; Power |

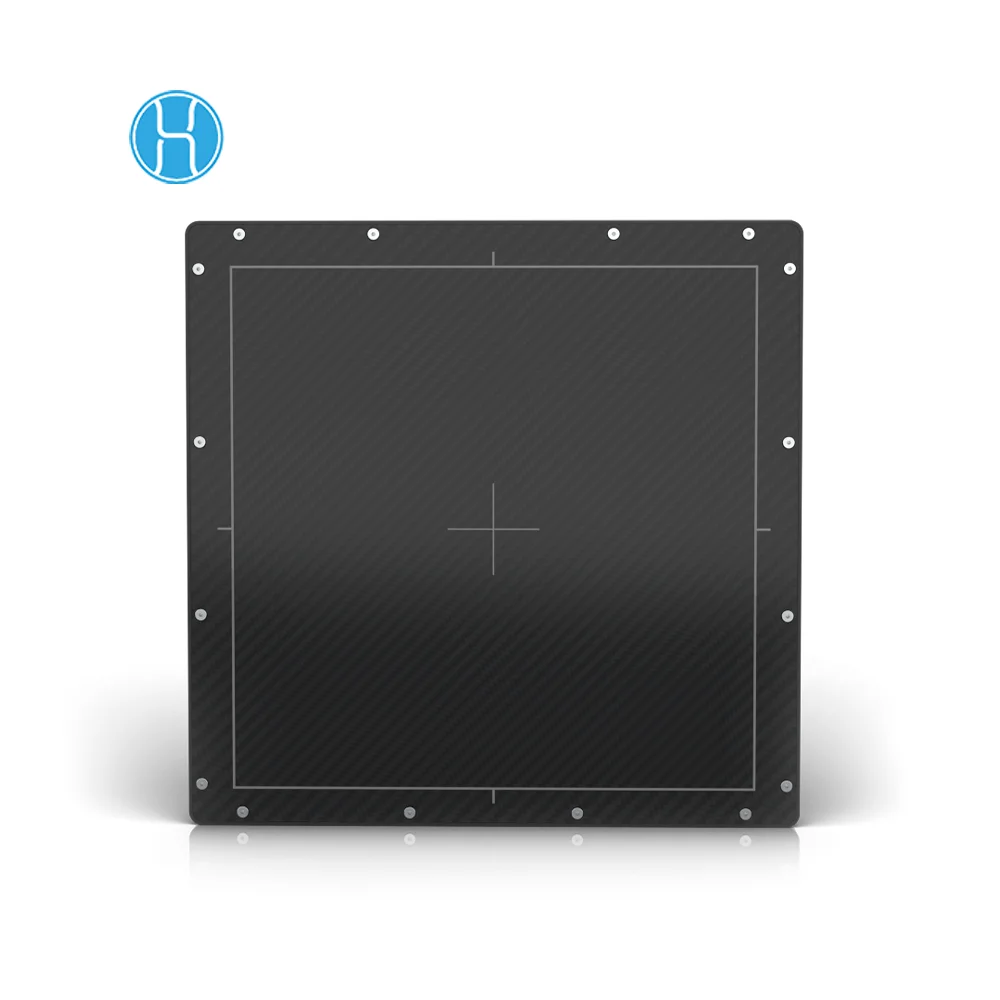

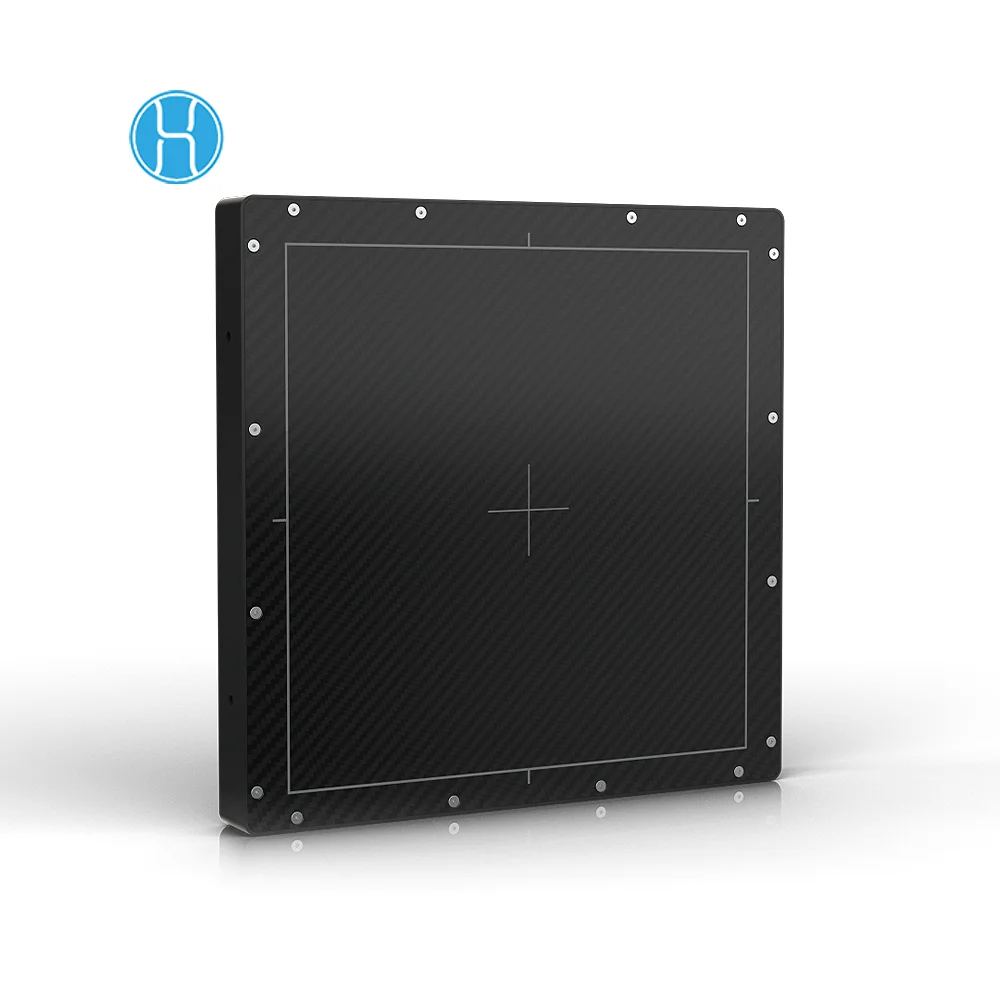

Shark2323FDM Haobo Radiology Equipment X-Ray Flat Panel Detector
* Pixel Pitch: 148 μm
* Pixel Matrix: 1536 x 1536
* ADC:16-bit
* Gain Stage: Multi-Gain
* Scintillator: GOS/CSI
* Water Proof: IPX0
* Calibration: Firmware
* Pixel Matrix: 1536 x 1536
* ADC:16-bit
* Gain Stage: Multi-Gain
* Scintillator: GOS/CSI
* Water Proof: IPX0
* Calibration: Firmware
Sensor Protection Material:
Carbon Fiber
Housing Material:
Aluminum Alloy
Dimension: 268 x 265 x 28 mm
Weight: 2.8 Kg

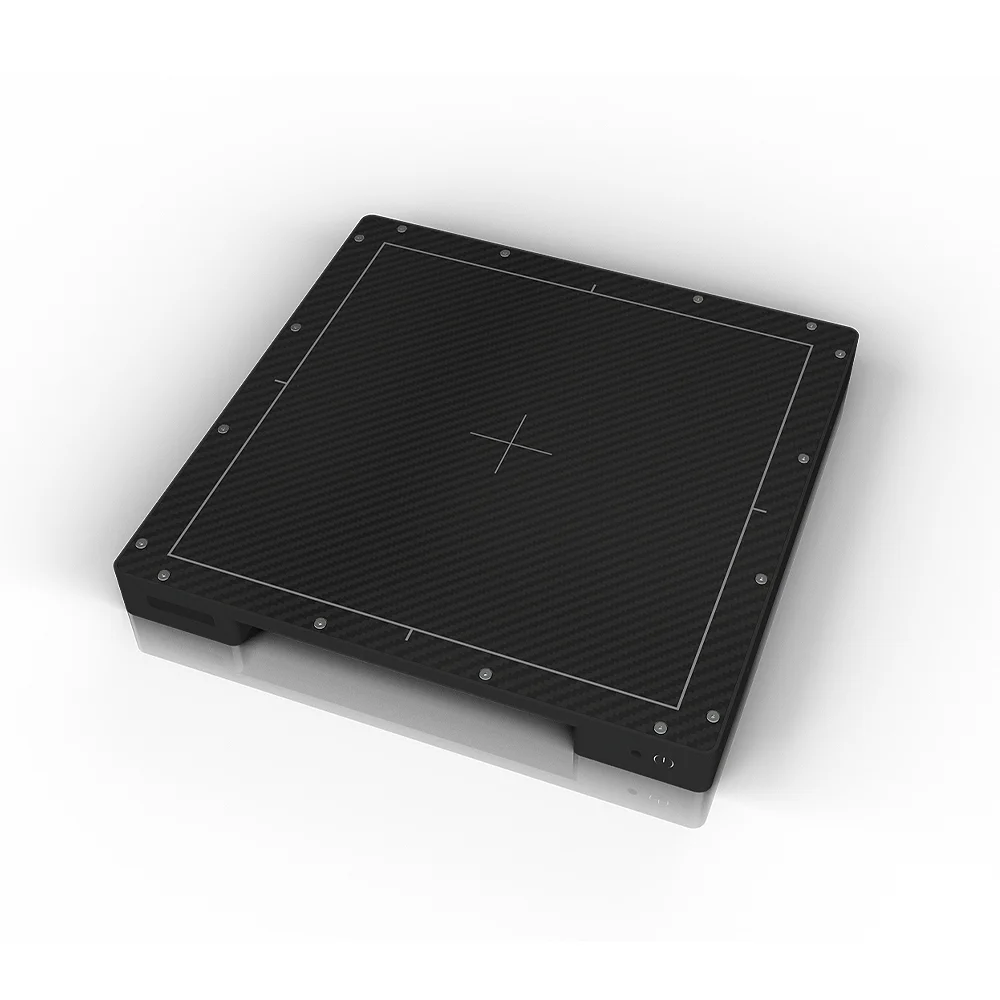

IGZO series Medical Industrial Wired X-Ray Flat Panel Detector---Shark2323FDM
IGZO (Indium Gallium Zinc Oxide) technology has a lot of advantages such as
higher image quality, larger dynamic range
frame speed
multi-gain stage
Multi-gain stage makes the flat panel detector be suitable for high sensitivity and large dynamic range requirements.
Shark2323FDM flat panel detectors are widely used in widely used in medical, industrial, veterinary, and research application area.
Technology | ||
Sensor | IGZO | |
Scintillator | CSI / GOS | |
Active Area | 227 x 227 mm | |
Pixel Matrix | 1536 x 1536 | |
Pixel Pitch | 148 μm | |
AD Conversion | 16 bits | |
Interface | ||
Communication Interface | Optical Fiber | |
Exposure Control | Pulse Sync In (Edge or Level) / Pulse Sync Out (Edge or Level) | |
Work Mode | Software Mode / HVG Sync Mode / FPD Sync Mode | |
Frame Speed | 40fps (1x1) / 80fps (2x2) | |
Operating System | Windows7 / Windows10 OS 32 bits or 64 bits | |
Technical Performance | ||
Resolution | 3.37 lp/mm | |
Energy Range | 40~160 KV | |
Lag | ≤0.8% @ 1st frame | |
Dynamic Range | ≥ 88dB | |
Sensitivity | 740 lsb/uGy | |
SNR | 50 dB @ (20000lsb) | |
MTF | 60% @ (1 lp/mm) | |
25% @ (2 lp/mm) | ||
10% @ (3 lp/mm) | ||
DQE (2uGy) | 65% @ (0 lp/mm) | |
45% @ (1 lp/mm) | ||
30% @ (2 lp/mm) | ||

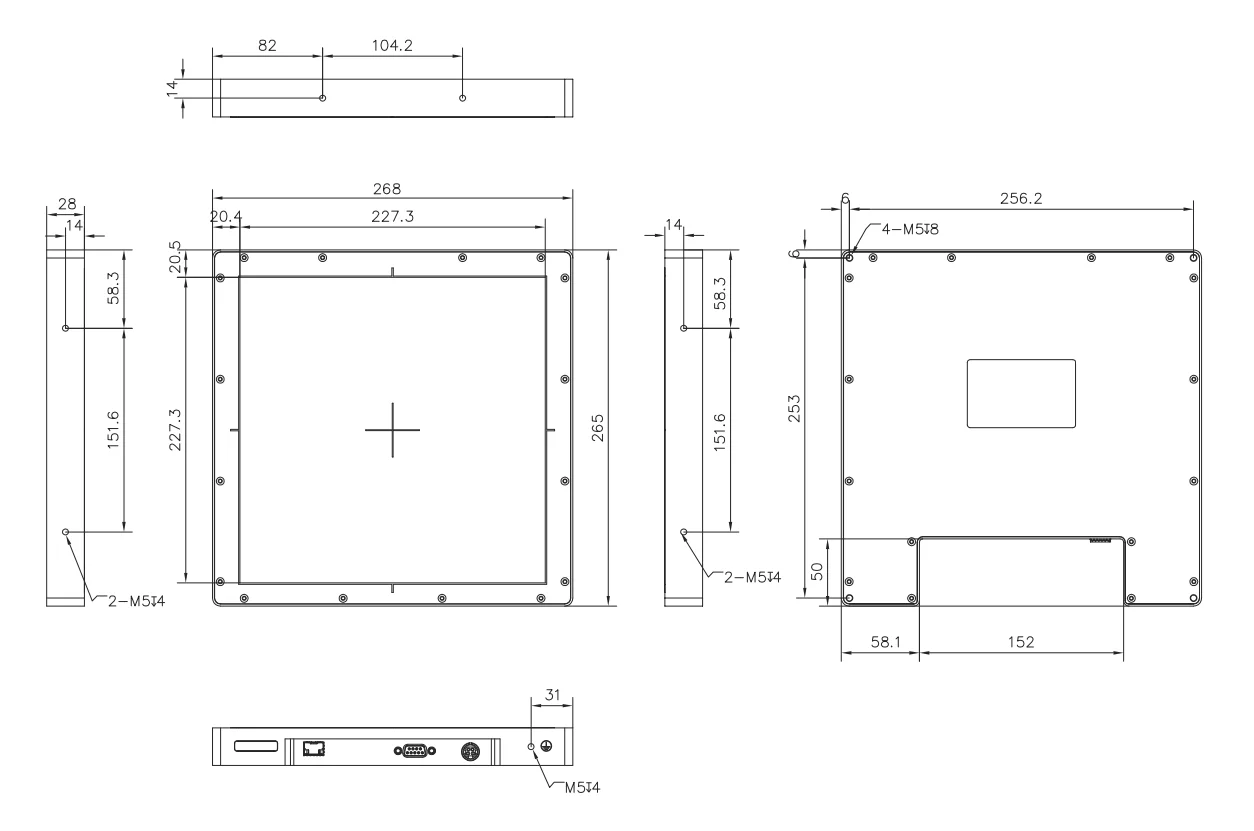

Mechanical | ||
Dimension(H x W x D) | 268 x 265 x 28 mm | |
Weight | 2.8 Kg | |
Sensor Protection Material | Carbon Fiber | |
Housing Material | Aluminum Alloy | |
Environmental | ||
Temperature Range | 10~35°℃ (operating); -10~50℃ (storage) | |
Humidity | 30~70% RH(non-condensing) | |
Vibration | IEC/EN 60721-3 class 2M3(10~150 Hz, 0.5 g) | |
Shock | IEC/EN 60721-3 class 2M3(11 ms, 2 g) | |
Dust and Water Resistant | IPX0 | |
Power | ||
Supply | 100~240 VAC | |
Frequency | 50/60 Hz | |
Consumption | 10W | |
Application | ||
Medical | Digital imaging of medical C-arm Image intensifier replacement and upgrade Cone-beam computed tomography (CBCT) | |
Production Process
Designing
The core R&D team members have master's and doctor's degrees at home and abroad.
Production
100,000 grade purification room was put into use. Our workers are assembling the Flat Panels.
Adjusting
Laboratory technician is adjusting the machine
Testing
Each of the product is carefully tested before shipping.
Fast Delivery
Most of main products could be produced and delivered within 7 work days.
Various Models
Presently, we have designed and produced over 90 different types of X Ray Flat Panel Detectors.
Certifications
We have obtained 23 patents
5 utility model patents
18 software Copyrights
18 software Copyrights
High technology research & development capability
High R&D investment
Innovation consciousness
High R&D investment
Innovation consciousness
Market competitiveness
Development potential
Operation and management ability
Development potential
Operation and management ability
Product packaging
Accessories

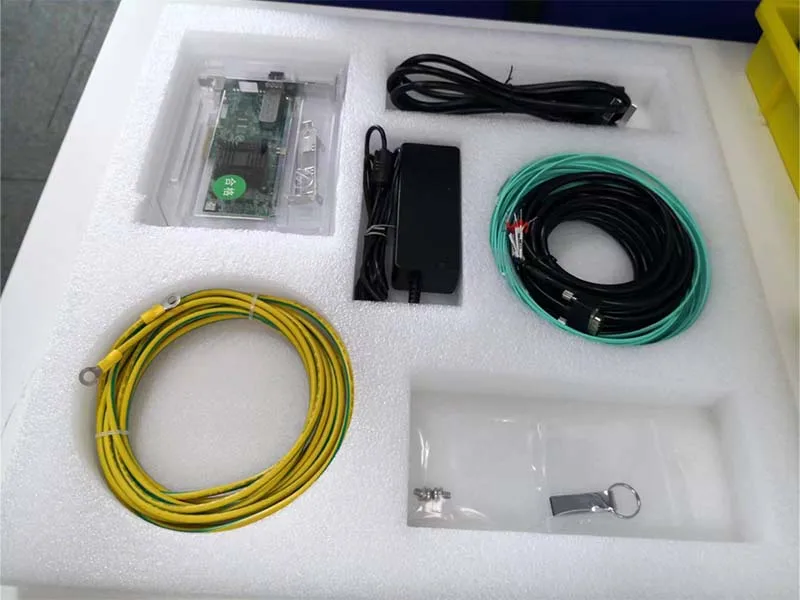

AC Adapter; AC POWER CORD, 5 Meters Network Cable, 5 Meters high-voltage power lines, adapter junction box, USB flash disk, Quality Certificate, warranty card, package list.

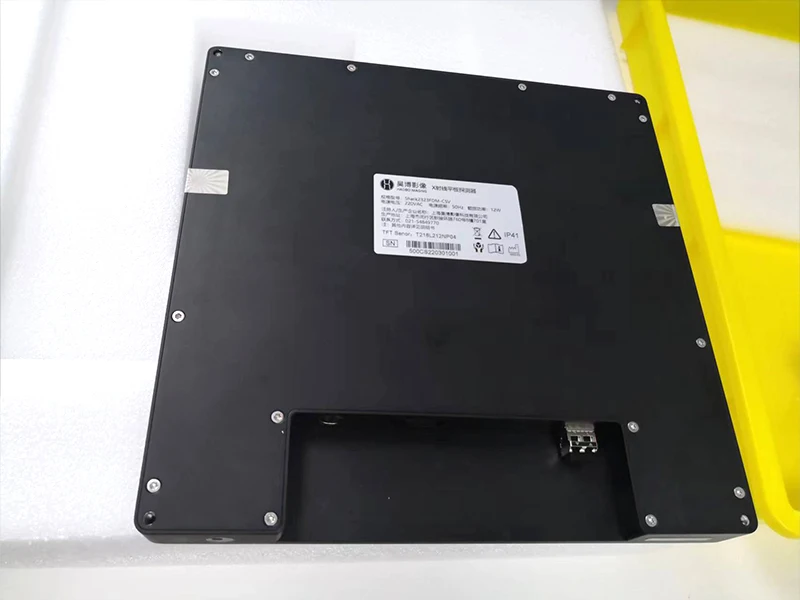

Back Side
After the accessories are properly packed, the Flat Detector is about to be checked, cleaned, disinfected and packed. This is the back side.

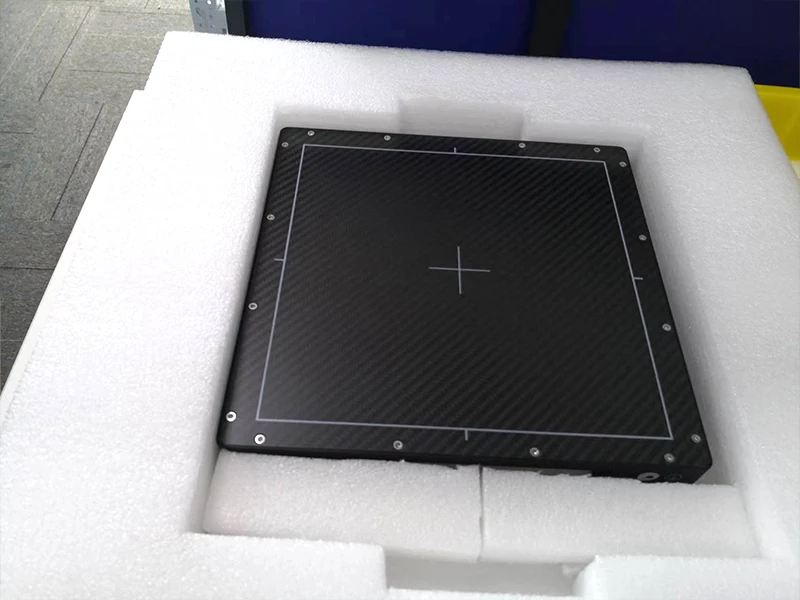

Front Side
