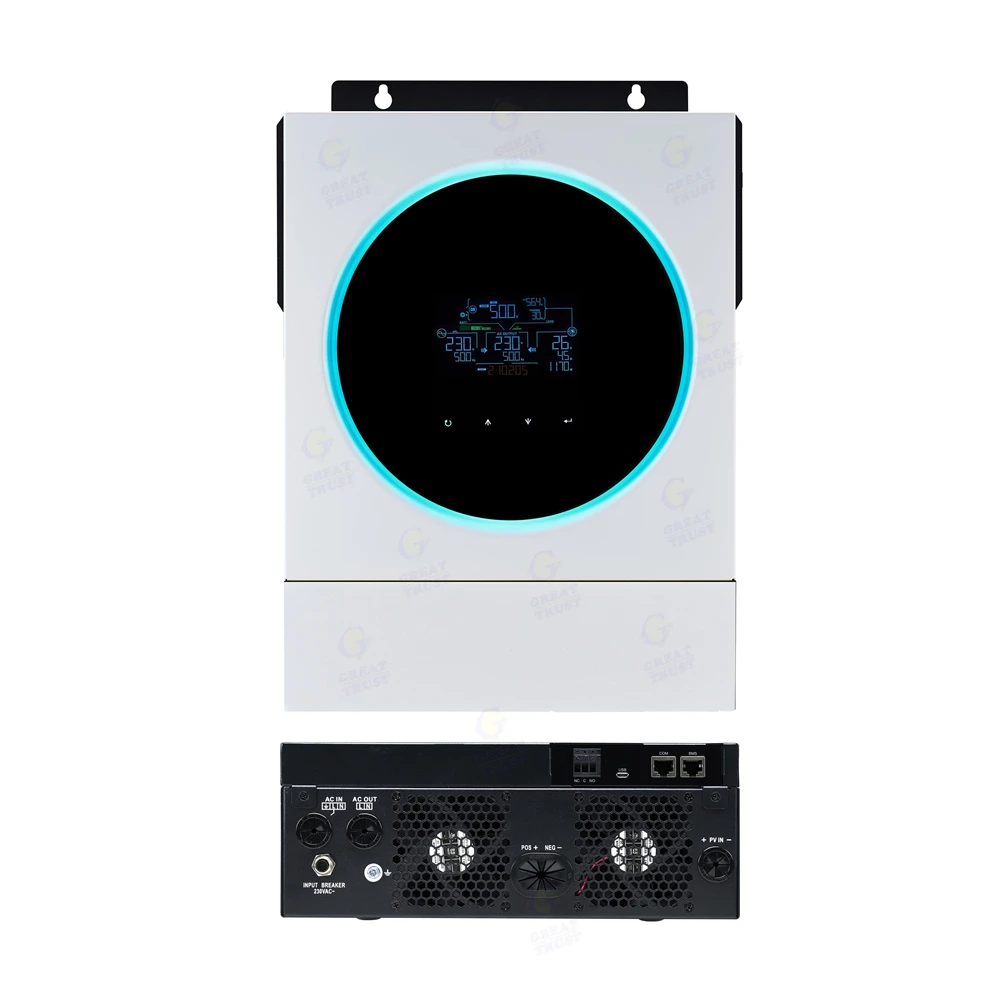

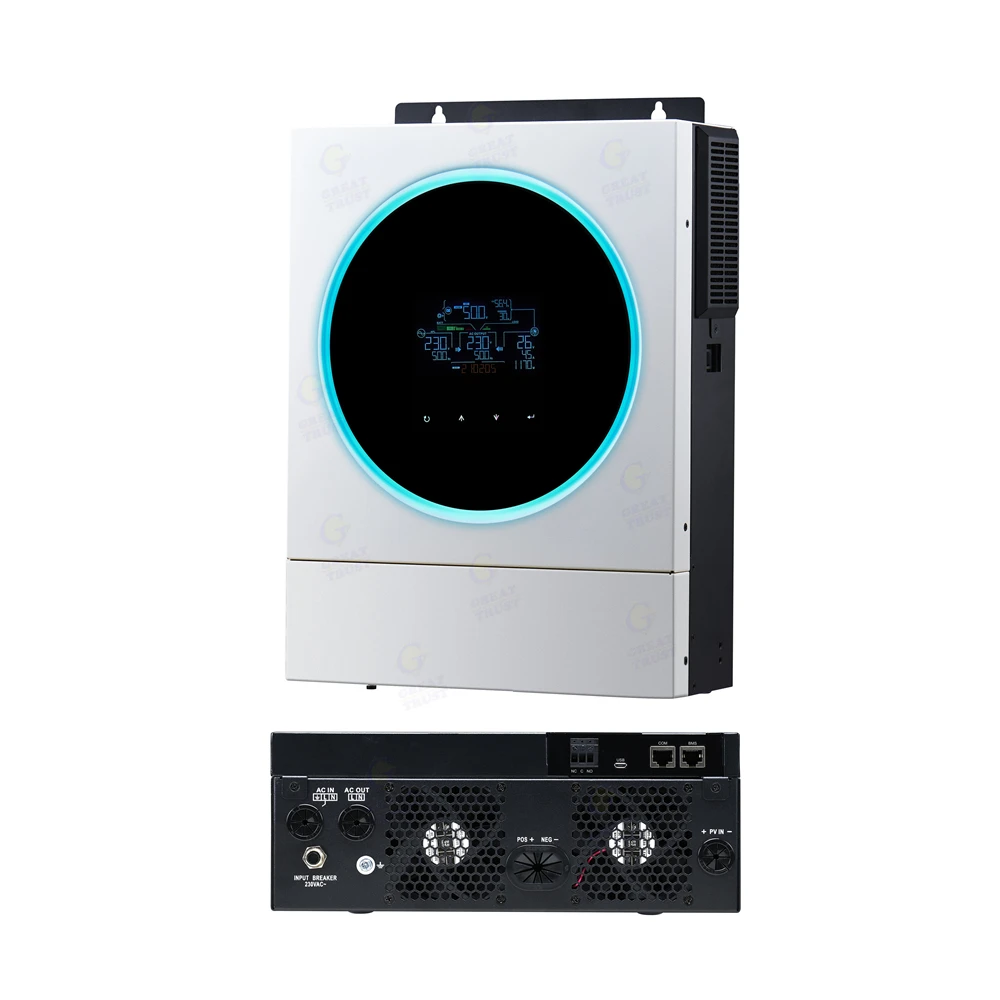

vm Iv 3.6kw 5.6kw 220vac 100a Mppt Wifi Monitor Charge Controller Work Without Battery Off Grid Hybrid Solar Inverter
vm Iv 3.6kw 5.6kw 220vac 100a Mppt Wifi Monitor Charge Controller Work Without Battery Off Grid Hybrid Solar Inverter
vm Iv 3.6kw 5.6kw 220vac 100a Mppt Wifi Monitor Charge Controller Work Without Battery Off Grid Hybrid Solar Inverter
vm Iv 3.6kw 5.6kw 220vac 100a Mppt Wifi Monitor Charge Controller Work Without Battery Off Grid Hybrid Solar Inverter
vm Iv 3.6kw 5.6kw 220vac 100a Mppt Wifi Monitor Charge Controller Work Without Battery Off Grid Hybrid Solar Inverter
vm Iv 3.6kw 5.6kw 220vac 100a Mppt Wifi Monitor Charge Controller Work Without Battery Off Grid Hybrid Solar Inverter
vm Iv 3.6kw 5.6kw 220vac 100a Mppt Wifi Monitor Charge Controller Work Without Battery Off Grid Hybrid Solar Inverter

vm Iv 3.6kw 5.6kw 220vac 100a Mppt Wifi Monitor Charge Controller Work Without Battery Off Grid Hybrid Solar Inverter

Share on (1600677842019):


Price:$432.00 - $540.00

Quantity:


Product Overview

Description



Product Description

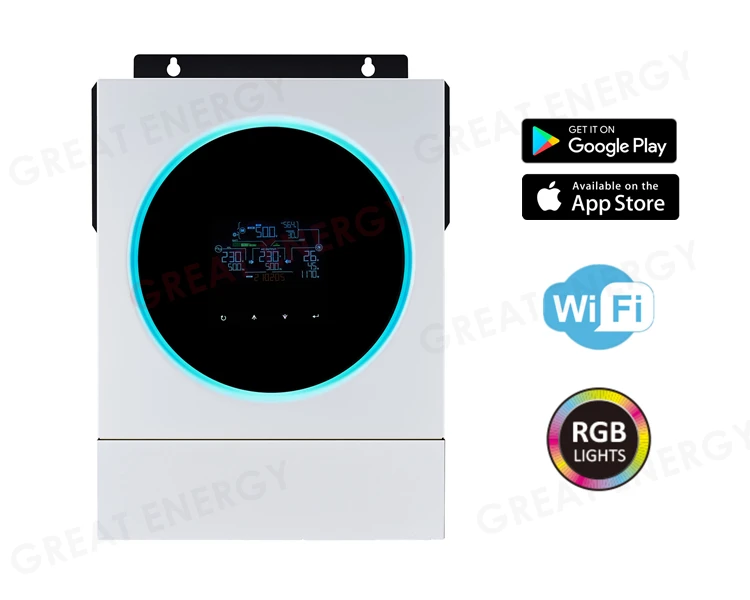

Main Features

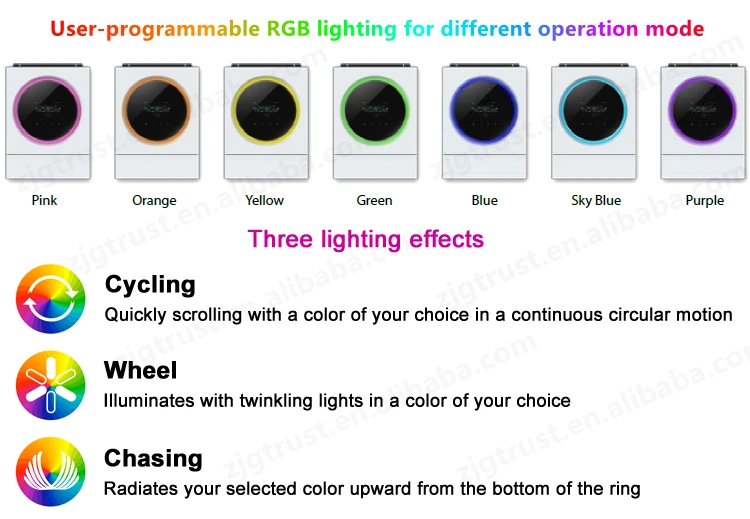

 * Customizable status LED ring with RGB lights
 * Touchable button with 3" colored LCD
 * Built-in Wifi for mobile monitoring (App is available)
 * Supports USB On-the-Go function
 * Data log events stored in the inverter
 * Battery independent design
 * User-friendly LCD operation
 * Battery equalization extends lifecycle
 * Built-in anti-dust kit
 * Enhanced charging power
 * Reserved communication port (RS485, CAN-BUS or RS232) for BMS

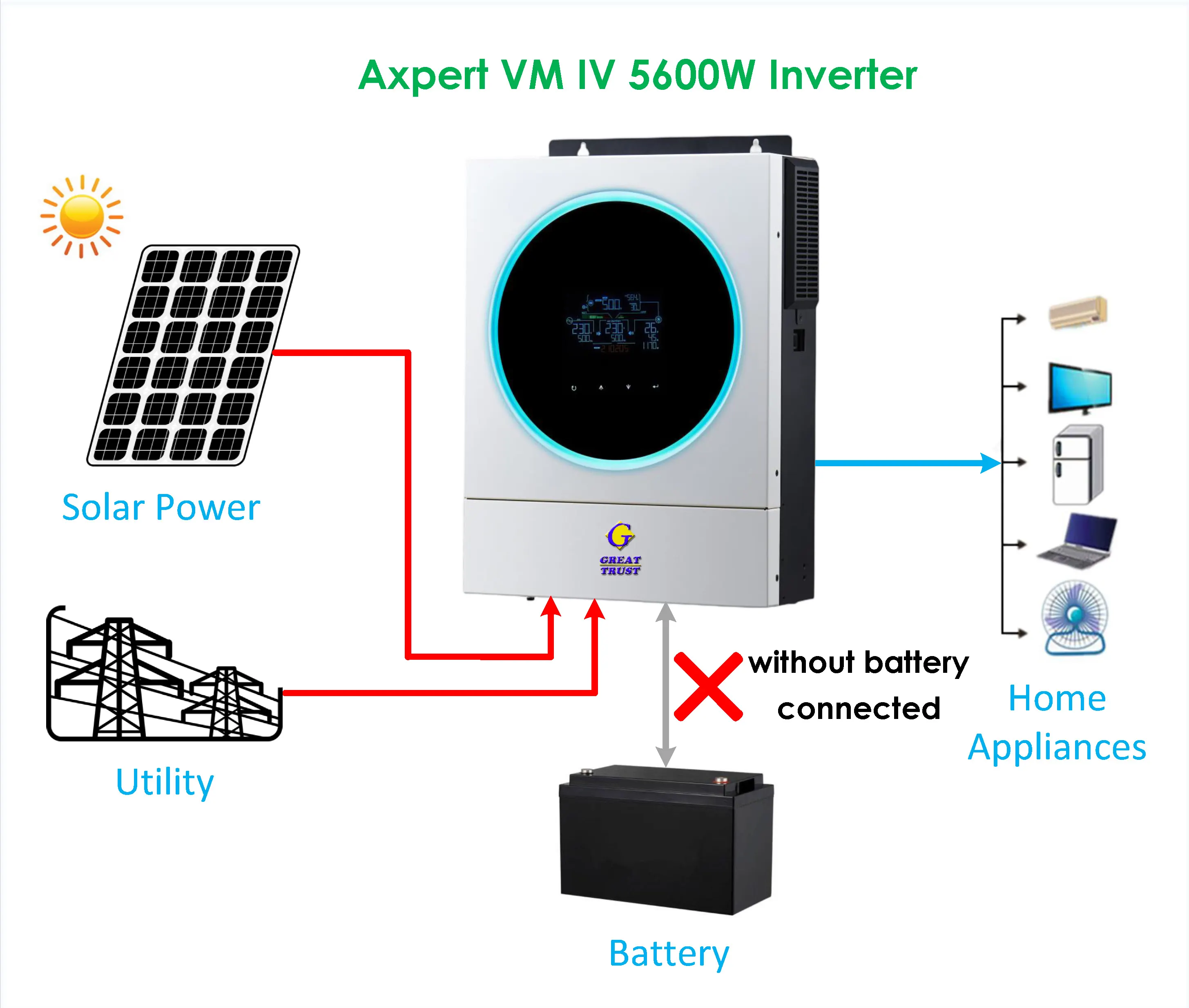

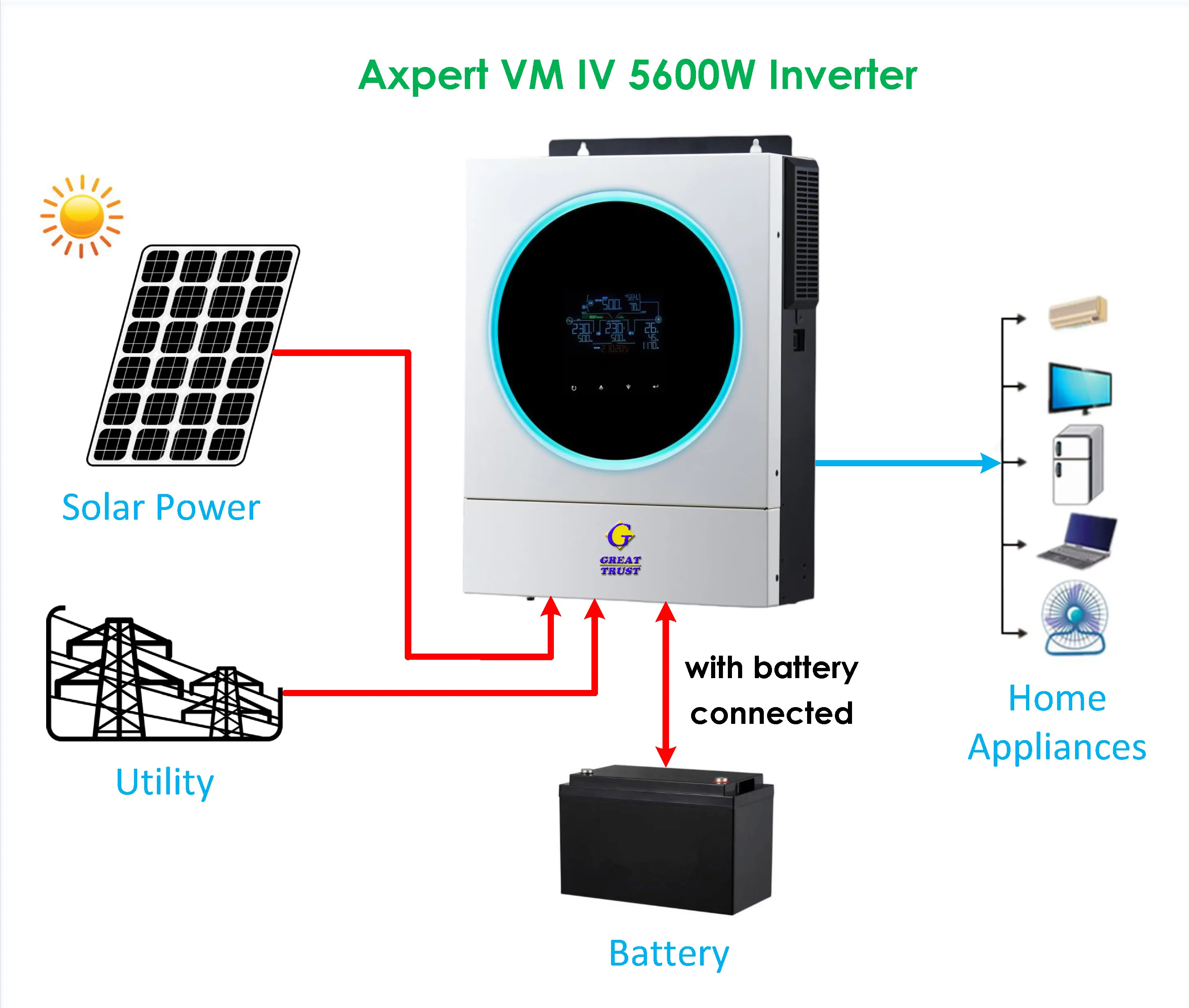

Basic PV system diagram


With battery connected
Without battery connected

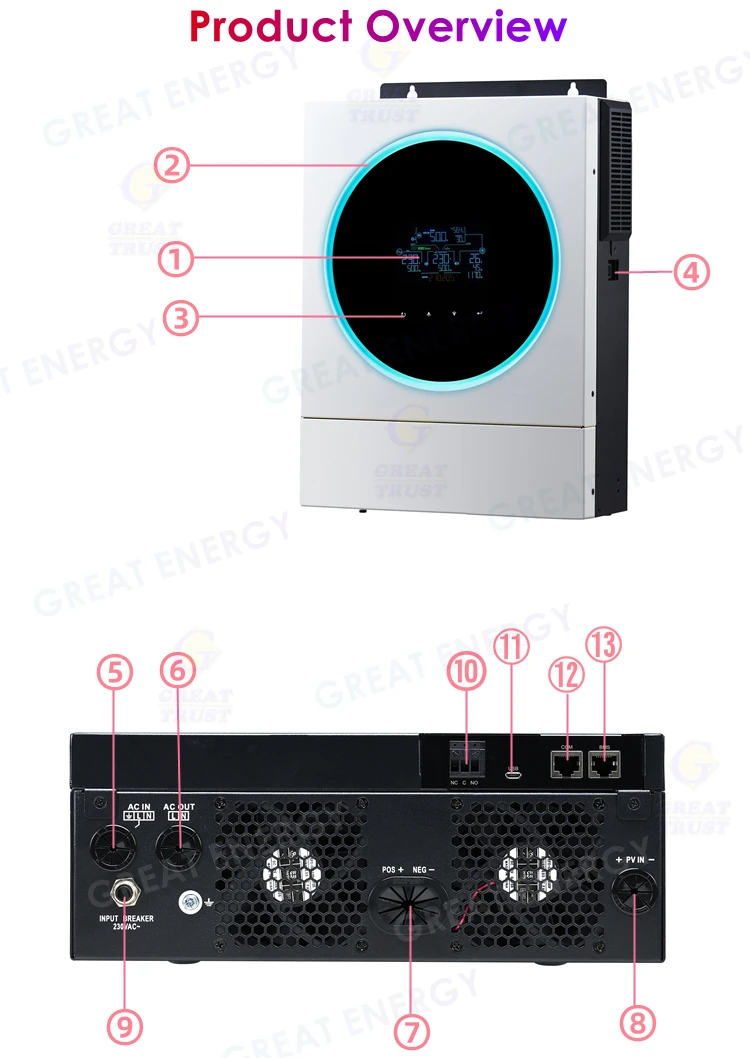

1. LCD display
2. RGB LED bar (refer to LCD Setting section for the details)
3. Touchable function keys
4. Power on/off switch
5. AC input connectors
6. AC output connectors (Load connection)
7. Battery connectors
8. PV connectors
9. Circuit breaker
10. Dry contact

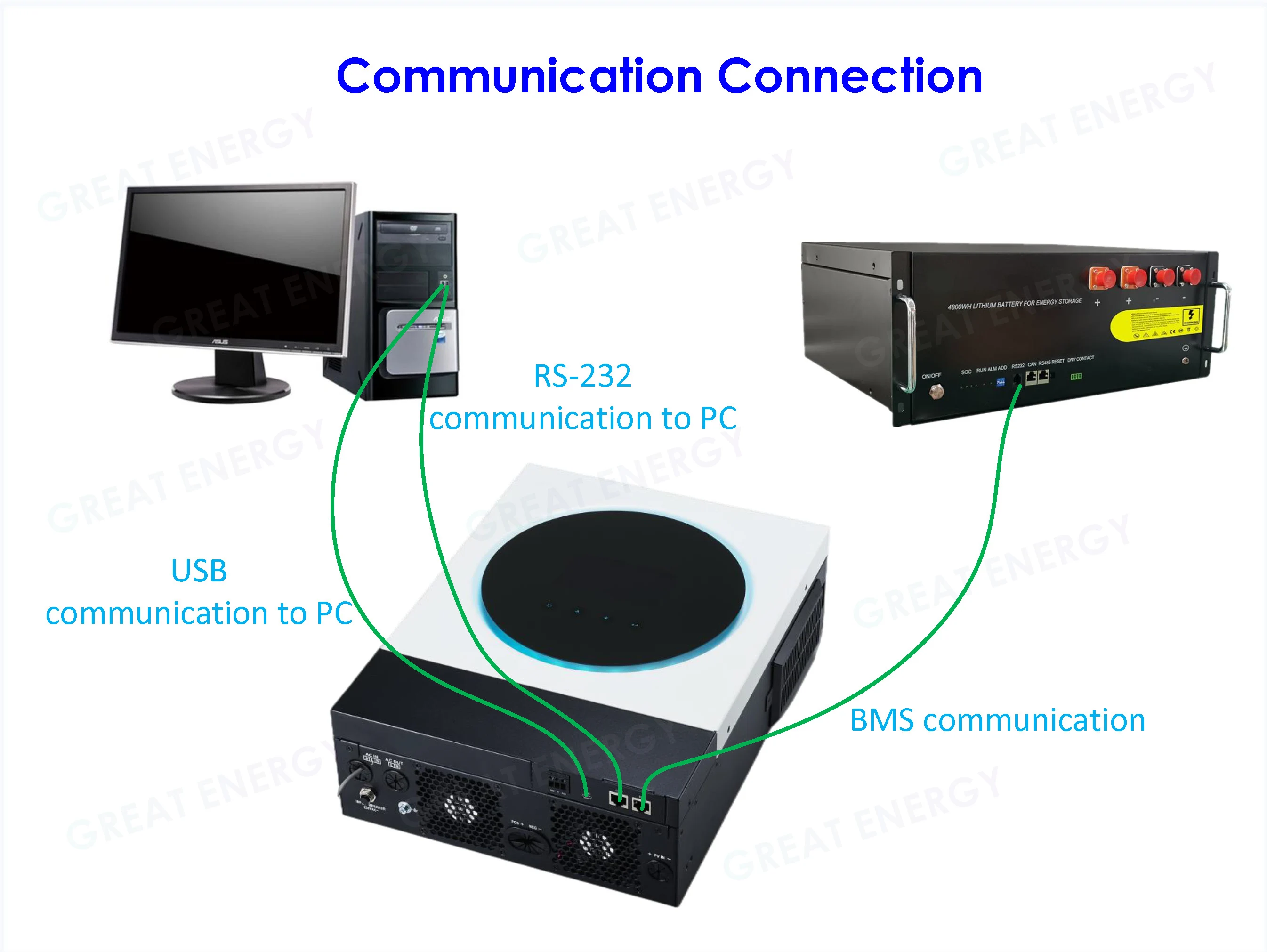

11. USB port as USB communication port and USB function port
12.RS-232 communication port
13.BMS communication port: CAN,RS-485 or RS-232




Monitoring Software on Mobile APP↓




Parameters


MODEL
Axpert VM IV 3600-24
Axpert VM IV 5600-48
Rated Power
3600VA/3600W
5600VA/5600W
INPUT
Voltage
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range
50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)
230 VAC ± 5%
Surge Power
7200VA
11200VA
Efficiency (Peak)
90% ~ 93%
Transfer Time
15 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform
Pure sine wave
BATTERY
Battery Voltage
24 VDC
48 VDC
Floating Charge Voltage
27 VDC
54 VDC
Overcharge Protection
33 VDC
63 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type
MPPT
MPPT
Maximum PV Array Power
4000 W
6000 W
MPPT Range @ Operating Voltage
120 ~ 450 VDC
Maximum PV Array Open Circuit Voltage
500 VDC
Maxmum Solar Charge Current
120 A
120 A
Maximum AC Charge Current
100 A
100 A
Maximum Charge Current
120 A
120 A
PHYSICAL
Dimension, D x W x H (mm)
115 x 300 x 400
Net Weight (kgs)
9
10
Communication Interface
USB/RS232/RS485/WiFi/Dry-contact
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
-10°C to 50°C
Storage Temperature
-15°C to 60°C

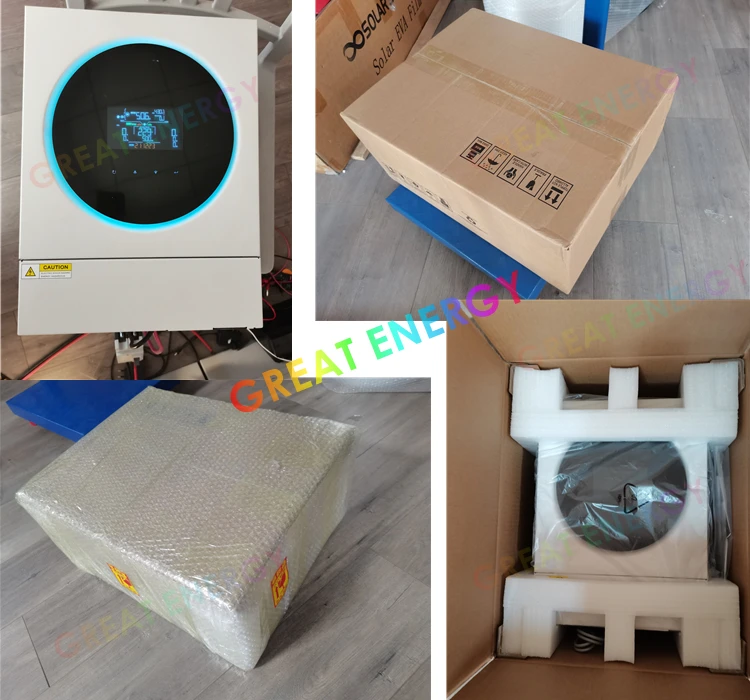

Packing & Delivery




Certifications




Our Company




Related Products






FAQ


Q1. Are you a factory or trading company?
We have two modern factory. We have 120 factory workers and 10 of them are quality control and engineer guys. Welcome to visit our factory.

Q2. Is Your products the lowest price?
GT take the quality into consideration prior. The price is based on the quality level and the order quantity. We have different quality level products for buyers option and discount is available from us when the order is big.

Q3. All products have a warranty?
Yes, we supply 1 to 25 years warranty for our products. You will be satisfied with our quality.

Q4. What is the transportation?
By air, by Sea, by Express, by Train, all are ok to us.

Q5. If the goods in transit damage, how to do?
First of all, we will use stable packing, the possibility of the goods damaged during the shipping is low. If the goods is damaged during shipping and we covered the insurance, we will claim the insurance company and let them cover the loss. If there is no insurance cover, we will claim the shipping company and some times, we cover the loss of the goods for client.

Q6. Can we design packaging?
Yes, but there is with quantity limitation. We will make the packing free for the client, and if less , we can talk, the package is free or little money will be charged.

Q7. Can we add our logo on products?
Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.

Q8. can we customize product?
OEM and ODM are welcomed from GT. We have rich experiences in this area.
